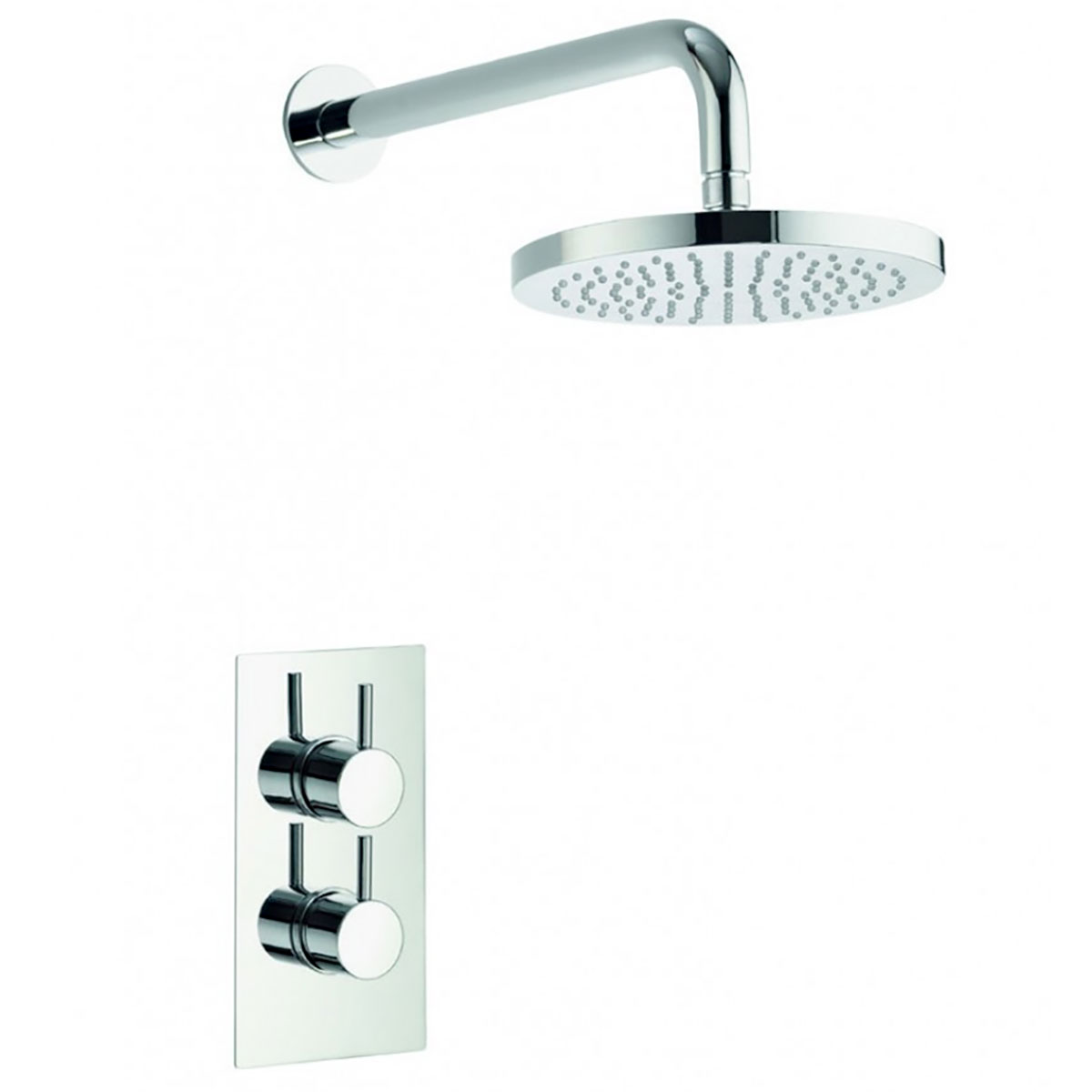

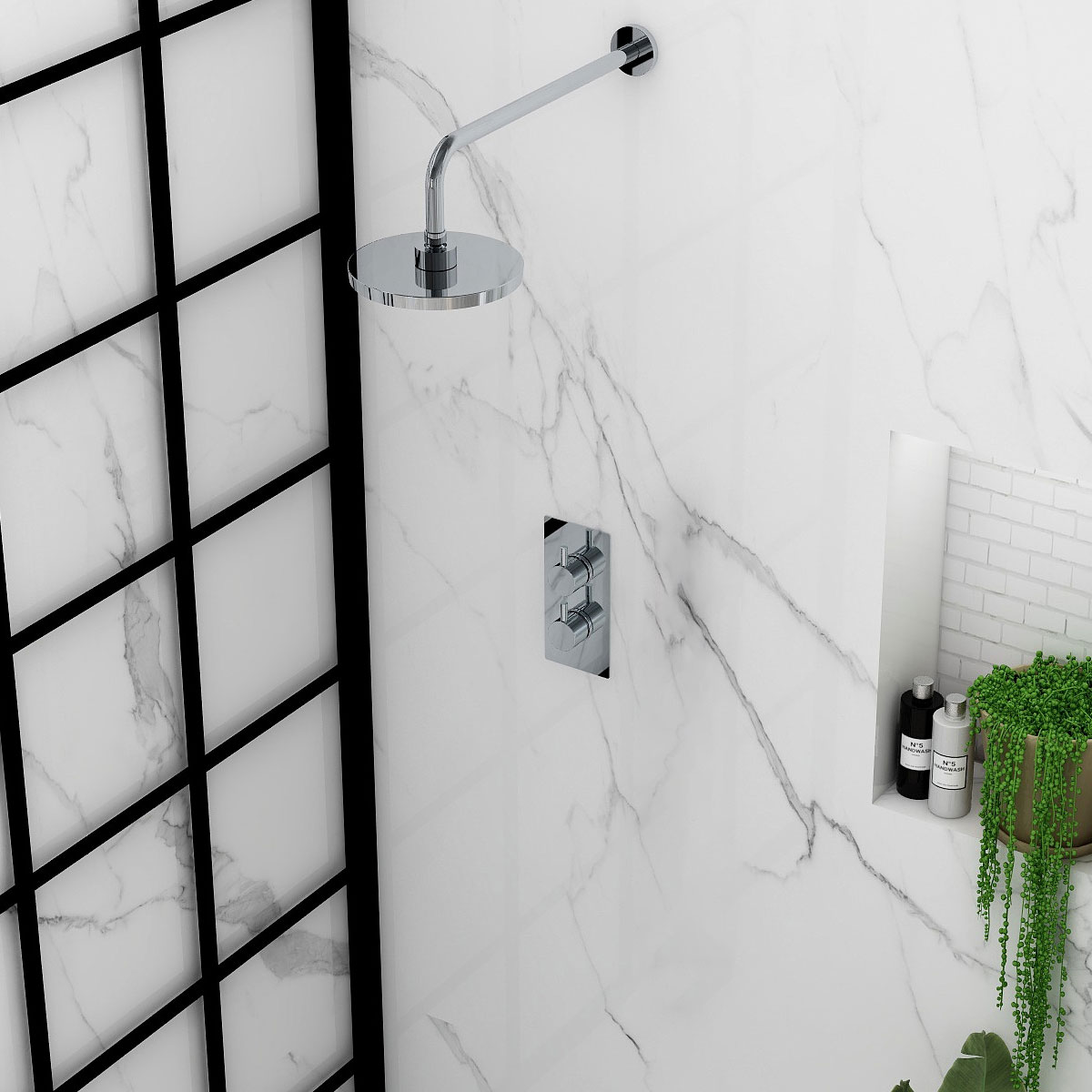

Imex Arco Concealed Thermostatic Valve with Fixed Head - One Outlet and Lever Handle

Imex Arco Concealed Thermostatic Valve with Fixed Head - One Outlet and Lever Handle

No Rating

Imex Arco Concealed Thermostatic Valve with Fixed Head - One Outlet and Lever Handle

Imex Arco Concealed Thermostatic Valve with Fixed Head - One Outlet and Lever Handle

Technical drawing QS-V114095 / ARBVPK002

QS-V114095 small Image 1

QS-V114095 small Image 2

QS-V114095 small Image 3

£307.20

SKU: QS-V114095

Key Features

✔Manufacturing Code: ARCVPK002
✔Product Consist of Concealed Valve and Fixed Showerhead
✔It Comes in a Chrome Finish
✔10 Years Guarantee from the Manufacturer

QTY

Shipping: £39.99

Stock Availability:

5 Working Days Approx.

Imex Arco Details

MFC: ARBVPK002

Imex Arco Concealed Thermostatic Valve with Fixed Head - One Outlet and Lever Handle.

Valve
Back Plate dimensions: Width 100 x Height 210mm
WRAS Approved
Insertion depth 80mm min / 100mm max
Brass valve dimensions – Depth 140mm (front of handles to rear of body) x Height 176mm
Inlet and outlet connections: 1/2 Inch female threads
Advanced Anti-Scald technology
Fully serviceable via front access
Easy access, easy clean cartridge
Showerhead
Fixed Showerhead
Size: Ø200mm
Shape: Round
Material: ABS
Inlet Connection: G 1/2 Inch
Suitable for Medium Pressure Water System
Requires 0.5 bar Operating water pressure
Refer Technical Drawing for more technical details

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Weight in kg
: 4
⤷ Warranty/Guarantee
: 10 Years
⤷ Material
: ABS | BRASS
⤷ Theme
: Modern
⤷ Valve Included
: Yes
⤷ Inlet Centres
: 150
⤷ Inlet Connections
: G1/2 Inch
⤷ Minimum Operating Pressure (Bar)
: 0.5
⤷ Configuration
: ShowerHead | Shower Arm | Concealed Valve
⤷ Temperature Control
: Thermostatic

⤷ Backplate Width
: 100
⤷ Backplate Height
: 200
⤷ Anti-Scald
: Yes
⤷ Compliance/Approvals/Standard
: WRAS
⤷ Product Type
: Shower Set
⤷ Showerhead Type
: Fixed
⤷ Showerhead Finish
: Chrome
⤷ Auto shutdown if hot or cold supplies fail
: Yes
⤷ Shower Head Included
: Yes
⤷ Shower Head Size
: Ø200

Additional Info & Downloads

Download the Customer Datasheet Pdf File

Imex Arco Concealed Thermostatic Valve with Fixed Head - One Outlet and Lever Handle

£307.20

Stock Availablity: 5 Working Days Approx
