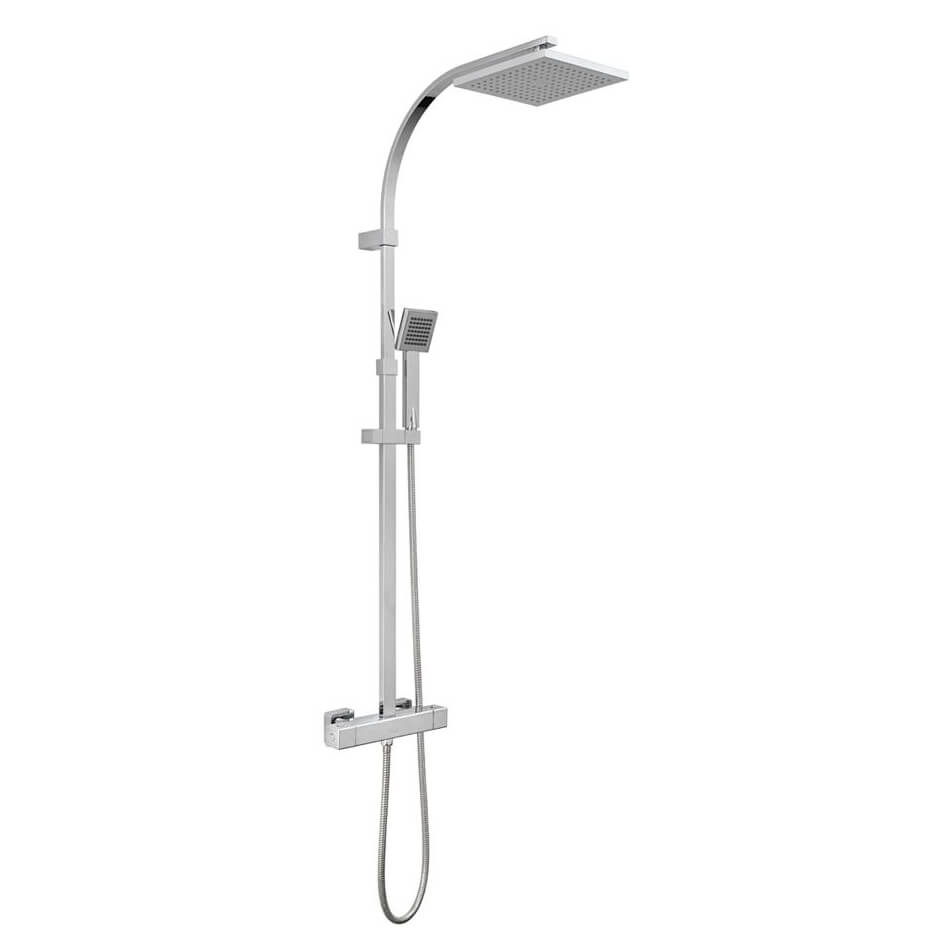

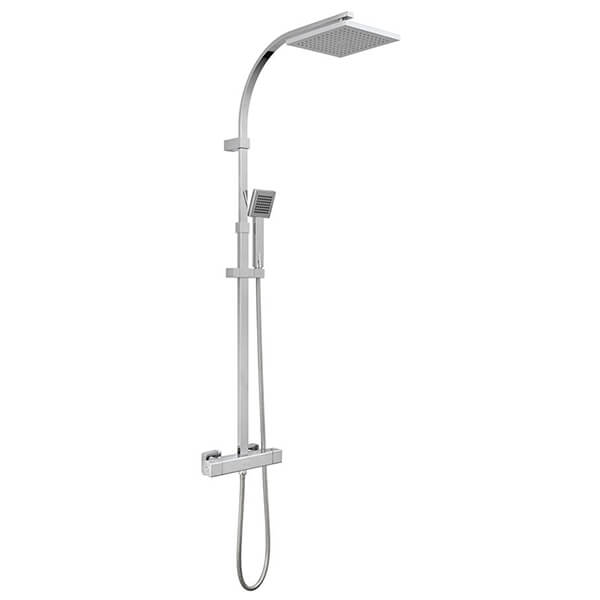

Vado Axces Bokx Exposed Square Adjustable Thermostatic Chrome Shower Column

Vado Axces Bokx Details

MFC: AX-BOK-149T-RRK/B-CP

Vado Axces Bokx Exposed Contemporary Square Adjustable Thermostatic Chrome Shower Column

Manufacturing Code of this Product: AX-BOK-149T-RRK/B-CP
It Comes in a Chrome Finish
Valve Type: Exposed
Handles: 2 Handles
Outlet: 2 Outlets
Mounting: Wall Mounted
Shower Type: Shower Column
Size of Valve [mm]: 282 x 84 x 60mm [Width x Depth x Height]
Size of Valve [cm]: 28.2 x 8.4 x 6cm [Width x Depth x Height]
Adjustable Fixing For Easy Retro Fit
Size of Shower Head [mm]: 200 x 200mm [Width x Depth]
Size of Shower Head [cm]: 20 x 20cm [Width x Depth]
Inlet Centre of Valve: 150mm [15cm]
Size of Handset [mm]: 80 x 15 x 226mm [Width x Depth x Height]
Size of Handset [cm]: 8 x 1.5 x 22.6cm [Width x Depth x Height]
Offset Connectors and Easy-Fit Brackets Included
Installation Tolerances: 200mm Height Adjustment Tolerance, Min 950mm - Max 1150mm
Plumbing System Suitability: Pumped System, Combination Boiler, Pressurised System
Suitable for High Water Pressure Systems
Works On a Minimum 1.0 Bar to a Maximum 5.0 Bar Water Pressure System

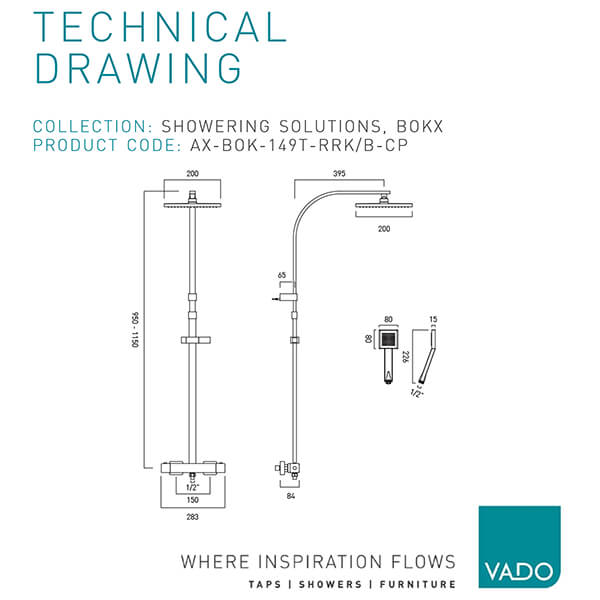

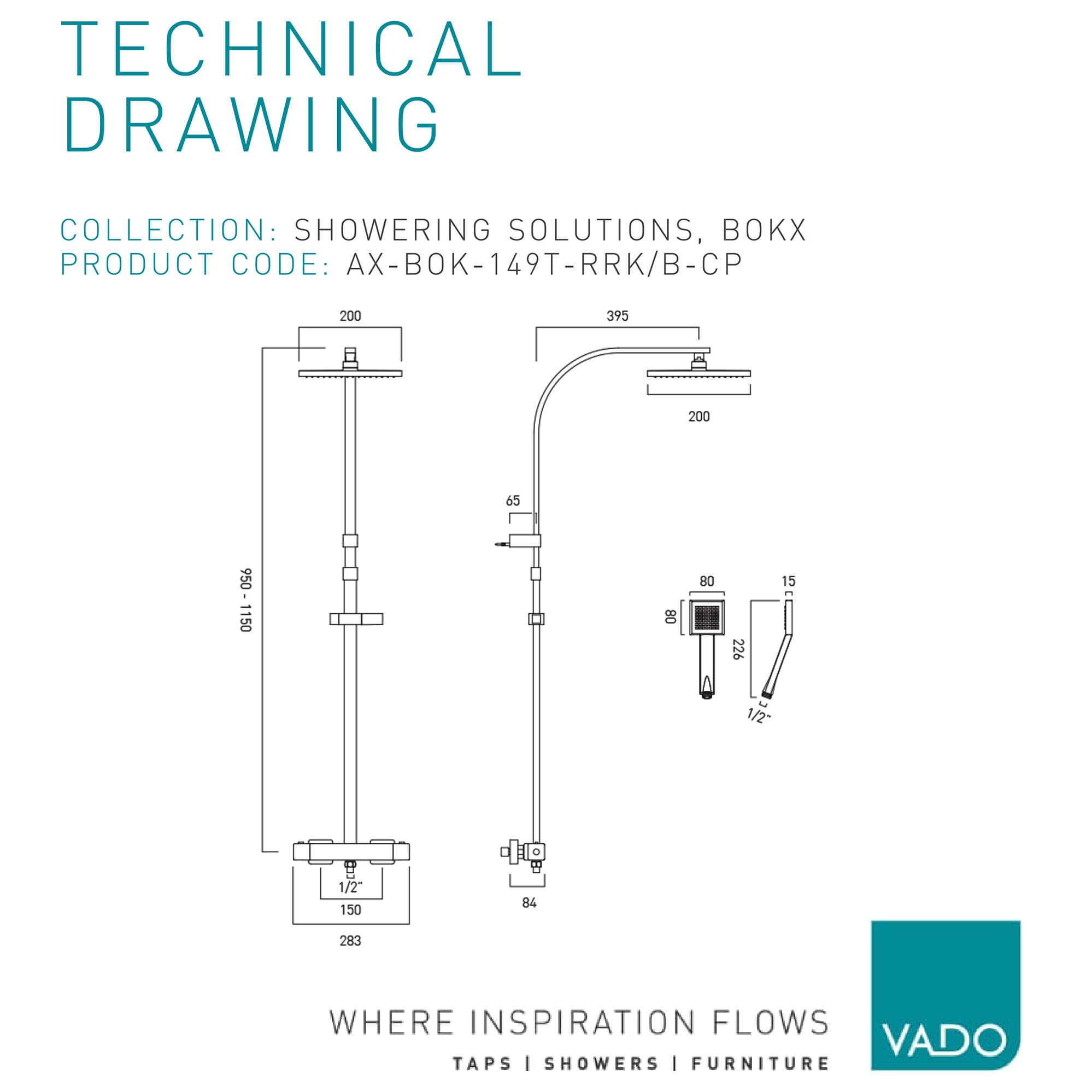

Refer to the Technical Drawing for Size Details

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 10 Years
⤷ Theme
: Modern
⤷ Inlet Centres
: 150
⤷ Minimum Operating Pressure (Bar)
: 1.0
⤷ Temperature Control
: Thermostatic
⤷ Diverter Included
: Yes
⤷ Showerhead Finish
: Chrome

⤷ Riser Rail & Kit Finish
: Chrome
⤷ Handset Included
: Yes
⤷ Shower Head Included
: Yes
⤷ Shower Head Size
: 200
⤷ Rail Length
: 950-1150
⤷ Adjustable Height
: Yes
⤷ Hose Retainer Included
: Yes

Vado Axces Bokx Exposed Contemporary Square Adjustable Thermostatic Chrome Shower Column

£187.00

RRP: ~~£340.00~~

Stock Availablity: 3-4 Working Days Approx

QS Supplies

4 Features Included In This Product Explained

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

Diverter

A diverter, specifically in bath-shower combos, redirects the water flow from the bathtub spout to the showerhead. You can activate it using the nozzle in the bath shower mixer tap.
Read more...

2-Outlet

The dual outlet Valve comes with a connection for two outlets, so you can use two different fixtures one at a time, such as using the showerhead and shower handset. These Dual outlet shower valves come in various styles and can be used with varying shower fittings. Some come with diverters for switching between the two outlets.
