Thermostatic Mixer Showers

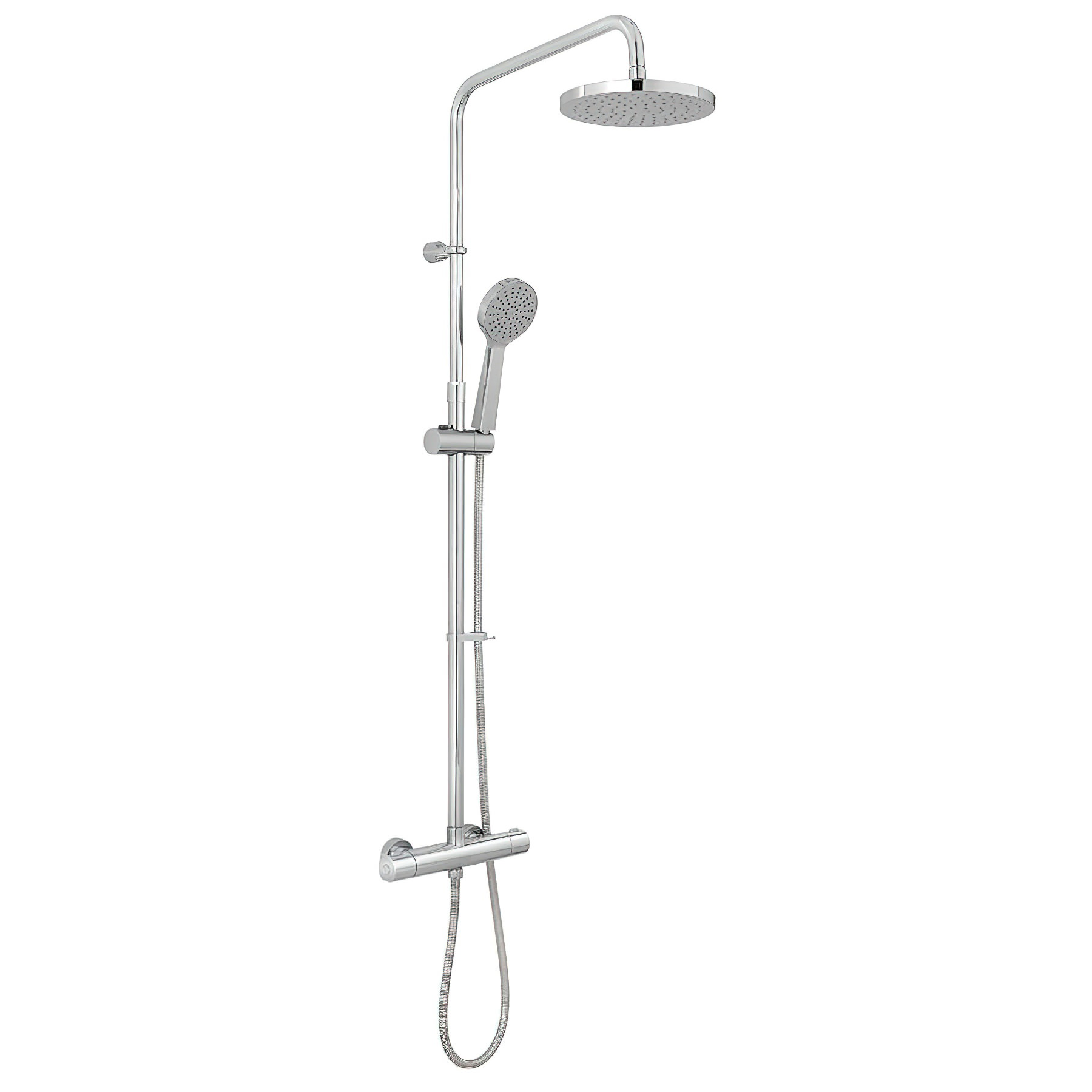

Vado Sirkel Exposed Thermostatic Chrome Shower Column with Easy Fit Bracket

Vado Sirkel Exposed Thermostatic Chrome Shower Column with Easy Fit Bracket

No Rating

Vado Sirkel Exposed Thermostatic Chrome Shower Column with Easy Fit Bracket

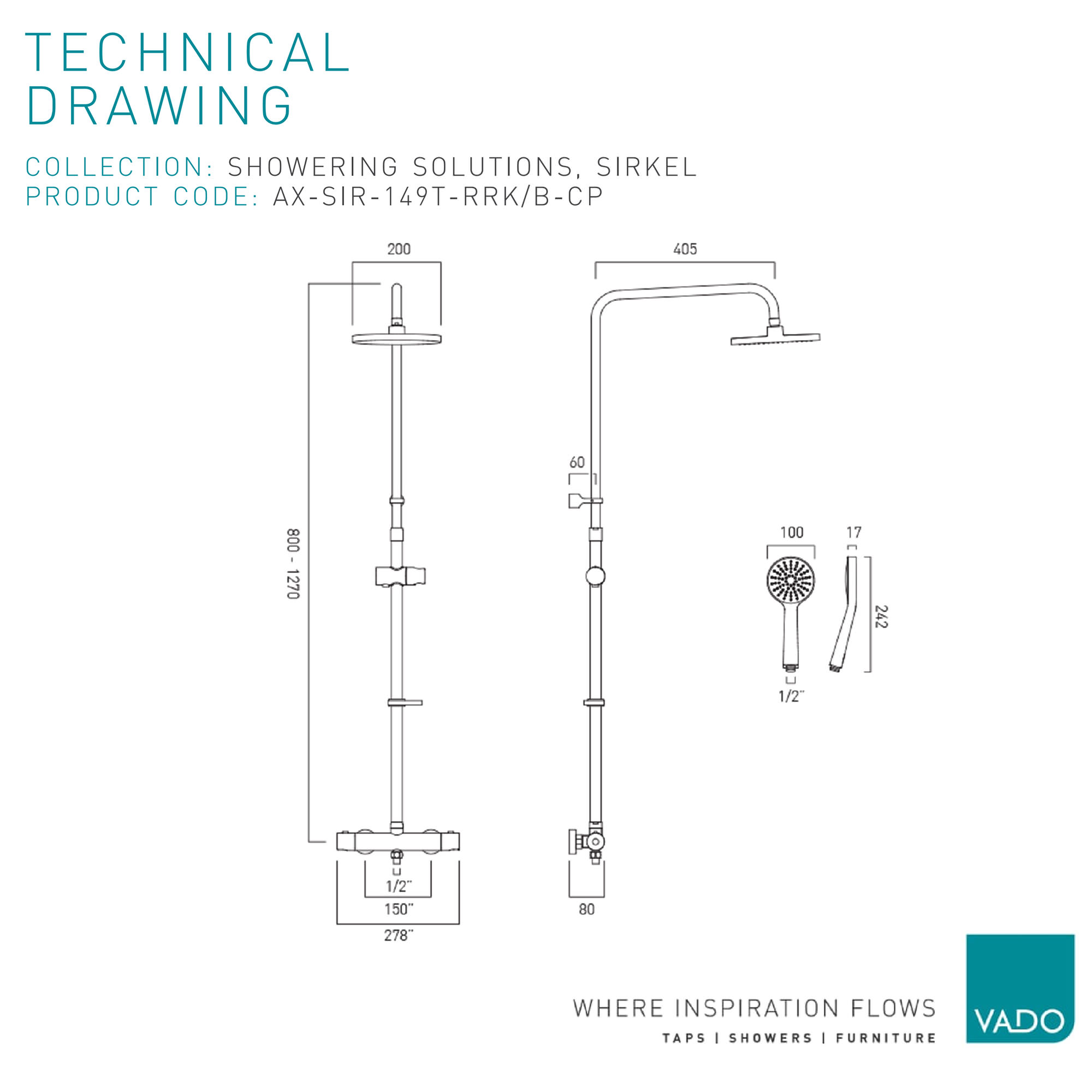

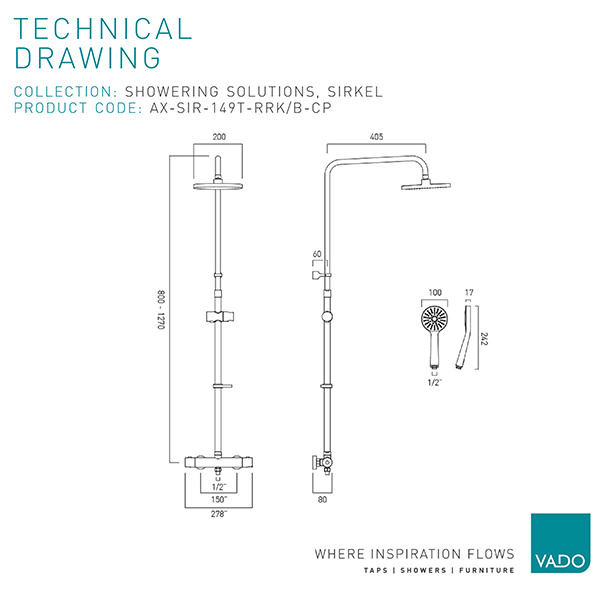

Technical drawing QS-V115527 / AX-SIR-149T-RRK/B-CP

QS-V115527 small Image 1

QS-V115527 small Image 2

£178.75

SKU: QS-V115527

Key Features

✔Comes in a Chrome Finish
✔Includes: Thermostatic Valve, Shower Kit, Handset, Hose, and Head
✔Suitable for High Water Pressure
✔10-Year Guarantee from the Manufacturer

QTY

Shipping: £7.95

Stock Availability:

3-4 Working Days Approx.

Vado Sirkel Details

MFC: AX-SIR-149T-RRK/B-CP

Vado Sirkel Exposed Thermostatic Chrome Shower Column with Easy Fit Bracket

Wall-Mounted Installation
Minimum Operating Pressure Required is 1.0 Bar
Maximum Operating Pressure Required is 5.0 Bar
Valve Type: Exposed
Handles: 2-Handle
Thermostatic Cartridge S-701-31S
Diverter Cartridge SG-801-25/2SX
Installation Tolerances: 470mm Height Adjustment Tolerance Minimum 800mm - Maximum 1270mm
Adjustable Fixing for Easy Retro Fit
Supplied with Easy-Fit Brackets
Comes with Integrated Diverter
Thermostatic Technology
Valve Width: 275mm [27.8cm]
Handset Diameter: 100mm [10cm]
Shower Head Diameter: 200mm [20cm]
Please Refer to the Technical Drawing For Size Details
Download the Installation and Care Instruction PDF Files from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 10 Years
⤷ Theme
: Modern
⤷ Valve Included
: Yes
⤷ Inlet Centres
: 150
⤷ Minimum Operating Pressure (Bar)
: 1.0

⤷ Hose Included
: Yes
⤷ Configuration
: Complete Shower Set
⤷ Temperature Control
: Thermostatic
⤷ Diverter Included
: Yes
⤷ Handset Included
: Yes
⤷ Shower Head Included
: Yes

Additional Info & Downloads

Download the Installation Instruction Pdf File

Vado Sirkel Exposed Thermostatic Chrome Shower Column with Easy Fit Bracket

£178.75

Stock Availablity: 3-4 Working Days Approx

QS Supplies

2 Features Included In This Product Explained

Thermostatic Control

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

High Water Pressure

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.
