Vado Sirkel Exposed Thermostatic Shower Package with Handset, AX-SIR-SFSP-CP

Vado Sirkel Details

MFC: AX-SIR-SFSP-CP

Vado Sirkel Exposed Thermostatic Shower Package with Handset

Key Features

✔It Comes in a Chrome Finish
✔Wall-Mounted Installation
✔Choice of Variations: With a Single Head Function and a Multi-Function Handset
✔10-Year Guarantee Against any Manufacturing Defects

Contemporary Design
Plumbing System Suitability: Pumped, Combination Boiler, Pressurised System
Refer to the Technical Diagram for Complete Technical Details
Pack Included:
Thermostatic Exposed Bar Shower Valve - AX-SIR-149T-CP
Multi-Function Slide Rail Shower Kit - AX-SIR-MFSRK-DB-CP
Easy-Fit Mounting Brackets - AX-SH-049EFB-RO-CP
Details of Bar Shower Valve:
Thermostatic Bar Shower Valve
1 Outlet
Thermostatic Bar Shower Valve
Suitable for High Water Pressure
Valve Type: Exposed
Handles: 2-Handle
Minimum Operating Pressure: 1.0 Bar [Medium Pressure]
Maximum Operating Pressure: 5.0 Bar [High Pressure]
Includes Flow Cartridge - H-202-RTC
Thermostatic Cartridge - S-701-31S
Connections/Fittings: 1/2" x 3/4" x 50mm Eccentrics
Width: 278mm [27.8cm]
Height: 55mm [5.5cm]
Projection from Wall: 89mm [8.9cm]
Inlet Centres: 150mm
Details of Slide Rail Shower Kit with Handset:
3 Function Handset
Push Button Control Slider
Adjustable Fixing for Easy Retro Fit
Comes with Hose Retainer
Size of Slide Rail Kit: 65 x 600mm [Depth x Height]
Size of Handset: 110 x 242mm [Width x Height]
Hose: 1500mm [150cm]
Suitable for High Water Pressure System
Requires a Minimum of 1.0 Bar or Above for a Multi-Function Handset

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 10-Year
⤷ Theme
: Modern
⤷ Valve Included
: Yes
⤷ Inlet Centres
: 150
⤷ Minimum Operating Pressure (Bar)
: 1.0
⤷ Hose Included
: Yes
⤷ Hose Length
: 1500

⤷ Temperature Control
: Thermostatic
⤷ Product Type
: Thermostatic Shower
⤷ Riser Rail & Kit Finish
: Chrome
⤷ Handset Included
: Yes
⤷ Spray Patterns (Shower Handset)
: 1, 3
⤷ Rail Length
: 600
⤷ Hose Retainer Included
: Yes

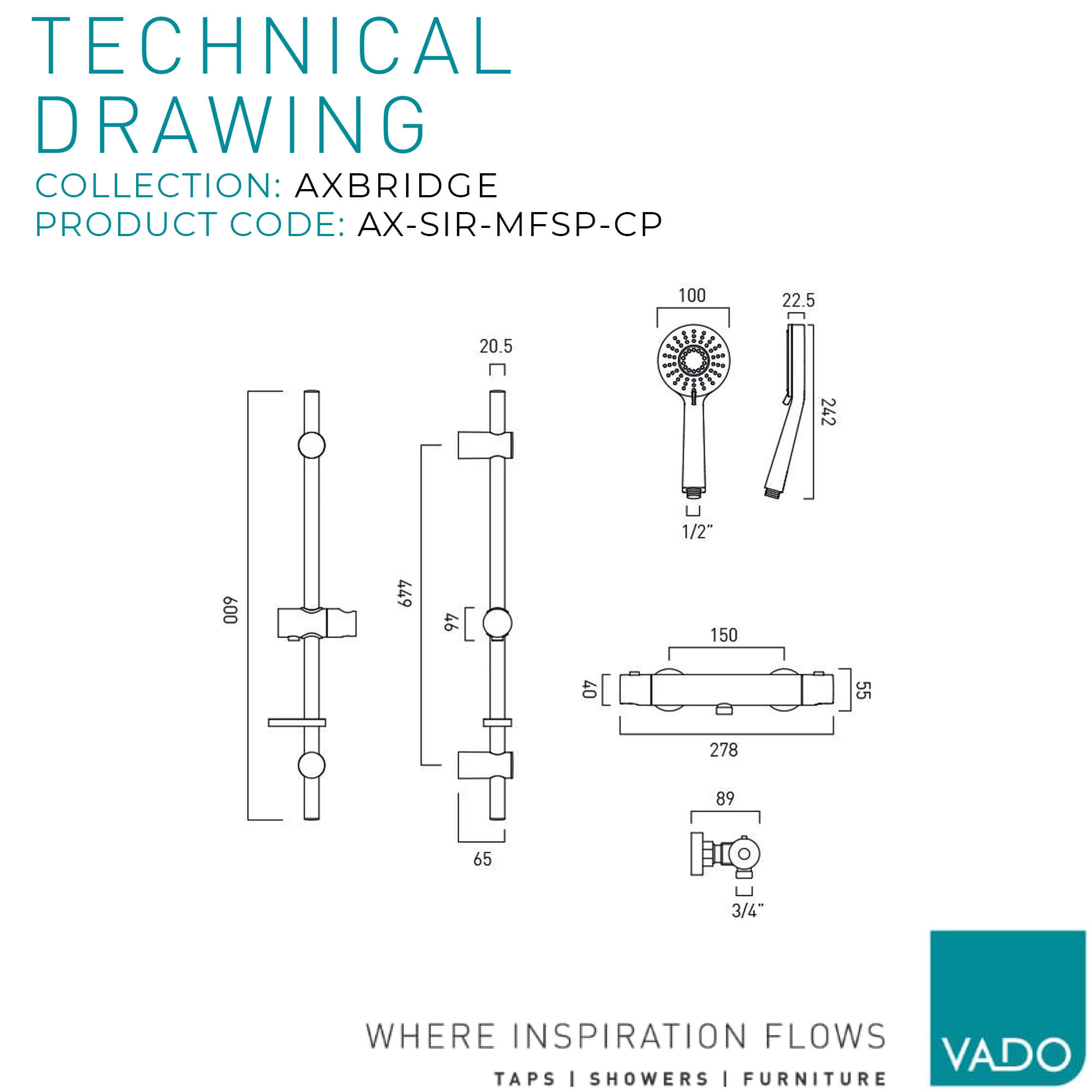

Technical Images

Vado Sirkel Exposed Thermostatic Shower Package with Handset

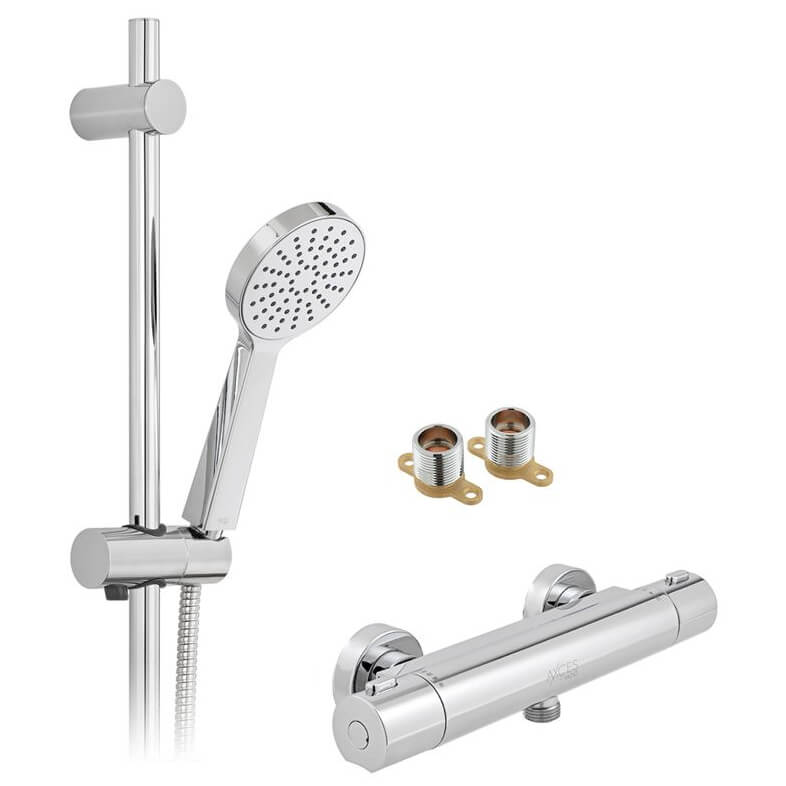

Single Function

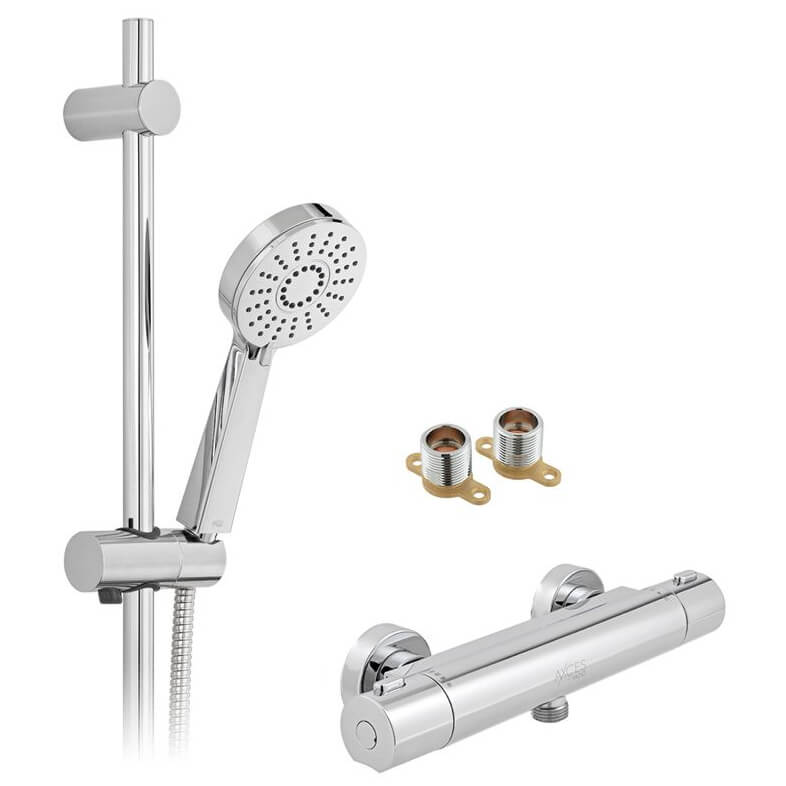

Multi Function

£99.00

RRP: ~~£180.00~~

STOCK AVAILABLITY: 3-4 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

1-Outlet

One outlet in a shower system means that hot and cold water flows from a single opening.

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...
