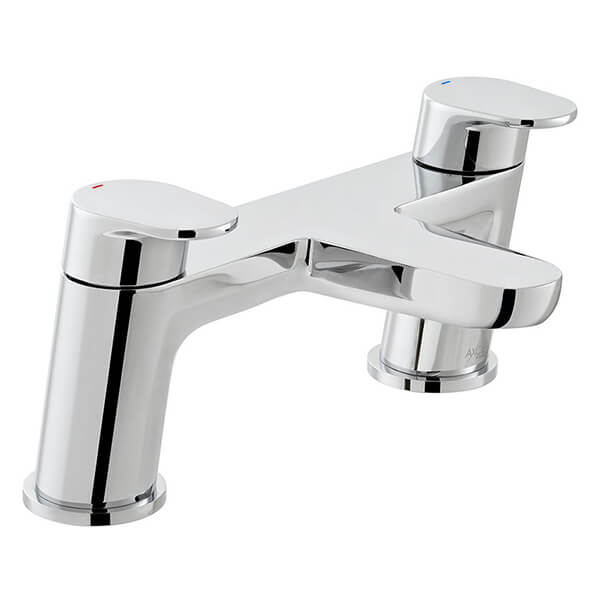

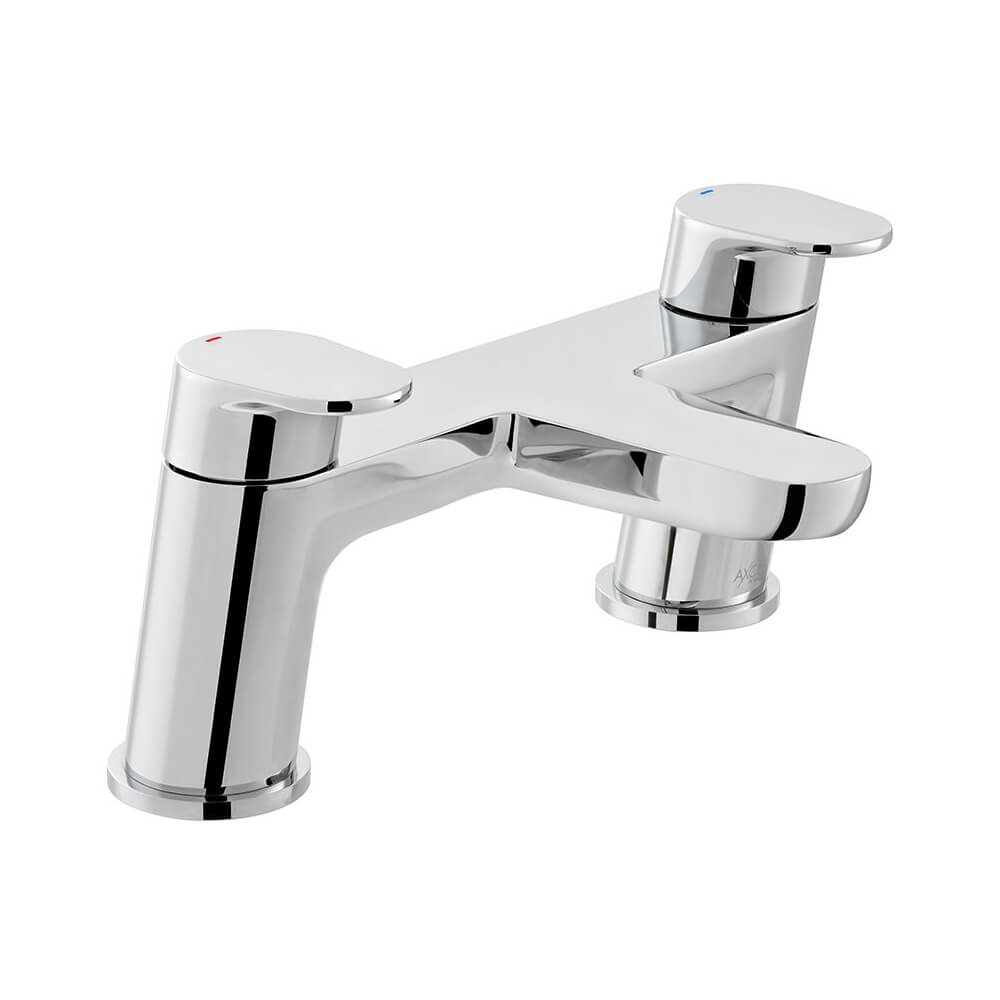

Vado Axces Ava Contemporary Chrome Bridge Bath Mixer Tap with Short Lever Handles

Vado Axces Ava Details

MFC: AX-AVA-237-CP

Vado Axces Ava Contemporary Chrome Bridge Bath Mixer Tap with Short Lever Handles - Deck Mounted

Key Features

✔Manufactured Using Brass Material
✔Fitted with a Water Flow Straightener
✔ 10-Year Guarantee from the Manufacturer Against any Manufacturing Defect

Choice of Variants: Without Kit or With Kit
It Comes in a Chrome Finish
Handles: 2 Handles
Holes: 2 Holes
Inlet Centre: 180mm [18cm]
Mounting: Deck Mounted
Suitable for Low and High Water Pressure Systems
Works On a Minimum 0.2 Bar to a Maximum 5.0 Bar Water Pressure System
Flow Rate: Bath Fill at 3 Bar Water Pressure Allows for 57.1 l/m, at 1 Bar Allows for 32.9 l/m
Connections/Fittings: British Standard 180mm Fixing Centres, Allowing Easy Retrofit. Water Supply Requires a 3/4 Inch Connection.
Plumbing System Suitability: Gravity System, Pumped System, Combination Boiler, Pressurised System

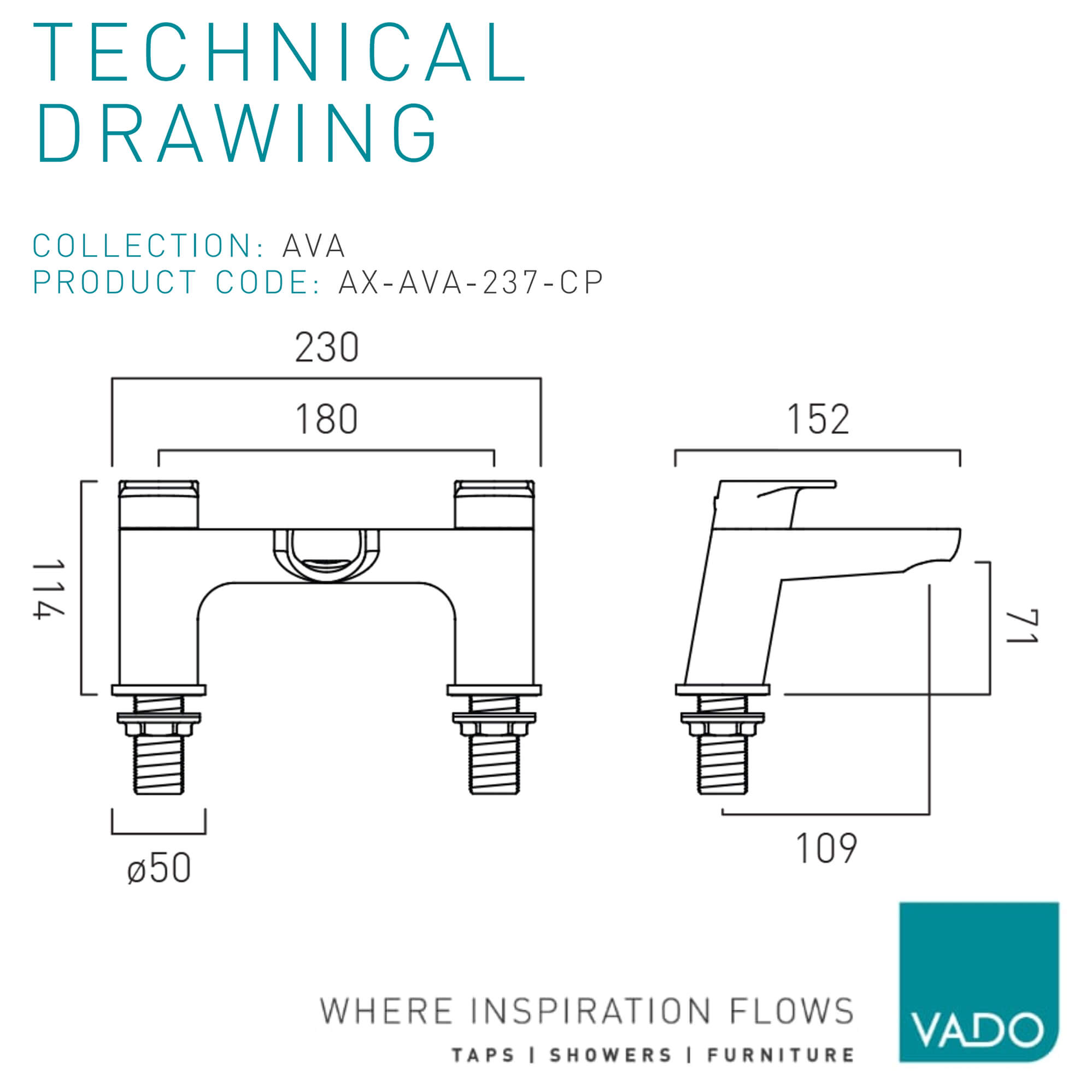

Refer to the Technical Drawing for Size Details
Details of the Tap Without Kit:
Size [mm]: 230 x 152 x 114mm [Width x Depth x Height]
Size [cm]: 23 x 15.2 x 11.4cm [Width x Depth x Height]
Base to Spout: 71mm [7.1cm]
Centre of the Inlet to Centre of the Outlet: 109mm [10.9cm]
Deck Mount drill Hole Diameter: 28-40mm
Details of the Tap With Kit:

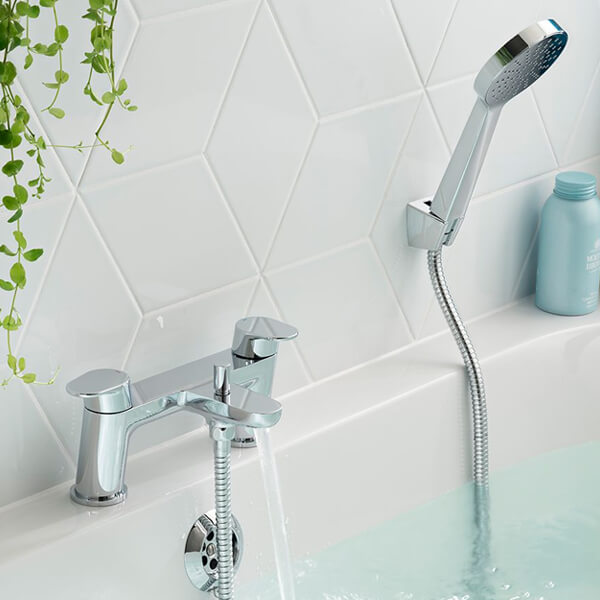

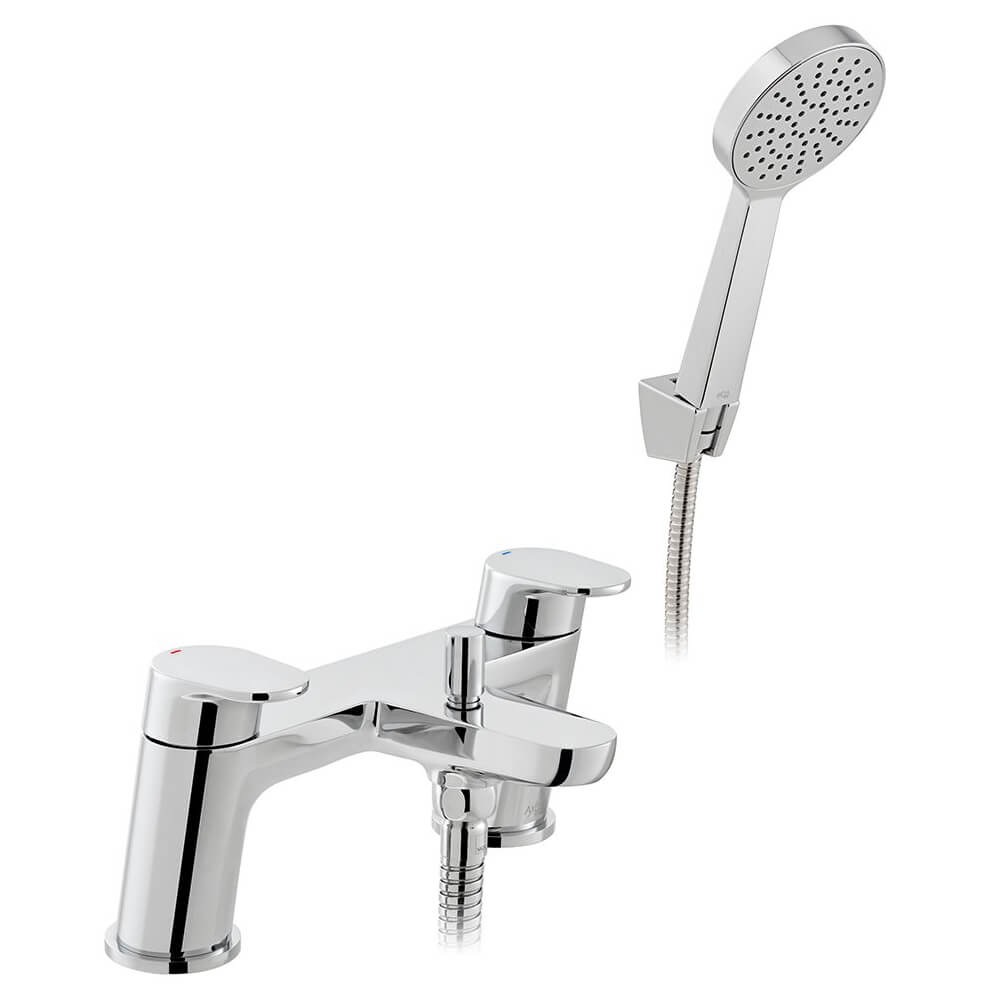

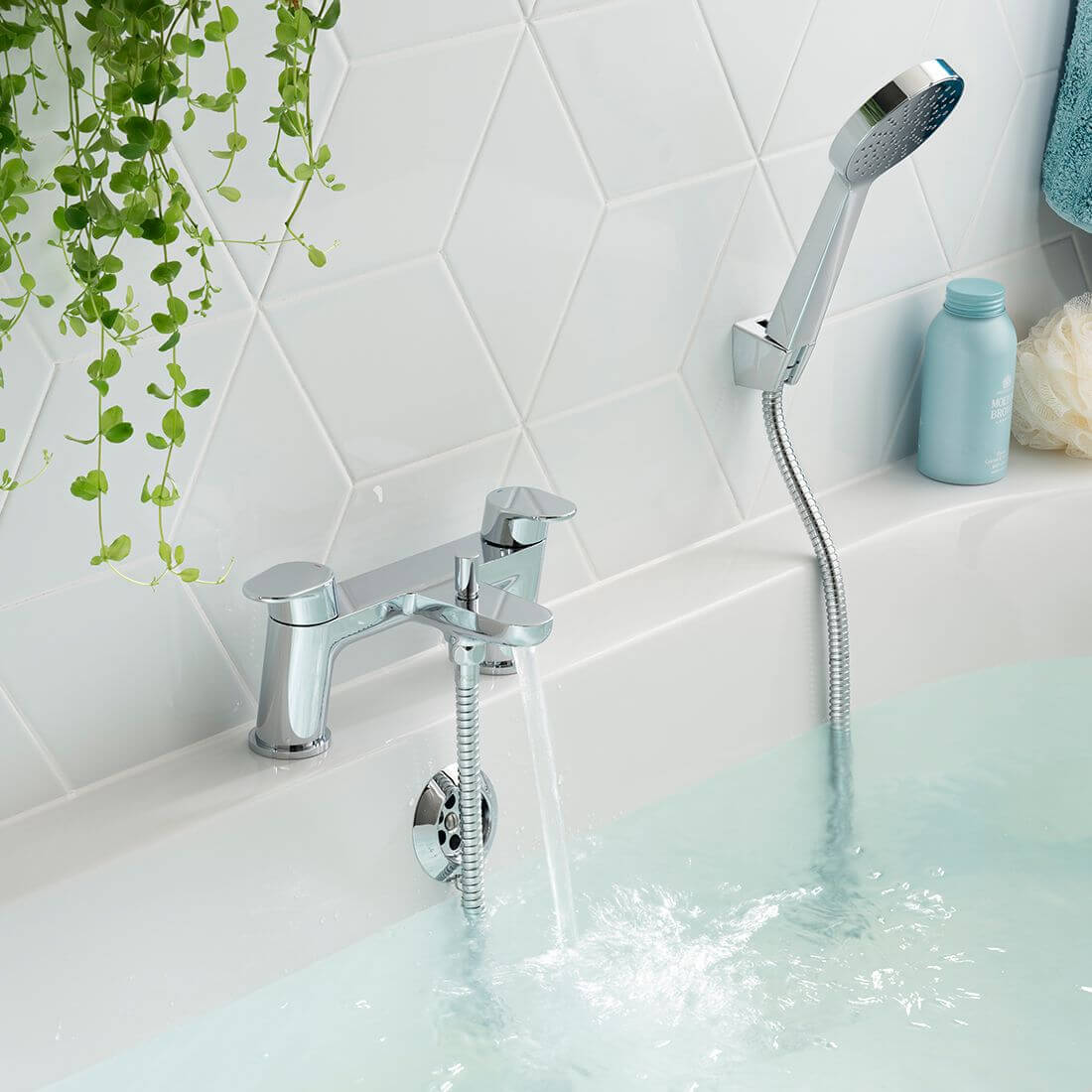

Comes with Shower Kit
Incorporates with an Integrated Diverter
Size [mm]: 230 x 152 x 114mm [Width x Depth x Height]
Size [cm]: 23 x 15.2 x 11.4cm [Width x Depth x Height]
Base to Spout: 71mm [7.1cm]
Centre of the Inlet to Centre of the Outlet: 106mm [10.6cm]
Deck Mount drill Hole Diameter: 28-40mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Axces
⤷ Water Activation
: By Lifting/Tilting
⤷ Tap Body Shape
: Round
⤷ Handle Position
: Upwards
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 10 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 2

⤷ Valve/Cartridge Type
: Ceramic Cartridge
⤷ Base To Spout
: 71
⤷ Spout Reach
: 109
⤷ Inlet Centres
: 180
⤷ Overall Height
: 114
⤷ Width
: 230
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Handle Style
: Lever
⤷ Barcode
: 5052120289181
⤷ Product Type
: Bath Mixer Tap

Additional Info & Downloads

This item can also be found in:

Vado Axces Ava Contemporary Chrome Bridge Bath Mixer Tap with Short Lever Handles - Deck Mounted

£132.00

RRP: ~~£220.00~~

STOCK AVAILABLITY: 3-4 Working Days Approx

QS Supplies

4 Features Included In This Product Explained

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Flow Straightener

A flow straightener, also called Honeycomb, is a fitting which directs the flow of water from the outlet in a way as to straighten the stream. They are generally not flow-regulated and differ in design from the pressure-compensating aerator.

Optional: Diverter In Showers

A diverter, specifically in bath-shower combos, redirects the water flow from the bathtub spout to the showerhead. You can activate it using the nozzle in the bath shower mixer tap.
