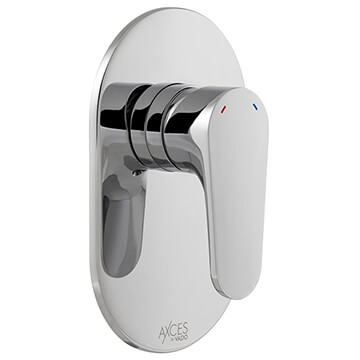

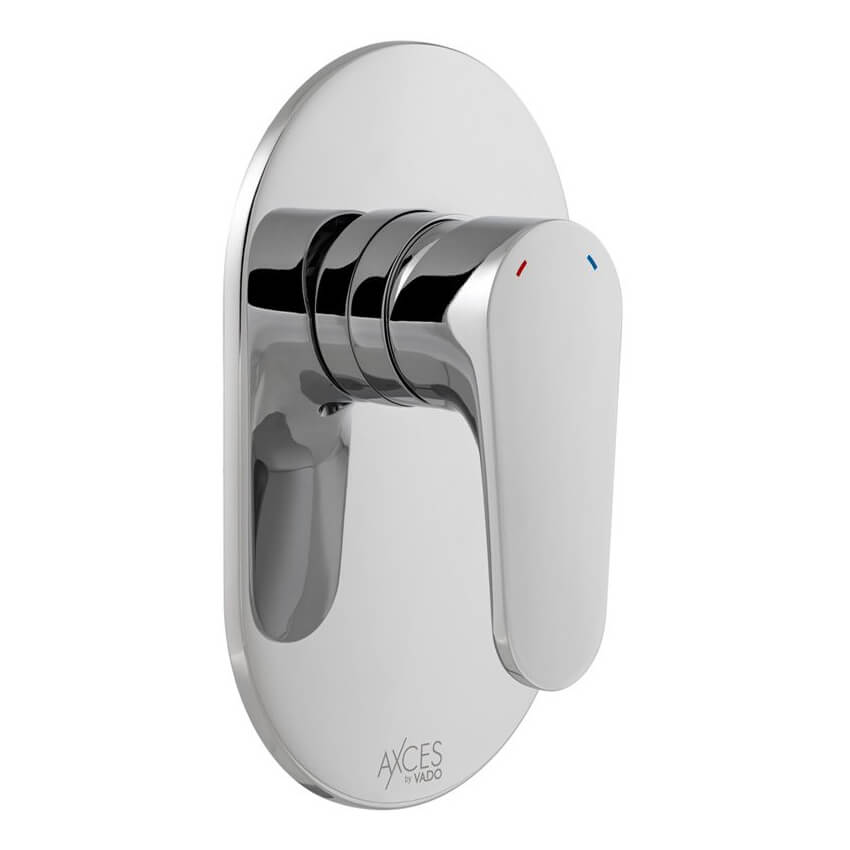

Vado Axces Ava Concealed Manual Chrome Shower Valve, 1 Control, Oval Trim

Vado Axces Ava Details

MFC: AX-AVA-145A-CP

Vado Axces Ava Concealed Manual Chrome Shower Valve with 1 Control - Oval Trim - Flat Handle

Key Features

✔Manufactured Using Brass Material
✔ 10-Year Guarantee from the Manufacturer Against any Manufacturing Defect

Choice of Variants: Without or With Diverter
It Comes in a Chrome Finish
Handles: 1 Handle
Oval Shape Back-Plate
Mounting: Wall Mounted
Ceramic Cartridge: W-001-N35
Suitable for Low and High Water Pressure Systems
Minimum Operating Pressure: 0.2 Bar LP [Shower]/1.0 Bar MP [Bath]
Maximum Operating Pressure: 5.0 Bar HP
Plumbing System Suitability: Gravity System, Pumped System, Combination Boiler, Pressurised System
Connections/Fittings: 2 x 1/2 Inch Female Inlets 2 x 1/2 Inch Female Outlets (One is blanked Off)

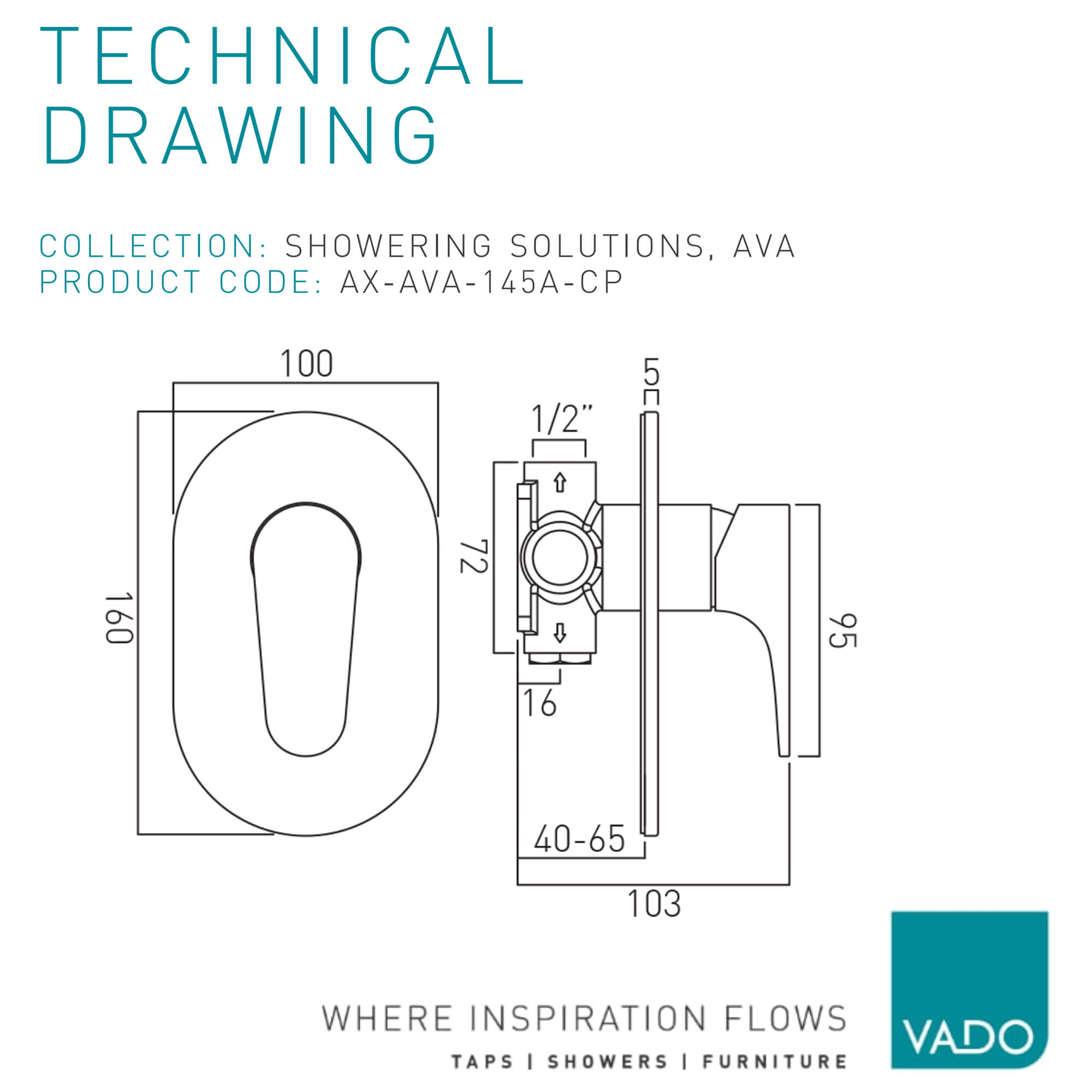

Refer to the Technical Drawing for Size Details
Details of Shower Valve Without Diverter:
Concealed Shower Valve Only
Outlet: 1 Outlet
Size of Backplate [mm]: 100 x 160mm [Width x Height]
Size of Backplate [cm]: 10 x 16cm [Width x Height]
Installation Tolerances: Min-Max Wall Mount 40-65mm

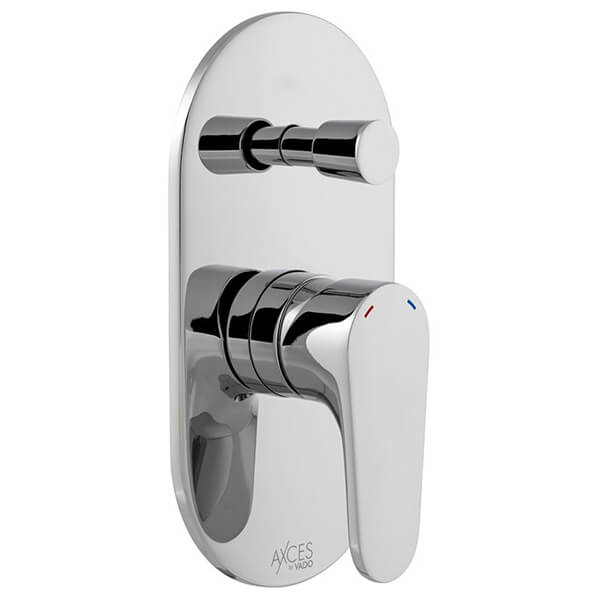

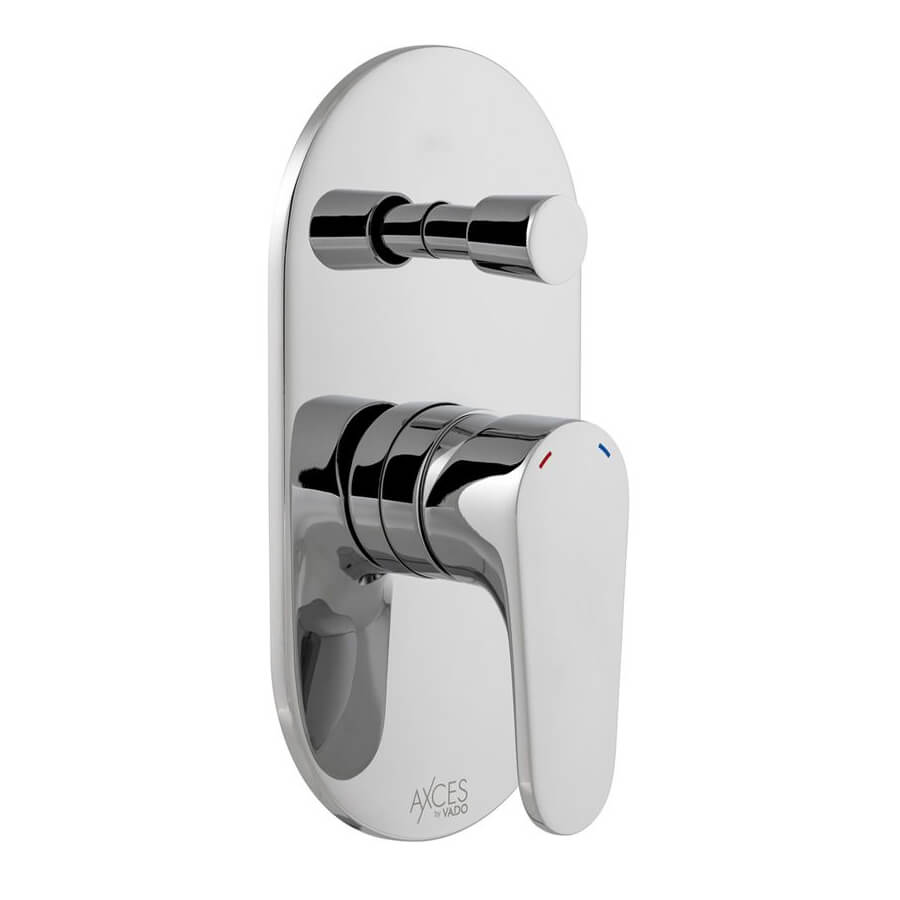

Details of Shower Valve with Diverter:
Concealed Shower Valve with Integrated Diverter
Outlet: 2 Outlets
Size of Backplate [mm]: 100 x 185mm [Width x Height]
Size of Backplate [cm]: 10 x 18.5cm [Width x Height]
Installation Tolerances: Min-Max Wall Mount 50-70mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Shape
: Oval
⤷ Warranty/Guarantee
: 10 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ Overall Height
: 160
⤷ Min-Max Wall Mount
: 40-65
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Handle Style
: Lever
⤷ Temperature Control
: Manual

⤷ Backplate Width
: 100
⤷ Backplate Height
: 160
⤷ Number of Handles
: 1
⤷ Number of Outlet
: 1, 2
⤷ Diverter Included
: Optional
⤷ Orientation
: Portrait
⤷ Plumbing Option
: Concealed
⤷ Maximum Operating Pressure (Bar)
: 5.0
⤷ Trim only
: Yes
⤷ Cartridge Type
: Ceramic

Vado Axces Ava Concealed Manual Chrome Shower Valve with 1 Control - Oval Trim - Flat Handle

£116.00

RRP: ~~£145.00~~

STOCK AVAILABLITY: 3-4 Working Days Approx

QS Supplies

5 Features Included In This Product Explained

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

1-Outlet

One outlet in a shower system means that hot and cold water flows from a single opening.

Diverter

A diverter, specifically in bath-shower combos, redirects the water flow from the bathtub spout to the showerhead. You can activate it using the nozzle in the bath shower mixer tap.
Read more...

Optional - Dual Outlet Valve - 2-Outlet

The dual outlet Valve comes with a connection for two outlets, so you can use two different fixtures one at a time, such as using the showerhead and shower handset. These Dual outlet shower valves come in various styles and can be used with varying shower fittings. Some come with diverters for switching between the two outlets.
