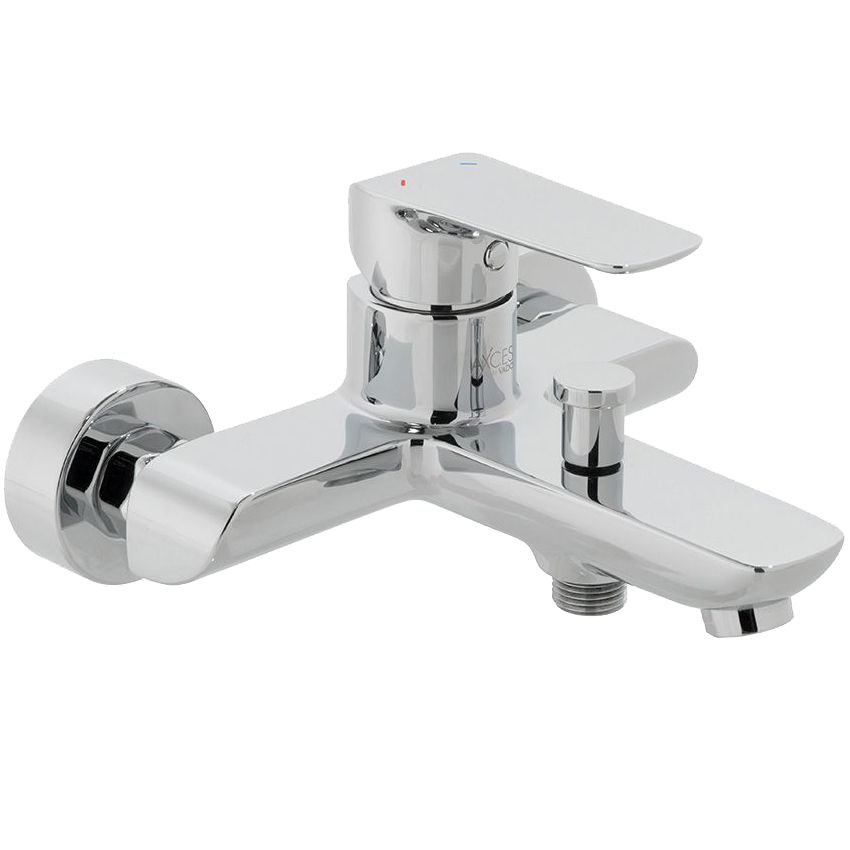

Vado Axces Vala Contemporary Chrome Bath Shower Mixer Tap, Diverter, Flat Handle

Vado Axces Vala Details

MFC: AX-VAL-123-CP

Vado Axces Vala Contemporary Chrome Bath Shower Mixer Tap with Diverter - Flat Lever Handle.

The Manufacturing Code of the Product is AX-VAL-123-CP
Crafted using High-Quality Material
Wall-Mounted Installation
Size [mm]: 210 x 202mm [Width x Depth]
Size [cm]: 21 x 20.2cm [Width x Depth]
Centre of the Inlet to the Centre of the Outlet: 180mm (18cm)
Connections/Fittings: 1/2-Inch x 3/4-Inch x 50mm Eccentric Threaded Connections
Ceramic Cartridge: W-002-N35
Plumbing System Suitability: Pumped System, Combination Boiler, Pressurised System
Requires a Minimum of 1.0 Bar and a Maximum of 5.0 Bar Water Pressure
Refer to the Technical Drawing for Size Details

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting/Tilting
⤷ Tap Body Shape
: Round
⤷ Range
: Vala
⤷ Handle Position
: Left & Right
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 10 Years
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ No. of Holes Required
: 2
⤷ Spout type
: Fixed

⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Ceramic Disc Cartridge
⤷ Spout Reach
: 180
⤷ Inlet Centres
: 150
⤷ Width
: 210
⤷ Minimum Operating Pressure (Bar)
: 1.0
⤷ Handle Style
: Lever Handle
⤷ Barcode
: 5052120250488
⤷ Product Type
: Bath Shower Mixer Tap

Vado Axces Vala Contemporary Chrome Bath Shower Mixer Tap with Diverter - Flat Lever Handle

£101.75

RRP: ~~£185.00~~

Stock Availablity: 5-7 Working Days Approx

QS Supplies

4 Features Included In This Product Explained

Diverter

A diverter, specifically in bath-shower combos, redirects the water flow from the bathtub spout to the showerhead. You can activate it using the nozzle in the bath shower mixer tap.
Read more...

Flow Straightener

A flow straightener, also called Honeycomb, is a fitting which directs the flow of water from the outlet in a way as to straighten the stream. They are generally not flow-regulated and differ in design from the pressure-compensating aerator.

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...
