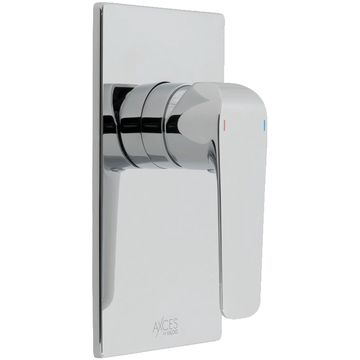

Vado Axces Vala Concealed Rectangular Manual Chrome Shower Valve, 1 Control

Vado Axces Vala Details

MFC: AX-VAL-145A-CP

Vado Axces Vala Concealed Rectangular Manual Chrome Shower Valve - 1 Control.

Key Features

✔It comes in a Chrome Finish
✔10-Year Guarantee from the Manufacturer

Choice of Variants: With or Without a Diverter
Crafted using High-Quality Material
Wall-Mounted Installation
Rectangular Backplate
Ceramic Cartridge: W-001-N35
Installation Tolerances Min-Max Wall Mount: 40-65mm
Specification of Without Diverter:
Size: 100 x 160mm [Width x Height]
Number of Outlet: 1
2 x 1/2-Inch Female Inlets
2 x 1/2-Inch Female Outlets (1 is Blanked Off)

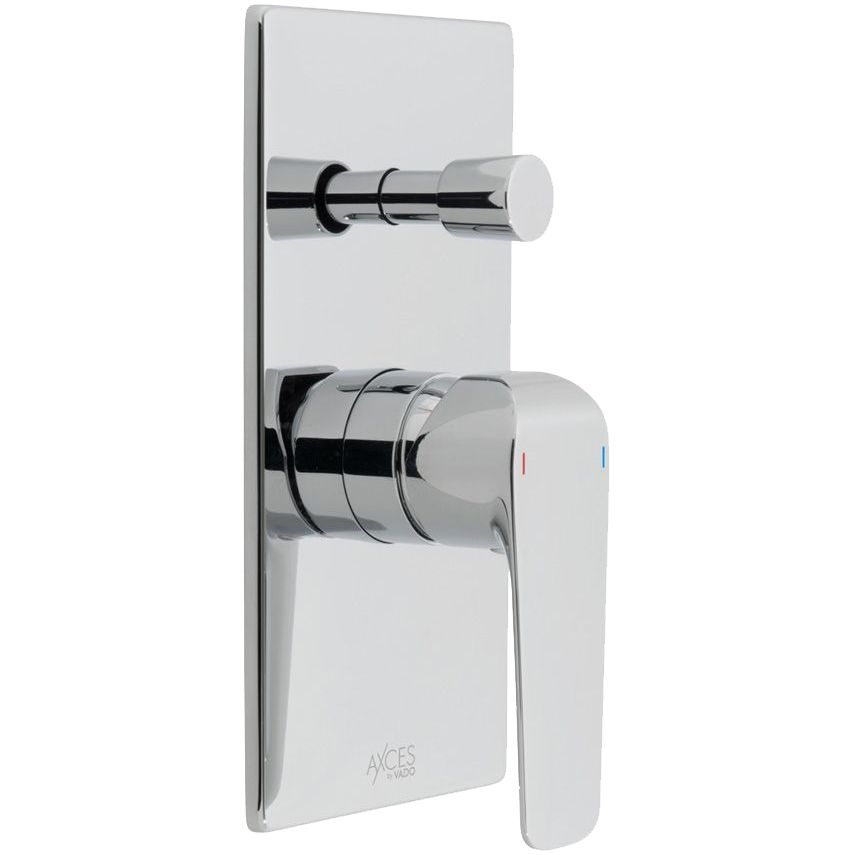

Specification of With Diverter:
Size: 100 x 185mm [Width x Height]
Number of Outlets: 2
2 x 1/2-Inch Female Inlets
2 x 1/2-Inch Female Outlets
Plumbing System Suitability: Gravity System, Pumped System, Combination Boiler, Pressurised System
Minimum Operating Pressure: 0.2 Bar LP (Shower) / 1.0 Bar MP (Bath)
Maximum Operating Pressure: 5.0 Bar HP
Download the Installation Instruction PDF File from the Additional Info Section

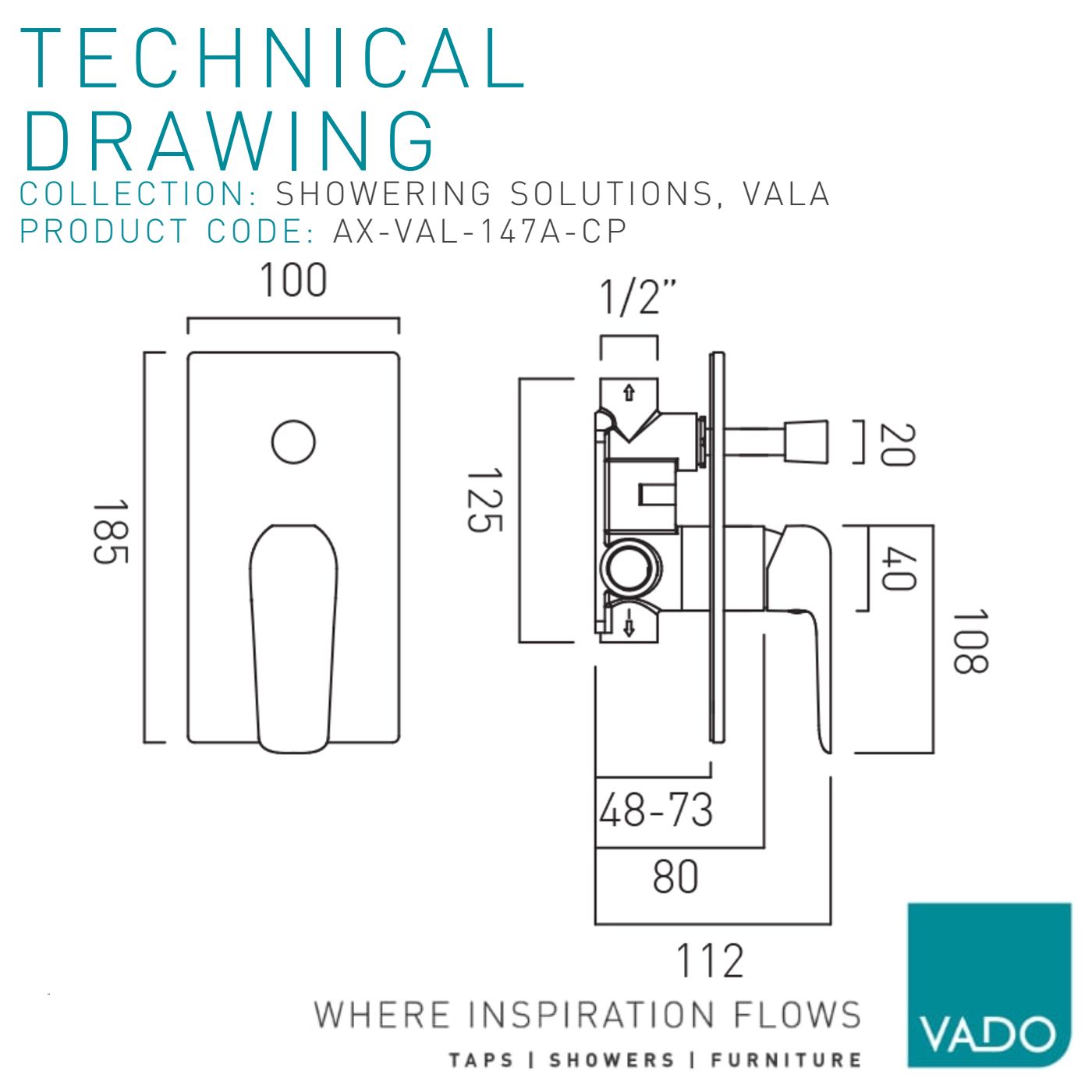

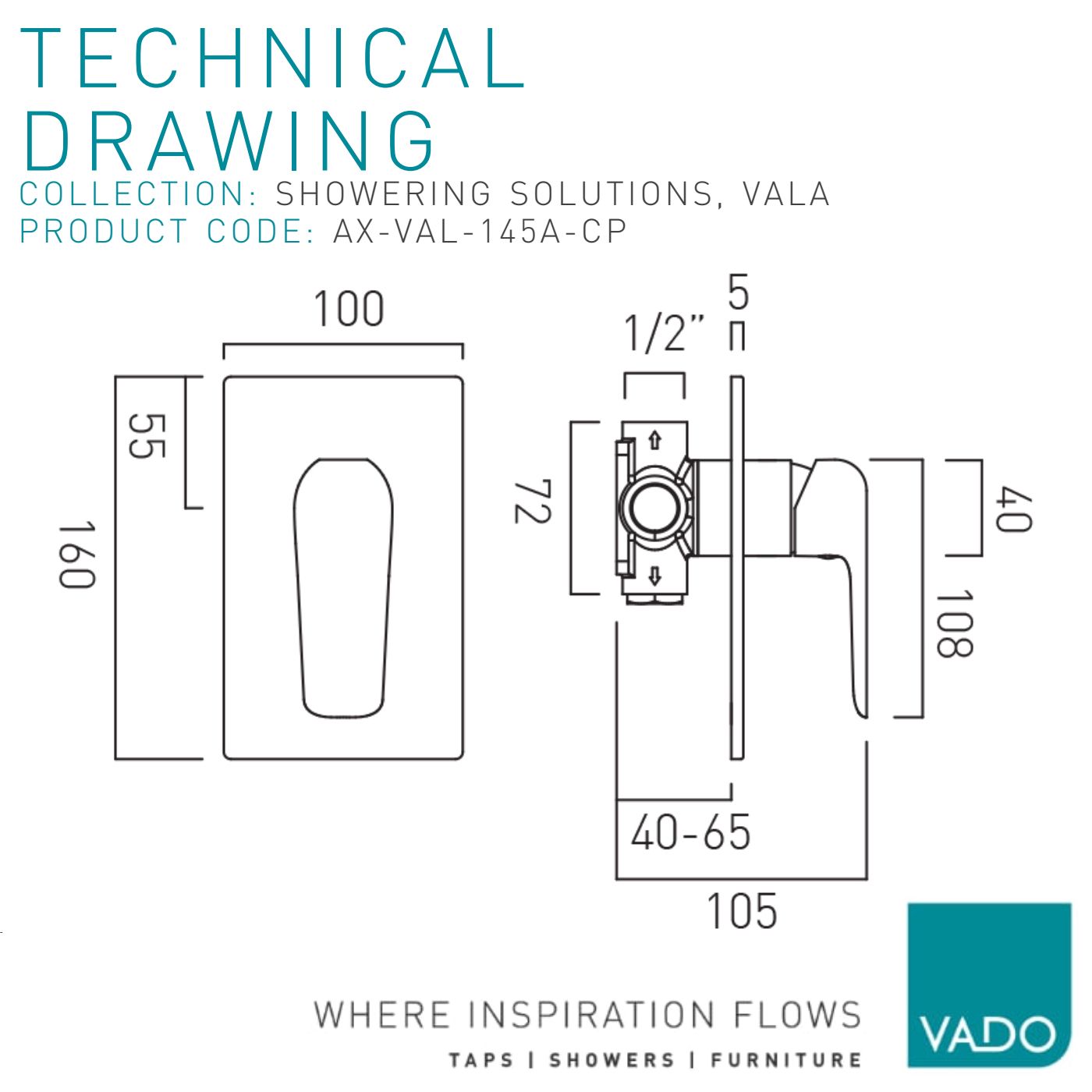

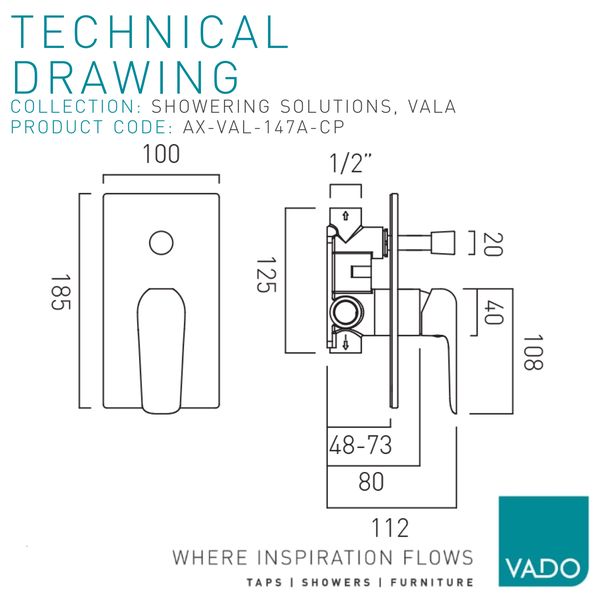

Refer to the Technical Drawing for Size Details

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Shape
: Rectangular
⤷ Warranty/Guarantee
: 10 Years
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ Min-Max Wall Mount
: 40-65
⤷ Inlet Connections
: 1/2-Inch
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Handle Style
: Lever Handle
⤷ Temperature Control
: Manual
⤷ Backplate Width
: 100

⤷ Backplate Height
: 160
⤷ Number of Handles
: 1
⤷ Number of Outlet
: 1
⤷ Outlet Connection
: 1/2-Inch
⤷ Orientation
: Portrait
⤷ Plumbing System Compatibility
: Gravity, Pumped, Combination Boiler, Pressurised
⤷ Plumbing Option
: Concealed
⤷ Maximum Operating Pressure (Bar)
: 5.0
⤷ Cartridge Included
: Yes
⤷ Cartridge Type
: Ceramic

Additional Info & Downloads

Download the Installation Instruction For Without Diverter Valve Pdf File Download the Installation Instruction For With Diverter Valve Pdf File

Vado Axces Vala Concealed Rectangular Manual Chrome Shower Valve - 1 Control

£79.75

RRP: ~~£145.00~~

STOCK AVAILABLITY: 5-7 Working Days Approx

QS Supplies

5 Features Included In This Product Explained

1-Outlet

One outlet in a shower system means that hot and cold water flows from a single opening.

Optional - Dual Outlet Valve - 2-Outlet

The dual outlet Valve comes with a connection for two outlets, so you can use two different fixtures one at a time, such as using the showerhead and shower handset. These Dual outlet shower valves come in various styles and can be used with varying shower fittings. Some come with diverters for switching between the two outlets.

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.
