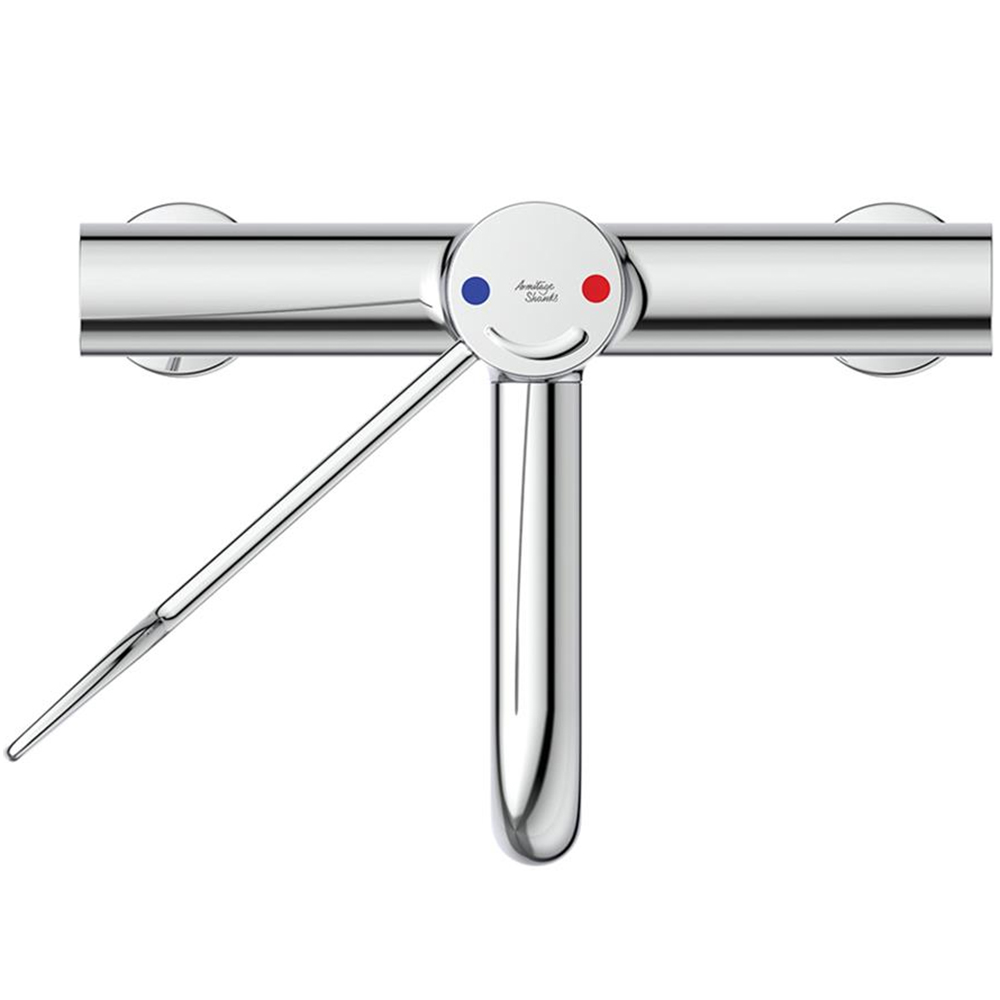

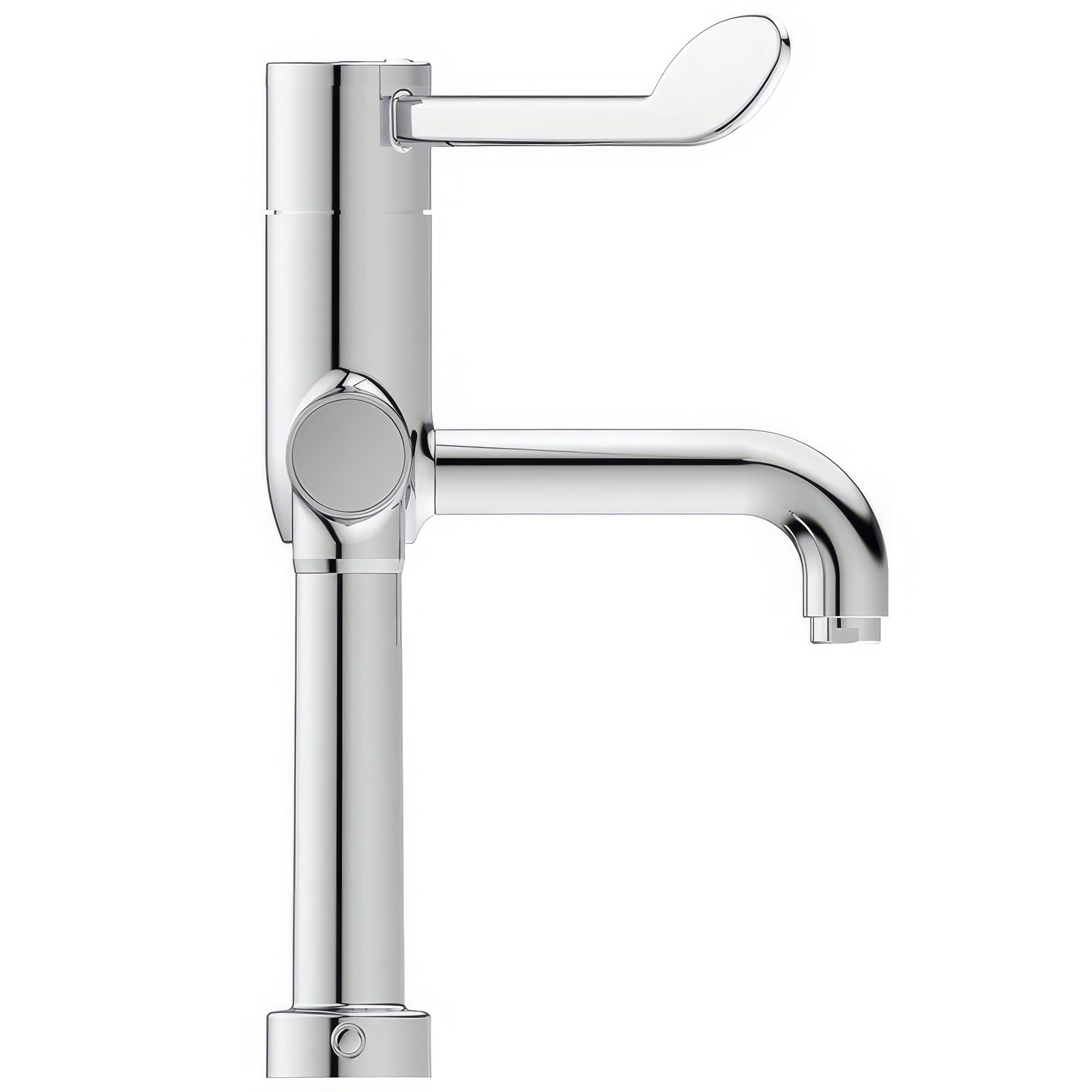

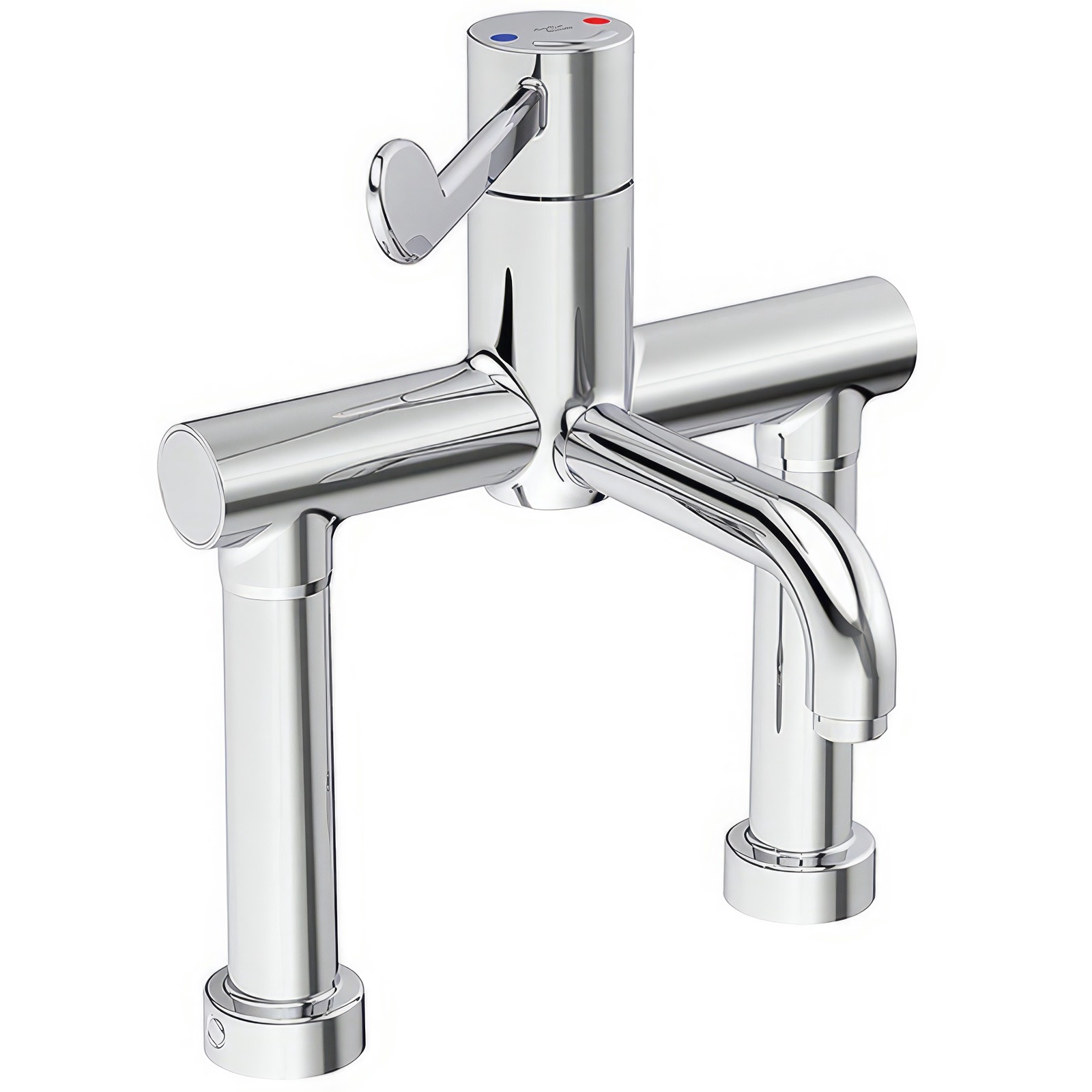

Armitage Shanks Markwik 21+ Sequential Chrome Basin Mixer Tap, Long Lever Handle

Armitage Shanks Markwik 21 Plus Details

MFC: A7905AA

Armitage Shanks Markwik-21 Plus Basin Mixer Tap With Detachable Spout.

The Manufacturing Code of this Product is: A7905AA
Fixed, Detachable Spout
It Comes in a Chrome Finish
Vandal-Resistant Tap with Flow Control
Demountable Body and Spout for Disinfection
Brass Port Sleeves
Comfort Sequential Mixer Tap
Height: 307mm (30.7cm)
Base to Spout: 130mm (13cm)
Centre of the Inlet to Centre of the Outlet: 150mm (15cm)
Inlet Centres: 200mm (20cm)
Weight: 4.56 Kg
Standards: EN 200, HTM 04-01
Override Feature for Thermal Disinfection
Temperature Limiting Device
Front of Panel Access to Isolation Valves, Filters and Water Sampling Point
Cool Body Technology keeps the Surface Cool during use, Preventing Scalds and Ensuring Safe, Comfortable Handling for Users of all Ages
Installation Type: Deck-Mounted
Suitable for Low and High Pressure Water System
Recommended for General Healthcare Use
It can be Used with 2-Tapholes Basins
Constructed Using Brass Material
Flow Rate 7 Litres Per Minute at 3 Bar Pressure
Requires a Minimum of 0.2 Bar to a Maximum of 5 Bar Operating Water Pressure
Download the Installation Instruction PDF File from the Additional Info Section
Refer to the Technical Drawing for More Technical Details

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Rotating
⤷ Range
: Markwik 21+
⤷ Tap Body Shape
: Round
⤷ Handle Position
: Upwards
⤷ Colour
: Chrome
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 2
⤷ Spout type
: Fixed
⤷ Valve/Cartridge Type
: Ceramic Disc Cartridge
⤷ Handle Material
: Brass
⤷ Base To Spout
: 130

⤷ Spout Reach
: 150
⤷ Inlet Centres
: 200
⤷ Overall Height
: 307
⤷ Width
: 200
⤷ Max. Deck Thickness
: 40
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Flow Rates (l/min)
: 3 Bar - 7 Ltr
⤷ Handle Style
: Lever
⤷ Deck Mount Drill Hole Diameter
: 50
⤷ Compliance/Approvals/Standard
: EN 200 | HTM 04-01
⤷ Barcode
: 4015413355988
⤷ Product Type
: Basin Mixer Tap
⤷ Warranty/Guarantee
: 5 Years

Additional Info & Downloads

Download the Installation Instruction Pdf File

This item can also be found in:

Armitage Shanks Markwik 21+ Sequential Chrome Basin Mixer Tap - Long Lever Handle

£590.28

RRP: ~~£1030.27~~

Stock Availablity: 5 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

BioGuard

BioGuard is a patented copper-lined outlet that leverages the antimicrobial properties of copper for improved hygiene.
