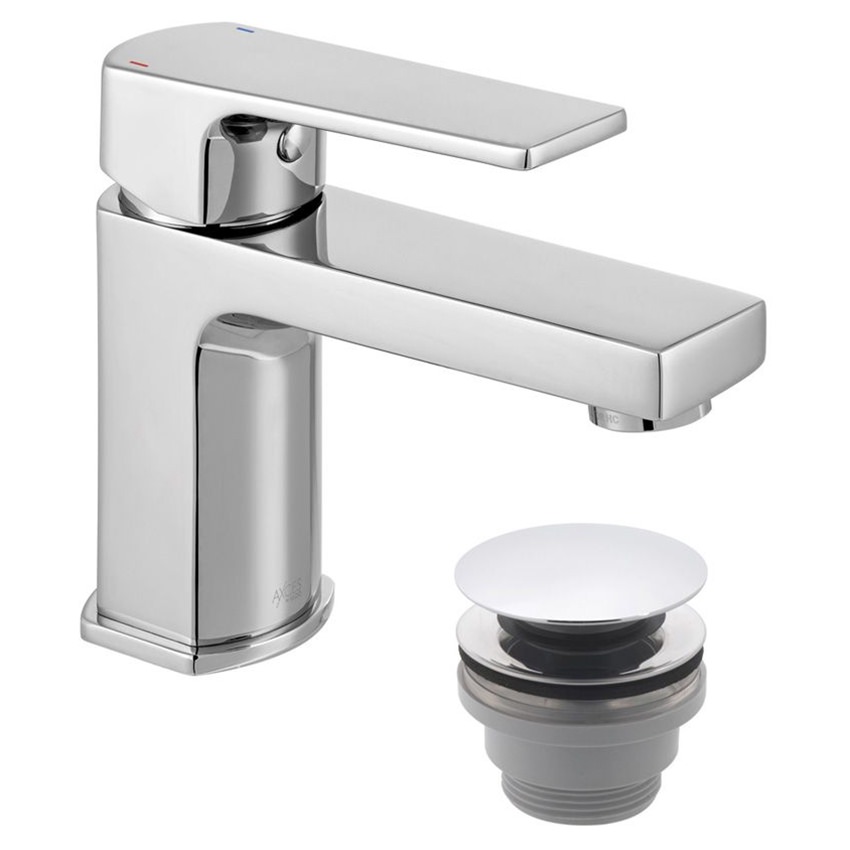

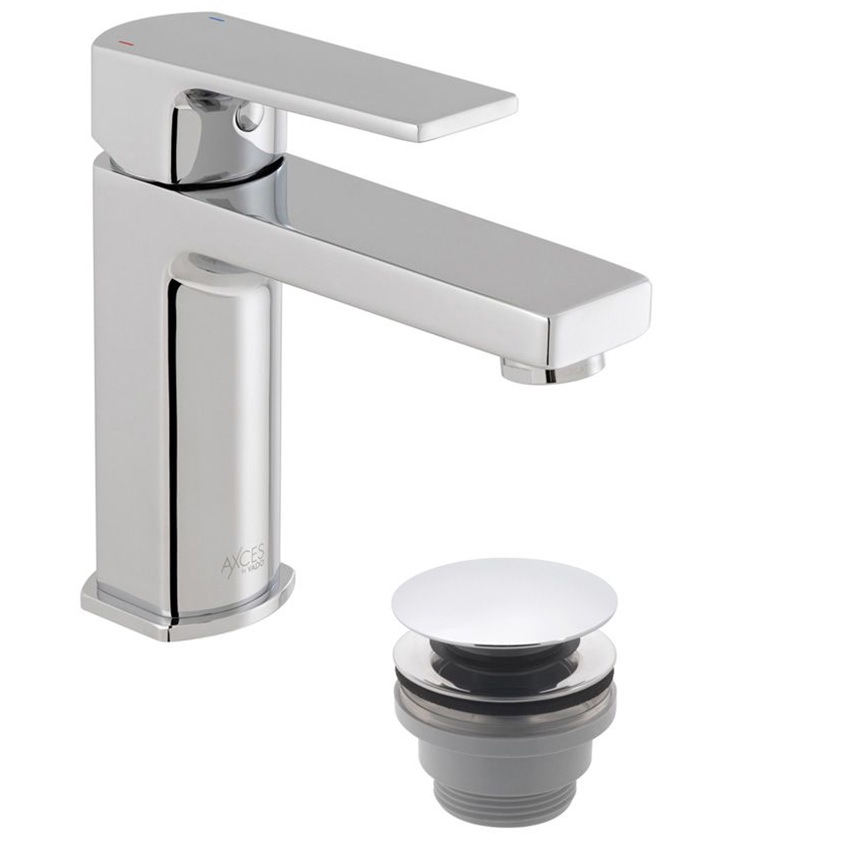

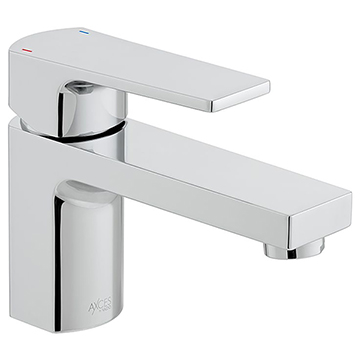

Vado Axces Ekko Contemporary Chrome Mini Mono Basin Mixer Tap with Waste, Flat Handle

Vado Axces Ekko Details

MFC: AX-EKO-100M/CC-CP

Vado Axces Ekko Contemporary Chrome Mini Mono Basin Mixer Tap with Waste - Flat Handle.

Key Features

✔WRAS Approved
✔10-Year Guarantee from Vado Against Manufacturing Defects
✔Single-Lever Tap with Neoperl Honeycomb Air Aerator and Integrated 4.5L/Min Flow Regulator

Choice of Heights: 131mm and 156mm

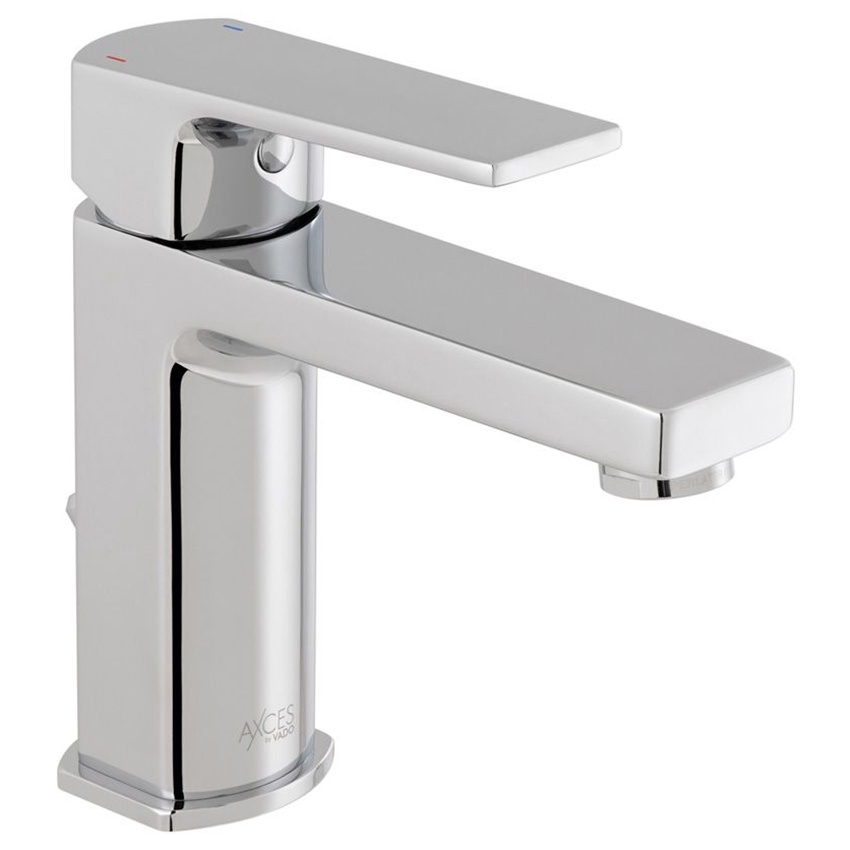

Available in 2 Variations: With Push Waste and With Pop-Up Waste
It Comes in a Chrome Finish
Ceramic Cartridge W-004-N35
2 x 1/2 Inch Nut x 400mm Flexipipe Connections
Deck Hole Drill Diameter: 32mm (3.2cm)
Suitable for Deck-Mounted Installation
Plumbing System Suitability: Gravity System, Pumped System, Combination Boiler, Pressurised System
Download the Installation Instruction PDF File from the Additional Info Section
Refer to the Technical Drawing for Size Details

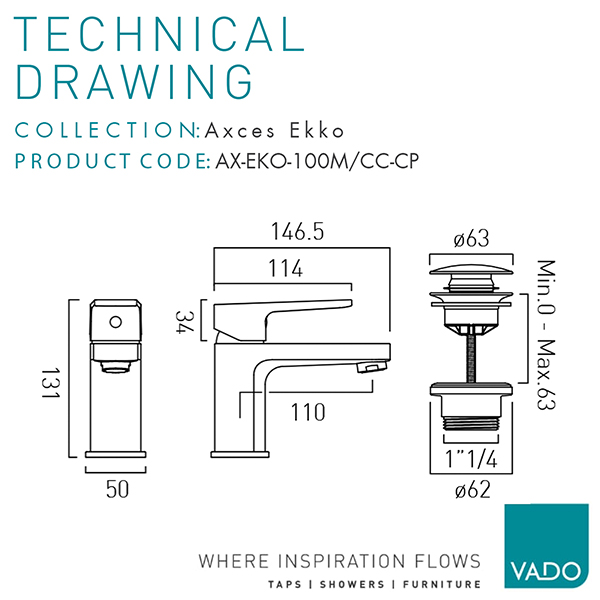

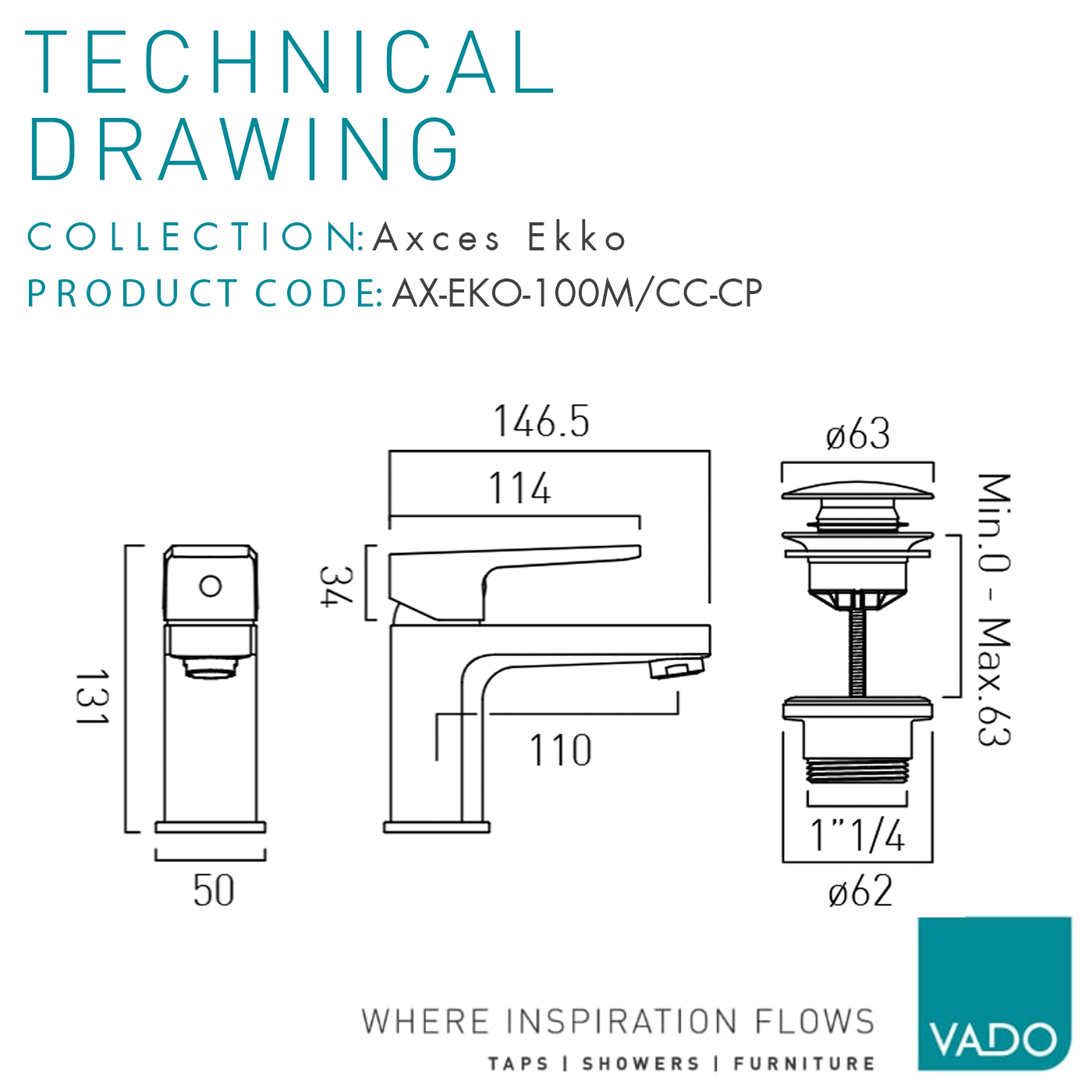

Detail Of 131mm Height Tap:
Size [mm]: 50 x 146.5 x 131mm [Width x Depth x Height]
Size [cm]: 5 x 14.65 x 13.1cm [Width x Depth x Height]
Centre of Inlet to Centre of Outlet: 110mm (11cm)

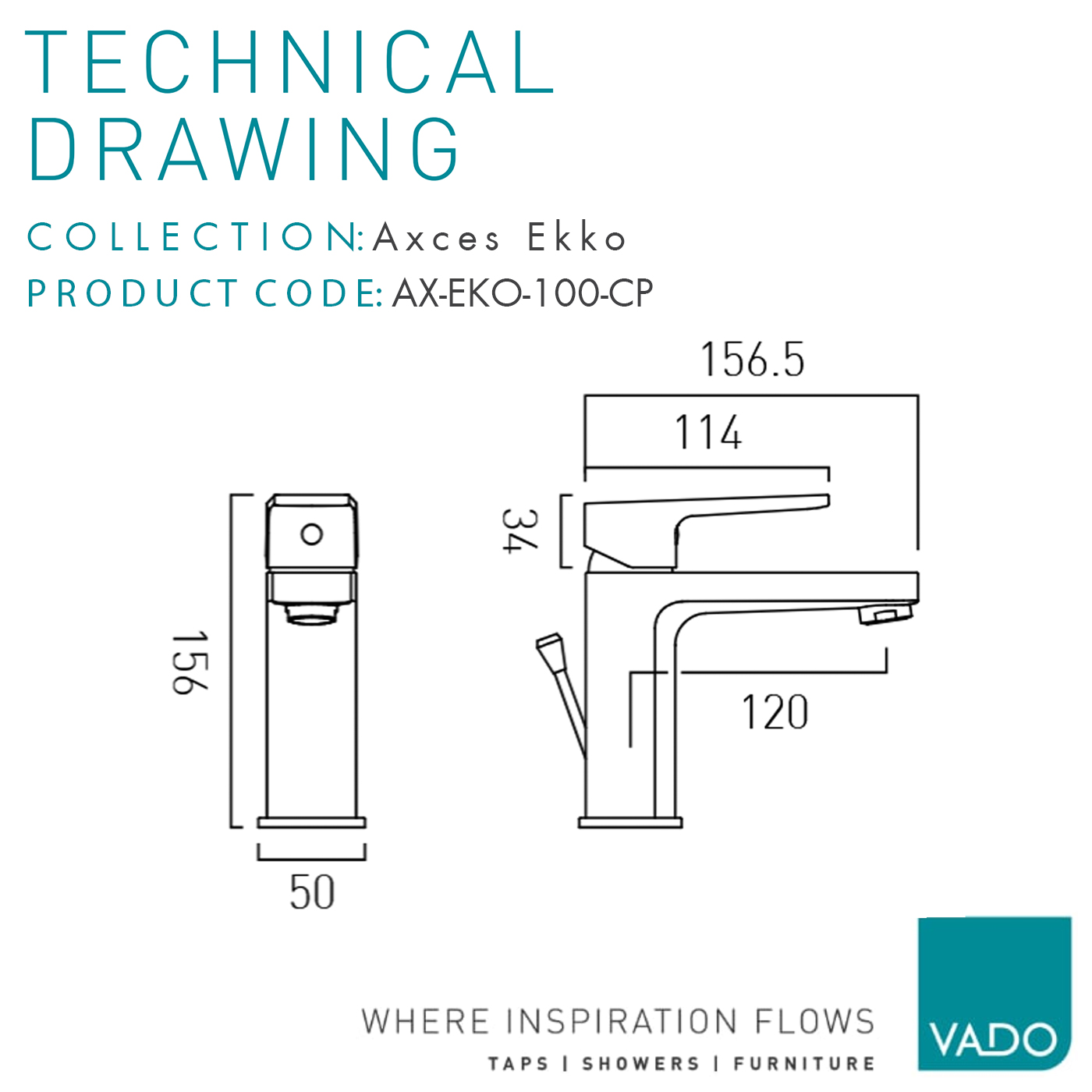

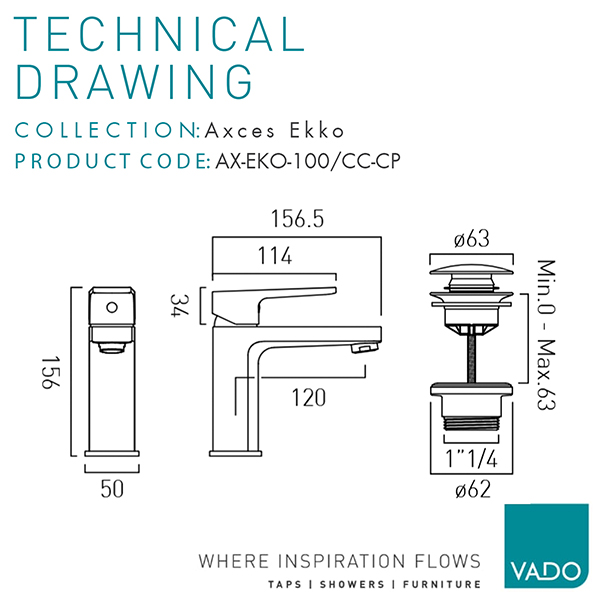

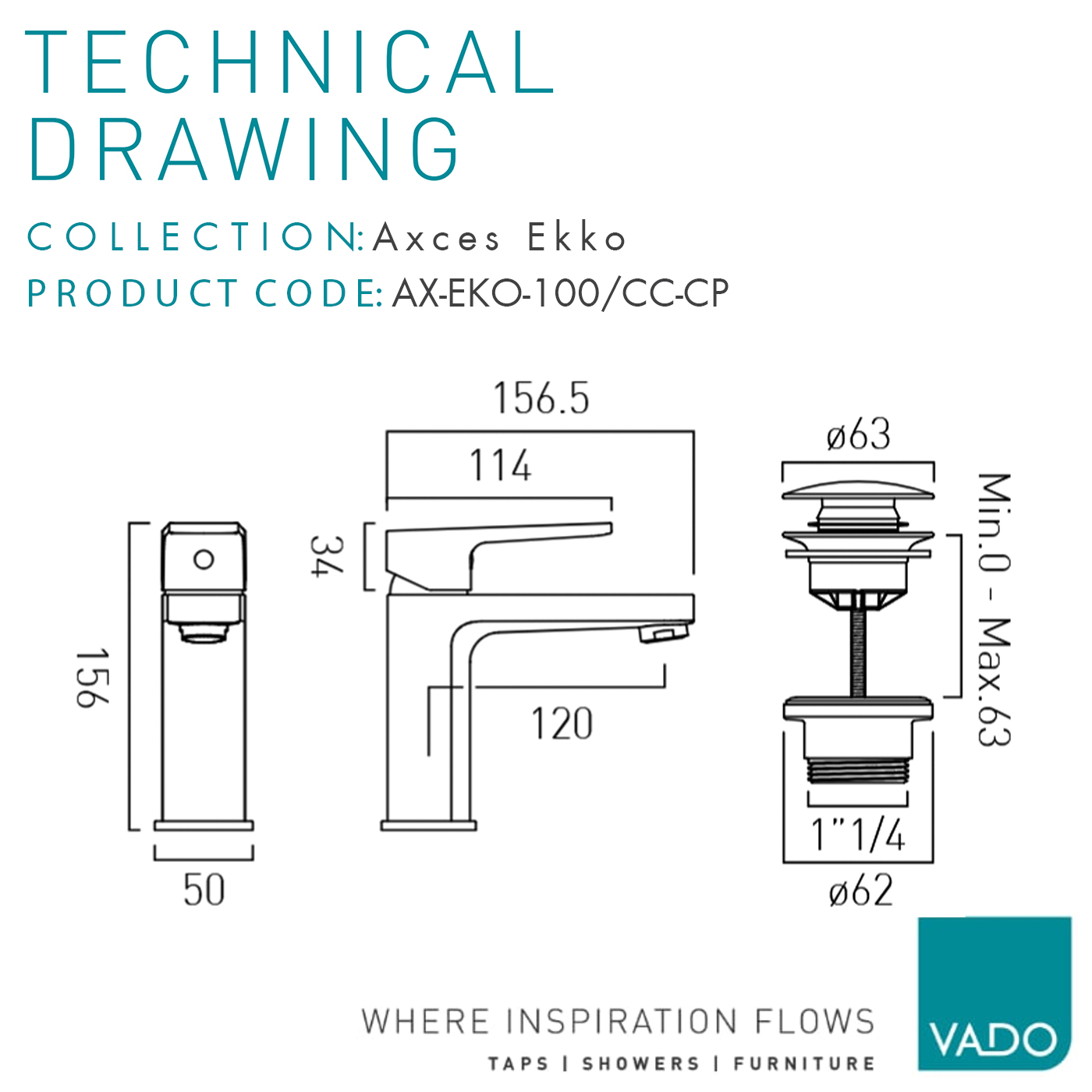

Detail Of 156mm Height Tap:
Size [mm]: 50 x 156.5 x 156mm [Width x Depth x Height]
Size [cm]: 5 x 15.65 x 15.6cm [Width x Depth x Height]
Centre of Inlet to Centre of Outlet: 120mm (12cm)

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Axces Ekko
⤷ Water Activation
: By Lifting/Tilting
⤷ Handle Position
: Upward
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 10 Years
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Spout type
: Fixed
⤷ Valve/Cartridge Type
: Ceramic Disc Cartridge

⤷ Spout Reach
: 110
⤷ Overall Height
: 131
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Waste Type
: Push Waste
⤷ Handle Style
: Lever
⤷ WRAS Approved
: Yes
⤷ Deck Mount Drill Hole Diameter
: 32
⤷ Waste Included
: Yes
⤷ Barcode
: 5052120236345
⤷ Product Type
: Basin Mixer Tap

Additional Info & Downloads

Download the Installation Instruction For Push Waste Tap Pdf File Download the Installation Instruction For Pop-Up Waste Tap Pdf File

This item can also be found in:

Vado Axces Ekko Contemporary Chrome Mini Mono Basin Mixer Tap with Waste - Flat Handle

£90.00

RRP: ~~£150.00~~

STOCK AVAILABLITY: 5 Working Days Approx

QS Supplies

6 Features Included In This Product Explained

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

Push Button Basin Waste

It is the perfect choice for many sink designs because of its ease of use and efficiency. The sink drain gets blocked by simply pushing the central button, allowing the water to fill in the sink. Once you are done, the water can be drained by releasing the same.

Optional: Pop-Up Waste

The Pop-Up waste or pop-up assembly refers to the type of pipe fitting for a sink, basin or bidet connected to a waste pipe at the plughole. It comes with a lever or knob-controlled plug or stopper and operates using a lever that can be lowered or lifted to close and open the plug.
