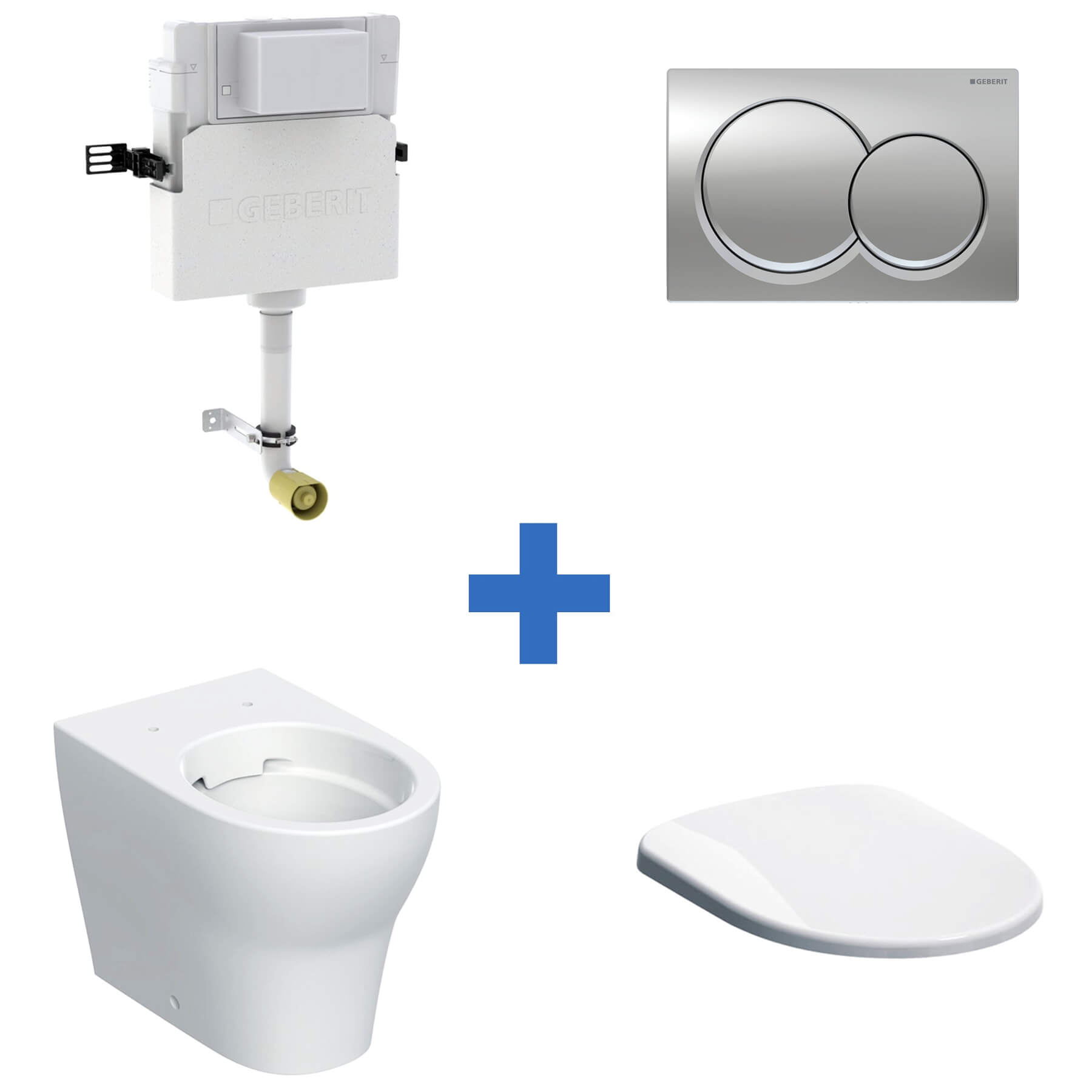

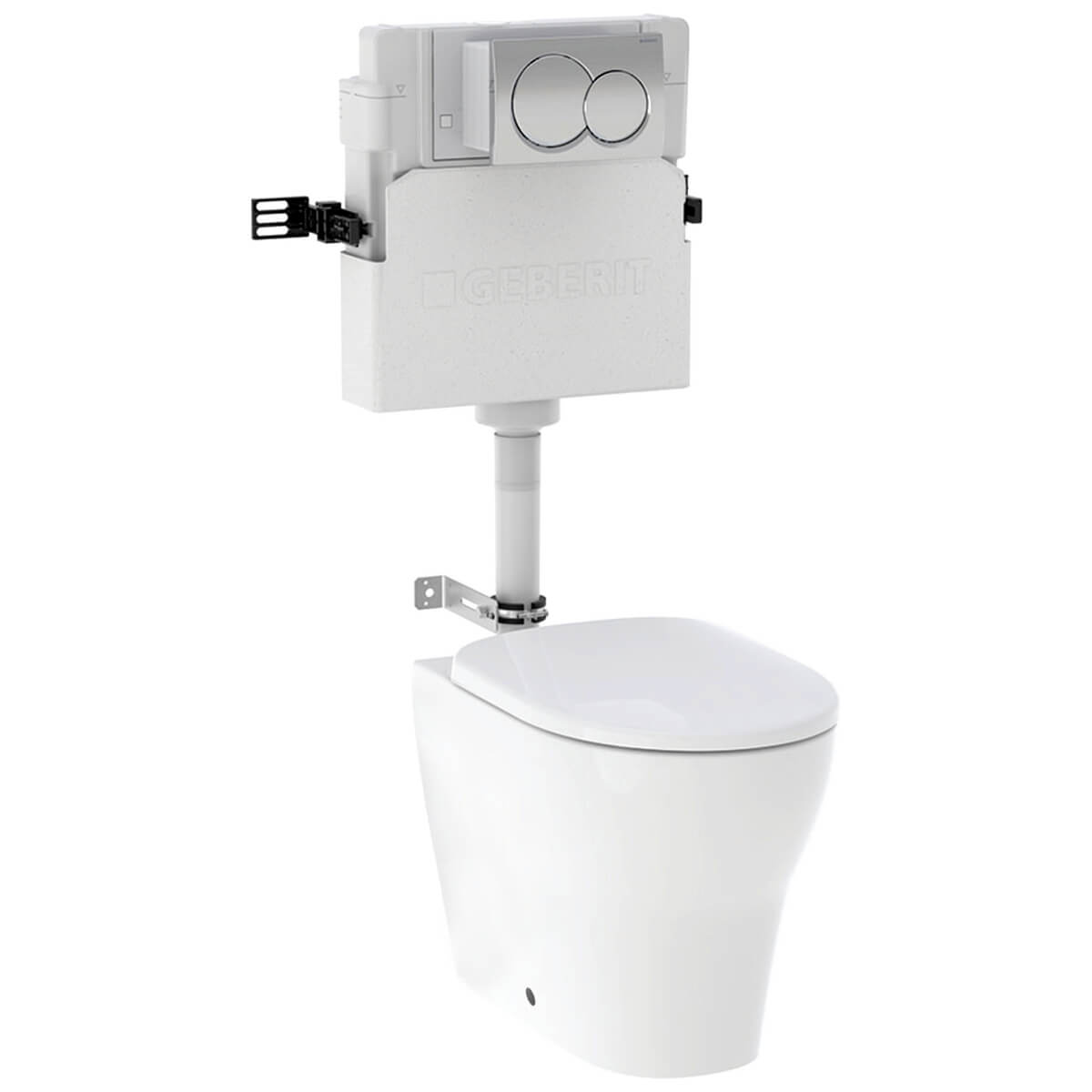

Geberit Alpha Concealed Cistern 5.8/3L with Flush Plate and Selnova Back-to-Wall Rimless Toilet

Geberit Alpha Concealed Cistern 5.8/3 Litres with Dual Flush Plate and Selnova Back-to-Wall Rimless Toilet - Soft-Close Seat.

• The Manufacturing Code of this Product is 118.363.21.2
• 3-In-1 Floor-Standing Toilet Pack
• Flow Pressure: 0.1-10 Bar
• Operating Temperature, Water Max. 25° Celsius
• Flush Volume, Factory Setting: 5.8 / 3 Litres
• Flush Volume Large, Adjustment Range: 4 / 4.5 / 6 / 7.5 Litre
• Flush Volume Small, Adjustment Range: 2-4 Litres

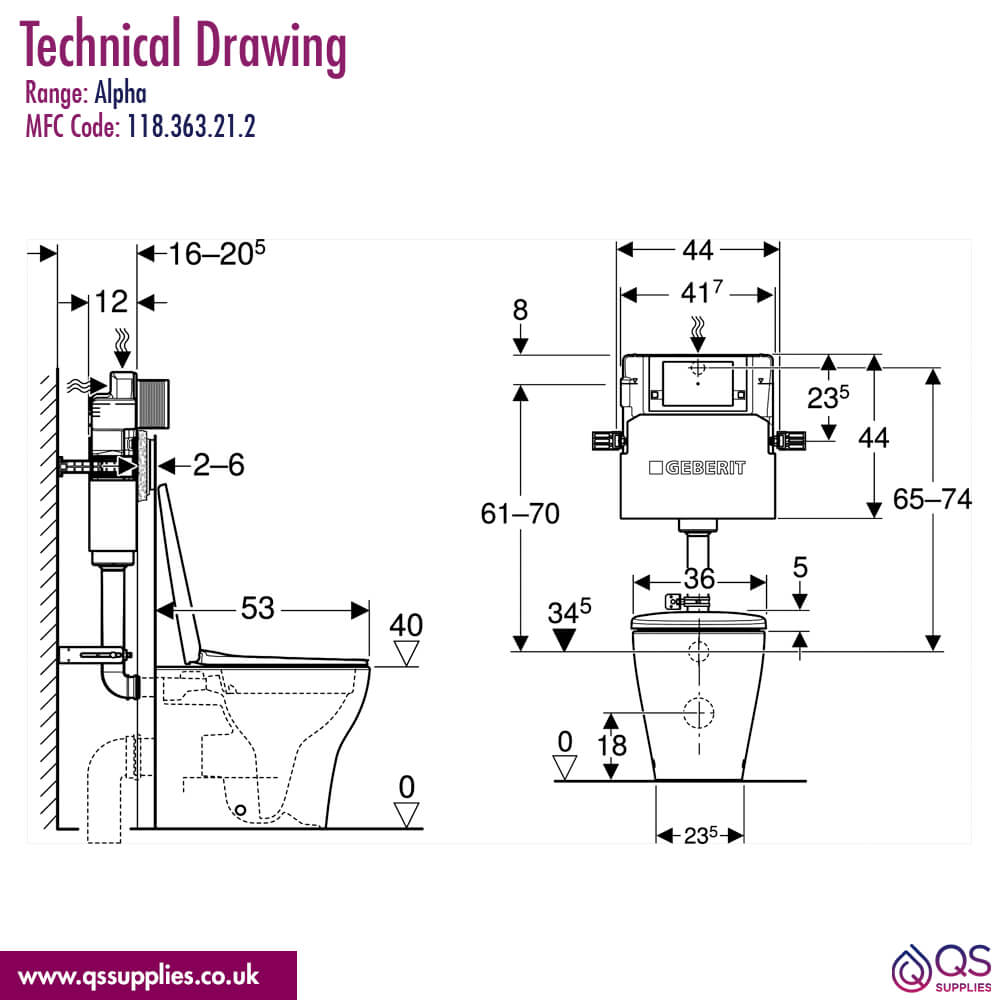

• Refer to the Technical Drawing for More Details
• Application Purposes:
• For Masonry Walls
• For Installation in Part or Room-Height Prewall Installations
• For Installation in Room-Height Installation Walls
• Details Of Alpha Concealed Cistern:
• Installation Height 109cm
• Adjustable in Depth
• Geberit Alpha Concealed Cistern 12cm Fully Insulated Against Condensation
• Suitable for Front Actuation, Suitable for Dual Flush
• Immediate Post-Flush is Possible with Factory Settings
• Cistern Fulfils Standard Requirements in Accordance with EN 14055, CLASS II
• Flush Bend Fitted
• Water Supply Connection on the Rear or Top Centre
• Protection Box for Service Opening, can be Cut to Length, Protects Against Moisture and Dirt
• Details Of Selnova Toilet:
• Size of Seat: Width 355mm (35.5cm) x Height 400mm (40cm)
• Projection from the Wall: 530mm (53cm)
• It Comes in a White Finish
• Shrouded Washdown WC
• Rimless WC Ceramic Appliance Featuring Rimfree Flush Technology
• Suitable for Floor-Standing Back-to-Wall Installation
• Type 1, Full Flush Volume 6 / 5 / 4 l, in Accordance with EN 997
• 4 Litre Flush
• Horizontal or Vertical Outlet
• Hidden Fastening
• Toilet Material: Vitreous China
• Details Of Selnova Seat:
• Size: Width 360mm (36cm) x Depth: 450mm (45cm) x Height: 50mm (5cm)
• It Comes in a Gloss White Finish
• Soft-Closing Mechanism and Quick-Release Hinges
• Overlapping WC Lid
• Fastening from Above
• Hinge Material: Stainless Steel
• Seat Made of Duroplast
• Details of Alpha01 Flush Plate:
• It Comes in a Gloss Chrome Finish
• Size: Width 213mm (21.3cm) x Height 142mm (14.2cm)
• Thickness: 16mm (1.6cm)
• Suitable for Dual Flush
• Material: Plastic
• Round Shape Buttons
• Actuation Force Max. 20 N
• Scope of Delivery:
• Flush Bend 90°
• Protection Plug
• 2x Distance Bolts
• 2x Fixing Brackets
• Fastening Material
• Fastening for Flush Bend
• Flush Bend Extension, Ø 45mm
• Geberit Alpha01 Flush Plate for Dual Flush, Round
• Protection Box for Service Opening, Made of Polystyrene Foam
• Water Supply Connection Unit R 1/2 Inch, Compatible with MasterFix and MeplaFix, with Integrated Angle Stop Valve and Adapter Ring
• Geberit Selnova Floor-Standing WC Set, Premium, Washdown, Back-to-Wall, Horizontal or Vertical Outlet, Shrouded, Rimfree, with WC Seat
