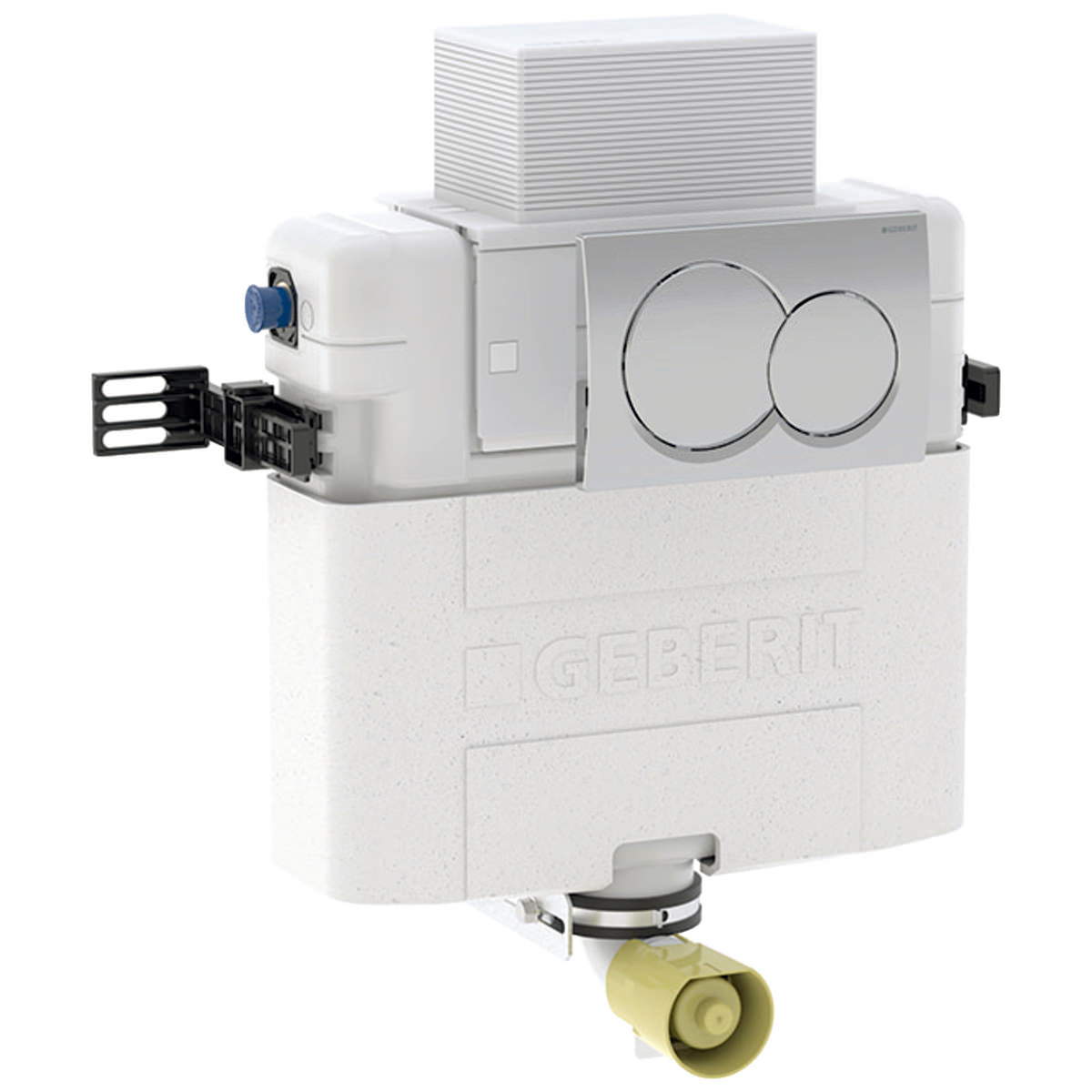

Geberit Alpha 12cm Concealed Cistern 3 and 5.8 Litres with Dual Flush Plate - 440 x 395mm

Geberit Alpha 12cm Concealed Cistern 3 and 5.8 Litres with Dual Flush Plate - 440 x 395mm.

• Choice of Variants: Square and Round Button Flush plate
• Cistern in White Finish
• Flush Plate in Gloss Chrome Finish
• Size [mm]: 440 x 120 x 395mm [Width x Depth x Height]
• Size [cm]: 44 x 12 x 39.5cm [Width x Depth x Height]
• Material: Plastic
• Welded Flush Bend
• Adjustable in Depth
• For Installation Height 82cm
• Fully Insulated Against Condensation
• Immediate Post Flush possible with Factory Setting
• Suitable to Use with Floor-Standing and Wall-Hung WCs
• Can be Used in masonry Walls and Installation in Part-Height prewall Installations
• The Protection Box which Protects Against Moisture, and Dirt and can be Cut to Length for Service Opening
• Flow Pressure: 0.1-10 Bar
• Maximum Operating Water Temperature: 25° Celsius
• Flush Volume Factory Setting: 5.8 / 3 Litres
• Flush Volume Small Adjustment Range: 3–4 Litres
• Refer to the Technical Drawing for More Details
• Download the Installation Instructions PDF File from the Additional Info Section
• Scope Of Delivery:
• Protection Plug
• 2x Fixing Brackets
• Fastening Material
• Flush Bend Extension: Ø45mm
• Alpha01 Flush Plate: Square Button or Round Button
• Protection Box for Service Opening
• Geberit Pull Disc for Type 212 Flush Valve for Omega Concealed Cistern 82cm
• Water Supply Connection R 1/2 Inch Compatible with MasterFix and MeplaFix, with Integrated Angle Stop Valve and Hand Wheel
