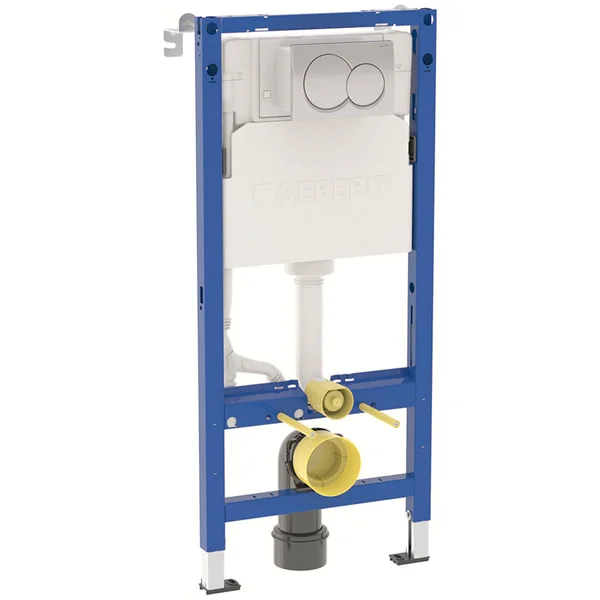

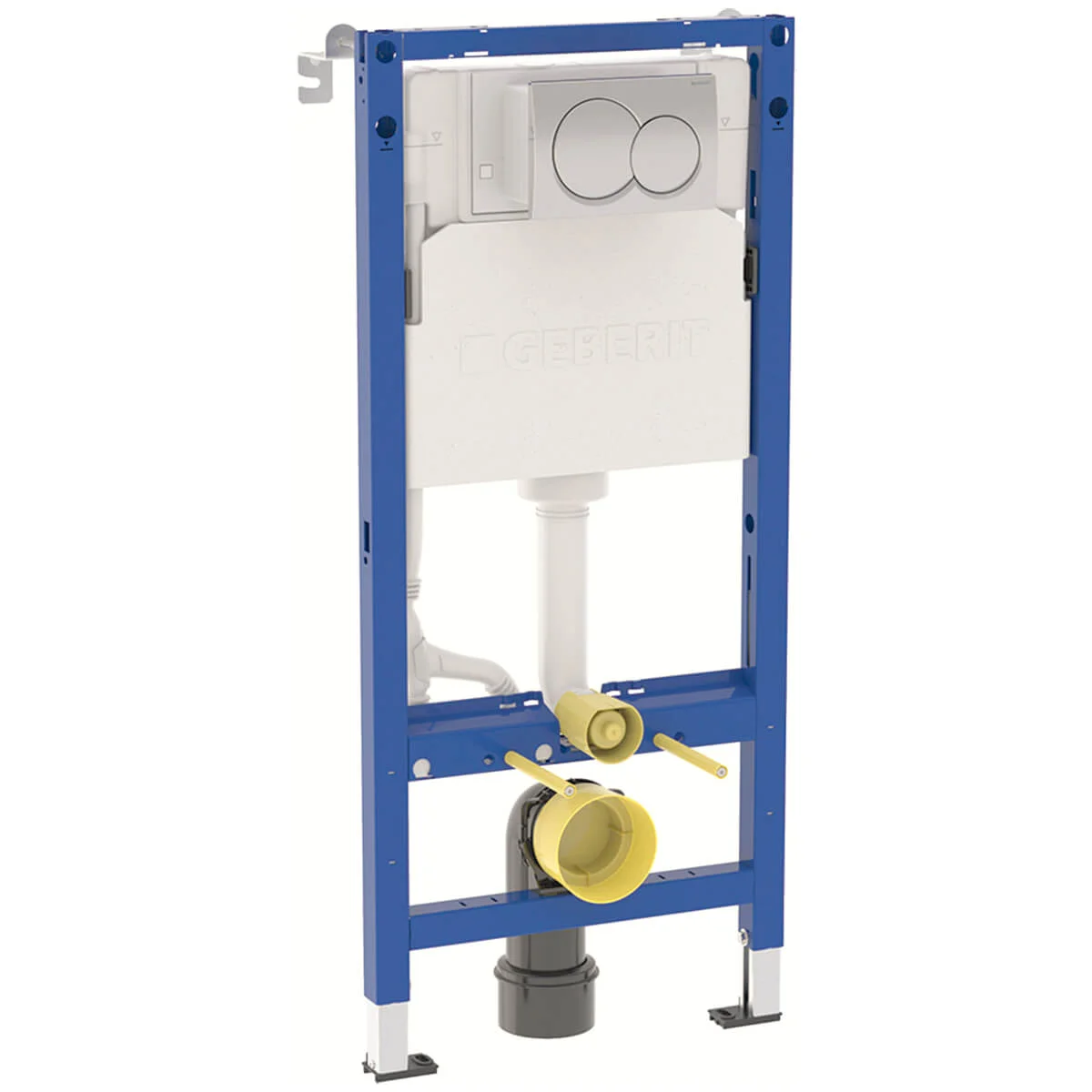

Geberit Duofix Wall Hung WC Frame with 12cm Alpha Concealed Cistern 5.8/3L and Flush Plate - 500 x 1120mm

Geberit Duofix Wall Hung WC Frame with 12cm Alpha Concealed Cistern 5.8/3L and Flush Plate - 500 x 1120mm.

• The Manufacturing Code of this Product is 458.041.21.2
• Gloss Chrome Finish Flush Plate - Round Buttons
• Frame Size in mm: 500 x 120 x 1120mm [Width x Depth x Height]
• Statically Self-Supporting Frame, Protected Against Corrosion with Powder Coating
• Frame for Wall-Hung WCs with Connection Dimensions as Per EN 33 and Projection Up to 62cm
• Alternative Fastening Point for Wall Anchors
• Foot Plates Made of Plastic
• Foot Plate Depth Suitable for Installation in U-Profiles UW 50
• Connection Bend can be Mounted without Tools
• Cistern Fulfils Standard Requirements in Accordance with EN 14055, Class II
• Immediate Post-Flush Possible with Factory Setting
• Protection Box for Service Opening, can be cut to Length, Protects Against Moisture and Dirt
• With Conduit Pipe for Feed Pipe for Geberit AquaClean Shower Toilets and for Connection Cable
• Fastening Option for Electrical Connection
• Flow Pressure: 0.1-10 Bar
• Maximum Water Temperature: 25° Celsius
• Flush Volume, Factory Setting: 5.8 / 3L
• Full Flush Volume, Adjustment Range: 4 / 4.5 / 6 / 7.5L
• Flush Volume Small, Adjustment Range: 2-4L
• Frame Material: Steel

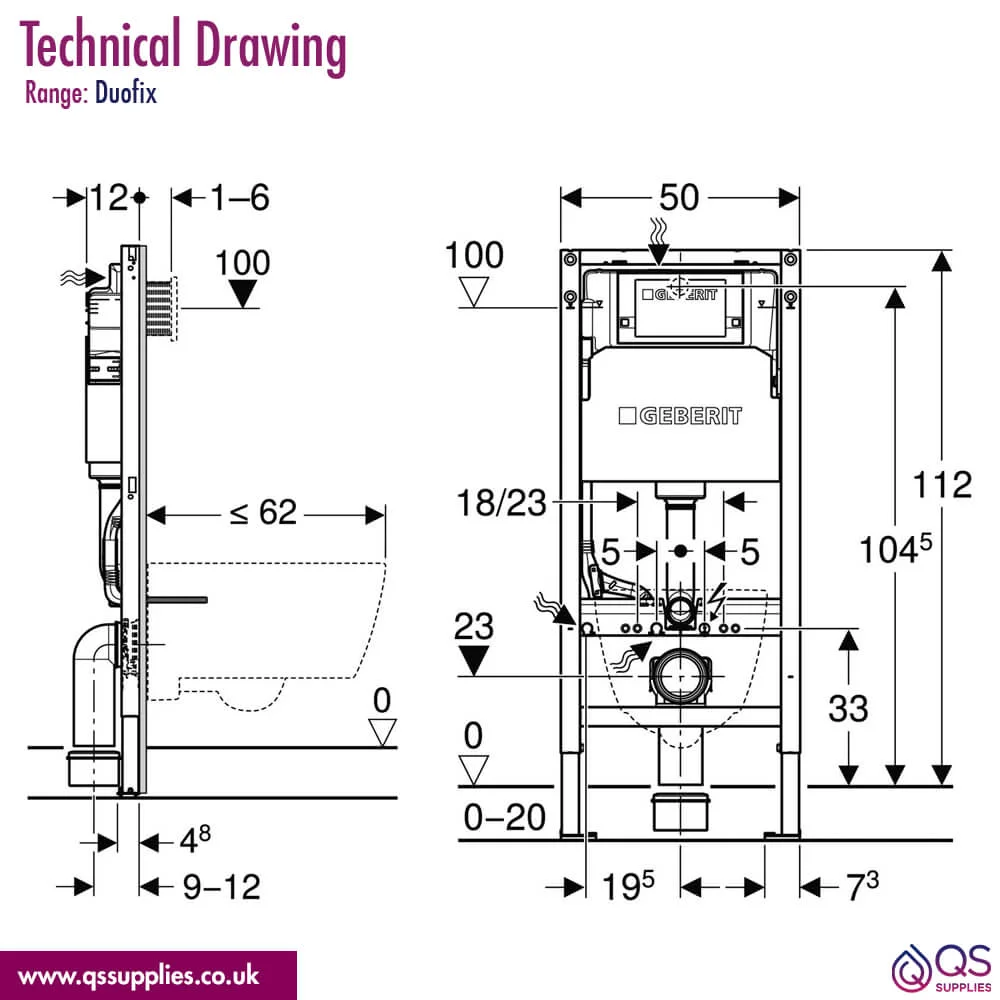

• Refer to the Technical Drawing for More Details
• 10-Year Guarantee from Geberit Against Manufacturing Defects
• Application Purposes:
• For Metal and Wood Frame Walls
• For Installation in Part or Room-Height Prewalls
• For Installation in Room-Height Partition Walls
• For Floor Constructions 0–20 cm
• For Wall-Hung WCs
• Scope Of Delivery:
• 2x  Wall Anchors
• 2x Fixing Brackets for Studs
• Fastening and Protection Material
• Connection Set for WC Ø 90mm
• Connection Bend 90° Made of PE-HD Ø 90mm
• Adaptor Socket Made of PE-HD Ø 90 / 110mm
• Protection Box for Service Opening
• Water Supply Connection Unit R 1/2-Inch, Compatible with MasterFix and MeplaFix, with Integrated Angle Stop Valve and Adapter Ring
• Details Of Flush Plate
• Rectangular Shaped Flush Plate and Round Buttons
• Size [mm]: 213 x 16 x 142mm [Width x Depth x Height]
• Material: Plastic
• Suitable for Top/Front Actuation
• Maximum Actuation Force: 20 N
• Fastening Material and 2x actuator Rods Included
• 5-Year Guarantee from Geberit Against Manufacturing Defects
