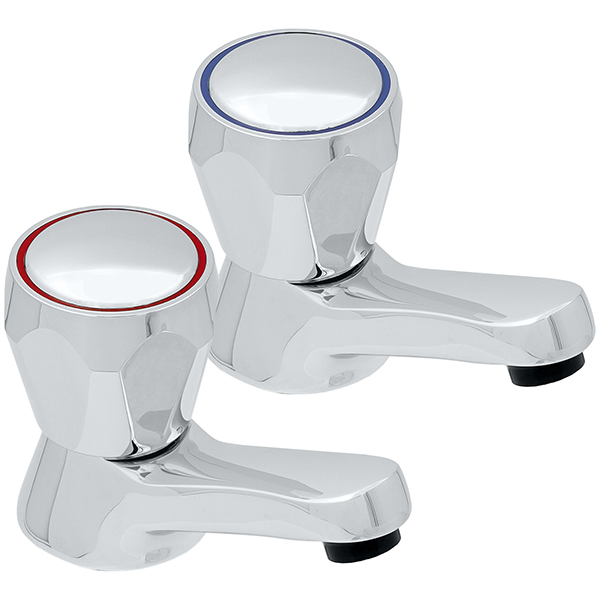

Lecico Northbury Deck Mounted Chrome Pair Of Basin Taps

Lecico Northbury Details

MFC: TPNORBAS2

Lecico Northbury Deck Mounted Chrome Pair Of Basin Taps - Knob Handles.

The Manufacturing Code of this Product is TPNORBAS2
It Comes in a Chrome Finish
Deck Mounted Installation
Size [mm]: 43 x 100 x 68mm [Width x Depth x Height]
Size [cm]: 4.3 x 10 x 6.8cm [Width x Depth x Height]
Centre of the Inlet to the Centre of the Outlet: 70.5mm [7.5cm]
Base to Spout: 28mm [2.8cm]
Connection: 1/2 Inch BSP Thread Tail
Max Static Pressure: 16
Max Water Temperature: 85°C
Suitable for Low and High Water Pressure Systems
Required Minimum 0.1 Bar to Maximum 6.0 Bar Water Pressure
Weight: 0.8kg
For Complete Size Details, Please Refer to the Technical Drawing

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Rotating
⤷ Range
: Northbury
⤷ Tap Body Shape
: Round
⤷ Handle Position
: Upwards
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 2 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 2
⤷ Base To Spout
: 28

⤷ Spout Reach
: 70.5
⤷ Overall Height
: 68
⤷ Width
: 43
⤷ Max. Deck Thickness
: 25
⤷ Inlet Connections
: 1/2” BSP Threaded Tail
⤷ Minimum Operating Pressure (Bar)
: 0.1
⤷ Handle Style
: Knob
⤷ WRAS Approved
: Yes
⤷ Compliance/Approvals/Standard
: WRAS
⤷ Barcode
: 5057199983053
⤷ Product Type
: Basin Pillar Taps

Lecico Northbury Deck Mounted Chrome Pair Of Basin Taps - Knob Handles

£23.20

RRP: ~~£51.55~~

Stock Availablity: 5 Working Days Approx

QS Supplies

4 Features Included In This Product Explained

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Flow Straightener

A flow straightener, also called Honeycomb, is a fitting which directs the flow of water from the outlet in a way as to straighten the stream. They are generally not flow-regulated and differ in design from the pressure-compensating aerator.

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.
