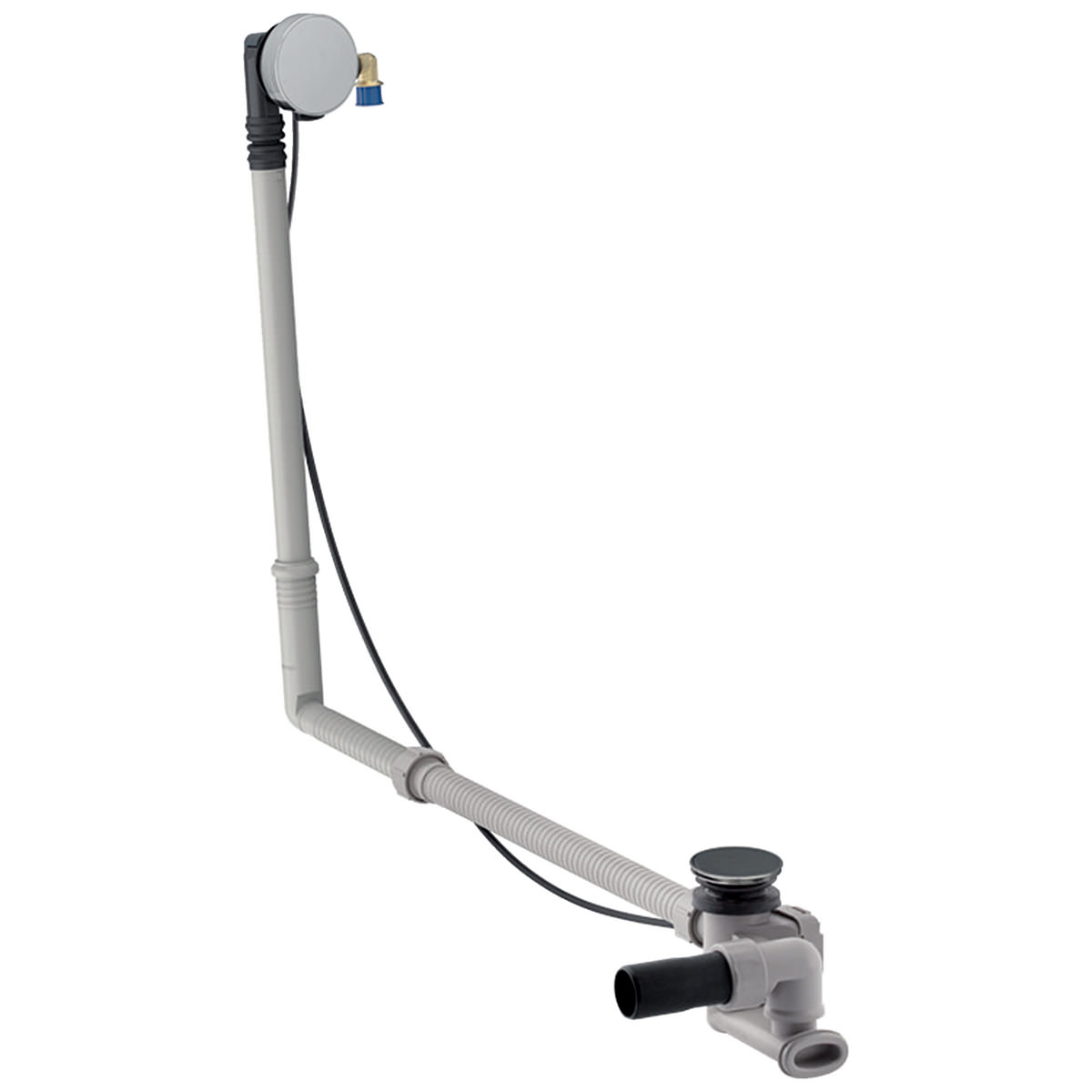

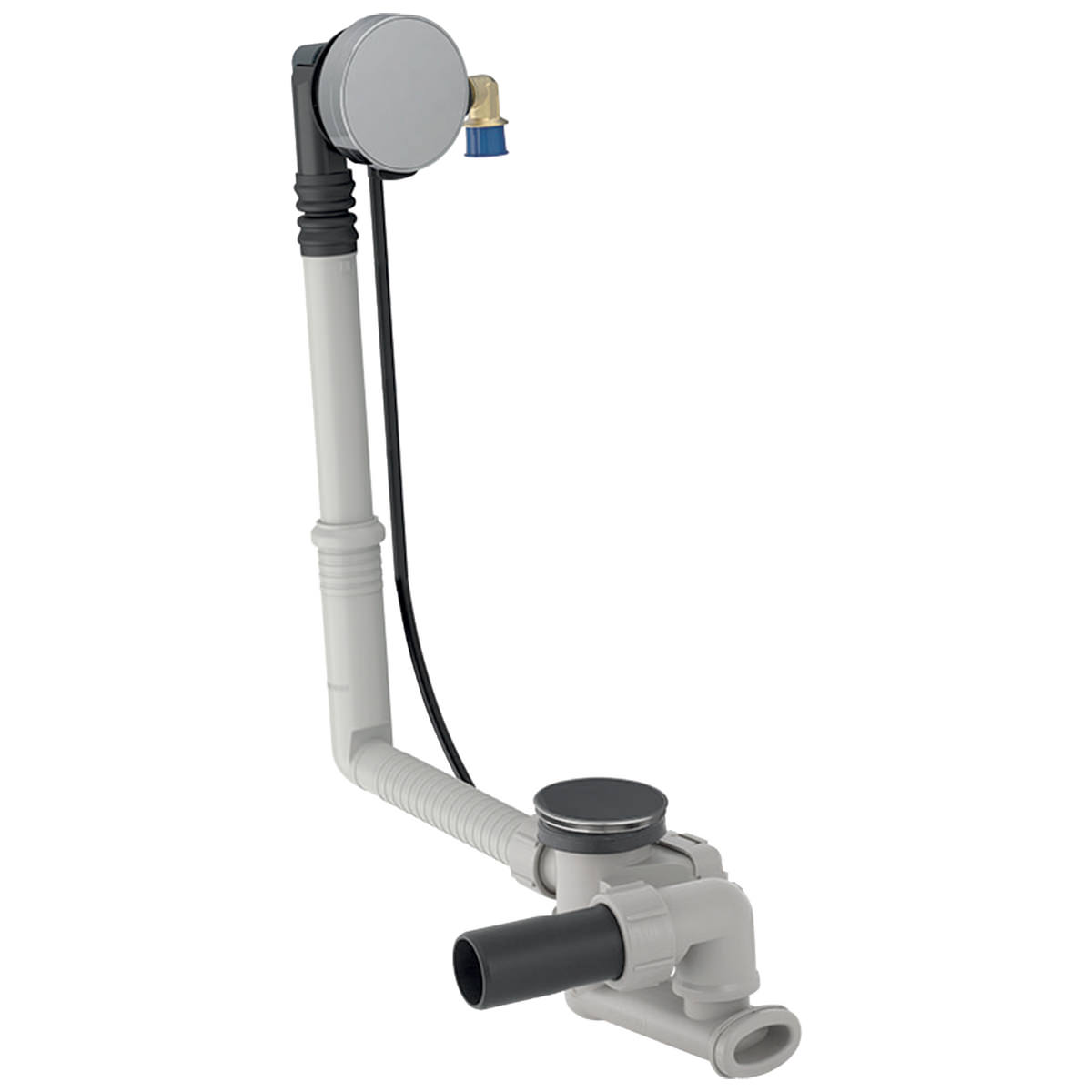

Geberit Ready-to-Fit Turn Handle Bath Waste Set with Overflow - Inlet and Straight Connector

Geberit Ready-to-Fit Turn Handle Bath Waste Set with Overflow - Inlet and Straight Connector.

• Choice of Lengths: 260mm (26cm) and 730mm (73cm)
• Cover in Gloss Chrome Finish
• Standard-Size Bathtubs: Length 260mm (26cm)
• Custom-Size Bathtubs: Length 730mm (73cm)
• Can be used with Bathtubs Made of Steel, Plastic or Cast iron
• An Overflow Head with an Extendible Mount can be Fastened
• Quality Monitored in Accordance with EN 274-3
• Tap Sound Level at 3 Bar: 15 dB(A)
• Sound Class: 1
• Inlet Capacity at 3 Bar: 0.35 l/s
• Overflow Discharge Rate: 0.6 l/s
• Depth of Water Seal: 50mm
• Refer to the Technical Drawing for More Details
• 10-Year Guarantee from Geberit Against Manufacturing Defect
• Scope of Delivery:
• Trap
• Waste Outlet
• Protection Box
• Ready-to-Fit Set
• Fastening Material
• Overflow Head with Inlet
• Straight Connector Made of PE-HD Ø 43mm
• Elbow Tap Connector 90° with MasterFix 1/2 Inch Radial-Sealing
