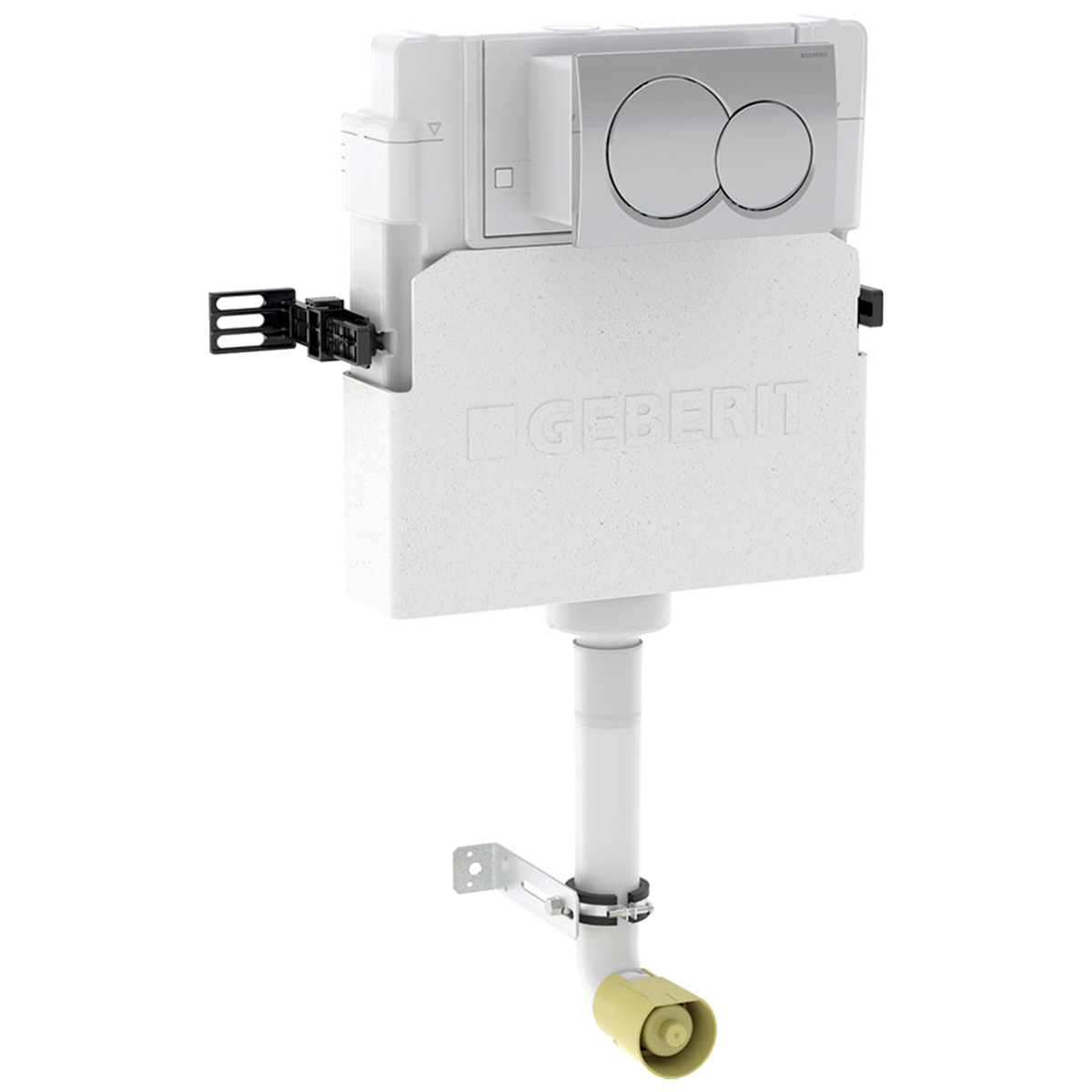

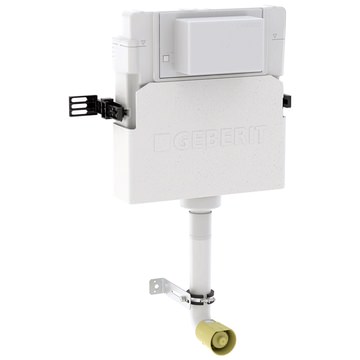

Geberit Alpha 12cm Concealed Cistern 3 and 5.8 Litres with Dual Flush Plate - Installation Height 109cm

Geberit Alpha 12cm Concealed Cistern 3 and 5.8 Litres with Dual Flush Plate - Installation Height 109cm

No Rating

Geberit Alpha 12cm Concealed Cistern 3 and 5.8 Litres with Dual Flush Plate - Installation Height 109cm

Technical drawing QS-V94470 / 109.013.21.1

Additional image of Geberit 109.013.21.1

QS-V94470 small Image 1

QS-V94470 small Image 2

QS-V94470 small Image 3

£205.73

RRP: ~~£214.30~~

SKU: QS-V94470

Select Flush Plate

Cistern With Square Button Flush Plate £205.73
Cistern With Round Button Flush Plate £205.73

Selected: OP-243302 - Cistern With Square Button Flush Plate

QTY

Shipping: £26.99

Stock Availability:

5-7 Working Days Approx.

Geberit Alpha Details

MFC: 109.013.21.1

Key Features

✔Suitable for Dual Flush with Front Actuation
✔Water Supply Connection on the Rear or Top Centre
✔Cistern fulfils Standard Requirements in Accordance with EN 14055, CLASS II

Concealed cistern with dual flush plate
Choice of Variants: Square or Round Button Flush Plate
Comes in a White Finish
Size [mm]: 440 x 120 x 780mm [Width x Depth x Height]
Size [cm]: 44 x 12 x 78cm [Width x Depth x Height]
Material: Plastic
Flush Bend Fitted
Adjustable in Depth
Can be Used in Masonry Walls
For Installation Height 109cm
Fully Insulated Against Condensation
Immediate Post Flush possible with Factory Setting
Suitable to Use with Floor-Standing and Wall-Hung WCs
The Protection Box which Protects Against Moisture, and Dirt and can be Cut to Length for Service Opening
Suitable for Installation in Part or Room-Height prewall and Room-Height Installation Walls
Flow Pressure: 0.1-10 Bar
Maximum Operating Water Temperature: 25° Celsius
Flush Volume Factory Setting: 5.8 / 3 Litres
Flush Volume Small Adjustment Range: 3-4 Litres
Refer to the Technical Drawing for More Details
Download the Installation Instructions PDF File from the Additional Info Section
Scope Of Delivery:
Protection Plug
2x Fixing Brackets
Fastening Material
Flush Bend Extension: Ø45mm
Alpha01 Flush Plate: Square Button or Round Button
Protection Box for Service Opening
Geberit Pull Disc for Type 212 Flush Valve for Omega Concealed Cistern 82cm
Water Supply Connection R 1/2 Inch Compatible with MasterFix and MeplaFix, with Integrated Angle Stop Valve and Hand Wheel

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: White
⤷ Country of Origin
: Germany
⤷ Warranty/Guarantee
: 10 Years
⤷ Material
: Plastic
⤷ Flush Type
: Dual
⤷ Full Flush Volume in litres
: 5.8
⤷ Half Flush Volume in litres
: 3

⤷ Cistern Lever Or Button Placement
: Front
⤷ Width
: 440
⤷ Depth
: 120
⤷ Height
: 780
⤷ Fixings included
: Yes
⤷ Compliance/Approvals/Standard
: EN 14055, Class II
