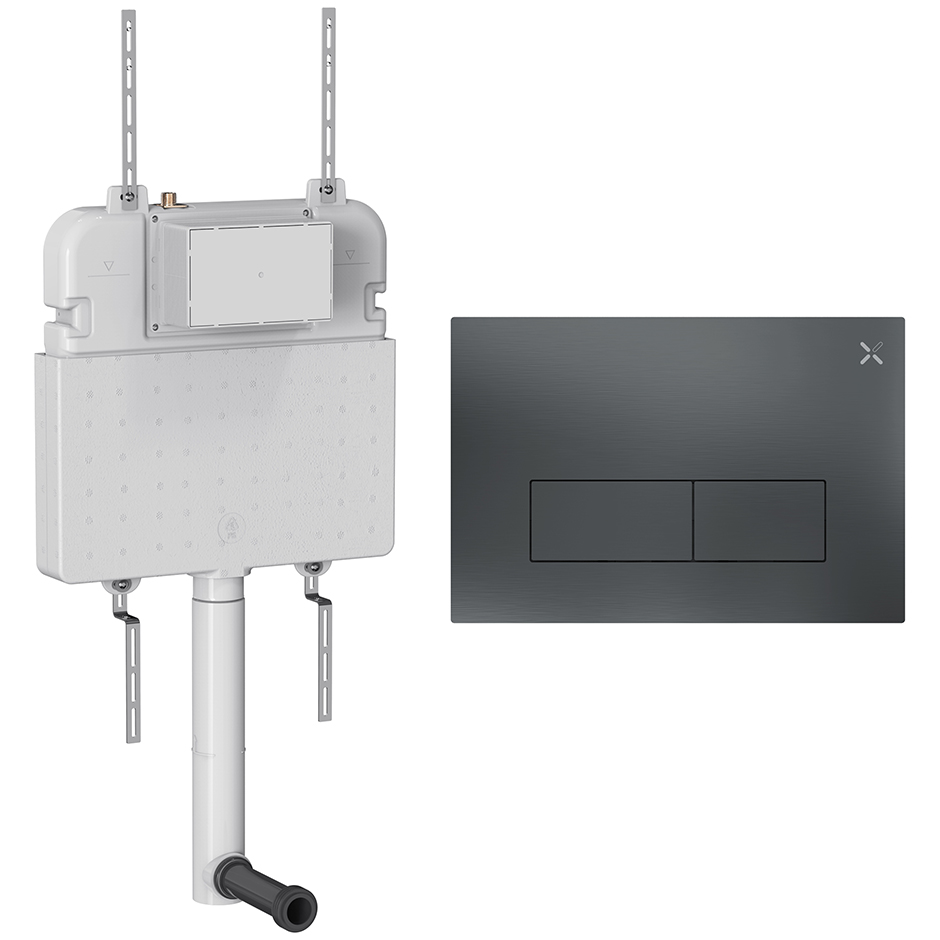

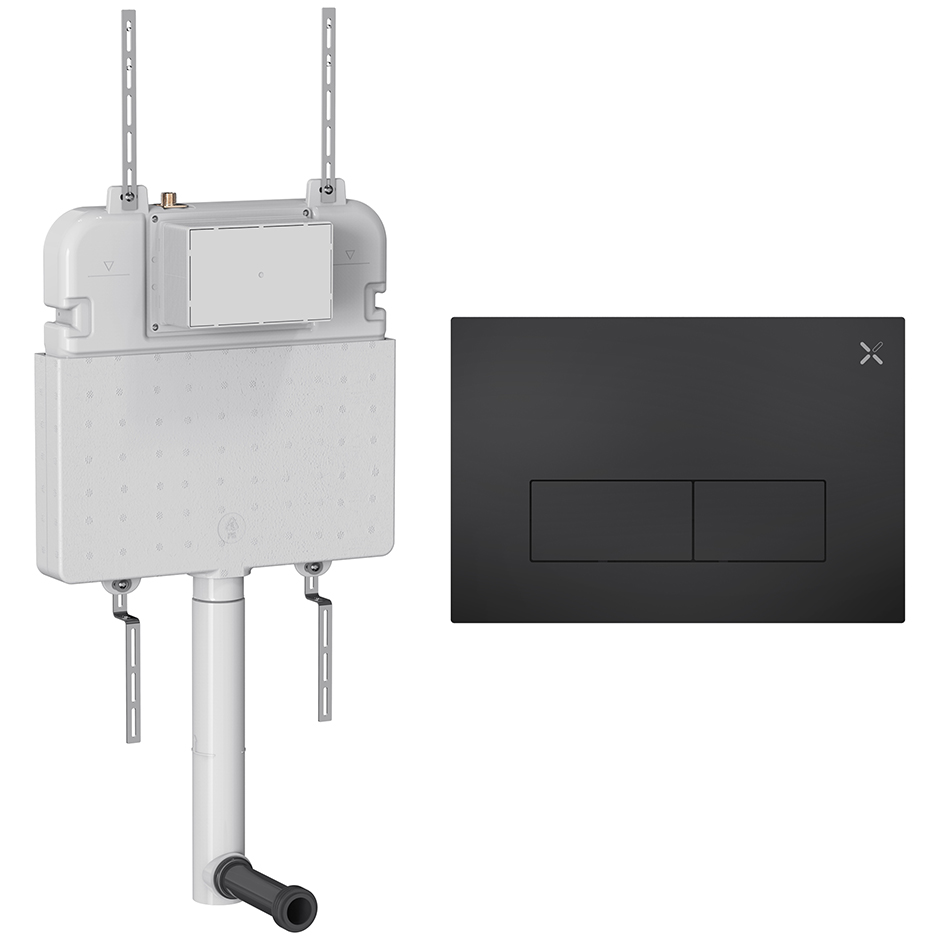

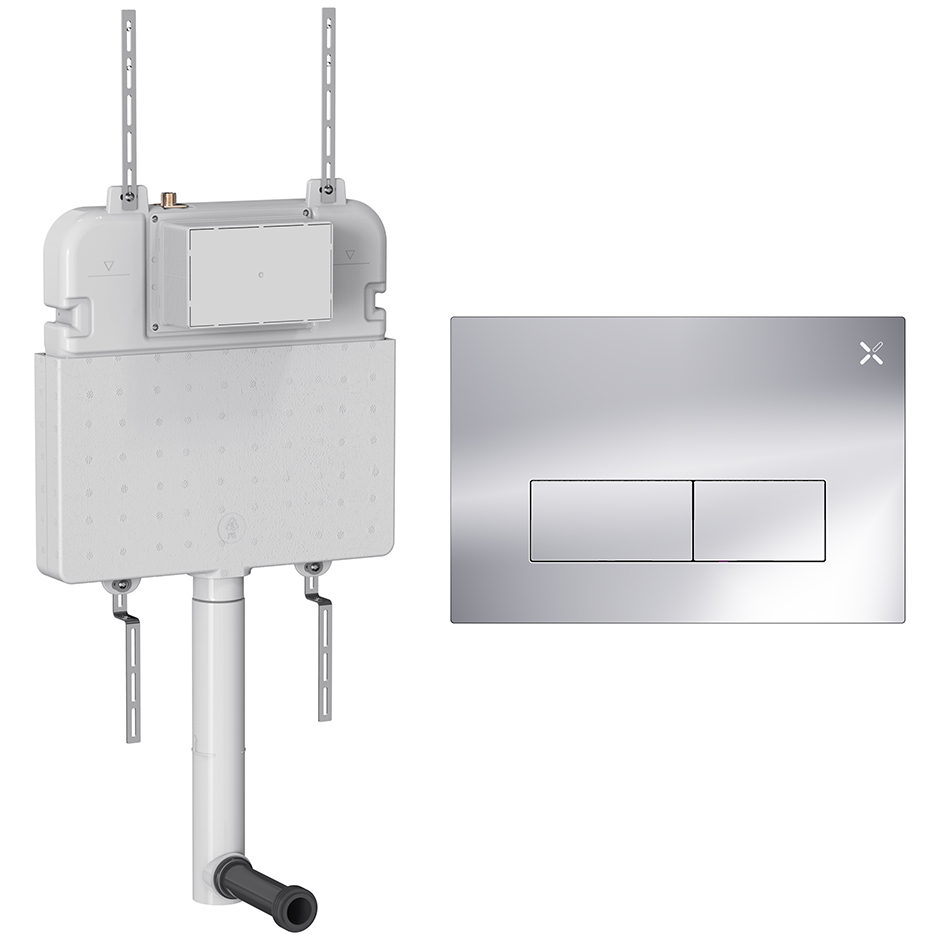

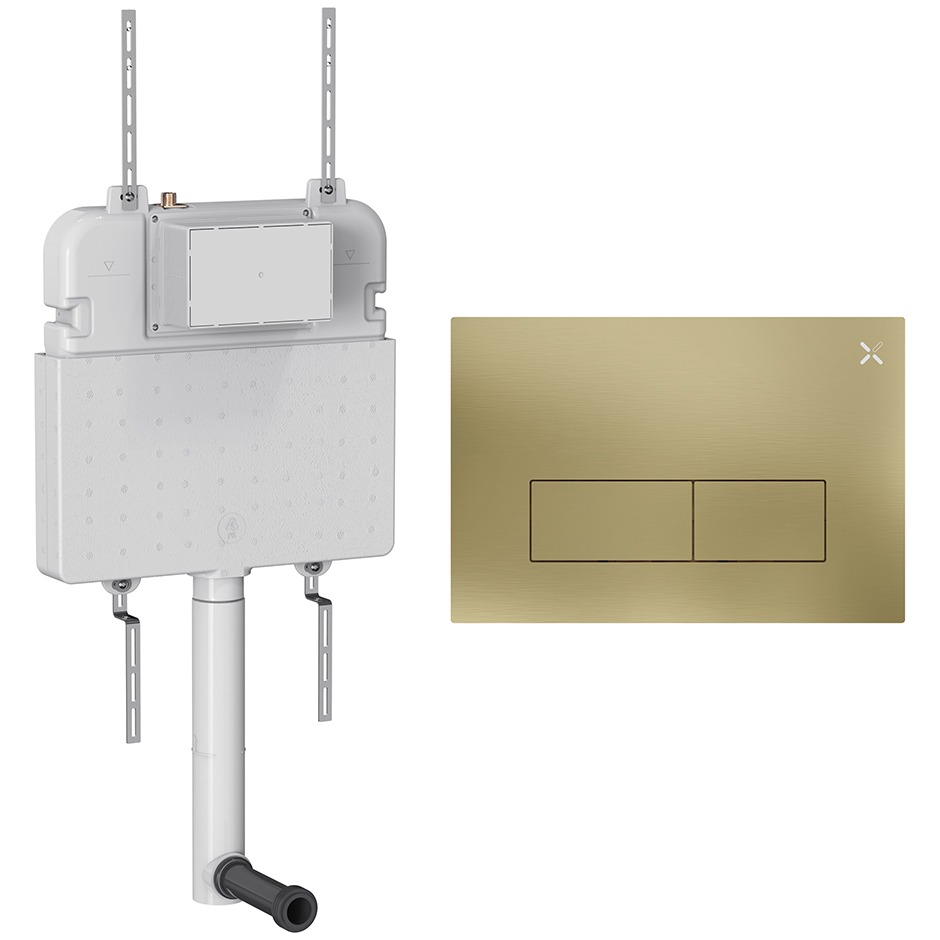

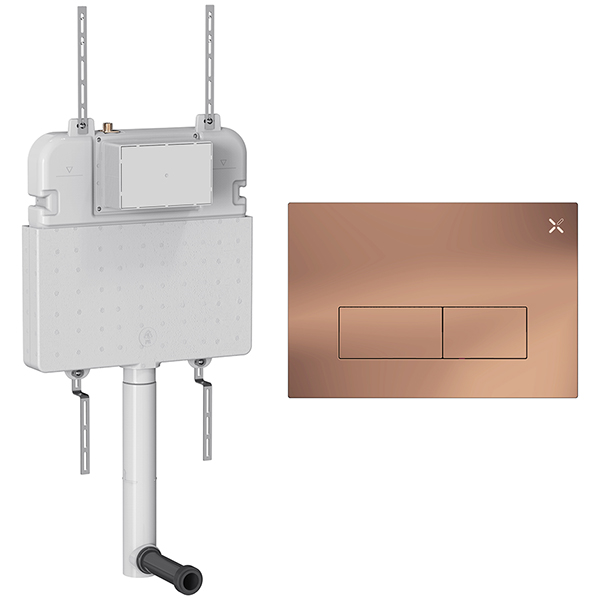

Crosswater MPRO Slimline Dual Flush Concealed Cistern with Flush Plate, MPROSTCISTSET2C

Crosswater MPRO Details

MFC: MPROSTCISTSET2C

Crosswater MPRO Slimline Dual Flush Concealed Cistern 4 and 6 Litres with Flush Plate.

Key Features

✔Available in Multiple Finishes:
✔5-Year Warranty from the Manufacturer

Pack Includes:
Dual Flush Concealed Cistern
Stainless Steel Flush Plate
Refer to the Technical Drawing for Size Details
Download The Installation Instruction PDF File from the Additional Info Section
Details of Cistern
WRAS-Approved
Mechanical Flush
Featuring a Dual-Flush Mechanism
Manufactured Using Plastic Material
Noise Class: Group I
All Fittings Included
Front or Top Actuation
Incorporates with Discharge Pipe & Installation Kit
Size [mm]: 508 x 80 x 550mm [Width x Depth x Height]
Size [cm]: 50.8 x 8 x 55cm [Width x Depth x Height]
Weight: 4.29kg
Standards: BS EN 14055:2018
Flush Volume: 6/4 Litre
Fixing Type: Wall-Mounted Fixing
Designed for Use with Compatible Crosswater Back-to-Wall Toilets
Includes Water-Saving Technology by Providing Both 3 and 6 Litre Flush Capabilities when Installed with a Flush Plate
Details of Flush Plate
Features Dual-Flush Technology - Including Eco-Flush
Manufactured using Stainless Steel Material
Wall-Mounted Installation
Size [mm]: 245 x 165mm [Width x Height]
Size [cm]: 24.5 x 16.5cm [Width x Height]
Weight: 0.33kg
Actuation Force: 20nm
Smooth Yet Positive Mechanical Operation
Easy to Fit
Sound-Absorbing Actuation Rods
Fixings for the Mounting Frame Included
The Dual Flush Technology Allows You to Reduce Your Water Usage by up to 40%
Press the Large Button to Flush with the Entire Water Volume or the Smaller Button for an Eco Flush [Reduced 3-litre Volume]
Compatible with Crosswater Toilet Frames and Concealed Cisterns
All Cistern Parts can be Maintained Easily - Remove the Flush Plate to Gain Access

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Weight in kg
: 4.29
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Plastic
⤷ Water Saving
: Yes
⤷ Flush Type
: Dual
⤷ Full Flush Volume in litres
: 6
⤷ Half Flush Volume in litres
: 4

⤷ Cistern Lever Or Button Placement
: Front
⤷ Width
: 508
⤷ Depth
: 80
⤷ Height
: 550
⤷ Fixings included
: Yes
⤷ Compliance/Approvals/Standard
: BS EN 14055:2018

Additional Info & Downloads

Download the Installation Instruction For Cistern Pdf File Download the Installation Instruction For Flush Plate Pdf File Download the Product Data Sheet For Cistern Pdf File Download the Product Data Sheet For Flush Plate Pdf File

Technical Images

Cistern

Flush Plate

£399.20

RRP: ~~£499.00~~

STOCK AVAILABLITY: 5 Working Days Approx

QS Supplies

5 Features Included In This Product Explained

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Dual-Flush

A toilet with a flushing mechanism with two different buttons for flushing solid and liquid waste, thereby saving water.

ABS Plastic

ABS, or Acrylonitrile butadiene styrene, is a thermoplastic polymer used to manufacture many non-food products. It is inexpensive and can be easily shaped and machined. It also features high strength, stiffness, increased chemical and temperature resistance, electrical insulation and a glossy look.

Easy Fit Installation

The product is designed for fast and easy installation.

Stainless Steel Material

Stainless Steel is an iron alloy with anti-rust and anti-corrosive properties, unlike iron. Along with other metal alloys, it contains a minimum of 10.5% of chromium and less than 1.2% of carbon. This robust, hygienic, hard-wearing base material is popular in the construction of bathroom products.

Crosswater MPRO Slimline Dual Flush Concealed Cistern 4 and 6 Litres with Flush Plate
