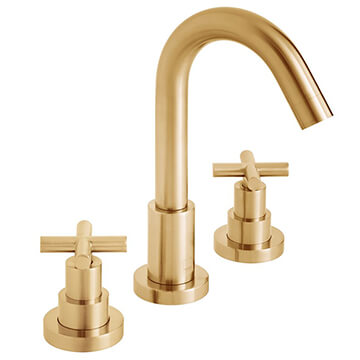

Vado Individual Elements 3 Hole Deck Mounted Bath Filler Tap

Vado Individual Elements IND-ELW135/NH-BRG Details

Vado Individual Elements 3 Hole Deck Mounted Bath Filler Tap.

Crafted using premium quality materials.
Deck-mounted installation.
Height: 223mm (22.3cm).
Centre of the inlet to the centre of the outlet: 127mm (12.7cm).
Supplied with cold (C-303-RTC) and hot (C-303-LTC) ceramic cartridge.
Connections/Fittings: 2 x 3/4-Inch x 3/4-Inch 600mm (60cm) flexi pipe connections.
3/4-Inch male inlet connections.

Deck hole drill diameter: For valve - 35mm (3.5cm) and spout - 30mm (3cm).
Plumbing system suitability: Pumped System, Combination Boiler, Pressurised System.
Requires a minimum of 1.0 bar and a maximum of 5.0 bar water pressure for smooth working.
Refer to the technical drawing for complete dimensional details.
For flow rates, refer to the additional images.
Download the Installation Instructions PDF from the Additional Info section.

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Rotating
⤷ Range
: Elements
⤷ Handle Position
: Left & Right
⤷ Tap Body Shape
: Round
⤷ Colour
: Brushed Gold
⤷ Warranty/Guarantee
: 15 Years
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 3
⤷ Spout type
: Fixed

⤷ Valve/Cartridge Type
: Ceramic Disc Cartridge
⤷ Spout Reach
: 127
⤷ Overall Height
: 223
⤷ Spout Deck Mount Drill Hole Diameter
: 30
⤷ Handle Deck Mount Drill Hole Diameter
: 35
⤷ Handle Height
: 83
⤷ Minimum Operating Pressure (Bar)
: 1.0
⤷ Handle Style
: Crosshead
⤷ Barcode
: 5052120265277
⤷ Product Type
: Bath Filler Tap

Additional Info & Downloads

Download the Installation Instruction Pdf File

Total: £468.76 5-7 Working Days Approx QS Supplies

2 Features Included In This Product Explained

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
