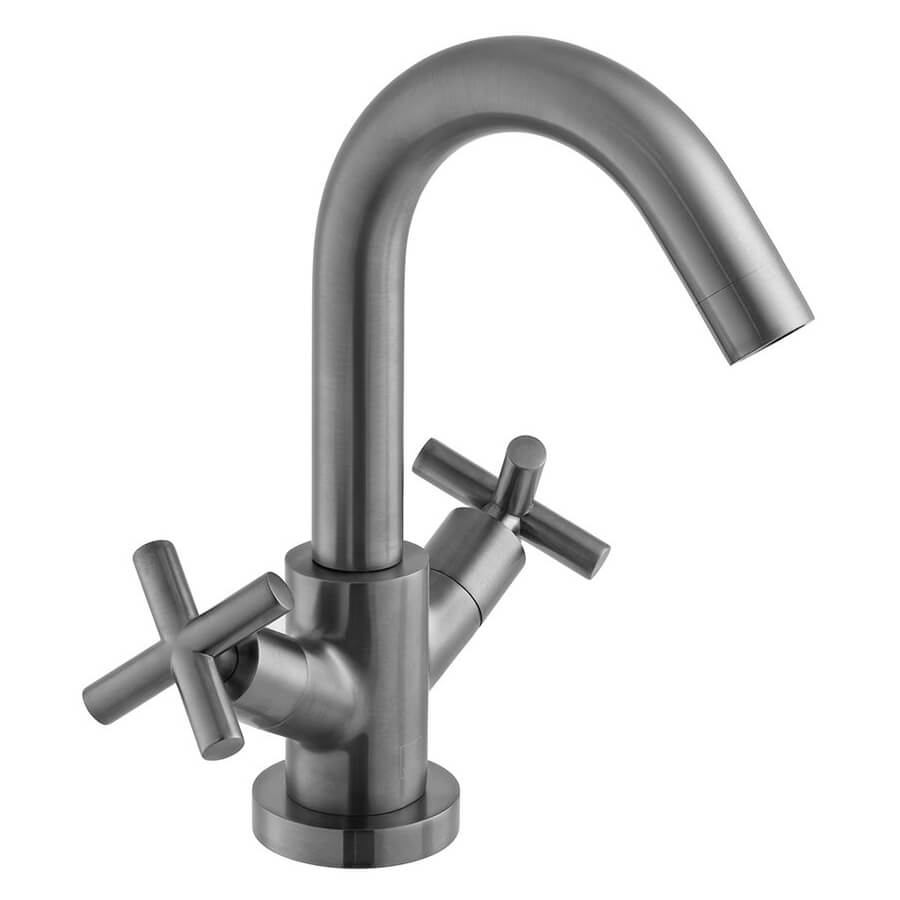

Vado Individual Elements Dual Lever Mono Basin Mixer Tap

Vado Individual Elements IND-ELW100F/SB-BLK Details

Vado Individual Elements Dual Lever Mono Basin Mixer Tap.

Manufactured using high-quality materials.
Deck-mounted installation.
Dual cross-handles.
Includes cold (C-206-RTC) and hot (C-206-LTC) ceramic cartridge.
5 l/m flow regulator fitted as standard.
Size [mm]: 180mm x 170mm x 245mm [Width x Depth x Height].
Size [cm]: 18cm x 17cm x 24.5cm [Width x Depth x Height].
Base to spout: 175mm (17.5cm).
Centre of the inlet to the centre of the outlet: 130mm (13cm).

Connections/Fittings: 2 x 1/2-Inch 400mm flexi pipe connections.
Deck hole drill diameter: 35mm (3.5cm).
Plumbing system suitability: Gravity System, Pumped System, Combination Boiler, Pressurised System.
Suitable for low-pressure water system.
Requires 0.2 - 5.0 bar water pressure for smooth working.
Refer to the technical drawing for more dimensional details.
For flow rates, please refer to the additional images.
Download the Installation Instructions PDF file from the Additional Info section.

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Rotating
⤷ Range
: Elements
⤷ Handle Position
: Left & Right
⤷ Tap Body Shape
: Round
⤷ Colour
: Brushed Black
⤷ Warranty/Guarantee
: 15 Years
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Spout type
: Swivel

⤷ Valve/Cartridge Type
: Ceramic Disc Cartridge
⤷ Base To Spout
: 175
⤷ Spout Reach
: 130
⤷ Overall Height
: 245
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Handle Style
: Crosshead
⤷ Deck Mount Drill Hole Diameter
: 35
⤷ Barcode
: 5052120250938
⤷ Product Type
: Basin Mixer Tap

Additional Info & Downloads

Download the Installation Instruction Pdf File

Total: £318.76 5-7 Working Days Approx QS Supplies

4 Features Included In This Product Explained

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

Swivel-Spout

The respective apparatus is engineered with the ability to move sideways or at certain angles, which helps them cover a greater area than would be possible in a stationary position.

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

Flow Regulator

As the name suggests, a flow regulator is a simple device designed to regulate water flow to a predetermined level. The job of a flow regulator is to stop water wastage. For instance, if the regular flow rate through a tap is 20 litres per minute, a flow regulator can reduce the flow rate between 6 to 12 litres per minute to complete the desired chore without feeling low pressure.
