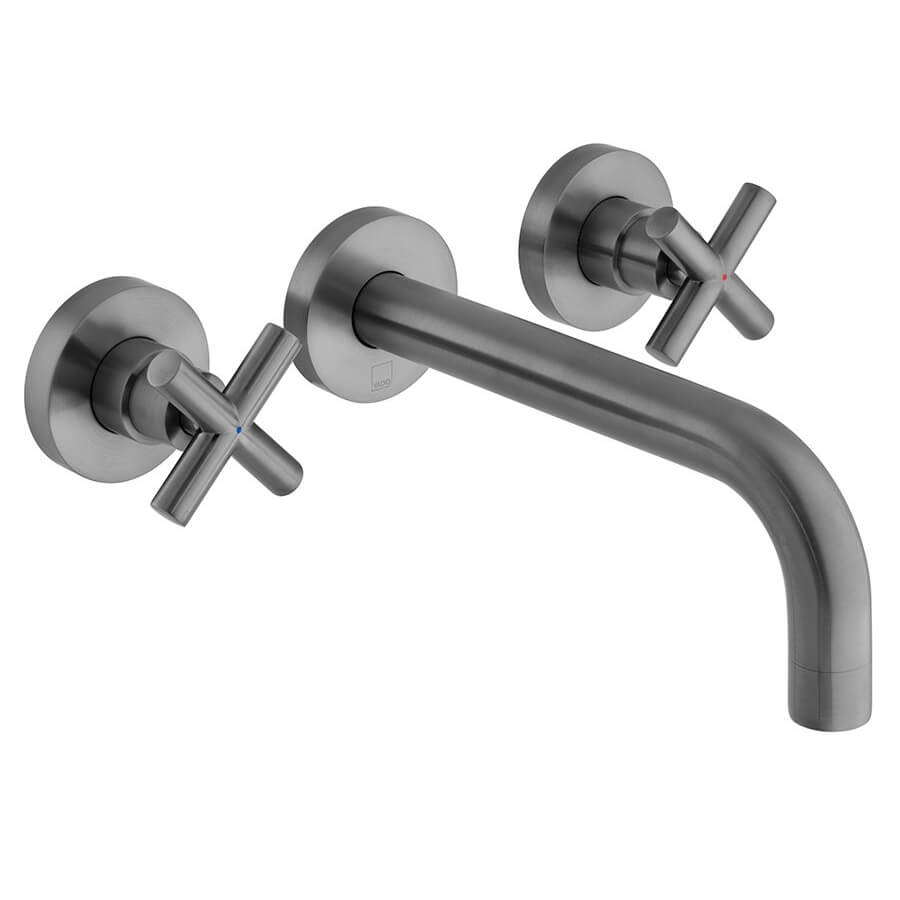

Vado Individual Elements Wall Mounted 3 Hole Basin Mixer Tap

Vado Individual Elements IND-ELW109FLA-BRN Details

Vado Individual Elements Wall Mounted 3 Hole Basin Mixer Tap.

Crafted using premium quality materials.
Wall-mounted installation.
Spout length: 200mm (20cm).
Inlet centres: 200mm (20cm).
Min-max wall mount: 50-68mm (5-6.8cm).
Supplied with cold (C-208-RTC) and hot (C-208-LTC) ceramic cartridge.

Plumbing system suitability: Gravity System, Pumped System, Combination Boiler, Pressurised System.
Suitable for low-pressure water system.
Requires a minimum of 0.2 bar and a maximum of 5.0 bar water pressure for smooth working.
Refer to the technical drawing for complete dimensional details.
For flow rates, refer to the additional images.
Download the Installation Instructions PDF from the Additional Info section.

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Rotating
⤷ Range
: Elements
⤷ Handle Position
: Left & Right
⤷ Tap Body Shape
: Round
⤷ Colour
: Brushed Nickel
⤷ Warranty/Guarantee
: 15 Years
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ No. of Holes Required
: 3
⤷ Spout type
: Fixed

⤷ Valve/Cartridge Type
: Ceramic Cartridge
⤷ Spout Reach
: 208-190
⤷ Inlet Centres
: 200
⤷ Min-Max Wall Mount
: 50-68
⤷ Inlet Connections
: 1/2-Inch
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Handle Style
: Crosshead
⤷ Flow Regulator Included
: Yes
⤷ Barcode
: 5052120251034
⤷ Product Type
: Basin Mixer Tap

Additional Info & Downloads

Download the Installation Instruction Pdf File

Total: £431.26 5-7 Working Days Approx QS Supplies

3 Features Included In This Product Explained

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

Flow Regulator

As the name suggests, a flow regulator is a simple device designed to regulate water flow to a predetermined level. The job of a flow regulator is to stop water wastage. For instance, if the regular flow rate through a tap is 20 litres per minute, a flow regulator can reduce the flow rate between 6 to 12 litres per minute to complete the desired chore without feeling low pressure.
