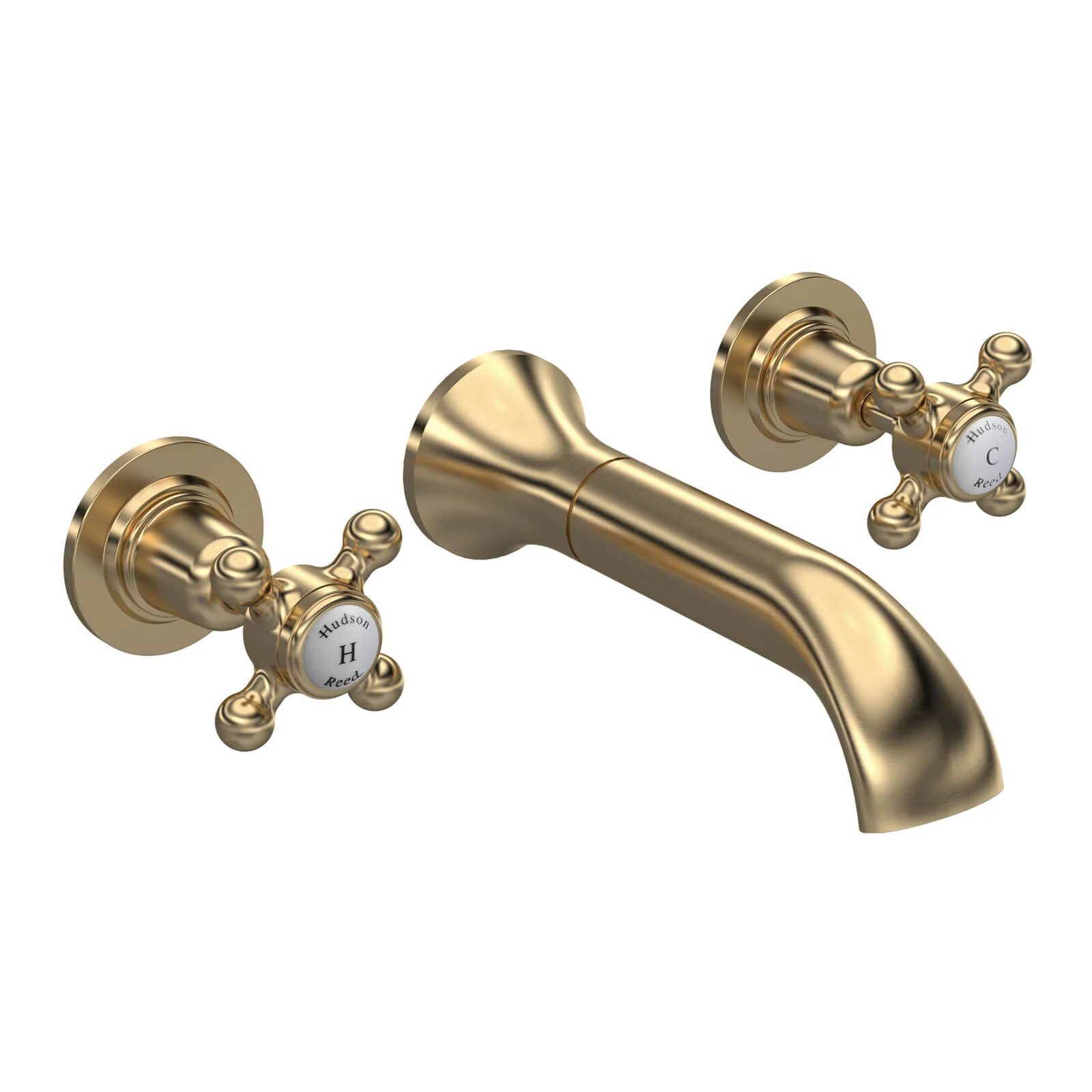

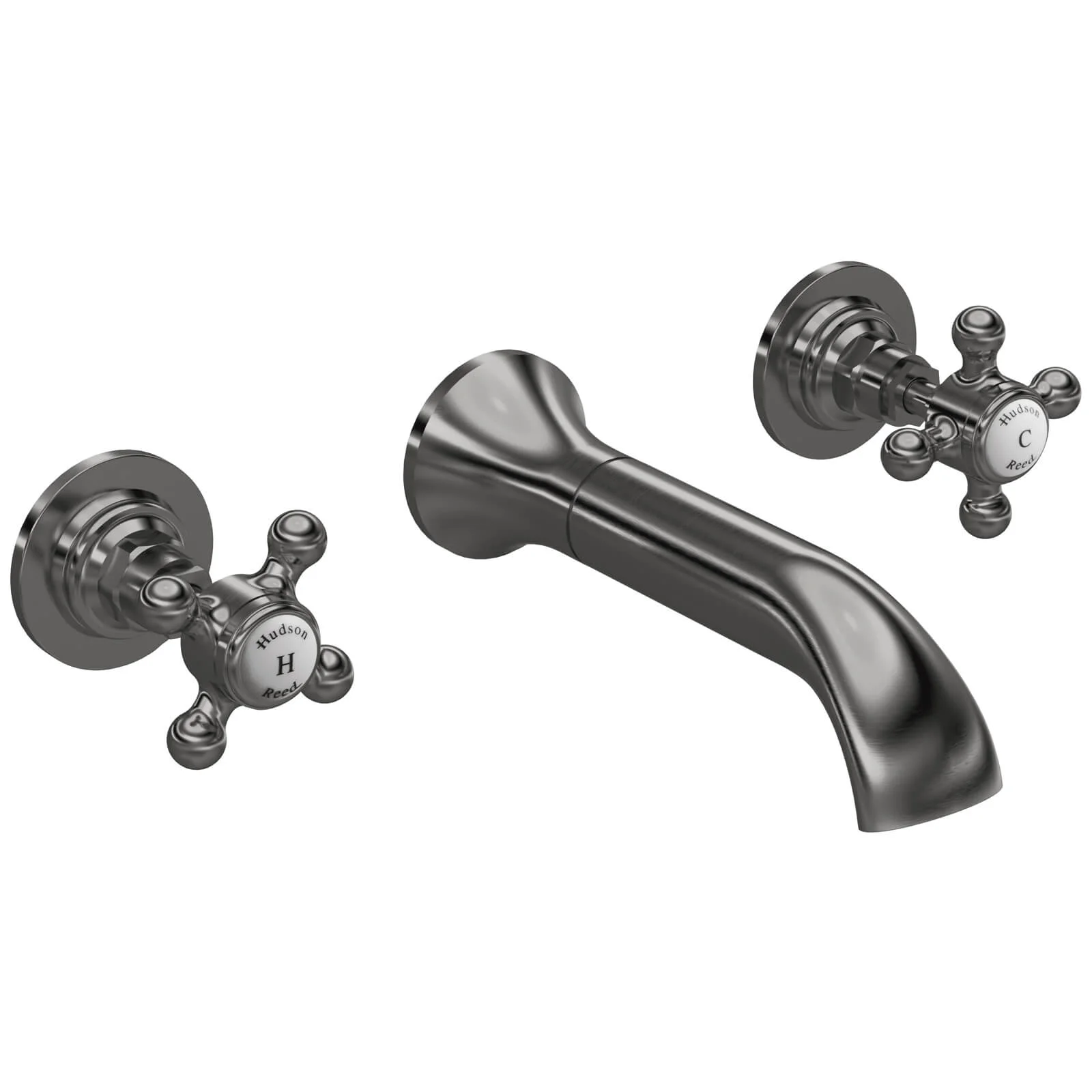

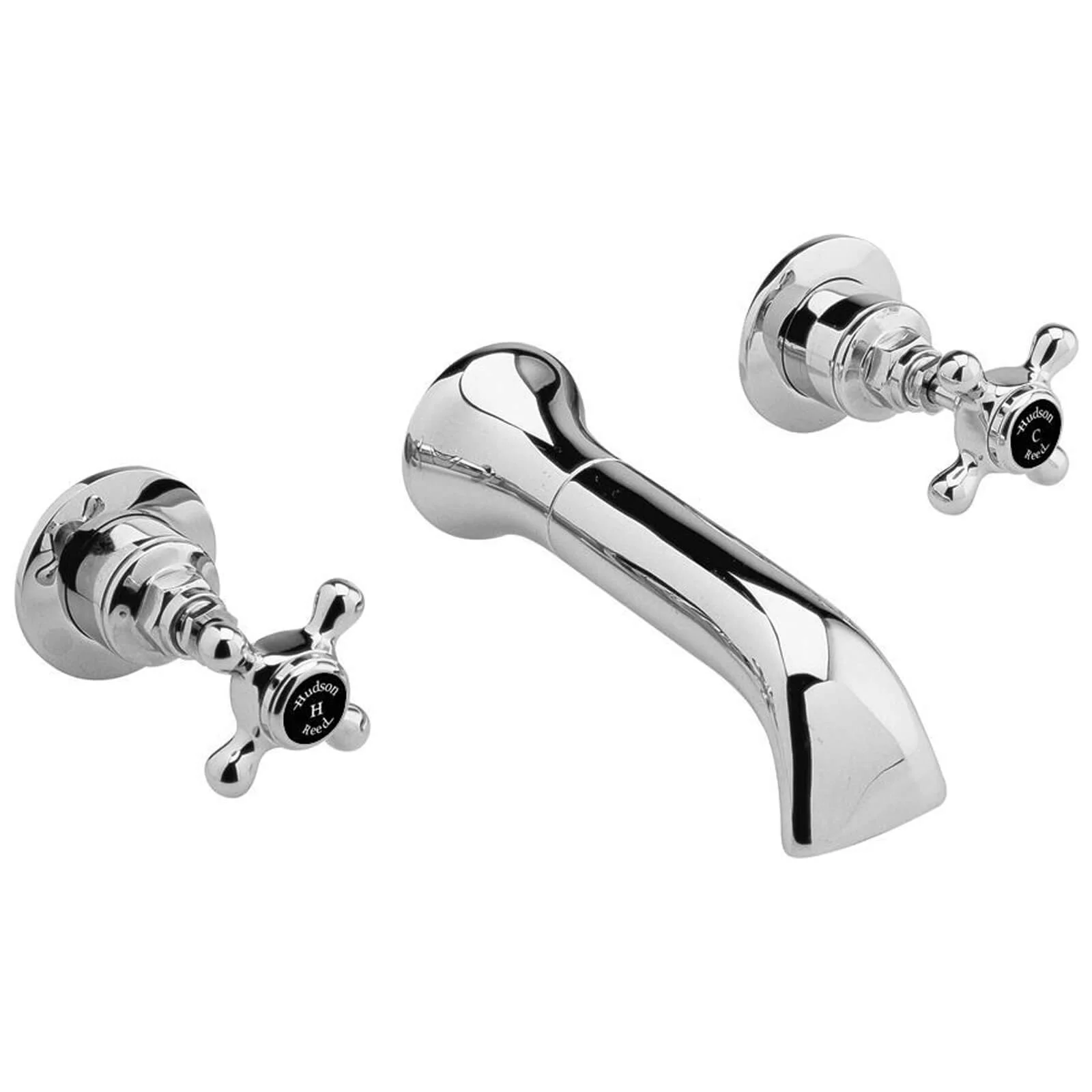

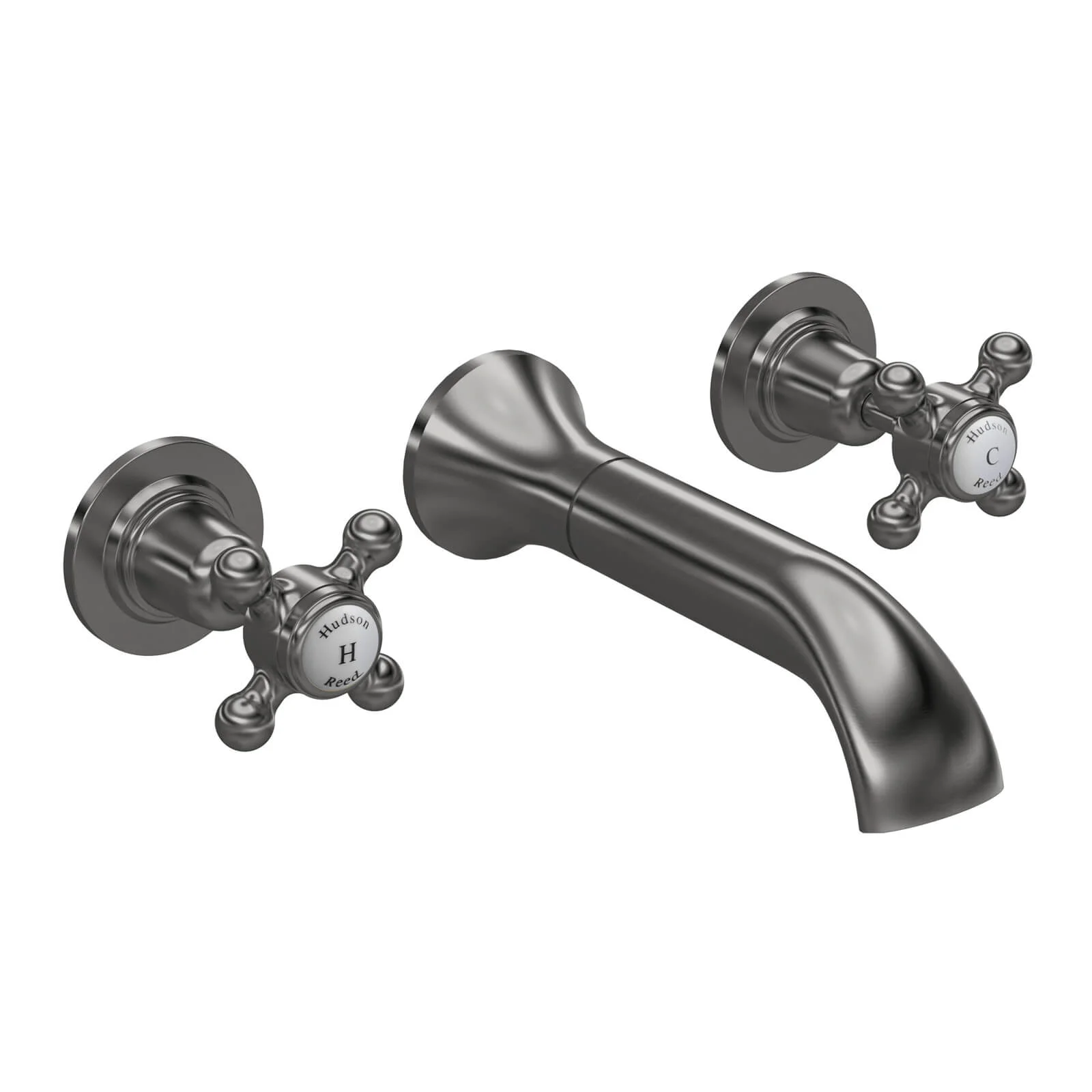

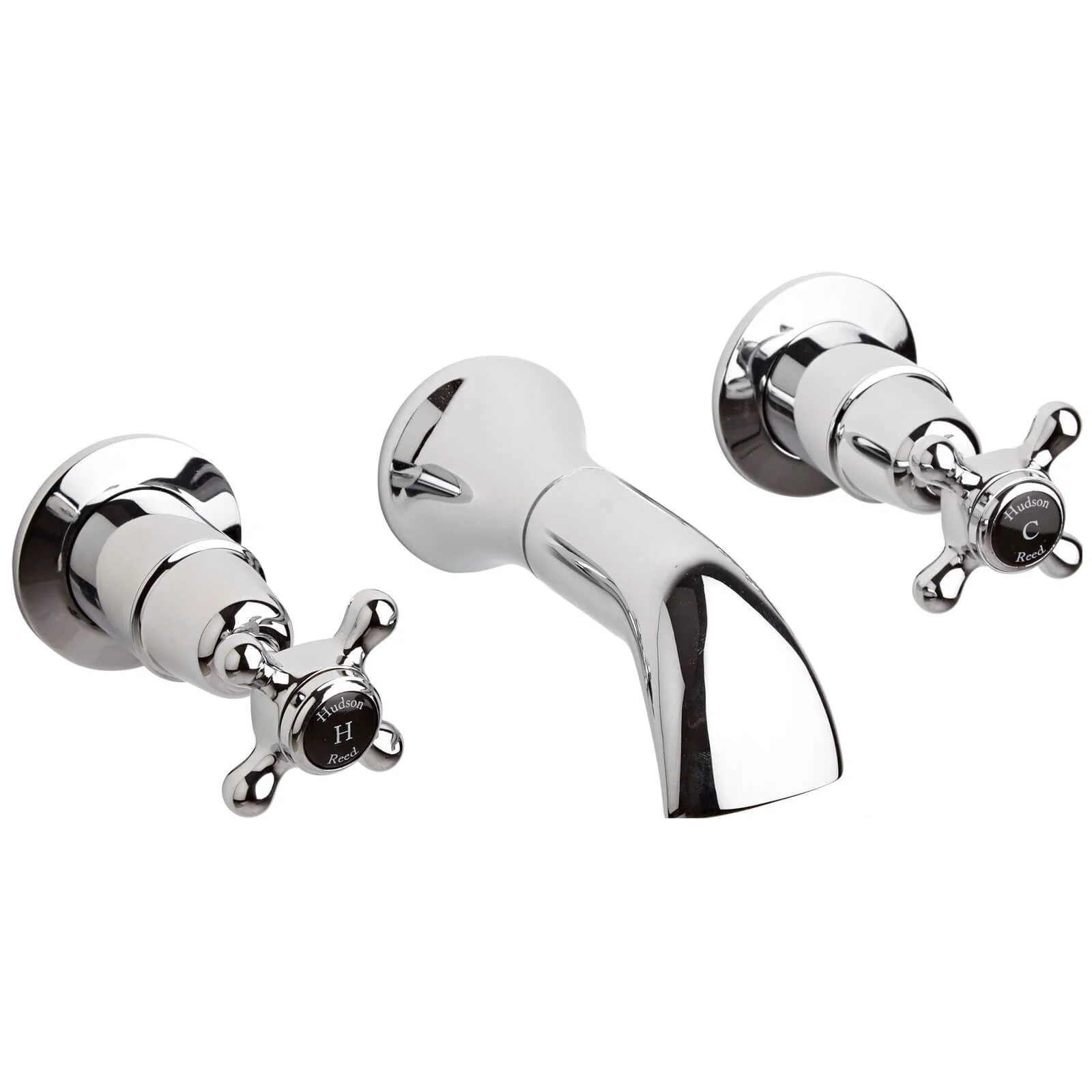

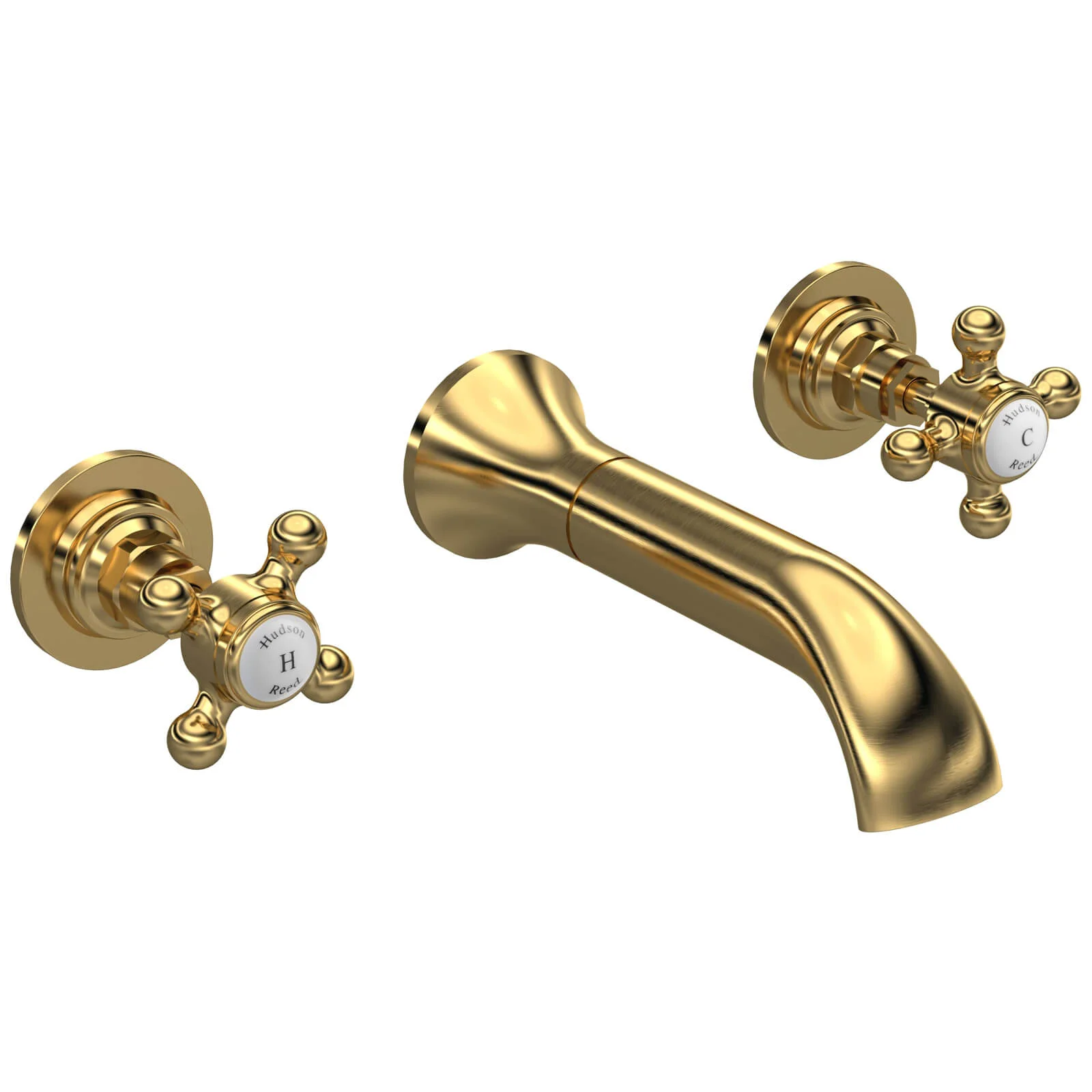

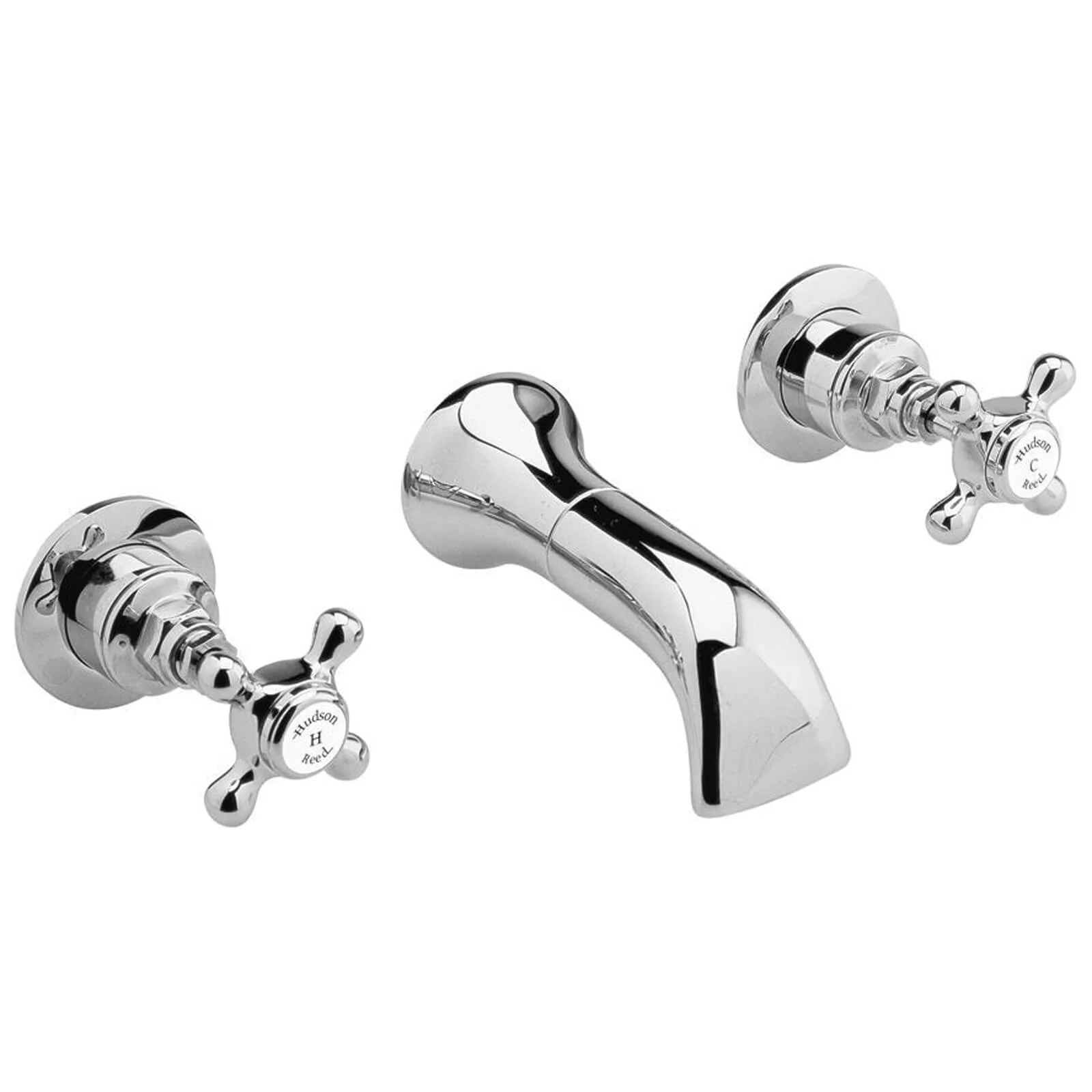

Hudson Reed Topaz 3-Hole Basin Mixer Tap, Long Spout, Crosshead Handles, BC317HX

Hudson Reed Topaz Details

MFC: BC317HX

Hudson Reed Topaz 3 Hole Wall Mounted Basin Mixer Tap is a traditionally designed three-hole mixer. Its impressive 3 hole design with period design adds the luxury quotient within any bathroom design. It features the latest ceramic disc technology for uninterrupted working. High quality brass internals has been given an appealing chrome finish that gives it durability and keeps it shiny and new.

Key Features

✔1/4 Turn Ceramic Disc
✔Manufactured using Brass Material
✔Ceramic Disc Technology for Long-Lasting and Smooth Operation
✔20-Year Guarantee for Chrome finish and 3-Year Other Finishes Against Manufacturing Defects

Choice of Finish: Chrome, Brushed Brass and Brushed Pewter
Choice of Indices: White and Black
Choice of Collar Type: Hexagonal or Dome
Height: 55mm (5.5m)
Centre of the Inlet to Centre of the Outlet: 180mm (18cm)
Pipe Size: 22mm (2.2cm) (3/4 Inch BSP)
Weight: 1.7kg
Suitable for Wall-Mounted Installation
Traditional Design
Tap Installation Holes Require: 3
Suitable for Low-Pressure Systems
Requires a Minimum of 0.1 Bar of Water Pressure for Smooth Flow
Download the Customer Data Sheet and Installation PDF Files from the Additional Info Section
Refer to the Technical Diagram for Complete Technical Details

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Rotating
⤷ Handle Position
: Left | Right
⤷ Tap Body Shape
: Round
⤷ Range
: Topaz
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 20-Year
⤷ Material
: Brass
⤷ Theme
: Traditional
⤷ Installation Type
: Wall Mounted
⤷ No. of Holes Required
: 3
⤷ Spout type
: Fixed

⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Ceramic Disc Cartridge
⤷ Spout Reach
: 180
⤷ Inlet Centres
: 202
⤷ Overall Height
: 55
⤷ Minimum Operating Pressure (Bar)
: 0.1
⤷ Flow Rates (l/min)
: 0.1 bar - 8 | 0.5 bar - 19.3 | 1 bar - 27.5 | 2 bar - 39.4 | 3 bar - 47.8
⤷ Handle Style
: Crosshead
⤷ Barcode
: 5056211853190
⤷ Product Type
: Basin Mixer Tap

Additional Info & Downloads

Download the Customer Data Sheet for Hexagonal Collar Pdf File Download the Customer Data Sheet for Dome Collar Pdf File Download the Installation Instruction Pdf File

This item can also be found in:

Technical Images

Hudson Reed Topaz 3 Hole Traditional Basin Mixer Tap - Long Spout - Crosshead Handles

Hexagonal Collar

Dome Collar

£113.05

RRP: ~~£323.00~~

IN-STOCK

Delivery in 4 Working Days Approx.

QS Supplies

2 Features Included In This Product Explained

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

Reviews & Ratings

By: Drain From : GLOUCESTER Overall Rating: Date: November 22, 2021 Hudson Reed Topaz 3 Hole Basin Tap

Fabulous product very nicely finished and good value for money as have found all the Hudson Reed products to be. We fitted the ones with the quarter-turn black ceramic handles as they suited the style of the bathroom they were easy to install although the instructions are a little brief still not difficult and fairly self explanatory if your a competent plumber.

Helpful?

Quality:

Style

Value for Money

By: Tracey From : NEWCASTLE UPON TYNE Overall Rating: Date: February 24, 2023 Quality product

Beautiful high-quality wall-mounted taps, and even better, were how reasonably priced they were at QS. Delivery was good, with the product being well packed to avoid damage in transit.

Helpful?

Quality:

Style

Value for Money

By: Wendy From : STOCKPORT Overall Rating: Date: October 17, 2024 Bathroom make over

Finally got around to updating our en-suite bathroom, and my first point of call was QS Supplies, they have always had the best range of products at very affordable prices.

Helpful?

Quality:

Style

Value for Money

By: Sophie From : Market Harborough Overall Rating: Date: March 18, 2025 Great tap set

Really happy with the product. Look really good and taps feel high quality. Very happy.

Helpful?

Quality:

Style

Value for Money

Questions & Answers

Submit Your Questions 1 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

phoebe Asked :
Does this come with the T valve connecting the spout shown on the technical drawing? Does this require 3/4 or 1/4 pipe?

Answered By QS Team

The tap comes with a manifold. The T valve is not part of the kit.
