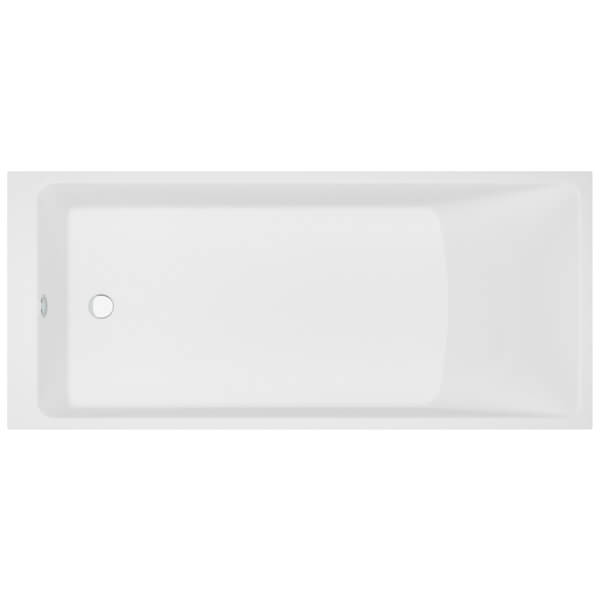

Trojan Elite Edge Single Ended Fully Encapsulated Baseboard Bath

£261.07

RRP: £600.00

STOCK AVAILABLITY.

In-Stock In Stock

3.0 out of 5 3.0 out of 5

Based on 2 Ratings.

Shipping: FREE* Check Postcodes

Delivery in 4 Working Days Approx.
Select Variations
You've Selected: OP-219940 - 1700 x 700mm
Key Features
  • Constructed using lucite acrylic sheet
  • Made in the UK from 100% sanitary grade cast acrylic
  • Pair of tubular cradles supplied to provide support to the bath
  • Twenty-five years guarantee from Trojan against manufacturing defects
  • Material and product standards: EN263, EN198, CE EN 14516:2015 CL.1 PH, FSC TT-COC-003576
SKU Code: QS-V108194

MFC Code: B002496

Trojan Elite Edge B002496 Details

Buy this beautiful Trojan Elite Edge Single-Ended Fully Encapsulated Baseboard Bath and bring home a star this Year. This tub is manufactured using an Acrylic sheet and is doubtlessly superior in quality. The product, which features an encapsulated baseboard, has been shaped to cover the whole bath base. Designed to offer excellent structural stability, it nicely cradles your back, neck and shoulders to give you the perfect position for soaking. Flawless in white finish, this bath enjoys a promise of 25 years guarantee. Go for it, because you deserve the best! Bath front and end panels and Bath waste are available separately.

  • Choice of sizes available - 1700 x 700mm, 1700 x 750mm and 1800 x 800mm [Optional].
  • Size [mm]: 400mm x 510mm [Depth x Height].
  • Size [cm]: 40cm x 51cm [Depth x Height].
  • Finish: White.
  • Encapsulated baseboard routed and shaped to cover the full base of the bath, including around the plug hole.
  • Supplied with timber frame including 4mm plywood tap platform to offer rim support and fixing points for installation kits.
  • It comes with bath fittings as standard.
  • Water capacity: 700mm (70cm) - 195 ltr and 750mm (75cm) - 210 ltr.
  • Bath front and end panel [Optional].
  • Bath waste [Optional].
  • Comes undrilled - can be drilled for bath-mounted taps.
  • The image shown is for illustration purposes only.
  • Waste, Overflow shown in the picture are not included.
  • Refer to the technical drawing for more technical specifications.

Info / Size (mm)

  • Bath
  • Length: 1700 mm
  • Width: 700 mm
  • Depth: 400 mm

Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ Range
  • : Elite Edge
  • ⤷ Interior Shape
  • : Rectangular
  • ⤷ Bath Type
  • : Standard
  • ⤷ Position of Drain
  • : Waste at Foot End
  • ⤷ Coating
  • : Without Coating
  • ⤷ External Length
  • : 1700
  • ⤷ External Width
  • : 700
  • ⤷ Tub Depth
  • : Internal - 400 External - 380
  • ⤷ Feets Included
  • : Yes
  • ⤷ Height Including Feet or Panel
  • : 510
  • ⤷ Front Panel Included
  • : Sold Separately
  • ⤷ End Panel Included
  • : Sold Separately
  • ⤷ Colour
  • : White
  • ⤷ Internal Bottom Length
  • : 1260
  • ⤷ Internal Bottom Width
  • : 490
  • ⤷ Internal Top Length
  • : 1515
  • ⤷ Internal Top Width
  • : 570
  • ⤷ Height of Rim
  • : 40
  • ⤷ Shape
  • : Rectangular
  • ⤷ Country of Origin
  • : UK
  • ⤷ Warranty/Guarantee
  • : 25 Years
  • ⤷ Material
  • : Lucite Acrylic Sheet
  • ⤷ No. of Bathers
  • : 1
  • ⤷ Theme
  • : Modern
  • ⤷ Waste Included
  • : Sold Separately
  • ⤷ Tap Holes
  • : Un-Drilled
  • ⤷ Barcode
  • : 5057199964045

Customise Your Product

Front Panel
Front Panel

Choose your desire front panel from the option given below. Please Note image shown is for illustration purpose only

End Panel
End Panel

Optional End panel. Please note image shown is for illustration purpose only

Waste
Waste

High flow dedicated waste to flush out the wastewater. Please note the image shown is for illustration purpose only.

Total: £261.07 5 Working Days Approx QS Supplies

4 Features Included In This Product Explained

Lucite Acrylic

Lucite Acrylic

It is a high-quality acrylic resin developed by DuPont in 1937 and is one of the top-quality materials available in today's market. It replaced glass as it is less breakable, offers high strength and resistance to UV rays, moisture and wind, and is easy to clean. It is also incredibly flexible and can create the best products.

FSC Certified

FSC Certified

Any product with this logo is made of wood from well-managed, sustainable forests. Its full form is certified by the Forest Stewardship Council. By buying such products, you are supporting responsible forestry.

Encapsulated Base Board

Encapsulated Base Board

The encapsulated base board has been coated with Glass Reinforced Plastic (GRP) to strengthen it and add a sealing quality to the construction while protecting it from water damage. It goes around the tub and the drain hole, supports the tub, and assists in sealing the underside from moisture.

Optional End Panel

Optional End Panel

End Panels serve an aesthetic purpose to cap-off the exposed end of a bathtub and come in different sizes, shapes, designs, and finishes.

Add-on Selected: Total Price Now:

Reviews & Ratings

Rate this Item.:

Questions & Answers

Submit Your Questions 1 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

philip Asked :

We are looking for the Trojan Elite bath 1700 X 700. Do you know how much water it needs to fill the bath?

Answered By QS Team Answered by the QS Technical Team

The water capacity of the 1700 x 700mm bath is approximately 195 litres.
