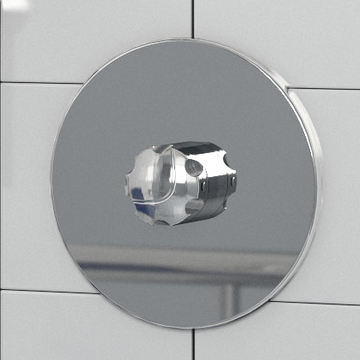

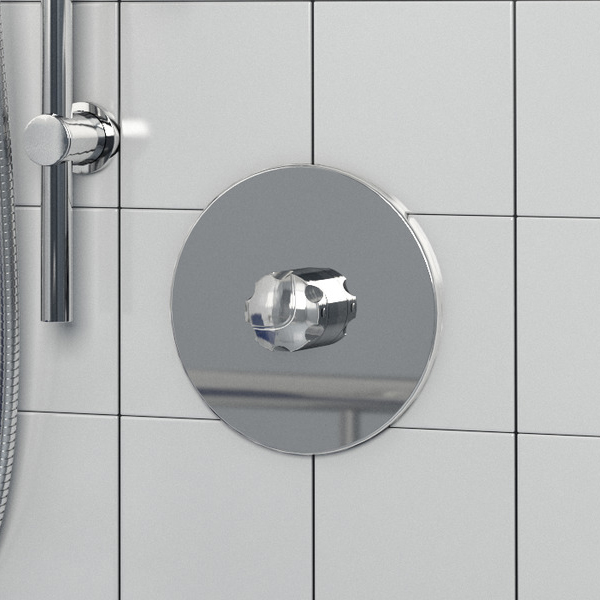

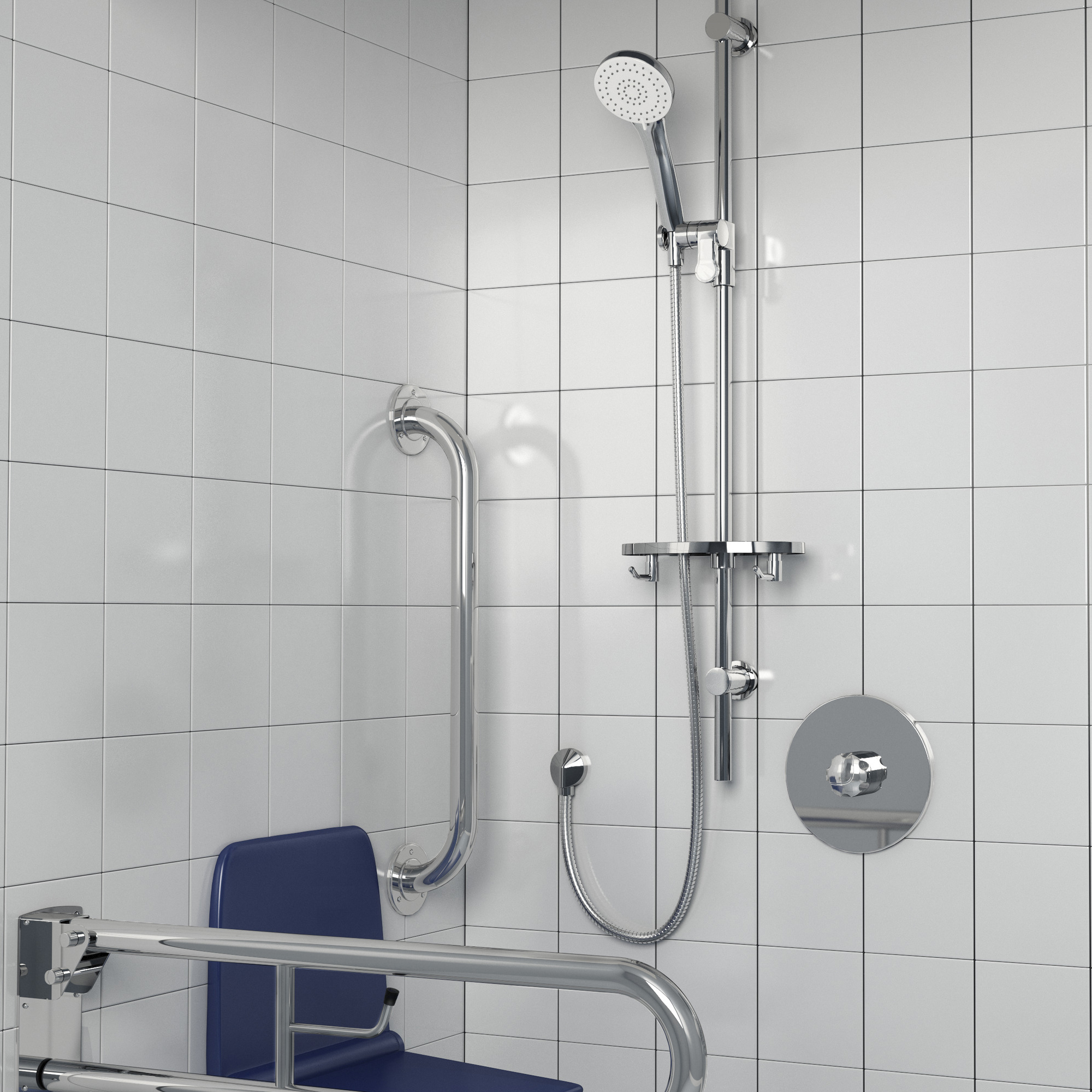

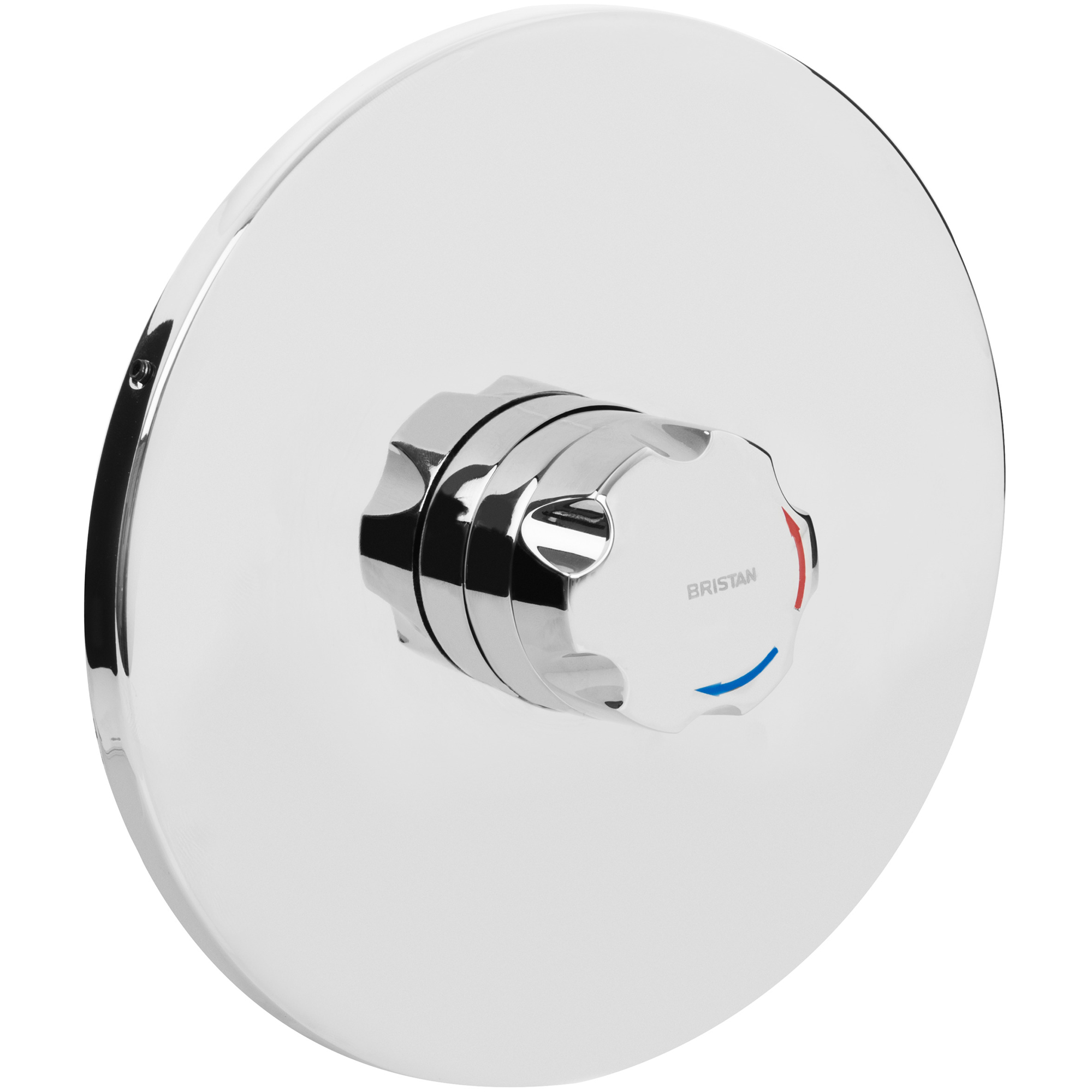

Bristan Opac Round Concealed Thermostatic Shower Valve, MINI2 TS1203 CH C

Bristan Opac Details

MFC: MINI2 TS1203 CH C

Bristan Opac Round Concealed Thermostatic Shower Valve - Chrome - 1 Outlet.

Manufacturing Code of this Product: MINI2 TS1203 CH C
It Comes in a Chrome Finish
Number of Outlet: 1
Diameter of Base Plate: Ø 195mm - [19.5cm]
Inlet Connection: 15mm Compression
Outlet Connection: G 1/2 Inch
Single Sequential Control for Both Temperature and Flow
Concealed Shower with Easy-Access Cover Plate for Servicing
Inlet Centres of 99mm +/- 1mm
Maximum Hot Water Temperature: 60°C
Suitable for High Water Pressure Systems
Requires a Minimum of 1.0 Bar to a Maximum of 5.0 Bar of Water Pressure
Refer to the Technical Drawing for Size Details
Download the Installation Instruction PDF File From The Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Opac
⤷ Colour
: Chrome
⤷ Shape
: Round
⤷ Warranty/Guarantee
: 1 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Wall mounted
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Sequential Cartridge
⤷ Inlet Centres
: 99
⤷ Inlet Connections
: 15mm Compression
⤷ Minimum Operating Pressure (Bar)
: 1.0
⤷ Flow Rates (l/min)
: 1 bar - 7.8, 2 bar - 8.8, 3 bar - 9.1, 4 bar - 9.4, 5 bar - 9.3
⤷ Handle Style
: Knob

⤷ WRAS Approved
: Yes
⤷ Temperature Control
: Thermostatic
⤷ Backplate Width
: 195
⤷ Backplate Height
: 195
⤷ TMV2 Approved
: Yes
⤷ TMV3 Approved
: Yes
⤷ Number of Handles
: 1
⤷ Number of Outlet
: 1
⤷ Outlet Connection
: G 1/2 inch
⤷ Barcode
: 5014868027098
⤷ Product Type
: Shower Valve
⤷ Plumbing Option
: Concealed
⤷ Maximum Operating Pressure (Bar)
: 10

Additional Info & Downloads

Download the Fixing Instruction Pdf File

This item can also be found in:

Concealed Shower Valves

Bristan Opac Round Concealed Thermostatic Shower Valve - Chrome - 1 Outlet

£436.00

RRP: ~~£545.00~~

Stock Availablity: 10 Working Days Approx

QS Supplies

7 Features Included In This Product Explained

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

TMV2 Approved Product

TMV2 is an independent certification for thermostatic mixers, including shower valves, run by BuildCert that ensures national and international standards as specified under (BS EN 1111 and 1287) are met. These standards detail the exacting requirements that a thermostatic valve or product must comply with to guarantee a high thermostatic protection and safety standard. Products meeting this requirement carries the logo and protect against any scalding accidents.

TMV3 Approved Product

TMV3 approval means a thermostatic valve is certified and approved for use in healthcare and commercial situations.

KIWA Approved

KIWA is a universally accepted Dutch approval standard at par with German DVGW, Austrian OVGW, Swiss SVGW, and French NF approval systems. The KIWA approval means that the products meet a high-quality standard for portable water and gas-related products.

Sequential Control In Showers

Sequential Control lets you turn the shower on and off and regulate the temperature by turning the same knob. The built-in integral check valves and strainers make it easy to use. The first movement of the knob turns the shower to the cold position, and any subsequent anti-clockwise movement increases the temperature to a set maximum.

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

1-Outlet

One outlet in a shower system means that hot and cold water flows from a single opening.
