Vogue Ballerina 525mm Width Traditional Towel Rail

More Variations Available

QS-V88619

MFC CODE: LG021BWM BR127052CP

£747.46

RRP: £1099.20

STOCK AVAILABILITY

Special Order ( Enquire for Delivery date)

Not Yet Rated No Rating

Review this Product

Shipping: FREE

VARIATIONS
Technical
Other Variation Available Step 1
OP-154137 - 1275mm High With Legacy Ball Joint
Available Variations Step 2
Please Note all the measurements are in 'mm'
Colour Chrome
Warranty/Guarantee 30 Years
Material Brass
Width 525
Tapping / Pipe Centres 450
Tube Diameter Ø31.8
Vogue Ballerina LG021BWM BR127052CP DETAILS

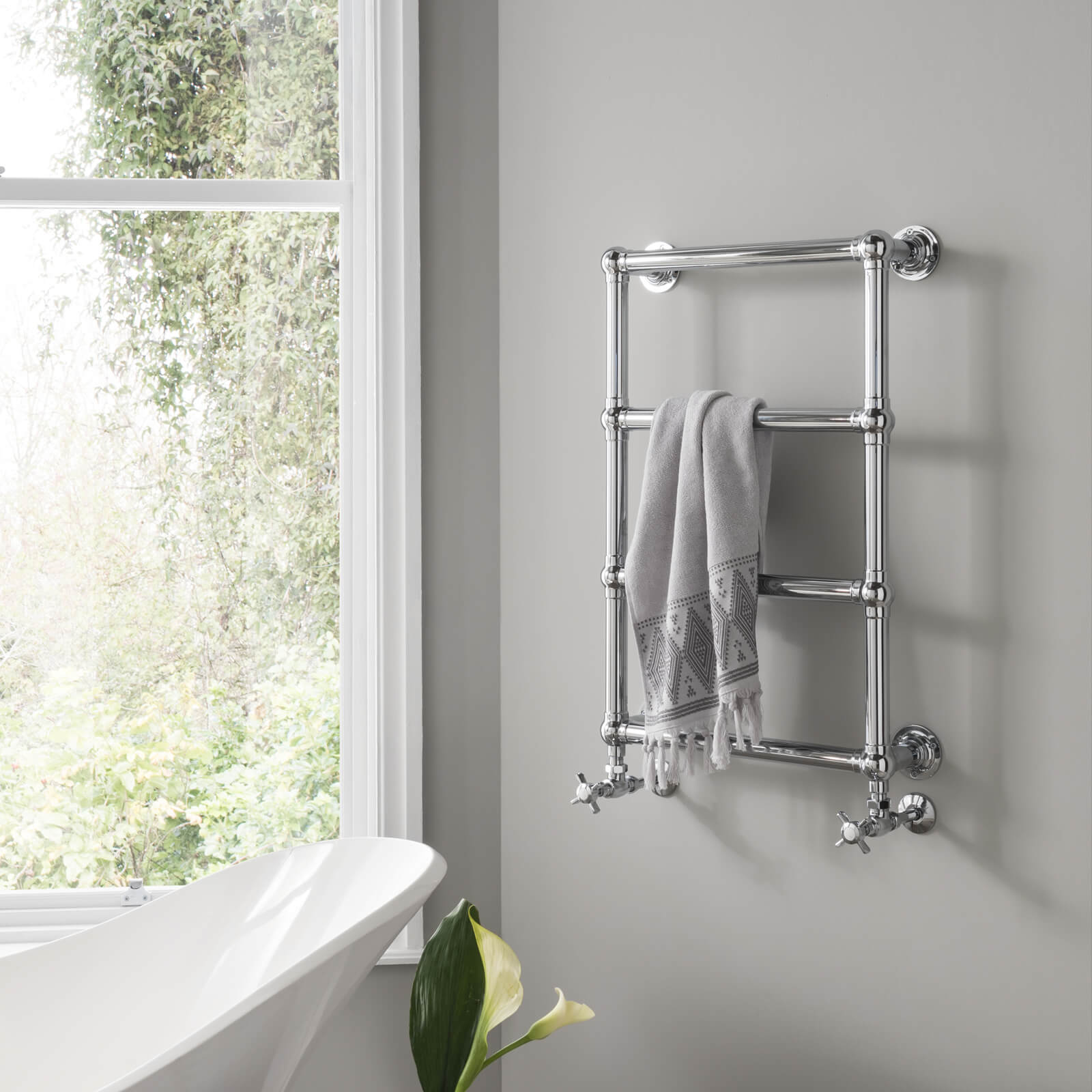

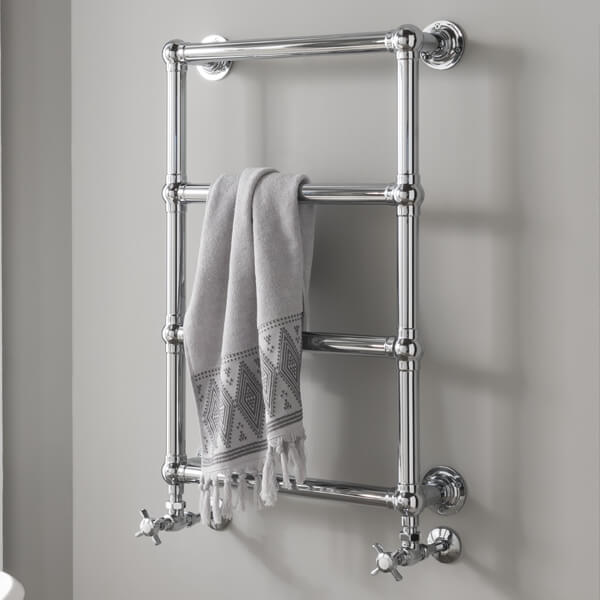

Vogue Ballerina 525mm Width Traditional Towel Rail has a simple square format that is flat and can be effortlessly installed on a wall. The appliance provides high heat efficiency and is perfect for use in many different bathroom layouts. Created from solid brass in chrome polish, this product is easily secured via wall-mounted installation and is made to be used as often as is necessary with no issue. Available with optional accessories if chosen separately as an option, it is backed by 30 years of guarantee from the manufacturer against any manufacturing defects.

  • Available variations
  • Special order, once order is placed it cannot be cancelled
  • Images is for illustration purpose only
  • Valves shown in the image is not included
  • Crafted from brass material
  • Width : 525mm
  • Tube diameter : Ø31.8mm
  • Pipe centres : 450mm
  • Refer technical diagram for complete technical dimension
  • 30 years of guarantee from the manufacturer against any manufacturing defects.
  • Available Options
  • Crosshead 2 valve
  • Heating elements
  • Connection tubes
  • Round internal diameter hinged cover plates
  • Originals ball joint cover shroud.
  • For heating elements selection please refer the suitable wattage from Product Variations Info And MFC Code given below.



FEATURES INCLUDED IN THIS PRODUCT EXPLAINED
Heating and Hot Water Heating and Hot Water

Compatible with all heating and hot water systems, to connect and use with both open and closed central heating systems.

Heating and Electric Heating and Electric

Works using both central heating circuit and an electric element, so is useful in summers when central heating is not in use.

Electric only Electric only

Ideal for electric connections only. The unit heats up due to an electric element contained within the towel rail.

DZR Brass DZR Brass

High quality brass plated finish that resists corrosion.



CUSTOMISE YOUR PRODUCT
Available Valve

Available Valve

Straight and angle valves available for towel rail. Please note image is for illustration purpose only

Heating Elements

Heating Elements

Heating elements available for heating and electric towel rail. choose as per requirment. Please note image is for illustration purpose only

Optional Accessories

Optional Accessories

Optional accessories available for this product. Please note image is for illustration purpose only

Optional Accessories

Optional Accessories

Optional accessories available for this product. Please note image is for illustration purpose only

OTHER SIZES / FINISHES
Sizes Available
Other Sizes / Finishes / Variations Available.
QS Code Finish Size / Difference MFC Code
QS-V88620 - 675mm Width LG025A BR067067CP



PRODUCT VARIATIONS INFO & MFC CODE
Details for Heating And Hot Water
Height Variation Depth Bar configuration Electric element wattage Output @ T50 Deg C Watts Output @ T50 Deg C BTUs Output @ T60 Deg C BTUs MFC
1275 Legacy Ball Joint 125 4 125 239 815 1033 LG021BWM BR127052CP
750 Original Ball Joint 135 4 100 169 577 732 OG002D BR075052CP
1275 Original Ball Joint 135 4 125 239 815 1033 OG002A BR127052CP
1575 Legacy Ball Joint 125 5 125 292 996 1263 LG021CWM BR157052CP
1575 Original Ball Joint 135 5 125 292 996 1263 OG002F BR157052CP
Details for Heating And Electric
Height Variation Depth Bar configuration Electric element wattage Output @ T50 Deg C Watts Output @ T50 Deg C BTUs Output @ T60 Deg C BTUs MFC
1275 Legacy Ball Joint 125 4 125 239 815 1033 LG021BWM BR127052CP-HE
750 Original Ball Joint 135 4 100 169 577 732 OG002D BR075052CP-HE
1275 Original Ball Joint 135 4 125 239 815 1033 OG002A BR127052CP-HE
1575 Legacy Ball Joint 125 5 125 292 996 1263 LG021CWM BR157052CP-HE
1575 Original Ball Joint 135 5 125 292 996 1263 OG002F BR157052CP-HE
Details for Electric Only
Height Variation Depth Bar configuration Electric element wattage Output @ T50 Deg C Watts Output @ T50 Deg C BTUs Output @ T60 Deg C BTUs MFC
1275 Legacy Ball Joint 125 4 125 239 815 1033 LG021BWM BR127052CP-E
750 Original Ball Joint 135 4 100 169 577 732 OG002D BR075052CP-E
1275 Original Ball Joint 135 4 125 239 815 1033 OG002A BR127052CP-E
1575 Legacy Ball Joint 125 5 125 292 996 1263 LG021CWM BR157052CP-E
1575 Original Ball Joint 135 5 125 292 996 1263 OG002F BR157052CP-E
