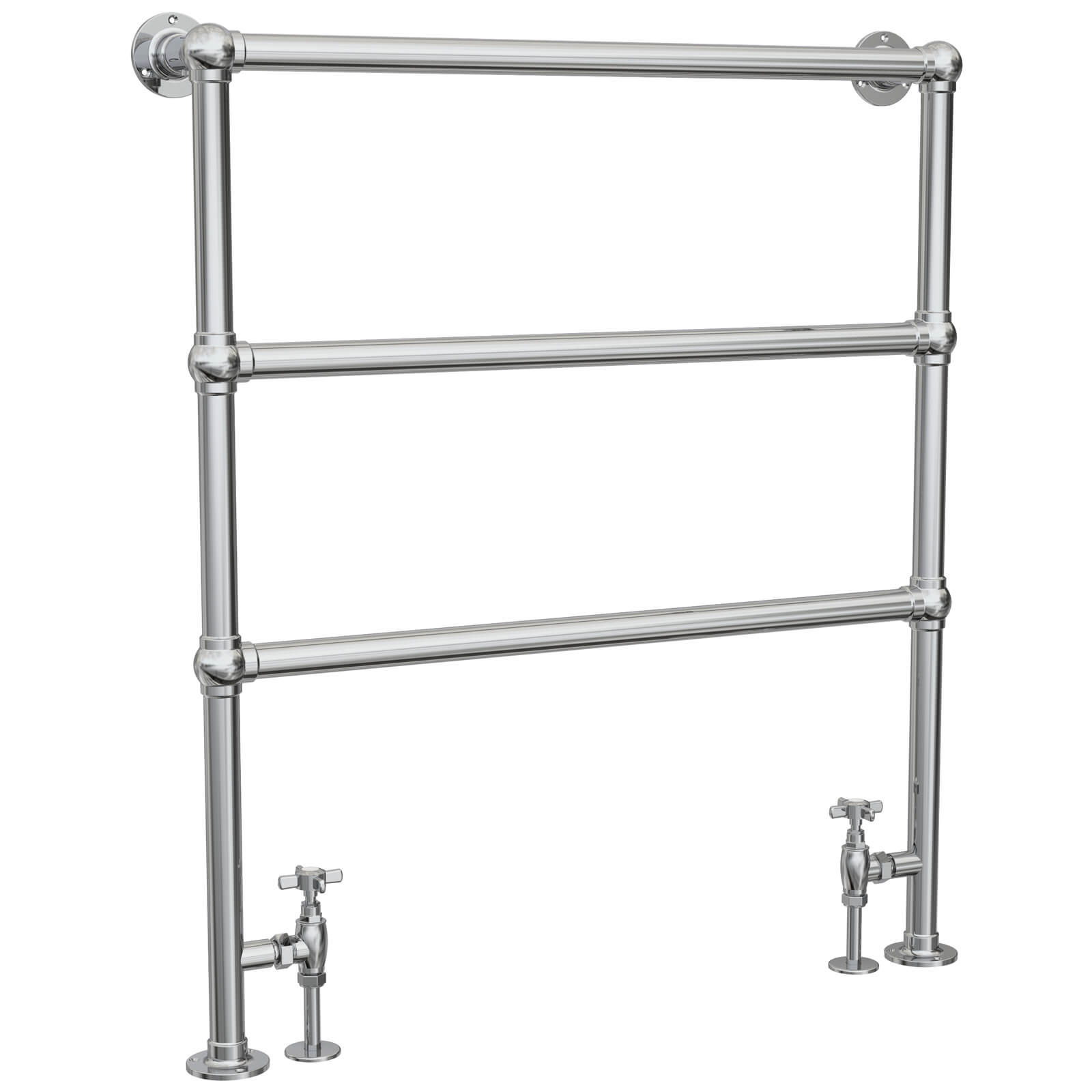

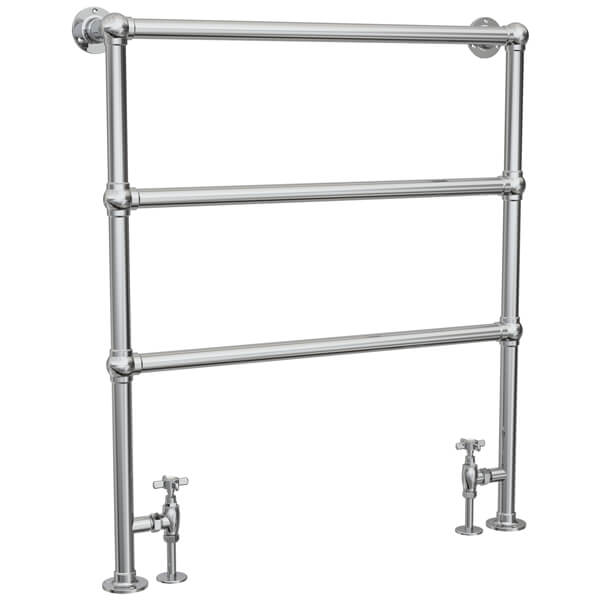

Vogue Ballerina 675mm Width Floor Mounted Traditional Towel Rail Chrome

QS-V88626

MFC CODE: LG024A BR0938675CP

QTY
ADD TO BASKET - £718.90

£718.90

RRP: £1179.60

STOCK AVAILABILITY

Special Order ( Enquire for Delivery date)

Shipping: FREE* Check Postcodes

Variations
Technical
Select Height Step 1

Select Variant Step 2

Select Type Step 3

Select Valve Step 4

Select Standard Heating Element Step 5

Please Note all the measurements are in 'mm'
Colour Chrome
Warranty/Guarantee 30 Years
Material Brass
Projection (Depth) 138
Width 675
Tapping / Pipe Centres 518
Valves Included Sold Separately
Tube Diameter Ø31.8

Vogue Ballerina LG024A BR0938675CP Details

Vogue Ballerina 675mm Width Floor Mounted Traditional Towel Rail is constructed using remarkably strong brass material that is equally heat efficient. Suitable for use in a classic or modern home, this tubular towel rail can be used with both open and closed hot water central heating systems. It has a width of 675mm and a depth of 138mm and a tube diameter of 31.8mm. Get efficient heating with this towel rail that comes with 30 years of guarantee from the manufacturer against any manufacturing defects. It also comes with optional accessories that are also available from our online store.

  • Available in different height - 938mm, 1238mm and 1538mm [Optional]
  • Legacy ball joint and Original Ball Joint towel Rail [Optional]
  • Available variations - Heating Only, Heating & Electric and Electric only Version [Optional]
  • Special order, once order is placed it cannot be cancelled
  • Images is for illustration purpose only
  • Valves shown in the image is not included
  • Crafted from brass material
  • Size: Width 675mm x Depth 138mm
  • Tube diameter: Ø31.8mm
  • Pipe centres: 518mm
  • Refer technical diagram for complete technical dimension
  • 30 years of guarantee from Vogue against manufacturing defects.
  • Specification For 938mm Height:
  • Output @ T50 Deg.C - 195 W
  • Output @ T50 Deg.C BTU's - 665
  • Output @ T60 Deg.C BTU's - 843
  • Bar configuration: 3
  • Electric element wattage: 125 Watts
  • Specification For 1238mm Height:
  • Output @ T50 Deg.C - 266 W
  • Output @ T50 Deg.C BTU's - 908
  • Output @ T60 Deg.C BTU's - 1151
  • Bar configuration: 4
  • Electric element wattage: 150 Watts
  • Specification For 1538mm Height:
  • Output @ T50 Deg.C - 327 W
  • Output @ T50 Deg.C BTU's - 1116
  • Output @ T60 Deg.C BTU's - 1415
  • Bar configuration: 5
  • Electric element wattage: 150 Watts
  • Available Options:
  • Crosshead 2 valve
  • Heating elements
  • Connection tubes
  • Round internal diameter hinged cover plates
  • Standard ball joint cover shroud.



Technical Images

OTHER SIZES / FINISHES
Sizes Available
Other Sizes / Finishes / Variations Available.
QS Code Finish Size / Difference MFC Code

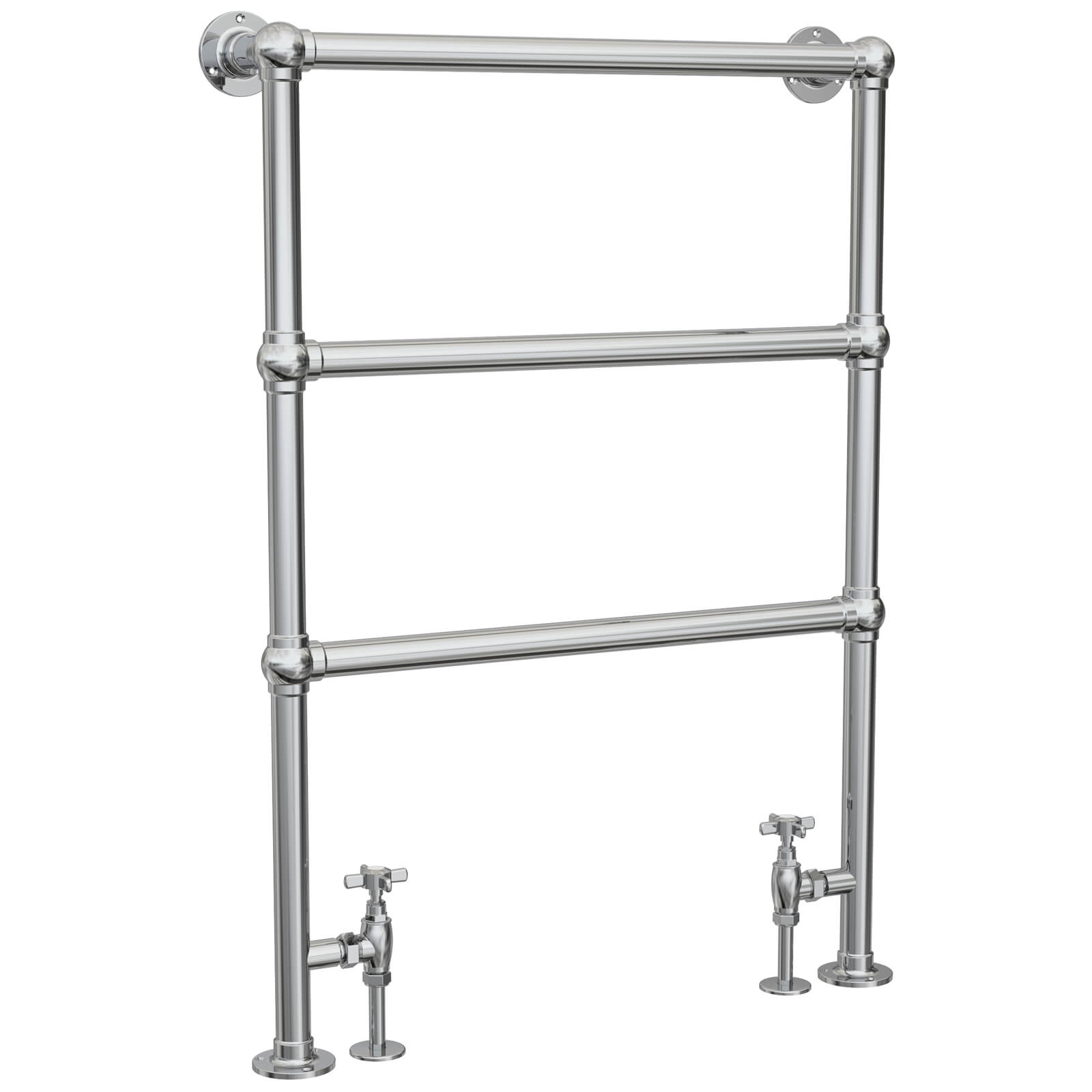

QS-V88623 - 525mm Width LG021AFW BR123052CP



FEATURES
Heating and Hot Water Heating and Hot Water

Compatible with all heating and hot water systems, to connect and use with both open and closed central heating systems.

Heating and Electric Heating and Electric

Works using both central heating circuit and an electric element, so is useful in summers when central heating is not in use.

Electric only Electric only

Ideal for electric connections only. The unit heats up due to an electric element contained within the towel rail.

DZR Brass DZR Brass

High quality brass plated finish that resists corrosion.
