Vogue Ballerina 498 x 748mm Mild steel Traditional Towel Rail Chrome

Vogue Ballerina LG010A MS0748498CP Details

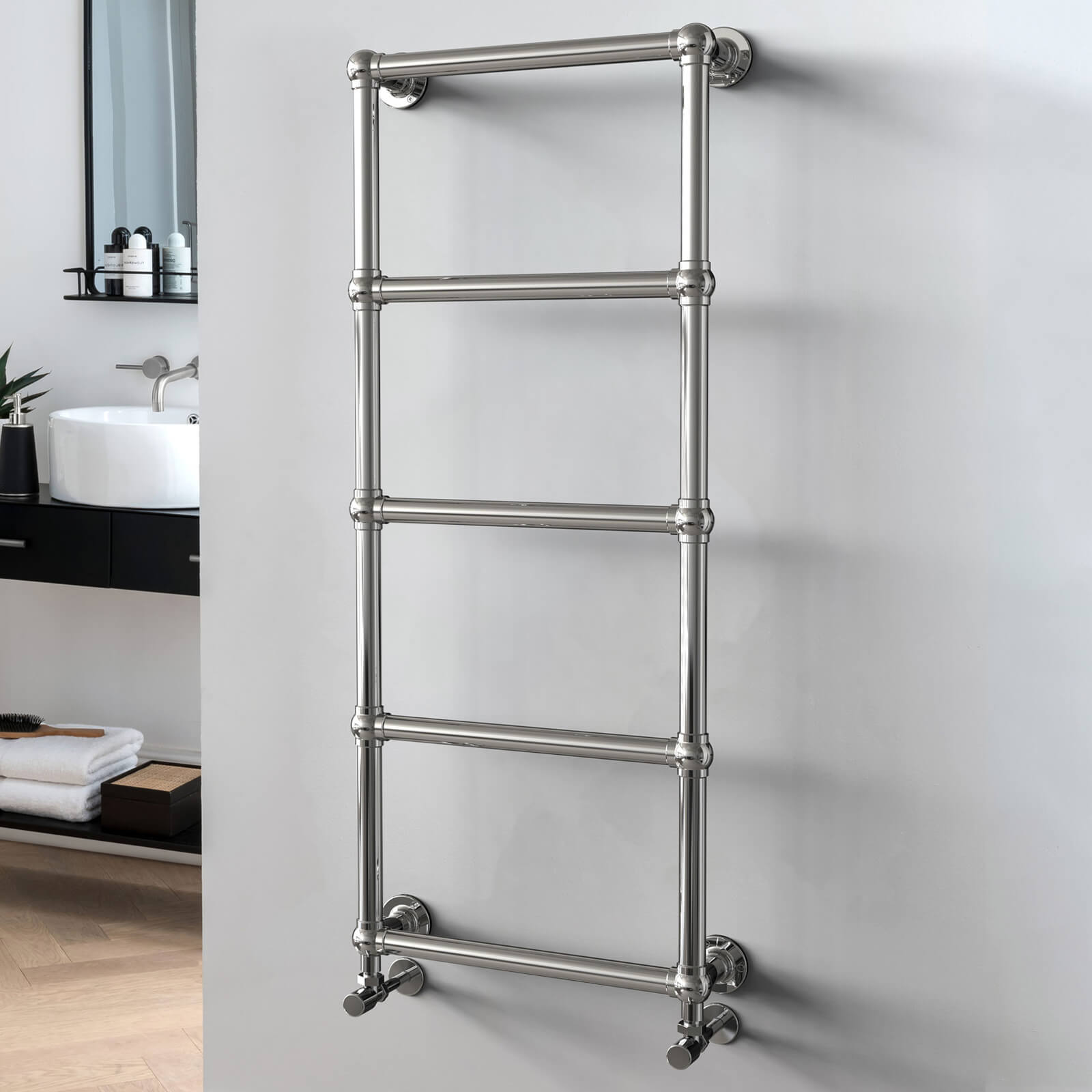

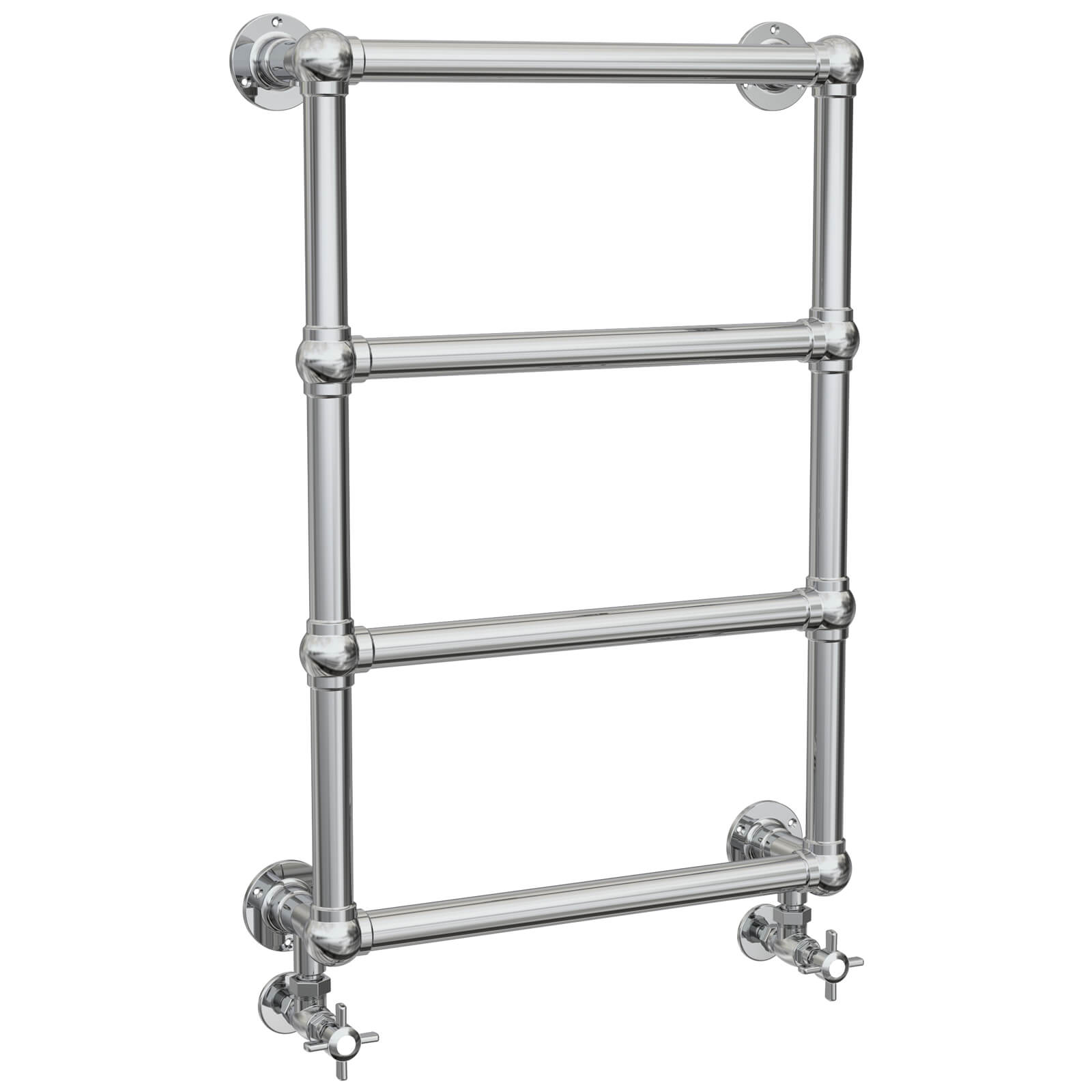

Vogue Ballerina Brass Traditional Towel Rail comes to you in a simple design that will give out enormous heat to heat and dry towels. Featured in striking finish and lovely to look at, this impressive product is certain to fit in beautifully to any compatible space on the wall. Crafted from top quality Mild steel, it has a width of 498mm, depth of 124mm and height of 748mm. Designed for use with all heating and hot water systems, as well as optional Electric only or Heating and Electric as desired.

Available variations: Heating Only, Heating and Electric and Electric only Version - [Optional].
Images are for illustration purposes only.
The valves shown in the image are not included.
Manufactured using mild steel material.
Features legacy ball joints.
Size [mm]: 498mm x 124mm x 748mm [Width x Depth x Height].
Size [cm]: 49.8cm x 12.4cm x 74.8cm [Width x Depth x Height].
Tube diameter: Ø31.8mm.
Bar configuration: 4.
Pipe centres: 424mm (42.4cm).
Electric element wattage: 100 - [Optional].

Output @ T50°C Watts: 169.
Output @ T50°C BTUs: 577.
Output @ T60°C BTUs: 732.
Refer to the technical diagram for the complete technical dimension.
Ten-year guarantee from Vogue against manufacturing defects.
Available Options.
Crosshead valve.
Heating elements.
Connection tubes.
Round internal diameter hinged cover plates.
Standard ball joint cover shroud.

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Ballerina
⤷ Colour
: Chrome
⤷ Shape
: Straight
⤷ Country of Origin
: UK
⤷ Warranty/Guarantee
: 10 years
⤷ Material
: Mildsteel
⤷ Projection (Depth)
: 124
⤷ Width
: 498
⤷ Height
: 748

⤷ Barcode
: 5051278123781
⤷ BTU Output
: 732
⤷ Watts
: 169
⤷ Tapping / Pipe Centres
: 424
⤷ Valves Included
: Sold Separately
⤷ Fuel Type
: Heating | Heating & Electric | Electric
⤷ Heating Element Included
: Sold Separately
⤷ Element Type
: Standard

Customise Your Product

Available Valve

Straight and angle valves available for a towel rail. Please note image is for illustration purpose only

None
OP-146247 - 1/2 inch X 15mm Crosshead Angle Valve + £56.10
OP-146248 - 1/2 inch X 15mm Crosshead Straight valve + £56.10

Heating Elements

Heating elements available as an optional. Select option from below

None
OP-146347 - 100 Watts Standard Element + £83.36

Optional Accessories

Optional accessories are available for this product. Please note image is for illustration purpose only

OP-146250 - 15mm x 150mm Long Tubes + £35.06
OP-146251 - 22mm x 150mm Long Tubes + £44.41
OP-146253 - Round 15mm Cover Plate + £24.16
OP-146269 - Standard Ball Joint Chrome Cover Shroud + £111.41

Total: £407.96 10-14 Working Days Approx QS Supplies

4 Features Included In This Product Explained

Heating Only

This term means that such a product can be used with closed or indirect central heating circuits only. Its steel construction means that it cannot be used with open circuits.

Heating And Electric

Dual Fuel radiators or towel warmers can run on a conventional gas-powered central heating system or via your mains electrical supply. You can choose whether or not you want your radiator or towel warmer to come on independently of your central heating system, which is especially useful in summer. These products are compatible with heating and hot water, whether the system is open (direct) or closed (indirect).

Electric Only

Electric Only options are independent units requiring a fused spur electric connection. Electric Only radiators and towel warmers are powered by the mains electrical supply instead of a gas boiler. You can turn on each radiator or towel warmer as and when you need them.

Mild Steel

Mild Steel is the most common radiator material. It is inexpensive, available in a variety of designs and finishes, lightweight and durable.
