Vado Aquablade Round Chrome Thermostatic Shower Column

Vado Aquablade AQB-149RRK-RO-CP Details

The Vado Aquablade Round Shower Column is a stylish, chrome-finished unit suitable for installation with any modern bathroom design and decor. Ideal for installation within a high-pressure water system.

This product requires at least 1.5 bar of water pressure to function smoothly and properly. Complete with an Aquablade square thermostatic shower valve that includes an integrated diverter as well, this unit is intended for wall-mounted installation within any compatible shower area.

The manufacturing code of this product is AQB-149RRK-RO-CP.
Wall-mounted installation.
Includes: Square thermostatic shower valve with integrated diverter, rigid riser and round shower head.
232mm Height adjustment tolerance: min 1016mm – max 1248mm.
20mm Depth adjustment tolerance: min 70mm – max 90mm.
Offset connectors and easy-fit brackets included.
Diameter of head: 300mm.

Length of arm: 400mm.
Diameter of the handset: 100mm.
Height of handset: 225mm.
Requires minimum 1.5 bar operating pressure.

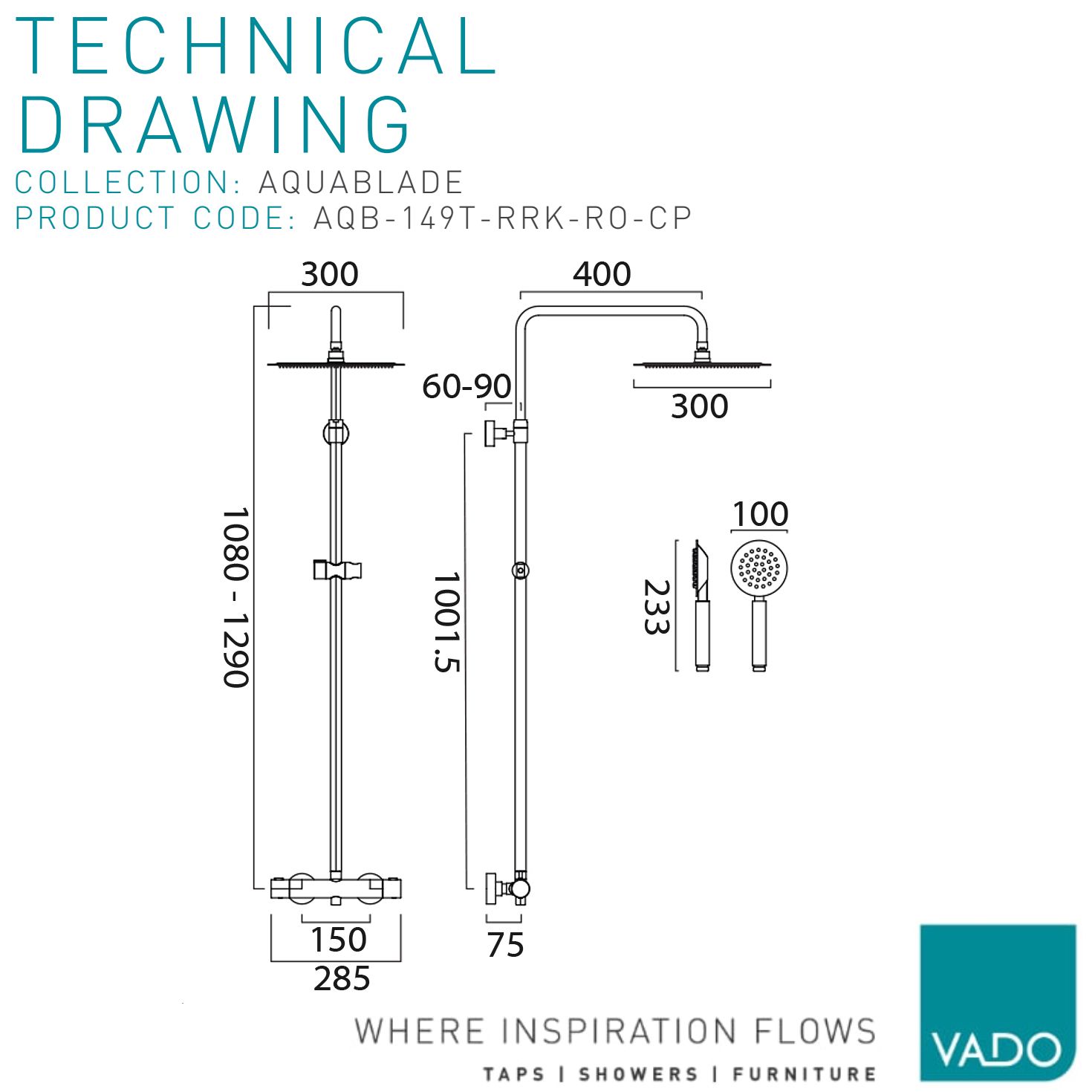

Refer to the technical diagram for complete technical dimensions.
Download the installation instruction PDF file from the additional info section.

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 15 Years
⤷ Theme
: Modern
⤷ Minimum Operating Pressure (Bar)
: 1.5
⤷ Hose Included
: Yes
⤷ Compliance/Approvals/Standard
: WRAS

⤷ Riser Rail & Kit Finish
: Chrome
⤷ Handset Included
: Yes
⤷ Shower Head Included
: Yes
⤷ Shower Head Size
: 300
⤷ Adjustable Height
: Min 1016mm–Max 1248mm

Additional Info & Downloads

Download the Installation Instruction Pdf File

Total: £506.26 2 Working Days Approx QS Supplies

4 Features Included In This Product Explained

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

Diverter

A diverter, specifically in bath-shower combos, redirects the water flow from the bathtub spout to the showerhead. You can activate it using the nozzle in the bath shower mixer tap.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws. Such compliance is based on certain tests that prove that the product or fitting does not cause waste, misuse, contamination or undue consumption of the public water supply system in the UK.
Read more...
