Bristan Sail Chrome Shower Pack With Fixed Head

Bristan SAIL SHWR PK2 Details

The Bristan Sail Shower Pack with Fixed Head is a remarkably stylish, contemporary take on a classic shower set-up. Suitable for use in all plumbing systems and use in a range of water systems from low to high pressure, this set requires a minimum water pressure of 0.2 bar and a maximum water pressure of 5 bar for proper operation. A dual-controlled unit that is easily operated via the integral two outlet diverter valve, this pack also includes a round-shaped, slimline shower head, shower arm, and even a ¾” ceramic disc valve for smooth control.

Manufacturing code of this product: SAIL SHWR PK2.
It comes in a chrome finish.
Deck mounted installation.
Contemporary and stylish design.
Maximum hot water supply temperature: 65°C.
Maximum static pressure: 10 bar.
Suitable for all plumbing systems.
Requires a minimum of 0.2 bar to a maximum of 5.0 bar of water pressure.

Connection inlet: 15mm compression.
Connection outlet: G 1/2 inch.

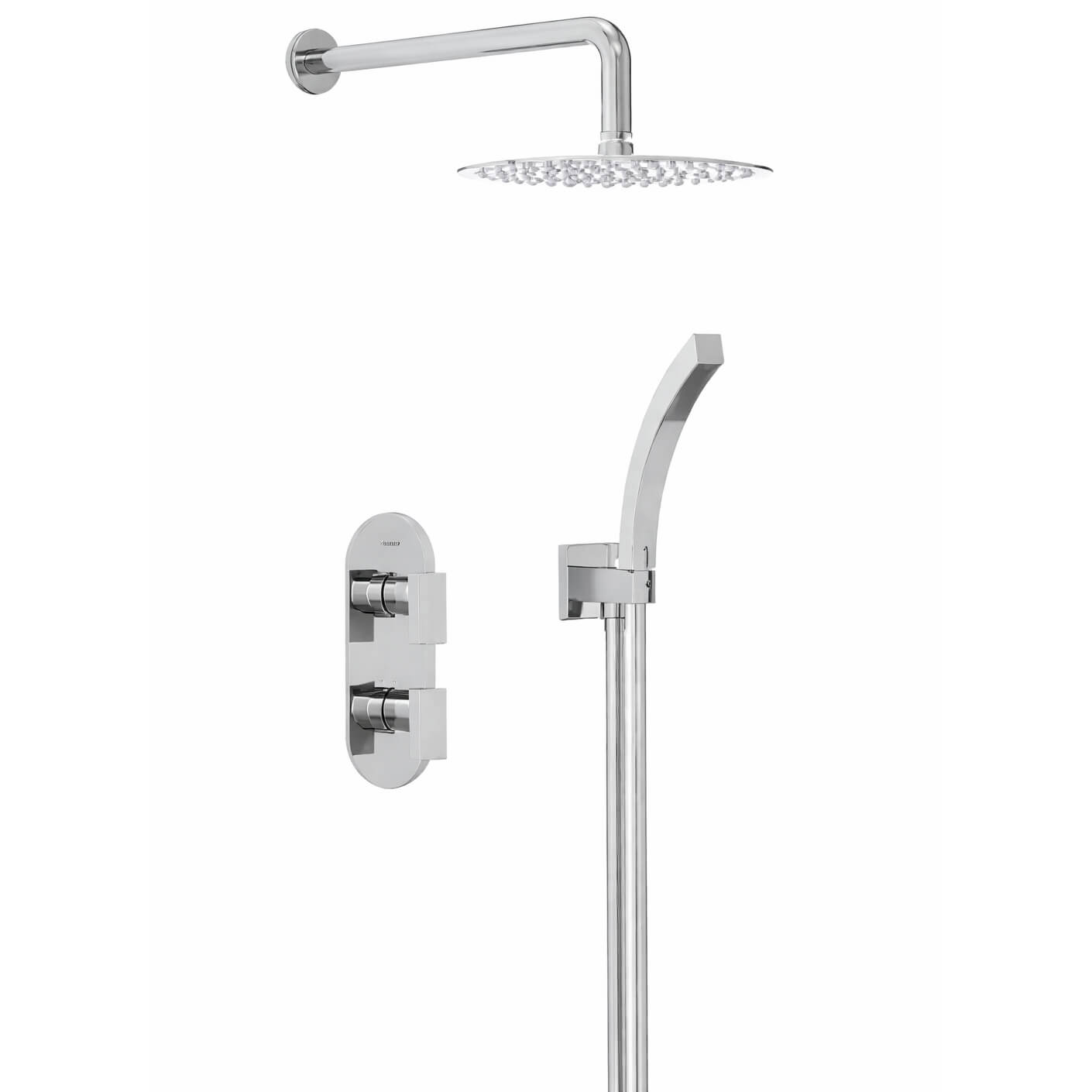

This shower pack contains our super-sleek Sail shower valve with an integral two-outlet diverter. It has a 250mm round slimline fixed head with a shower arm, a single-function handset, and a hose with an integral handset holder and wall outlet.
The shower valve has been designed to fit in any UK wall cavity and, therefore, only needs a 35mm deep cavity space.
A cartridge can be accessed from the front, Requires rear access to service filters.
Download the Installation Instruction PDF File From The Additional Info Section.
Refer to the technical diagram for complete technical dimensions.

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Inlet Centres
: 150
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Hose Included
: Yes

⤷ Backplate Width
: 100
⤷ Backplate Height
: 240
⤷ Handset Included
: Yes
⤷ Spray Patterns (Shower Handset)
: Single Function
⤷ Shower Head Included
: Yes
⤷ Shower Head Size
: Ø250

Additional Info & Downloads

Download the Installation Instructions Pdf File

Total: £361.76 2 Working Days Approx QS Supplies

5 Features Included In This Product Explained

Family Safe

This feature corresponds with the Thermostatic mechanism and automatic safety stops, preventing running water from getting either too hot or too cold.

Luminance Chrome

It is a hard-wearing chrome plating which is salt-tested and scratch-proof for durable, long-lasting use.

2 Outlets 1 On

There are two outlet connections, of which only one can be used at a given time.

Drenching

Drenching in Bristan showers means these showers soak you thoroughly, giving you the most indulgent showering experience.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
