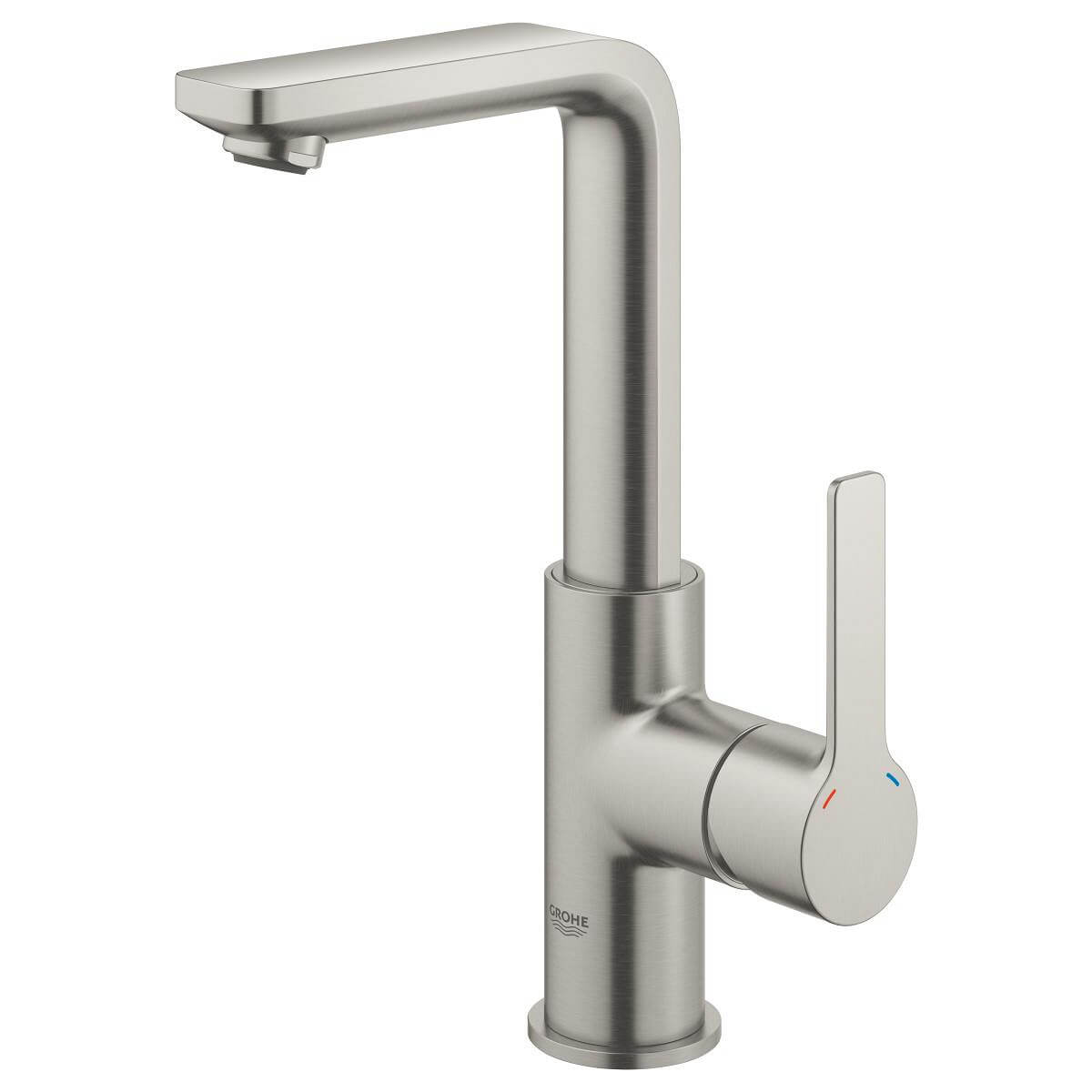

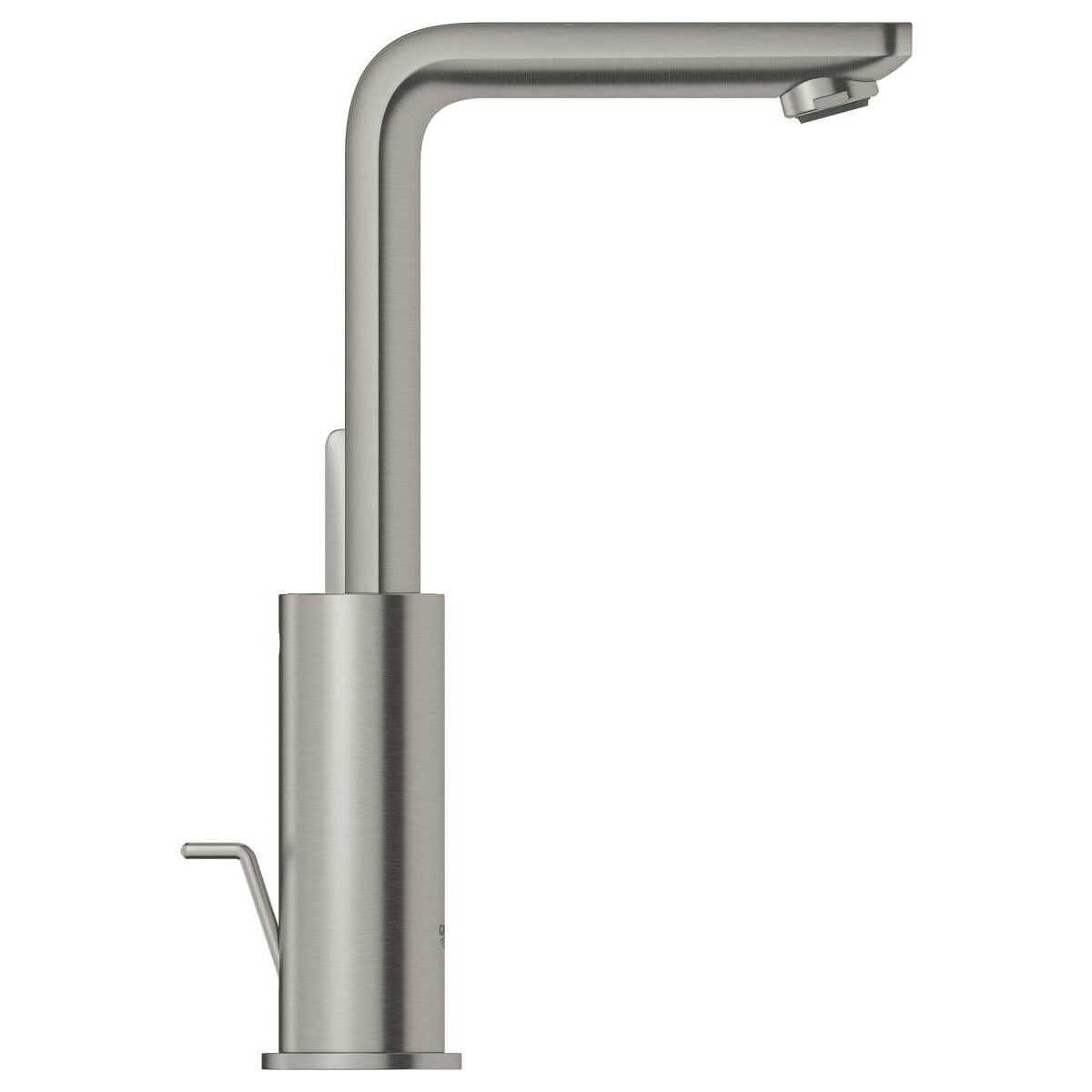

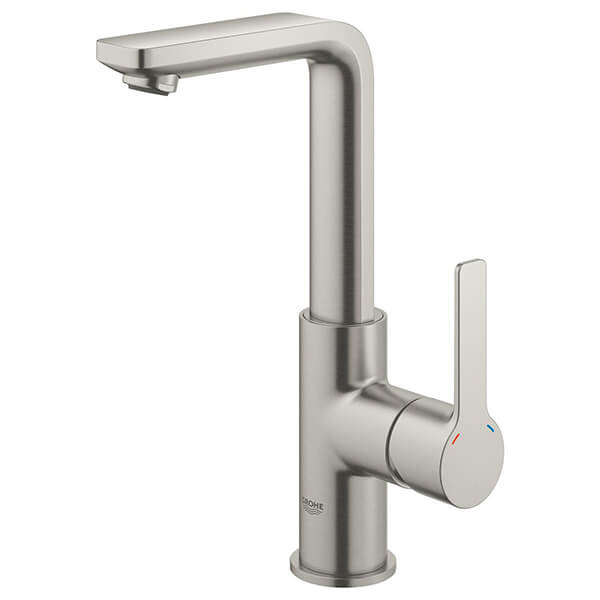

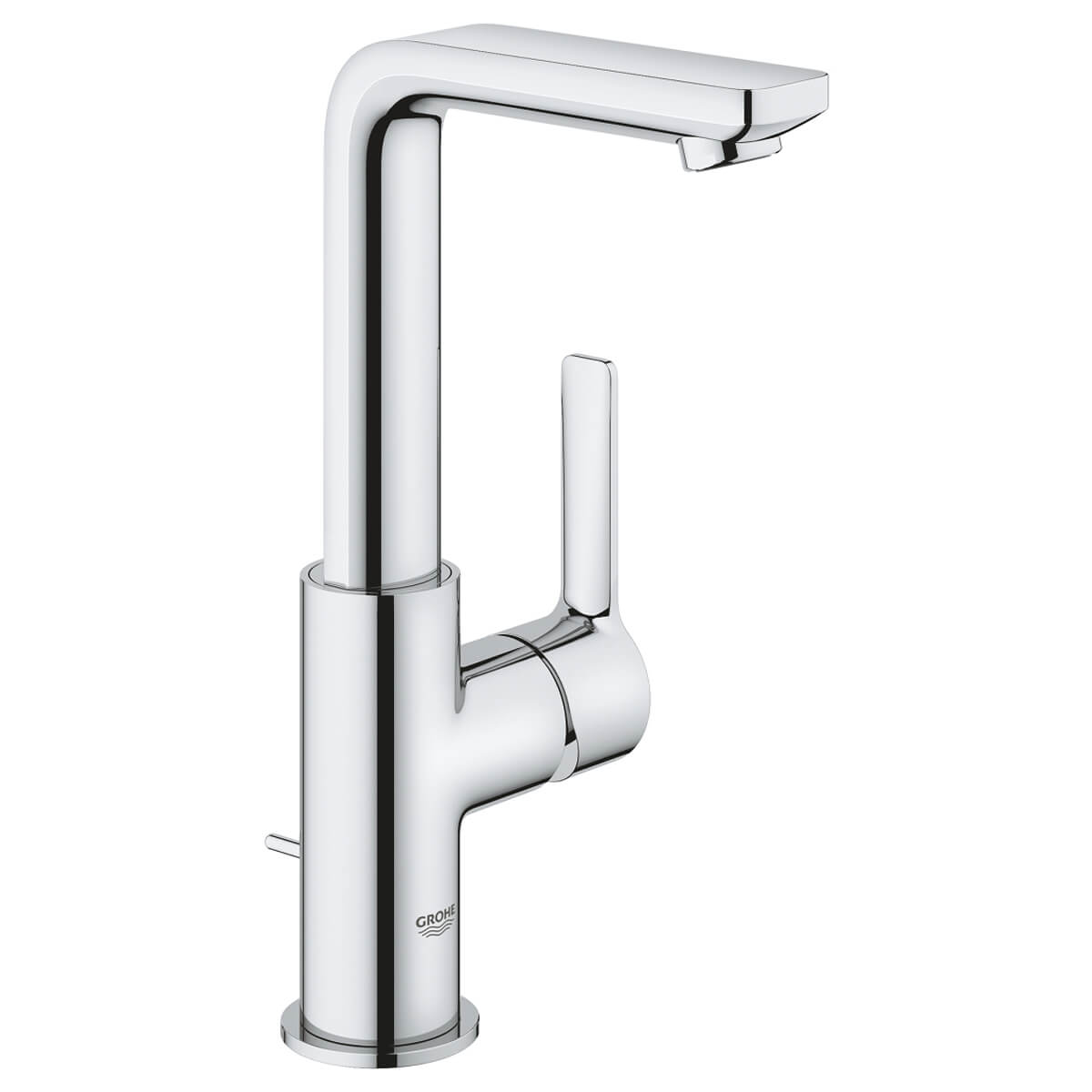

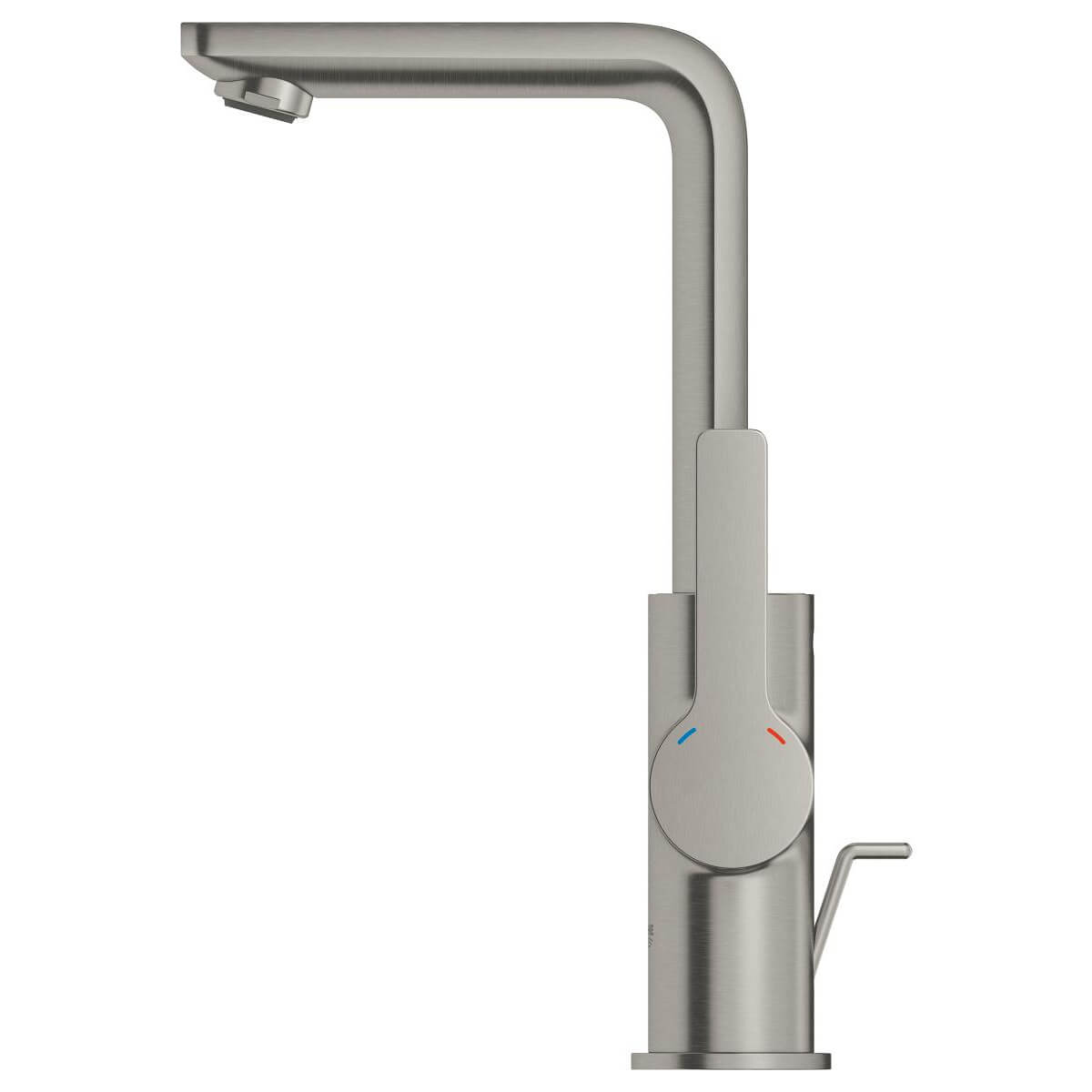

Grohe Lineare L-Size Basin Mixer Tap with Waste and L-Shaped Swivel Spout - Side Action Lever Handle

Not Yet Rated No Rating

£222.00

RRP: £395.00
SKU: QS-V80600
Select Finish
Selected: OP-110839 - Chrome
Pay in 3-Interest Free Payments
Shipping

Shipping: £6.95

Stock Availability

Stock Availability:

6 Working Days Approx.

Grohe Lineare Details

MFC: 23296001

Are you in search of tap mixer that will add a touch of class to your space? The best choice for a tap is Grohe Lineare Single Lever Basin Mixer Tap. The cylindrical shape of the brassware improves the look of the spout and lever. The single lever mixer tap has a modern design with minimal lines. The tap features a SilkMove ceramic cartridge that enables you to control the temperature of the water. It has premium quality metal lever handle with Pop up Waste. It is provided with a glossy chrome finish and other optional finishes.

Key Features
  • Monobloc Installation
  • Features: Swivel Spout and Stop Limiter
  • Supplied with Pop-Up Waste Set 1 1/4 Inch
  • 5-Year Warranty from Grohe Against any Manufacturing Defects
  • Choice of Finishes: Chrome and Supersteel
  • Metal Lever Handle
  • Height: 252mm [25.2cm]
  • Base to Spout: 231mm [23.1cm]
  • Centre of Inlet to Centre of Outlet: 113mm [11.3cm]
  • Inlet Connection: G 3/8 Inch
  • GROHE Long-Life Finish
  • GROHE Water Saving - Less Water, Perfect Flow
  • Required Minimum 1.0 Pressure Bar
  • Maximum Flow Rate (at 3 Bar): 5 l/Min
  • GROHE SilkMove: 28mm Ceramic Cartridge with Temperature Limiter
  • GROHE EcoJoy: SpeedClean Mousseur Limits Water Flow to 5.7 l/m
  • GROHE StarLight Chrome Coating is Scratch-Resistant
  • GROHE FastFixation Plus Installation System
  • Swivel Area: 90°
  • Provided with Flexible Connection Hoses
  • Refer to the Technical Drawing for Complete Technical Dimensions
  • Download the Product Data Sheet & Installation PDF from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ Water Activation
  • : By Lifting/Tilting
  • ⤷ Range
  • : Lineare
  • ⤷ Handle Position
  • : Right
  • ⤷ Tap Body Shape
  • : Round
  • ⤷ Colour
  • : Chrome
  • ⤷ Warranty/Guarantee
  • : 5 Years
  • ⤷ Theme
  • : Modern
  • ⤷ Installation Type
  • : Deck Mounted
  • ⤷ No. of Holes Required
  • : 1
  • ⤷ Spout type
  • : Swivel
  • ⤷ Valve/Cartridge Type
  • : ceramic cartridge
  • ⤷ Handle Material
  • : Metal
  • ⤷ Spout Swivel
  • : 90°
  • ⤷ Base To Spout
  • : 231
  • ⤷ Spout Reach
  • : 113
  • ⤷ Overall Height
  • : 252
  • ⤷ Max. Deck Thickness
  • : 30
  • ⤷ Inlet Connections
  • : G 3/8 Inch
  • ⤷ Minimum Operating Pressure (Bar)
  • : 1
  • ⤷ Water Saving
  • : Yes
  • ⤷ Waste Type
  • : Pop-Up
  • ⤷ Diameter of Waste Connection
  • : Ø63
  • ⤷ Flow Rates (l/min)
  • : 5 L/min (At 3 Bar)
  • ⤷ Handle Style
  • : Lever
  • ⤷ Waste Included
  • : Yes
  • ⤷ Barcode
  • : 4005176409127
  • ⤷ Product Type
  • : Basin Mixer Tap

Additional Info & Downloads

Download PDFDownload the Product Data Sheet Pdf File Download PDFDownload the Installation Instructions Pdf File

£222.00
RRP: £395.00
STOCK AVAILABLITY: 6 Working Days Approx
QS Supplies

10 Features Included In This Product Explained

GROHE L-Size

GROHE L-Size

In Grohe, the L-sized tap is a large tap with a long spout. It is ideally suited for washing or filling up larger utensils.

Swivel-Spout

Swivel-Spout

The respective apparatus is engineered to move sideways or at certain angles, which helps the spout cover a greater area than would be possible in a fixed position.

High Water Pressure

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Pop-Up Waste

Pop-Up Waste

The Pop-Up waste or pop-up assembly refers to the type of pipe fitting for a sink, basin or bidet connected to a waste pipe at the plughole. It comes with a lever or knob-controlled plug or stopper and operates using a lever that can be lowered or lifted to close and open the plug.
Read more...

Flexible Tail Pipes

Flexible Tail Pipes

Flexible Tails, or "Flexi" Tails, are one of the easiest methods to connect the plumbing pipework to the tap fitting. Mixers generally have two tails, one for the hot water supply and the other for the cold. These tailpipes consist of rubber inside a braided metal and come in many sizes.

Grohe EcoJoy

Grohe EcoJoy

According to Grohe, the EcoJoy technology enables reduced water usage by your tap by up to 50%. It is done without compromising on the water spray, which allows a full jet of water from the tap and provides excellent value and comfort in a single unit.

Monobloc Tap

Monobloc Tap

A Monobloc/Mono tap has a single control lever that adjusts the mix of hot and cold water supplies and the flow rate. A mixer tap has two separate controls for hot and cold water. Both work equally well, and your choice will come down to aesthetics and how many tap holes your sink has. Monobloc taps are a neater solution and more modern in appearance.

Grohe StarLight

Grohe StarLight

It is a durable, long-lasting surface that ranges from matte to shiny, like a diamond. This finish or long-lasting surface quality of every product from this manufacturer keeps it looking as good as new for years to come. The pledge of continuous improvement has refined this unique plating process to bring you a surface polish that is robust and immaculate and finds no match anywhere across the globe. A key contributing factor is rigorous quality control measures and regular healthy investments.

Grohe SilkMove

Grohe SilkMove

According to the manufacturer, the name Silkmove stems from the fact that the basin mixers from Grohe operate with a silky smooth action. These mixers also give a soft and accurate control over temperature and flow. A space-proven ceramic alloy with Teflon technology is used to make this cartridge disc, which assures years of uninterrupted use and is also the best in the market. This fact is proven by several mechanical wear tests conducted under Agency and TÜV standards.

GROHE QuickFix Plus®

GROHE QuickFix Plus®

This technology offers faster, easier and hassle-free installation that reduces installation time by up to 50%. The process is simplified by simply reducing the number of elements required for fitting, allowing a swifter fix. This technology ensures that Rapid SL frames are far quicker and simpler to install. In this tool-free process, the inspection shaft simply clicks into place, which along with two screws, is all you need to install the fixing frame. The wall brackets are also easier and faster to fit than earlier versions. This automatically means lower costs and better value for the customer.
