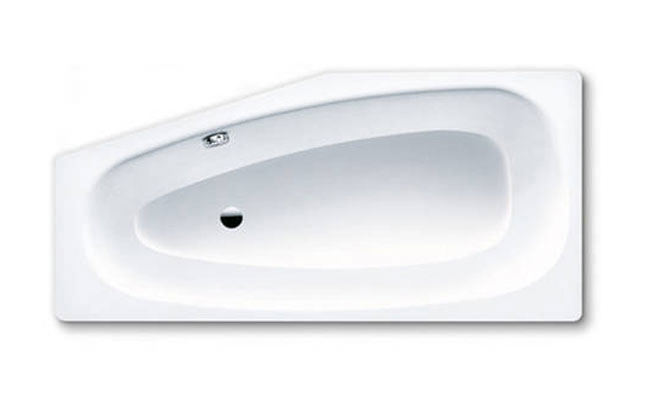

Kaldewei Mini 830 Corner Right 1570 x 750mm Steel Bath

More Variation Available


MFC CODE: 224600010001


RRP: £786.00


5 Working Days Approx

4.0 out of 5 4.0 out of 5

6 out of 6 customers rated 80%

Review this Product

Shipping: £29.95

Other Variation Available Step 1
OP-153471 - No Tap Hole Bath
Available Variants Step 2
  • Bath
  • Length: 1570 mm
  • Width: 750 mm
Please Note all the measurements are in 'mm'
External Length 1570
External Width 500, 750
Tub Depth External - 430
Feets Included No
Height Including Feet or Panel 550-570
Colour White
Grips Included No
Internal Bottom Length 1250
Internal Bottom Width 360
Internal Top Length 1410
Internal Top Width 600
Height of Rim 32
Distance Tub edge to centre of drain hole 500
Distance Top edge to centre of overflow hole 70
Diameter of overflow hole 52
Diameter of Drain hole 52
Distance foot end of tub edge to center of foot 570
Distance between the feet 490
Rim Width 60, 70, 100
Distance Between Centre Holes 246
Weight in kg 52
Slip Resistant No
Capacity in litres 110
Handed Type Right hand
Country of Origin Germany
Warranty/Guarantee 30 Years
Material Steel
No. of Bathers 1
Waste Included Sold Separately
Tap Holes Un-drilled
Kaldewei Mini 224600010001 DETAILS

This Bath, which comes to you from Kaldeweis Mini range, is desirable for reasons more than one. It is not only high on efficiency, but also boasts a design that is very attractive. The right-hand curved model uses less water, thanks to its unique design. Crafted from top-grade enamel gauge of steel, it can withstand surface impact, scratches, abrasions and acids. The product, which is completely recyclable, is supplied without tap holes. It is guaranteed against all manufacturing defects for 30 years and enjoys a huge discount at your favourite online store. Not surprisingly, this bath accessory has won excellent ratings from buyers.

  • Bath with EasyClean, Anti-Slip and full Anti-Slip Also Available [Optional]
  • No Tap hole and 2 Tap hole bath available [Optional]
  • Suitable for Corner Right Installation
  • Economic water consumption thanks to its tapering interior contours
  • Made of 3.5 Enamel Gauge of Steel
  • Supplied with no tap hole
  • Size : 1570 x 750mm [Length x Width]
  • Right Hand Curved Bath
  • Eternal Depth is 430mm
  • Height with Feet: 550-570mm
  • Water Capacity : 110 liters
  • Weight : 52kg
  • Bath waste shown in image is not included
  • Surface Impact, Scratch and Abrasion Resistant, Colourfast, Lightfast and Acid Resistant according to DIN ISO 2722, Class 1, TÜV GS Certificated (Tested Safety)
  • Rim Slopes 3 Degrees to the Inside of the Bath, Earthing Strap for Equipotential Bonding, 100% Recyclable
  • Bath waste [Optional]
  • Leg Set Required, Please order adjustable feet set 5032 [Optional]
  • 30 years of guarantee from Kaldewei against any manufacturing defects.

Please Note: Bath variants may be special order and delivery lead time may vary.

This Item is also available in:
Please Note all the measurements are in mm
  • 1500 x 750 Left Hand 224800010001
  • 1500 x 700 Right Hand 224400010001
  • 1500 x 700 Left Hand 225200010001

Leg Set

Leg Set

Installing a bathtub is particularly quick and simple with the all-round bathtub base frame model 5030 by Kaldewei. The positions of the tub feet on the external points of the base of the bathtub guarantee optimum stability.



High flow dedicated waste to flush out the waste water in a swift. Please note the image shown is for illustration purpose only.


Details For Bath
Tap Hole Variations MFC
No Tap Hole Bath Only 224600010001
No Tap Hole With EasyClean 224600013001
No Tap Hole With AntiSlip 224630000001
No Tap Hole With AntiSlip And EasyClean 224630003001
No Tap Hole With Full AntiSlip 224634010001
No Tap Hole With Full AntiSlip And EasyClean 224634013001
2 Tap Holes Bath Only 224620000001
2 Tap Holes With EasyClean 224620003001
2 Tap Holes With AntiSlip 224625000001
2 Tap Holes With Full AntiSlip 224626090001

Total: £404.80 5 Working Days Approx QS Supplies

You've Selected which adds to a total of

You May Also Require



Rate this Item.:

Questions & Answers

Submit Your Questions 2 Questions Asked

Have a question about this item? Ask our tech team. We aim to reply within 72 hours. If you want to know get answers fast, please call us on 0116 251 0051

Malcolm Asked :
How far apart are the centres of the tap holes in the 2 tap hole option of the Kaldewei Mini bath.

Answered By QS Team :
Distance between the tap hole is 180mm.

Was this answer helpful? -

Eric Asked :
Hi, does the Kaldewei mini 830 corners right 1570x750 have side panel to go with a bath? I can’t see an option for the side panel

Answered By QS Team :
We do not supply a panel for this bath, most clients that purchase this bath make their own due to the shape.

Was this answer helpful? -
