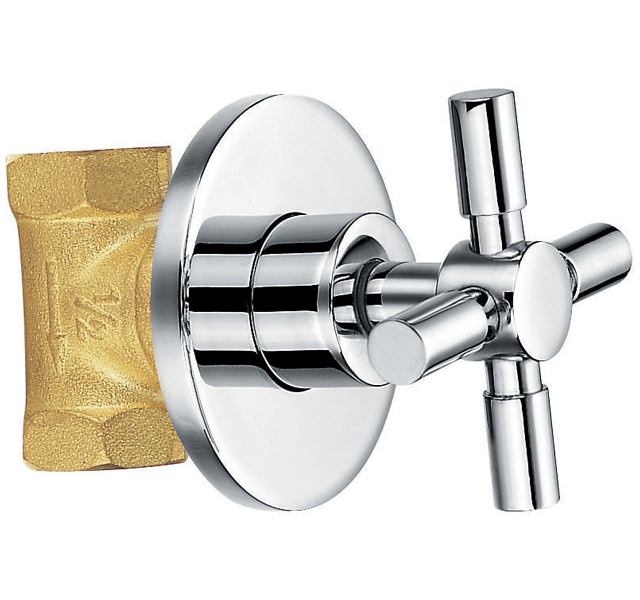

Flova XL Diamond Wall-Mount Concealed Shut-Off Valve For Cold Water

Flova XL Details

MFC: XLWMCONCW

Flova's XL Wall Mounted Concealed Shutoff Valve for Cold Water is made from high-quality lead-free brass which makes its body free of corrosion, a cover of diamond chrome finish further enhances its durability. A cross-head lever represents its traditional design and suitability to decors of classical tastes. This apparatus is highly adaptable and universal in its application due to its suitability with all plumbing systems across the U.K. The manufacturer of this product has placed a guarantee for a period of 10 years to cover any manufacturing defects.

Key Features

✔Made from Lead-Free Brass
✔Easy-to-Clean Diamond Chrome Finish
✔Brass Compositional Designation CuZn40Pb2, EN CW617N [Equivalent to BS CZ122]
✔Ten Years of Guarantee from the Manufacturer Against any Manufacturing Defects.

G3/4 inch Connections
Diameter of Backplate: Ø 68.5mm [6.85cm]
The Minimum Water Pressure Recommended for Smooth Working is 0.2 Bar [LP-Low Pressure]
Weight: 0.7 kg
Volume: 0.01 m³
Manufacturing Code: XLWMCONCW
Shut Off the Valve for Cold Water
Shut Off the Valve for Hot Water [See Option]
Works with Conventional Gravity-Fed Systems
Suitable for All UK Plumbing Systems

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Shape
: Round
⤷ Warranty/Guarantee
: 10 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ Inlet Connections
: G 3/4 Inch

⤷ Handle Style
: Crosshead
⤷ Backplate Width
: 68.5
⤷ Backplate Height
: 68.5
⤷ Number of Handles
: One
⤷ Outlet Connection
: G 3/4 Inch
⤷ Plumbing Option
: Concealed

Flova XL Diamond Chrome Wall Mounted Concealed Shut Off Valve For Cold Water

£55.30

RRP: ~~£65.00~~

Stock Availablity: 6 Working Days Approx

QS Supplies

2 Features Included In This Product Explained

Suitable For Gravity Fed System

Usually found in old properties, Gravity-Fed Systems are known for their low water pressure.

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

Questions & Answers

Submit Your Questions 3 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

Peter Asked :
The image for the cut-off valve QS-V27185 shows a 1/2-inch valve body whilst the item is specified at 3/4-inch in the description - I would like to order both valve sizes in the same tap head style but cannot see anything on the website giving a product code for a 1/2-inch body - hope you can help.

Answered By QS Team

The QS-V27185 is a 3/4-inch stop valve, and the 1/2-inch body shown in the image is a misprint. Unfortunately, we do not have 1/2-inch bodies that fit the XL style. We hope this helps.

Was this answer helpful?

alan Asked :
Hi, Is this tap a full-way flow, please? What is the smallest diameter for water flow?

Answered By QS Team

This product has a 1/4-turn ceramic disc cartridge and has no restrictions. The flow rates would depend on local installation and bar pressure. Also, it has G3/4 inch connections.

Was this answer helpful?

russ Asked :
How does the tap fix to the wall?

Answered By QS Team

There is a lock-in nut with a circular chrome disc, which would lock onto the surface.

Was this answer helpful?
