Getting your radiator size wrong is one of the most expensive heating mistakes you can make. Too small and your room never reaches a comfortable temperature, no matter how high you turn the dial; too large and you're burning money on heat you don't need.
The solution is to calculate BTU (British Thermal Units), the standard measure of heat output used on every radiator sold in the UK. This guide walks you through the formula and the variables that matter most so you can choose your radiator with confidence.
Room size |
Room type |
Estimated BTU |
Estimated watts |
Radiator category |
3 m × 3 m |
Bedroom |
2,000 BTU |
600 W |
Compact single-panel radiator |
3 m × 4 m |
Bedroom |
2,700 BTU |
790 W |
Small double-panel radiator |
3 m × 4 m |
Living room |
3,100 BTU |
910 W |
Standard double-panel radiator |
4 m × 5 m |
Living room |
5,200 BTU |
1,520 W |
Large panel or designer radiator |
2 m × 2 m |
Bathroom |
2,200 BTU |
645 W |
Heated towel rail |
3 m × 3 m |
Bathroom |
4,900 BTU |
1,435 W |
Towel rail + supplementary panel |
3 m × 4 m |
Kitchen |
2,200 BTU |
645 W |
Compact wall-mounted radiator |
4 m × 2 m |
Hallway |
1,800 BTU |
525 W |
Slim vertical or compact panel |
5 m × 6 m |
Open-plan living/kitchen |
8,500 BTU |
2,490 W |
Two radiators recommended |
Note: When the total BTU requirement for a room exceeds 8,000 BTU, it is usually more practical to use two smaller radiators positioned on opposite walls than to source a single very large unit. Two radiators also distribute heat more evenly across a large or open-plan space, whereas a single radiator placed on one wall cannot achieve as effective a result.
What Is a BTU? (And Why It Matters for Radiators)
A BTU, or British Thermal Unit, is the amount of energy required to raise the temperature of one pound of water by one degree Fahrenheit. That is the textbook definition, but in practice it is simpler: for radiators, the BTU rating tells you how much heat a radiator can deliver into a room per hour, expressed as BTU/hr. The higher that number, the more heat the radiator produces.
Every radiator sold in the UK must display its heat output at the Delta T 50°C standard, written as ΔT50. This is the UK industry benchmark under BS EN 442 and represents the temperature difference between the average water temperature inside the radiator (70°C) and a target room temperature of 20°C.
BTU and watts are interchangeable: 1 watt = 3.412 BTU/hr. UK heating engineers often work in watts rather than BTU, and you'll find both figures on most product pages. For this guide, we'll use BTU throughout, since that is what most homeowners encounter when searching for a radiator, but every figure given here converts directly into watts by dividing by 3.412.
The BTU Formula: How To Calculate Your Radiator Size
The professional formula used for UK radiator sizing is:
That formula produces a result in BTU at ΔT50, which is the same standard by which standard radiators are rated against. The sections below cover each component in turn. Once you have your total, add a 15% safety margin and round up. This ensures your radiator can cope with the coldest days without running continuously at maximum output.

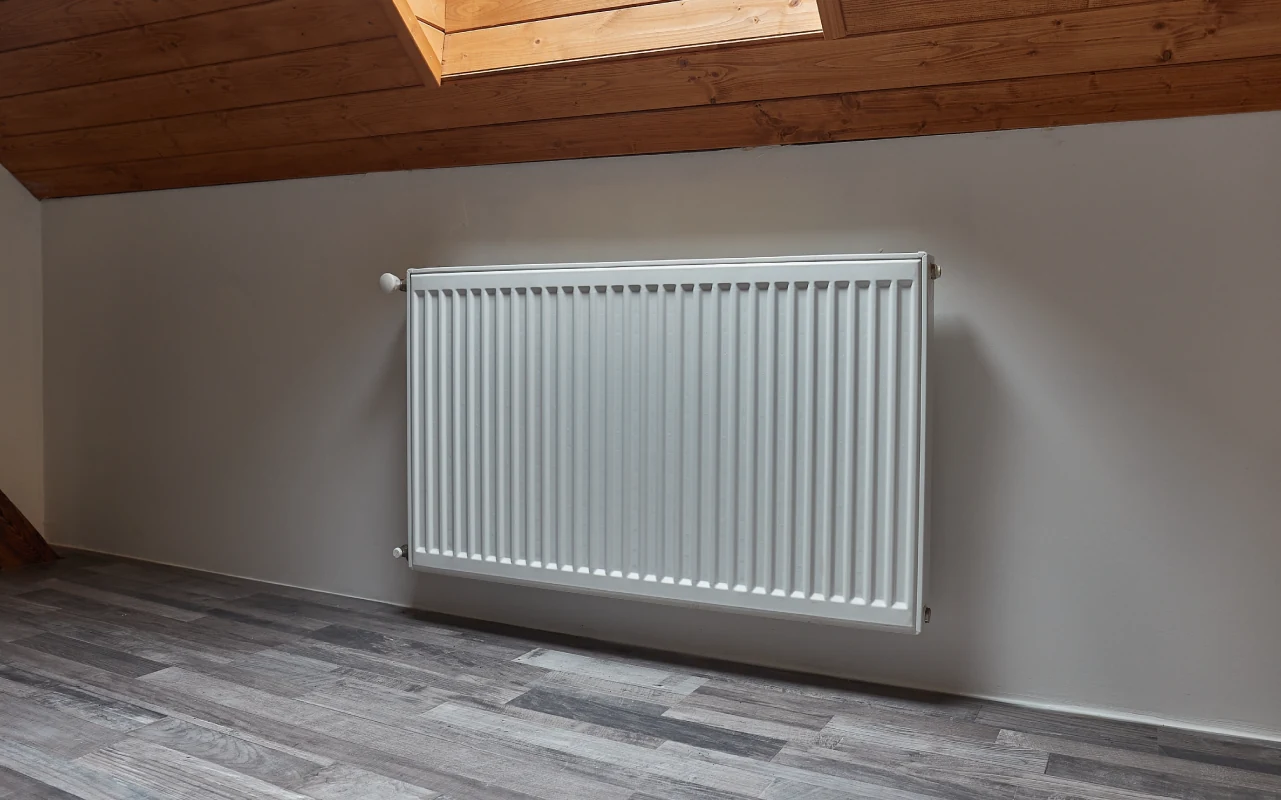

Step 1: Calculate Your Room Volume
The starting point is measuring the full volume of your room, length × width × height in metres to determine how much air your radiator needs to heat. Key considerations include:
-
Ceiling height. Standard UK ceilings are 2.4 m, but period properties often reach 2.7–3.0 m, significantly increasing air volume.
-
Impact on BTU. A 3 m ceiling contains about 25% more air than a 2.4 m ceiling, directly increasing BTU requirements.
-
Full volume vs. floor area. Square metres alone are not enough; always calculate total room volume.
-
Accurate measurements. Estimating room dimensions can lead to undersizing; even small errors compound through the calculation.
Step 2: Apply the Room-Type Multiplier
Different rooms need to be heated to different temperatures, which is why the formula uses a room-specific base heat rate rather than a single figure for all spaces.
The rates, measured in watts per cubic metre:
-
Bathrooms are typically 45 W/m³. Targeting 22–24°C, the highest of any room, plus a requirement to manage dehumidifying during bathing and showering.
-
Living rooms run around 40 W/m³. Typically occupied for the longest periods, targeting around 21°C, often with larger windows.
-
Bedrooms are typically 35 W/m³. Comfortable at around 18°C for sleeping, reducing the heat output needed relative to other rooms.
-
Kitchens sit at 30 W/m³. The lowest rate, because cooking appliances provide meaningful background warmth, and the number of people in the room tends to add heat too.
These rates reflect real-world CIBSE target temperatures (the industry reference for UK building services). They form the baseline before any adjustment factors are applied.
Step 3: Apply Adjustment Factors
The base calculation assumes standard conditions. Most rooms are not standard; they differ in glazing type, insulation quality, how exposed the property is, and which way the room faces. The adjustments below are applied to your base BTU figure before adding the 15% safety margin.
Factor |
Adjustment |
Single glazing |
+40% |
Double glazing |
Baseline (no change) |
Triple glazing |
−15% |
Factor |
Adjustment |
Modern new-build |
−30% |
Standard cavity wall (post-1920s) |
Baseline |
Older property, poor insulation |
+20% |
Victorian/pre-1920s |
+50% |
Factor |
Adjustment |
Sheltered/enclosed position |
−10% |
Average suburban |
Baseline |
Exposed/rural |
+15% |
Factor |
Adjustment |
One external wall |
−15% |
Two external walls |
Baseline |
Three external walls |
+15% |
Four external walls (detached/corner room/extension) |
+30% |
Factor |
Adjustment |
North-facing |
+10–15% |
East/west-facing |
Baseline |
South-facing |
−10% |
To apply these, multiply your base BTU figure by each applicable factor in sequence.
The Factors That Affect Your BTU Requirements Most
Understanding these variables helps you size radiators accurately and avoid common mistakes:
-
Glazing. A major source of heat loss, single-glazing can double BTU needs, while large window areas or doors increase requirements even with double glazing.
-
Wall insulation. Poor or absent insulation can increase BTU needs by up to 50%.
-
Room orientation and sun exposure. North-facing rooms need around 10–15% more BTU due to limited solar gain, particularly in window-heavy spaces.
- Ceiling height. Higher ceilings increase air volume and heat demand; a 3 m ceiling requires about 25% more BTUs than a standard 2.4 m height.
-
Number of external walls. More external walls mean more heat loss; corner or detached rooms require more BTU than internal spaces.
Room-by-Room BTU Guide: Bathrooms, Living Rooms, Bedrooms, and Kitchens
BTU requirements vary by room due to differences in target temperature, heat loss, and internal heat sources. Here’s how each type of room affects radiator sizing and performance:
Bathrooms
Require the highest BTU per square metre due to higher target temperatures (22–24°C) and humidity from bathing. Heated towel rails (500–2,000 BTU) work for small spaces, but larger bathrooms may need a higher-output model or an additional compact radiator.
Living rooms
Show the most variation in BTU needs, heavily influenced by the type of windows in the home, including glazing and orientation.
Bedrooms
Typically, they need less BTU since the ideal temperature is around 18°C. However, factors like poor insulation, north-facing orientation, or unheated spaces below can increase requirements.
Kitchens
Have the lowest base heat requirement because appliances generate additional warmth during use. However, this heat is inconsistent, so undersized radiators may struggle during colder, inactive periods.
How To Read a Radiator's BTU Rating (and What To Watch Out For)
Knowing your required BTU is only half the job; you also need to be able to read product specifications accurately, and there are a few traps that catch many buyers:
-
Delta T rating. Always check for ΔT50 (UK standard); ΔT60 ratings overstate output by about 27% and can lead to under-heating.
-
Panel type. Output depends on design, not size; type 22 radiators produce far more heat than type 11 models of the same dimensions.
-
Vertical radiators. Space-saving but less efficient at distributing heat; high output may cause it to rise to the ceiling rather than warming the room evenly.
-
Heat pump compatibility. Lower system temperatures (ΔT30) can reduce output by around 50%, so standard radiators may be undersized.
Get Your Radiator Size Right for Reliable, Efficient Heating
Getting your BTU calculation right comes down to understanding your room’s volume, applying the correct base rate, and factoring in real-world variables like insulation, glazing, and orientation. Skipping these steps often leads to undersized radiators and uncomfortable spaces, or oversized units that waste energy and money.
Taking the time to calculate accurately means consistent warmth, better efficiency, and a heating system that performs as intended year-round. Once you have your figure, choosing the right radiator becomes far simpler.
For a wide range of radiators and heated towel rails matched to every BTU requirement, explore the options available at QS Supplies to find the right fit for your space.
Frequently Asked Questions
The questions below cover the most common points of confusion when calculating BTU requirements and choosing a radiator size. If you've worked through the formula above and want a quick sense-check, or if you're looking for an answer to a specific scenario, start here.
- What size radiator do I need for my room?
- How many BTU per square metre do I need in the UK?
- Do I need a bigger radiator for a bathroom?
- Can I use more than one radiator to meet my BTU requirement?
- What is the difference between BTU and watts?
- Does a north-facing room need a higher BTU radiator?
