Geberit Sigma01 Square Pneumatic Urinal Actuator Plate with Round Button - 130 x 130mm

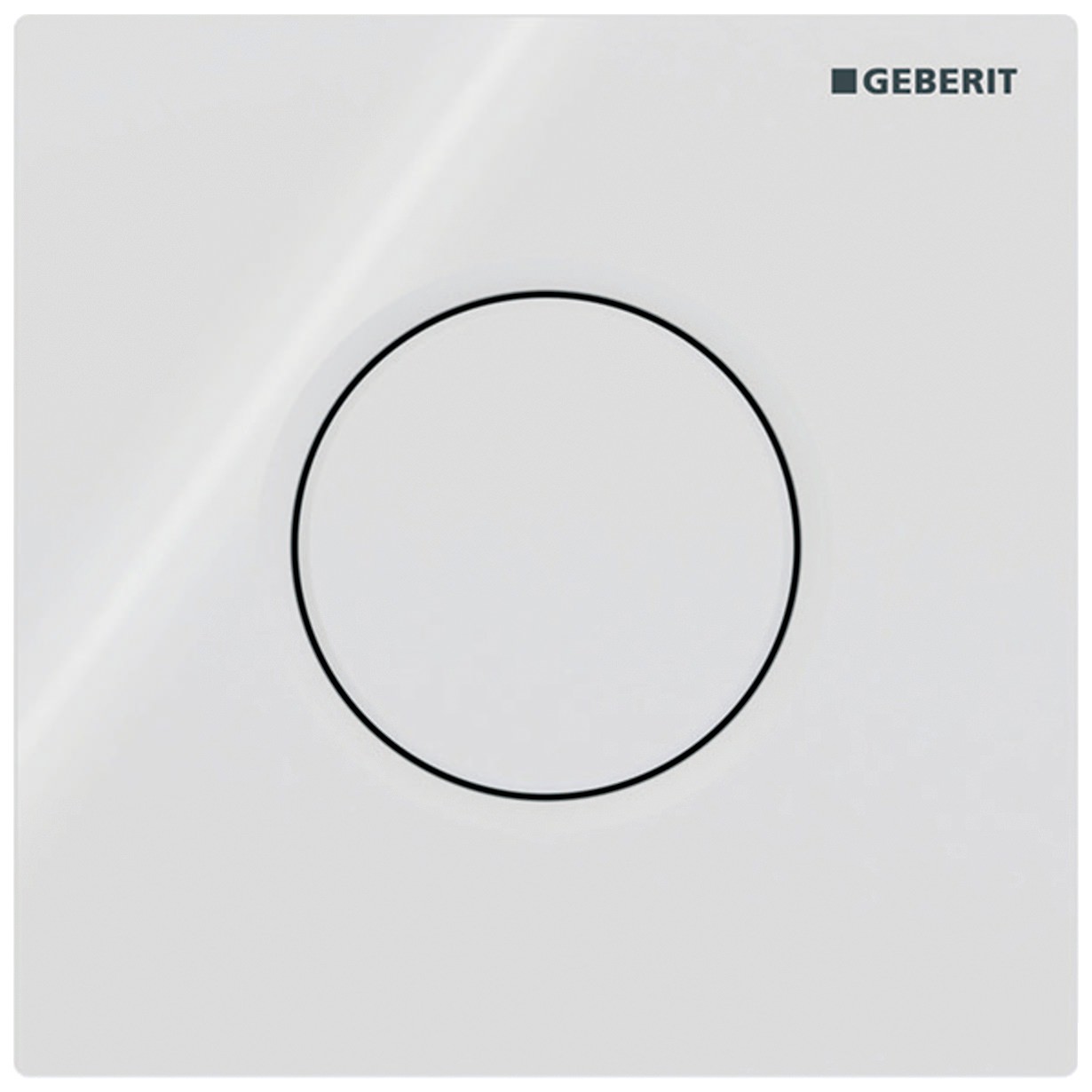

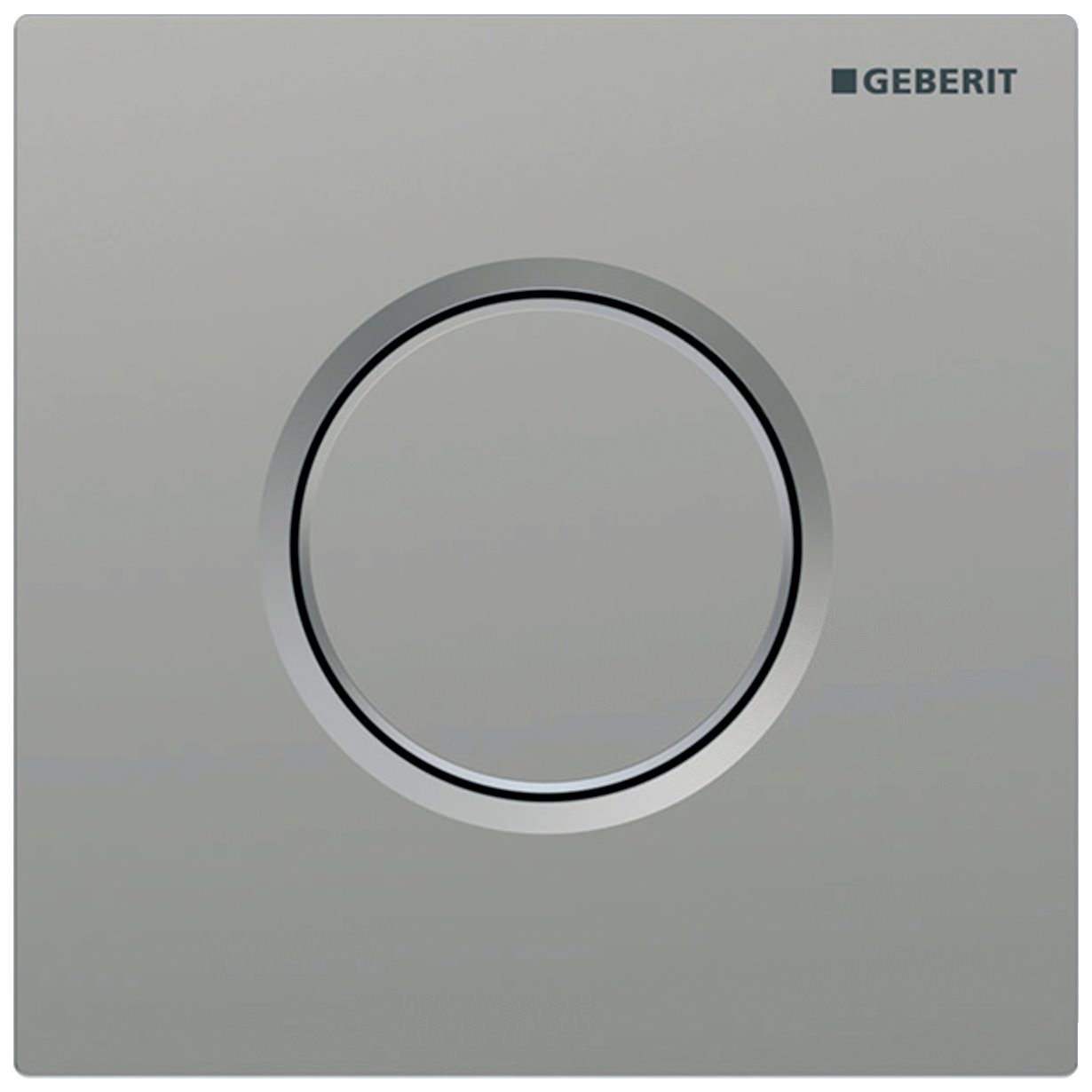

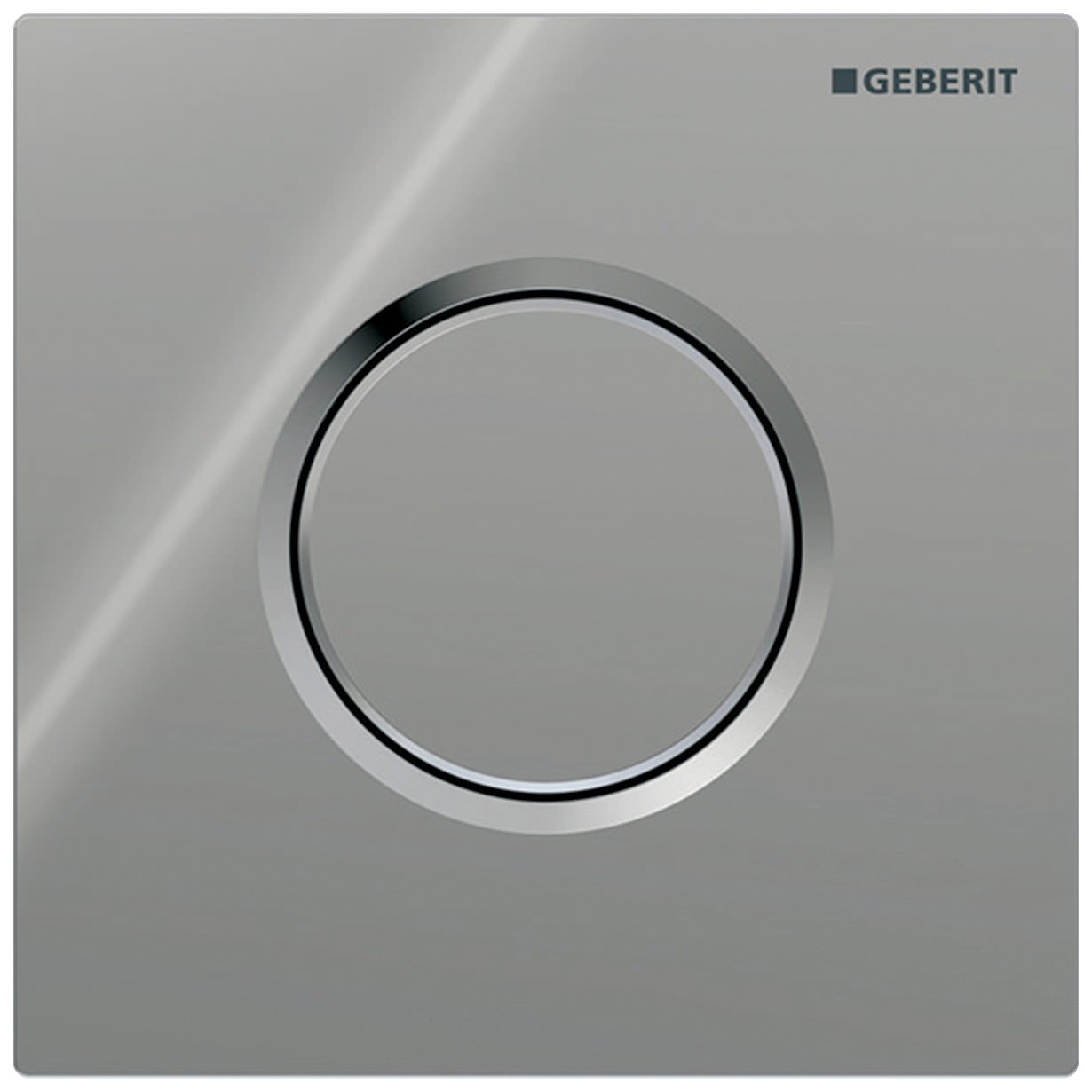

Geberit Sigma01 Urinal Flush Control is specially designed for assembly in urinal installation set. It comes with manual actuation of urinals and has a low actuation force.  Made of Plastic with securing bar, it includes a pneumatic valve with the control pre-mounted on a mounting frame. Finished in white, gloss chrome or matt chrome, it is versatile enough to be used in various locations. Choose one to match your requirement from our online store at a special price. The brand name is synonymous with quality and inspires reliability.

• Size: 130mm (13cm) x 130mm (13cm) [Width x Height]
• Thickness: 9mm (0.9cm)
• Compatible with Installation in Installation Sets for Geberit Urinal Flush Controls
• Flush Plate with Securing Bar
• Flush Time Setting with Air Nozzles (Pneumatic)
• Low Flush Actuation Force
• Short Stroke Movement
• Flush Actuation when the Actuator Button is Released
• Flush Volume can be Reduced to 0.5 l Per Flush with Regulating Screw of an Installation Set
• Made of High-Quality Plastic
• Can be Operated with Used Water (Rainwater) Provided it is Passed Through a Filter System First
• Flow Pressure: 1-8 Bar
• Maximum Test Pressure Water: 16 Bar
• Maximum Test Pressure Air / Inert Gas: 3 Bar
• Maximum Operating Water Temperature: 30° Celsius
• Maximum Actuation Force: 12 N
• Flow Rate at 1 Bar without Flow limiter: 0.3 l/s
• Flow Rate at 1 Bar with Flow limiter: 0.18 l/s
• Minimum Flow Pressure: 1 Bar
• Relative Humidity: ≤ 100 %
• Calculated Flow Rate: 0.22 l/s
• Flush Time Adjustment Range: 4s / 8s / 12s
• Refer to the Technical Drawing for More Detail
• 5-Year Guarantee from Geberit Against Manufacturing Defects

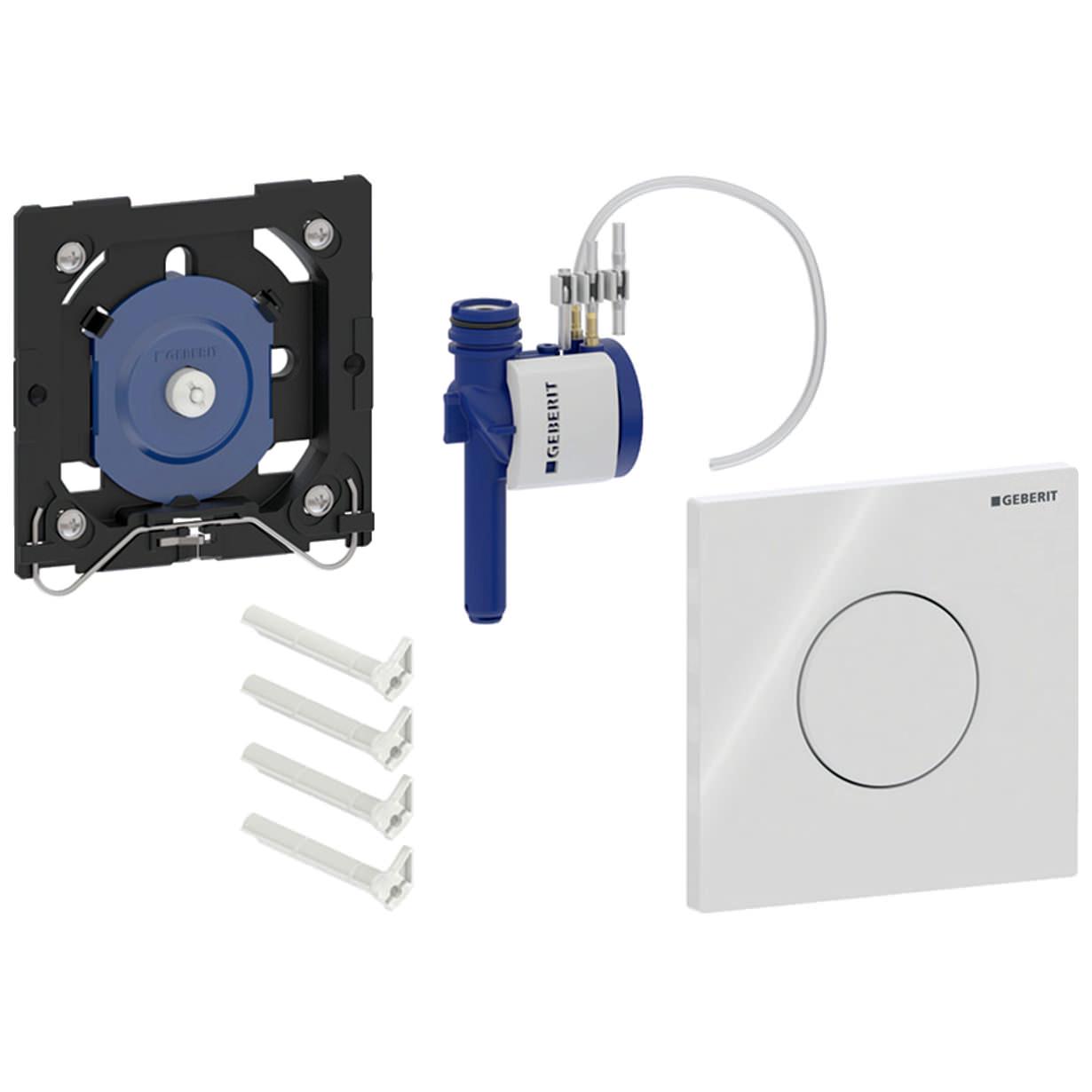

• Scope of Delivery
• Type 01 Flush Plate, Round
• Pneumatic Flush Actuation, Premounted on a Mounting Frame
• Pneumatic Valve
• Fastening Material
