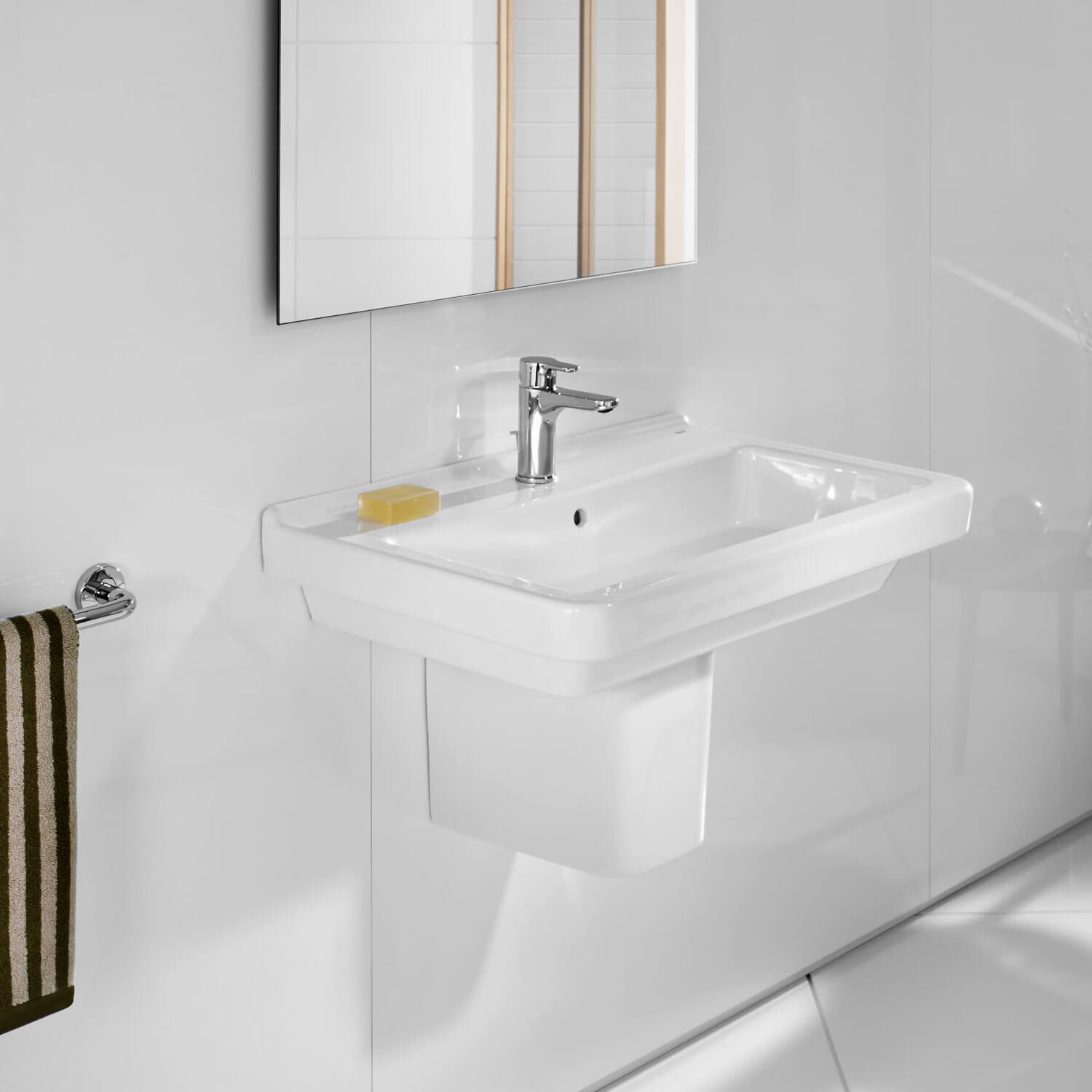

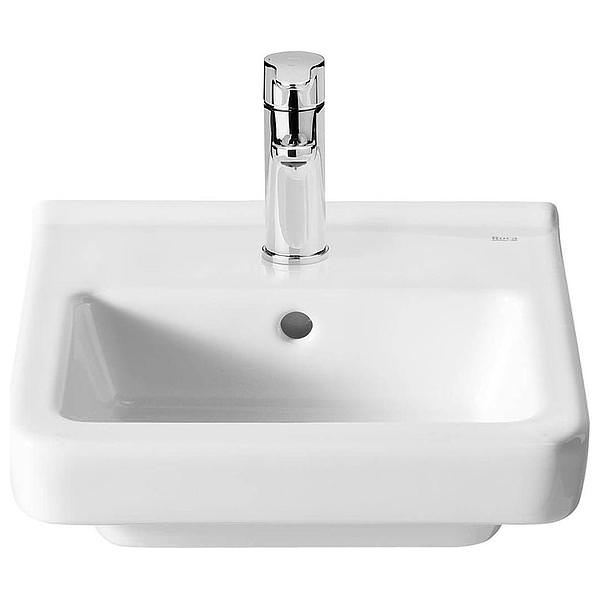

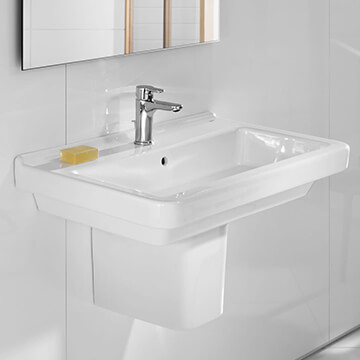

Roca Dama-N Compact White Wall Hung Basin With 1 Tap Hole

Roca Dama-N 32778B000 Details

Give a timeless finish to your bathroom or cloakroom by installing Dama-N Wall Hung Basin from the production of Roca, a famous company that manufactures quality bathroom elements. This white finished basin is constructed from vitreous china material and carries a 25-years guarantee from Roca. A semi pedestal can be fixed with this basin, giving a fantastic look to the basin, fixing concealed.

It comes in a white finish.
Depth (Projection): 320mm.
Height: 150mm.
Bowl position: Central.
Taphole configuration: 1 taphole in the middle.

Installation type: Wall-hung.
Shape: Square.
Tap, waste and pedestal shown are not included.
Semi pedestal available separately [See option below].

Info / Size (mm)

Basin
Width: 350 mm
Depth: 320 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Dama-N
⤷ Coating
: Without Coating
⤷ Colour
: White
⤷ Shape
: Rectangular
⤷ Country of Origin
: Spain
⤷ Warranty/Guarantee
: 25 Years
⤷ Material
: Vitreous China
⤷ Theme
: Modern
⤷ Waste Included
: Sold Separately
⤷ Projection (Depth)
: 320
⤷ Width
: 350
⤷ Compact Design
: Yes
⤷ Height
: 150
⤷ Fixings included
: Yes
⤷ Inner Bowl Width
: 320
⤷ Inner Bowl Depth
: 173

⤷ Distance rear edge to centre of waste hole
: 185
⤷ Distance of tap holes
: 200
⤷ Fixing Holes Centre
: 280
⤷ Distance rear edge to centre of tap hole
: 55
⤷ Depth of tap platform
: 55
⤷ Number of bowls
: 1
⤷ Number of bowls
: One
⤷ No. of Tap Holes
: 1
⤷ Tap Hole Position
: Centre
⤷ Pedestal Included
: Sold Separately
⤷ Overflow Included
: Yes
⤷ Barcode
: 8414329908572
⤷ Distance finished floor level to top edge
: 850
⤷ Distance finished floor level to bottom edge
: 710
⤷ Product Type
: Wall Hung Basin

Customise Your Product

Optional Pedestal

Beautiful Dama-N white semi-pedestal for Dama-N Wall Hung Basins! Please note that the image is for illustration purposes only.

None
OP-36090 - Semi Pedestal - 337782000 + £107.88

Basin Waste

Compatible wastes for the basin. The image shown is just for illustration purposes only.

None
OP-108854 - Pop-Up Waste With Overflow and Automatic Plug - Chrome - 505400000 + £60.13

Bottle Trap

Compatible bottle trap for this product. Please Note: The image shown is just for illustration purpose only.

None
OP-70099 - Standard Bottle Trap 200mm Chrome - 506401614 + £44.09
OP-16305 - Extended Bottle Trap 300mm Chrome - 506403110 + £130.34

Total: £81.82 2-3 Working Days Approx QS Supplies

1 Features Included In This Product Explained

Vitreous-China Material

It is a compound of glass and silica-based materials applied as a coat on porcelain products such as WC pans, urinals, baths and basins to protect them from scratches and stains as an anti-vandal measure.
