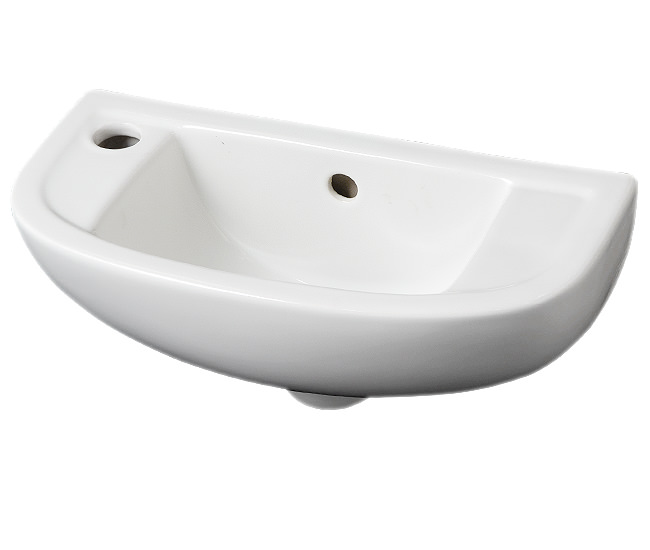

RAK Compact 1 Tap Hole White 450mm Slimline Basin


RRP: £95.00


In-Stock In Stock

5.0 out of 5 5.0 out of 5

Based on 1 Ratings.

Shipping: £7.95

Delivery in 2 Working Days Approx.
Select Variations
You've Selected: OP-227513 - With 1 Left Hand Tap Hole
Key Features
  • Constructed from vitreous china material
  • 20 years of guarantee from manufacturer.
SKU Code: QS-V36336

MFC Code: CO2301AWHA

Rak Compact CO2301AWHA Details

Cool and contemporary, this Slimline basin from RAK's Compact range comes with 1 Left Hand or optionally right-hand tap hole and is versatile and comfortable to use with compatible basin taps. It looks awesome with its stunning Vitreous China body with a smooth, moulded into a circle with broad tap platform on the sides and thin rim at the front for a pleasing washing experience. Designed for wall mounting, it frees up valuable floor space to make your bathroom look more spacious. Its white finish is remarkably smooth and easy to maintain and adds to its versatile use.

  • Width: 450mm - (45cm).
  • Height: 180mm - (18cm).
  • Depth: 215mm - (21.5cm).
  • It comes in a white finish.
  • Wall mounted.
  • Tap and overflow not included.

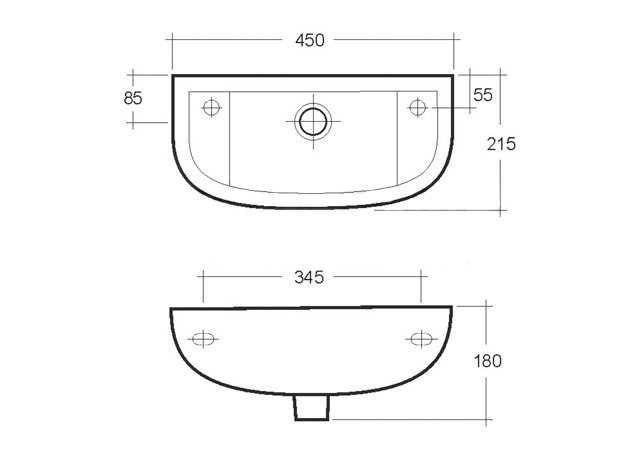

  • Refer technical diagram for more technical details.

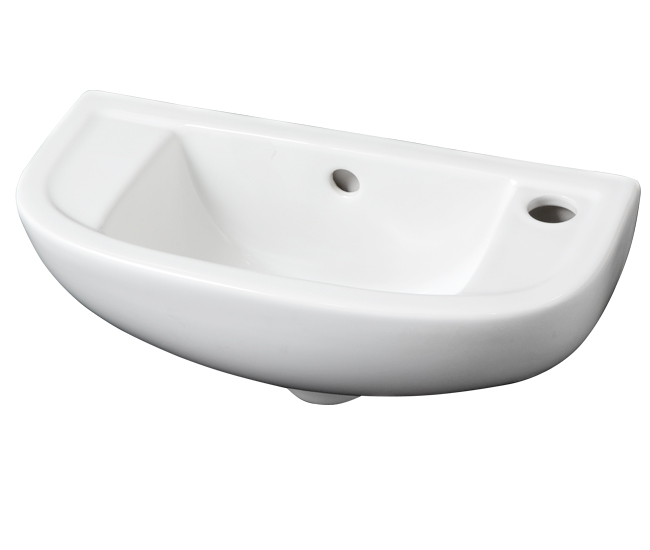

  • Right Hand Side Tap Hole - CO2401AWHA Optional [See Option].
  • 2 Tap Hole - CO2501NCHAWHA Optional [See Option].

Info / Size (mm)

  • Basin
  • Width: 450 mm
  • Depth: 215 mm
  • Height: 180 mm

Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ Range
  • : Compact
  • ⤷ Coating
  • : Without Coating
  • ⤷ Colour
  • : White
  • ⤷ Shape
  • : Rounded Rectangular
  • ⤷ Country of Origin
  • : Dubai
  • ⤷ Warranty/Guarantee
  • : 20 Years
  • ⤷ Material
  • : Vitreous China
  • ⤷ Theme
  • : Modern
  • ⤷ Waste Included
  • : Sold Separately
  • ⤷ Projection (Depth)
  • : 215
  • ⤷ Width
  • : 450
  • ⤷ Compact Design
  • : Yes
  • ⤷ Height
  • : 180
  • ⤷ Distance rear edge to centre of waste hole
  • : 85
  • ⤷ Distance rear edge to centre of tap hole
  • : 55
  • ⤷ Depth of tap platform
  • : 55
  • ⤷ Number of bowls
  • : One
  • ⤷ No. of Tap Holes
  • : 1
  • ⤷ Tap Hole Position
  • : Left
  • ⤷ Overflow Included
  • : Yes
  • ⤷ Barcode
  • : 5056176000820
  • ⤷ Product Type
  • : Space Saver Basin
  • ⤷ Product Type
  • : Wall Hung Basin

Total: £53.99 4 Working Days Approx QS Supplies
Add-on Selected: Total Price Now:

Reviews & Ratings

Rate this Item.:

Hide All Reviews
From : ryarsh Overall Rating: Date: September 28, 2015 COMSLWB1LH
very nice
Helpful? Thumbs Up Thumbs Down
Value for Money

Questions & Answers

Submit Your Questions 2 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

Jerry Asked :

Does this basin hang on brackets, or it screwed to the wall. Picture of the rear if possible

Answered By QS Team Answered by the QS Technical Team

The Compact basin comes complete with Fisher wall fixings. There are two 12mm round holes in the back of the basin to be fitted to the wall.

Was this answer helpful?
John Asked :

The RAK compact slimline basin comes with a 2 tap hole option. Could you confirm if the dimensions are the same as the 1 tap hole basin and if the tap holes on this model are for standard taps and not mixer taps? Lastly is it in stock? Code No OP55164 2 tap hole COM3LWB2 Thanks

Answered By QS Team Answered by the QS Technical Team

We can confirm that the dimensions are the same for 1 and 2 tap hole basin. Regarding 2 tap holes option OP-55164, the tap holes are for standard taps. For stock availability of this item, please call our hotline at 0116 251 0051.

Was this answer helpful?
