Kaldewei Vaio Set 944 Supersteel Bath 1700 x 700mm
Technical drawing QS-V35942 / 234400010001
Additional image of Kaldewei 234400010001
QS-V35942 small Image 1
QS-V35942 small Image 2
QS-V35942 small Image 3

Kaldewei Vaio Set 944 Supersteel Bath 1700 x 700mm

More Variants Available

QS-V35942

MFC CODE: 234400010001

£427.07

RRP: £783.60 You Save £356.53 on RRP

Stars Rating3.5 out of 5

6 out of 6 customers rated 70%

Review this Product

STOCK AVAILABILITY

5 Working Days Approx

Shipping: £23.95

VARIATIONS
Technical
Other Variation Available Step 1
Add-on Selected: OP-145435 - No Taphole + £0.00
Select Variants Step 2

INFO / SIZE (mm)

  • Bath
  • Length: 1700 mm
  • Width: 750 mm
Please Note all the measurements are in 'mm'
External Length 1700
External Width 700
Tub Depth External - 430
Feets Included No
Height Including Feet or Panel 567-590
Colour White
Grips Included No
Internal Bottom Length 1200
Internal Bottom Width 420, 475
Internal Top Length 1460
Internal Top Width 470, 580
Height of Rim 32
Distance Tub edge to centre of drain hole 625
Distance Top edge to centre of overflow hole 70
Diameter of overflow hole 52
Diameter of Drain hole 52
Distance foot end of tub edge to center of foot 485
Distance between the feet 625
Distance tub edge(foot end) to where handle starts 720
Distance tub edge(foot end) to where handle ends 980
Rim Width 60, 110, 130
Distance Between Centre Holes 280
Weight in kg 47
Slip Resistant No
Shape Rectangular
Capacity in litres 101
Country of Origin Germany
Warranty/Guarantee 30 Years
Material Steel
No. of Bathers 1
Waste Included Sold Separately
Tap Holes Un-drilled
QTY
ADD TO BASKET

234400010001 DETAILS

Kaldeweis Vaio Set 944 Supersteel Bath has an irresistible physical appeal that will draw you and envelope you in its cosy confines in a compelling manner. Made of steel enamel and finished in White, this deep and comfortable bath has a sensuous scratch resistant surface that is colour fast and lightfast. To elevate your comfort, it comes with integrated armrests and uniquely angled rim slopes towards the inner area of the bath and includes a 100% recyclable Earthing strap for Equipotential Bonding. This sturdy masterpiece comes with a massive 30-year guarantee against any manufacturing defects.

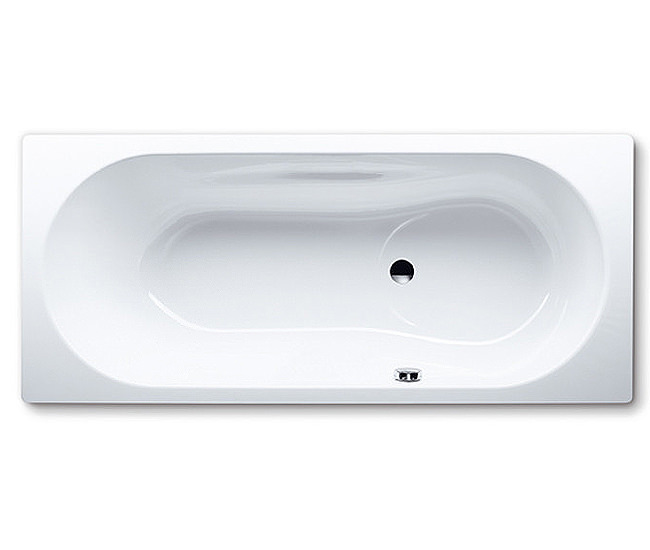

  • Available in no Tap hole and 2 Tap hole version [Optional]
  • Single ended bath

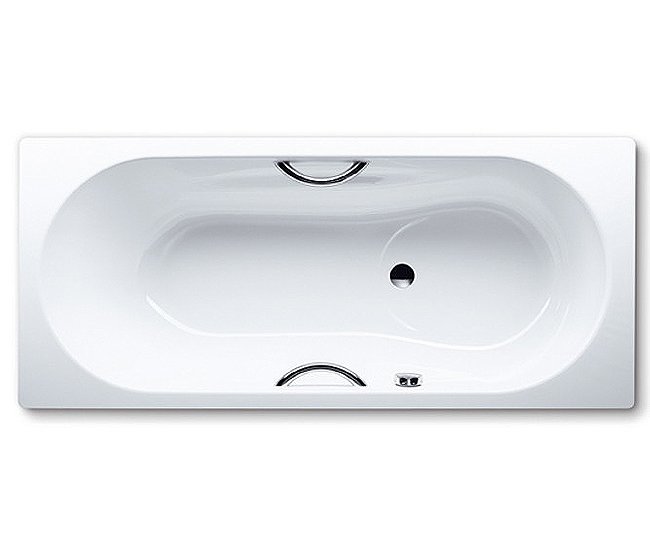

  • Comes with side overflow hole and integrated arm rests
  • Alpine white finish bath
  • Bath waste shown in image is not included
  • 30 Years Guarantee against any manufacturing defects
  • Image for illustration purpose
  • Water Capacity : 101 Litres
  • Size : 1700 x 700mm [Length x Width]
  • Made of steel enamel 3.5 mm
  • For Technical Detail Click on Technical Image
  • Waste available separately [Optional]
  • Antislip and Full Antislip [Optional]
  • Easy clean finish [Optional]
  • Surface Impact, Scratch and Abrasion Resistant, Colourfast, Lightfast and Acid Resistant according to DIN ISO 2722, Class 1, TÜV GS Certificated Tested Safety
  • Rim Slopes 3 Degrees to the Inside of the Bath, Earthing Strap for Equipotential Bonding, 100 % Recyclable.



CUSTOMISE YOUR PRODUCT
Easy clean finish

Easy clean finish

Kaldewei easy-clean finish makes water forms droplets and in the process takes nearly all the particles of dirt and limescale along with it even dried-up water stains and limescale deposits can simply be removed with a soft damp cloth.

Leg Set

Leg Set

Installing a bathtub is particularly quick and simple with the all-round bathtub base frame model 5030 by Kaldewei. The positions of the tub feet on the external points of the base of the bathtub guarantee optimum stability.

Waste

Waste

High flow dedicated waste to flush out the waste water in a swift. Please note the image shown is for illustration purpose only.


PRODUCT VARIATIONS INFO & MFC CODE
  • Available Variants Along With Manufacturing Code
  • No Tap Hole Bath - 234420000001
  • 2 Tap Hole Bath - 234400010001
  • No Tap Hole Bath With AntiSlip - 234425000001
  • 2 Tap Hole Bath With AntiSlip - 234430000001
  • No Tap Hole Bath With Full AntiSlip - 234426090001
  • 2 Tap Hole Bath With Full AntiSlip - 234434010001

Total: £427.07 5 Working Days Approx QS Supplies

You've Selected which adds to a total of
ADD TO BASKET


View
×


REVIEWS & RATINGS

Rate this Item.:



WRITE A REVIEW




Questions & Answers

  Submit Your Questions 1 Questions Asked

Have a question about this item? Ask our tech team. We aim to reply within 72 hours. If you want to know get answers fast, please call us on 0116 251 0051

Sally Asked :
Hi there, Will the taphole be situated at the front of the bath? NOT the side?

Answered By QS Team :
Please Download the PDF of the technical sheet for the 2 taphole drilling for this bath.
