Kaldewei Vaio Set Single Ended Steel Bath 1600 x 700mm

Technical drawing QS-V19357 / 233600010001

Kaldewei Vaio Set Single Ended Steel Bath 1600 x 700mm

QS-V19357

MFC CODE: 233600010001

£427.07

RRP: ~~£783.60~~ You Save £356.53 on RRP

4.7 out of 5

3 out of 3 customers rated 93%

Review this Product

STOCK AVAILABILITY

5 Working Days Approx

Shipping: £23.95

Description

Technical

Enjoy the quality and style that this Kaldewei steel bath offers by installing it in your home today. The quality 3.5 mm enamel is finished in white for a totally modern look. Backed by the manufacturer's 30 year guarantee, this bathtub will stand the test of time.

+ Read what's included.. & options available

Please Note all the measurements are in 'mm'

External Length	1600
External Width	700
Tub Depth	External - 430
Feets Included	No
Height Including Feet or Panel	560-580
Colour	White
Grips Included	No
Internal Bottom Length	1200
Internal Bottom Width	420, 475
Internal Top Length	1460
Internal Top Width	470, 580
Height of Rim	32
Distance Tub edge to centre of drain hole	575
Distance Top edge to centre of overflow hole	70
Diameter of overflow hole	52
Diameter of Drain hole	52
Distance foot end of tub edge to center of foot	435
Distance between the feet	625
Rim Width	60, 80
Distance Between Centre Holes	280
Weight in kg	46
Slip Resistant	No
Shape	Rectangular
Capacity in litres	96
Country of Origin	Germany
Warranty/Guarantee	30 Years
Material	Steel
No. of Bathers	1
Waste Included	Sold Separately
Tap Holes	Un-drilled

INFO / SIZE (mm)

Bath
Length: 1600 mm
Width: 700 mm

QTY

Kaldewei Vaio 233600010001 DETAILS

Manufacturing code of this product : 233600010001
One-seater bath with side overflow and integrated arm rests
Suitable for bathing and showering
Supplied with No Tap Holes
Comes in attractive white finish

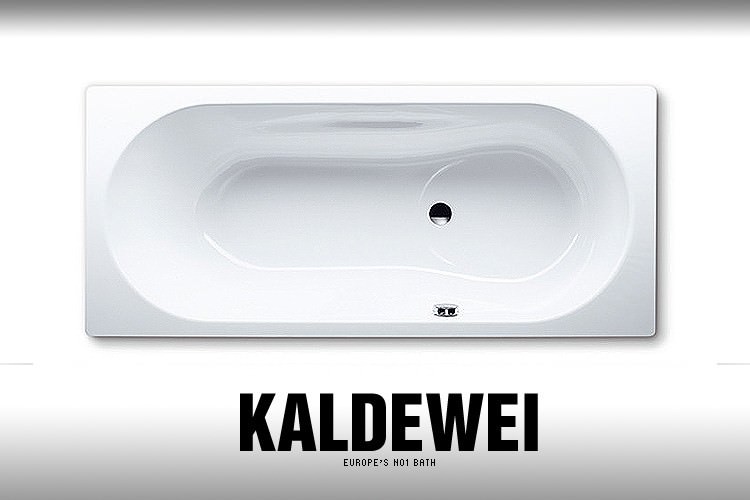

Image for illustration purpose
Size : 1600 x 700mm [Length x Width]
Made of steel enamel 3.5mm

Height with feet : 560-580mm
Weight : 46kg
Bath waste shown in image is not included
Water Capacity 100 litres - 70 litres displacement on average
Bath waste [Optional]
Easy clean finish available [Optional]
Leg Set Required, Please order adjustable feet set 5030 [Optional]
Carry 30 year guarantee from Kaldewei against any defects.

CUSTOMISE YOUR PRODUCT

Leg Set

Installing a bathtub is particularly quick and simple with the all-round bathtub base frame model 5030 by Kaldewei. The positions of the tub feet on the external points of the base of the bathtub guarantee optimum stability.

No Option Selected
OP-29520 - Leg Set 5030 - 581470000000 + £33.17 RECOMMENDED

Waste

High flow dedicated waste to flush out the waste water in a swift. Please note the image shown is for illustration purpose only.

No Option Selected
OP-250 - High Flow Chrome Pop-Up Waste Dedicated - BW001 + £20.15 RECOMMENDED

Easy clean finish

Kaldewei easy-clean finish makes water forms droplets and in the process takes nearly all the particles of dirt and limescale along with it even dried-up water stains and limescale deposits can simply be removed with a soft damp cloth.

No Option Selected
OP-1546 - Easy-Care Easy-Clean Finish + £74.88

Total: £427.07 5 Working Days Approx QS Supplies

You've Selected which adds to a total of

REVIEWS & RATINGS

Here's what people are saying about this item.

Rate this Item.:

Hide All Reviews

Josephine London Date: September 20, 2015

A great bath

I had this bath in my old flat and loved it, so bought it again when I moved. It's comfortable to lie in, fine for showering in, and because of the shape, is economical to fill.

Helpful? Hands Up Hands Down
1 of 1 People have found this Review useful

OVERALL RATING 4 Stars

Quality:
Value For Money:
Style:

WRITE A REVIEW

Questions & Answers

Submit Your Questions 1 Questions Asked

Have a question about this item? Ask our tech team. We aim to reply within 72 hours. If you want to know get answers fast, please call us on 0116 251 0051

Elaine Asked :

Is this bath for right hand installation Thank you

Answered By QS Team :
It is a rectangular bath and can be installed onto the left or right hand

Was this answer helpful? Yes - No

1 0
