Kaldewei Advantage Saniform Plus 1600 x 700mm Single Ended Steel Bath White

£258.85

RRP: £488.40

STOCK AVAILABLITY:

6 Working Days Approx.

4.0 out of 5 4.0 out of 5

Based on 4 Ratings.

Shipping: £20.00

Product Variants
Select Grip Hole Step 1
Select Coating Step 2
Select Bath Step 3
Select Tap Hole Step 4
Grip Step 5
SKU Code: QS-V35918

MFC Code: 111700010001

Kaldewei Advantage Saniform Plus 111700010001 Details

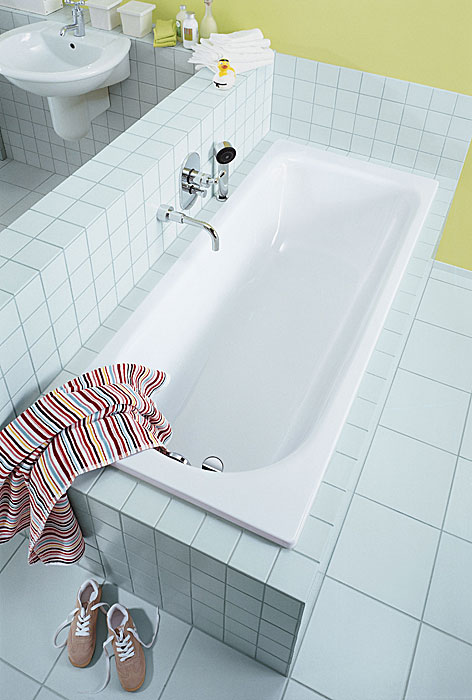

Its sweeping internal curves are made for indulgent soaking—this exceptional Bath scores high on both quality and design - from Kaldeweis Saniform range. Crafted from top-grade steel enamel, this product will remain untarnished by surface impact, scratches, abrasions and acids. And yes, it is colourfast and lightfast as well. The classic four-cornered model, with rectangular framework, has an impactful alpine white finish which is recyclable, and is supplied with waste at the foot end.

The rectangular one-seater in alpine white finish is guaranteed against all manufacturing defects for three decades. It comes in various sizes; choose the one that suits you best. This bath accessory enjoys a huge discount at your favourite online store. Bath Taps, Waste, Overflow and Grip are available separately.

Key Features
  • It comes in an alpine white finish
  • Constructed using 3.5mm Steel Enamel
  • Water capacity: 93 litres
  • 30 year guarantee from Kaldewei against any manufacturing defects
  • Size: Length 1600mm (160cm) x Width 700mm (70cm) x Depth 410mm (41cm)

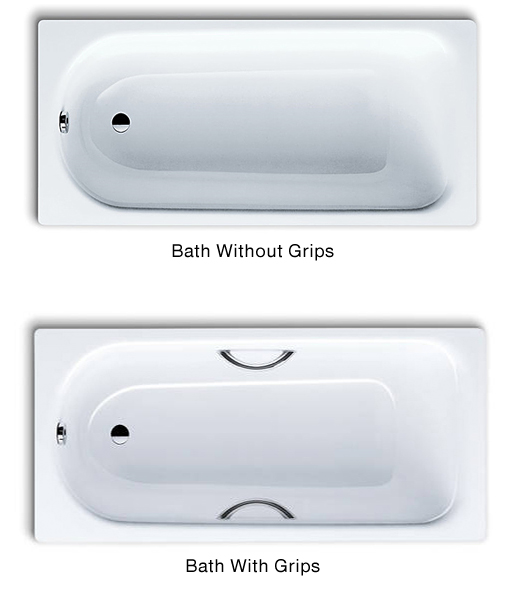

  • Bath with or without grip hole [Optional]
  • Available in No tap hole and two tap hole versions [Optional]
  • Standard coating and EasyClean Coating bath available [Optional]
  • Suitable to use with Anti-Slip and Full Anti-Slip [Optional]
  • Classic four-cornered model
  • Rectangular exterior form
  • One seated bathtub with waste at the foot end
  • Weight: 45 kg
  • Height with feet: 545-560mm (54.5cm - 56cm)
  • 70 litres displacement on average
  • For grip hole bath only - one-sided drilling for grip
  • Bath Grip [Optional]
  • Leg-set 5030 [Optional]
  • Comfort Level Waste and Comfort Level Plus Waste [Optional]
  • Technical drawing available for more technical specification
  • Waste, Overflow and Grip shown in the image are not included

Please Note: Bath variants may be special order and delivery lead time may vary.

Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ Interior Shape
  • : Rounded Rectangular
  • ⤷ Range
  • : Saniform Plus
  • ⤷ Bath Type
  • : Single Ended
  • ⤷ Position of Drain
  • : Waste at Foot End
  • ⤷ Coating
  • : EasyClean - Sold Separately
  • ⤷ External Length
  • : 1600
  • ⤷ External Width
  • : 700
  • ⤷ Tub Depth
  • : External - 410
  • ⤷ Feets Included
  • : Sold Separately
  • ⤷ Height Including Feet or Panel
  • : 545 560
  • ⤷ Front Panel Included
  • : No
  • ⤷ End Panel Included
  • : No
  • ⤷ Colour
  • : White
  • ⤷ Grips Included
  • : Sold Separately
  • ⤷ Internal Bottom Length
  • : 1050
  • ⤷ Internal Bottom Width
  • : 350 390
  • ⤷ Internal Top Length
  • : 1430
  • ⤷ Internal Top Width
  • : 530 550
  • ⤷ Height of Rim
  • : 32
  • ⤷ Distance Tub edge to centre of drain hole
  • : 310
  • ⤷ Distance Top edge to centre of overflow hole
  • : 63
  • ⤷ Diameter of overflow hole
  • : 52
  • ⤷ Diameter of Drain hole
  • : 52
  • ⤷ Distance foot end of tub edge to center of foot
  • : 450
  • ⤷ Distance between the feet
  • : 600
  • ⤷ Distance tub edge (foot end) to where handle start
  • : 584
  • ⤷ Distance tub edge (Foot end) to where handle end
  • : 859
  • ⤷ Rim Width
  • : 70 75
  • ⤷ Distance Between Centre Holes
  • : 212
  • ⤷ Weight in kg
  • : 46
  • ⤷ Slip Resistant
  • : Sold Separately
  • ⤷ Shape
  • : Rectangular
  • ⤷ Capacity in litres
  • : 93
  • ⤷ Country of Origin
  • : Germany
  • ⤷ Warranty/Guarantee
  • : 30 Years
  • ⤷ Material
  • : Steel
  • ⤷ No. of Bathers
  • : 1
  • ⤷ Waste Included
  • : Sold Separately
  • ⤷ Tap Holes
  • : Un-drilled
  • ⤷ Barcode
  • : 4001112032497

Technical Images

Add-Ons

Comfort Level And Comfort Level Plus
Comfort Level And Comfort Level Plus

Comfort-level and comfort-level plus can be used to increase the immersion depth by up to 50 mm – just turn the discreet knob. comfort-level plus knob comes in combination of variable overflow, drain and inlet for filling the bathtub

Leg Set
Leg Set

Installing a bathtub is particularly quick and straightforward with the all-around bathtub base frame model 5030 by Kaldewei. The bath feet positions on the external points of the base of the bathtub guarantee optimum stability.

£258.85
RRP: £488.40
STOCK AVAILABLITY: 6 Working Days Approx
QS Supplies

10 Features Included In This Product Explained

Heat Resistant

Heat Resistant

The surface will not show any burn or smoke marks when hot objects are in contact.

Scratch And Impact Resistant

Scratch And Impact Resistant

KALDEWEI steel enamel combines steel and glass, making it durable and greatly resisting mechanical stress. Its resilience is greater than standard material as it is tougher than Acrylic.

Easy To Clean & Hygienic

Easy To Clean & Hygienic

The surfaces of KALDEWEI steel enamel will not allow dirt and bacteria to gather, making it extremely hygienic and easy to clean.

UV Resistant

UV Resistant

KALDEWEI steel enamel has unique properties that help the product retain its original colour for a long time; it does not fade or turn yellow.

100% Sustainable

100% Sustainable

All products made using special KALDEWEI steel enamel are entirely recyclable as their source is natural raw materials, i.e. glass and steel.

Chemical Resistant

Chemical Resistant

Most detergents, cosmetics, perfumes, bath salts, oils and other additives or general-purpose household cleaning agents cannot damage the KALDEWEI steel enamel.

Beautiful Shape Forever

Beautiful Shape Forever

The durable KALDEWEI steel enamel remains unaffected by changes in temperature and, therefore, will not suffer cracks or moisture damage.

Optional: EasyClean Finish

Optional: EasyClean Finish

KALDEWEI EASY-CLEAN FINISH can be opted for so that the water will roll off the surface of the bathtub, sweeping away all dirt and lime particles along

Optional: Full Or Semi Anti-Slip Enamel

Optional: Full Or Semi Anti-Slip Enamel

KALDEWEI full or Semi anti-slip system comes certified with the German technical inspection association TUV Rhineland for full anti-slip properties compliant with quality class B for wet barefoot areas (DIN 51097) and quality class R 10 for full anti-slip characteristics within working or work areas with enhanced slipping risk (DIN 51130).

Steel Enamel

Steel Enamel

Steel enamel is a mixture of steel and glass - natural materials with unique properties. It harnesses the strengths of both materials and is hard-wearing enough for bathtubs, showers and basin surfaces, as it protects the surface and retains its value over the decades.
