RAK Series 600 Semi Recessed White Basin

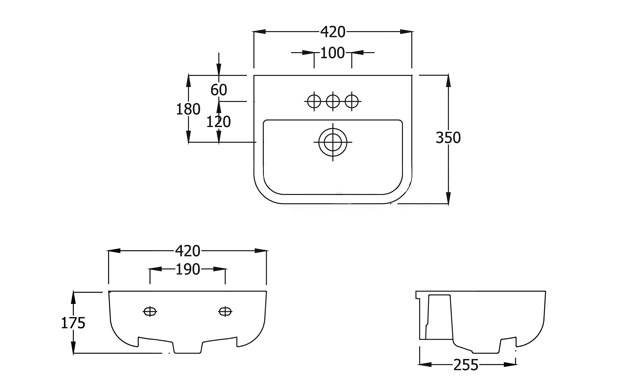

Technical drawing QS-V36224 / SE0901AWHA

Additional image of RAK Series 600 Semi Recessed White Basin

Additional image for QS-V36224 Rak Ceramics - SE0901AWHA

Alternate image of RAK Series 600 Semi Recessed White Basin

£99.06

STOCK AVAILABILITY

3 Working Days Approx

4.4 out of 5

Based on 13 Ratings.

Shipping: £7.95

Select Variations

420 x 345mm - 1 Taphole Basin £99.06
420 x 345mm - 2 Taphole Basin £99.06
520 x 425mm - 1 Taphole Basin £101.29

You've Selected: OP-213801 - 420 x 345mm - 1 Taphole Basin

QTY

Key Features

✔It comes in a white finish
✔Constructed from top-quality Vitreous China
✔25 years of guarantee from the manufacturer

SKU Code: QS-V36224

Rak Series 600 SE0901AWHA Details

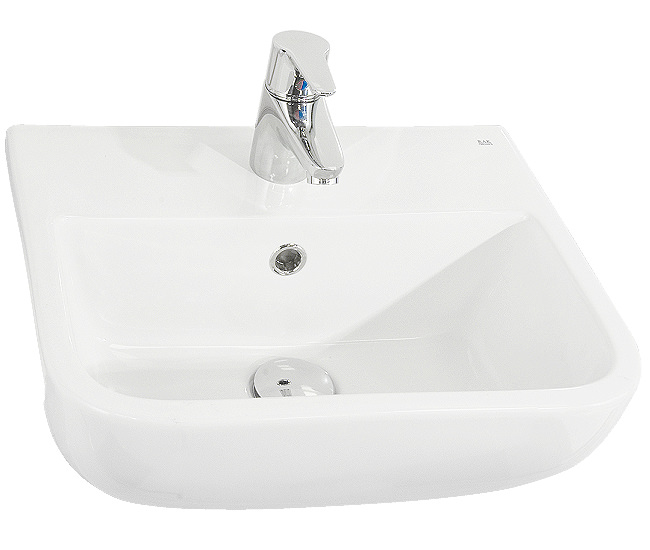

RAK Series 600 1 Tap Hole Semi-Recessed Basin has a delicately square profile that is graced by a calming white finish. Available in 2 sizes of 420mm and 520mm and single or double taphole can be described in only one word- fabulous. Constructed from high-grade Vitreous China, it wears a cool, sophisticated look. It features a broad tap platform, a deep bowl and a smart rectangular shape with rounded front corners. The basin is also available optionally with two tap holes. With a guarantee of 25 years against any manufacturing defect and at the excellent price offered at our online store, it makes a useful acquisition. It is one opportunity that you cannot miss.

Available in 2 Sizes: 420mm and 520mm.
420mm Basin is available in 2 variants - 1 taphole and two taphole [Optional].
520mm Basin is available in 1 Taphole only [Optional].
Size [mm]: 420mm x 345mm x 165mm [Width x Depth x Height].

Size [cm]: 42cm x 34.5cm x 16.5cm [Width x Depth x Height].
Tap and Waste shown in the image are not included - sold separately.
Refer to the technical diagram for more technical details.

Info / Size (mm)

Basin
Width: 420 mm
Depth: 350 mm
Height: 175 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Series 600
⤷ Coating
: Without Coating
⤷ Colour
: White
⤷ Weight in kg
: 10.8
⤷ Shape
: Rounded Rectangular
⤷ Country of Origin
: Dubai
⤷ Warranty/Guarantee
: 20 Years
⤷ Material
: Vitreous China
⤷ Theme
: Modern
⤷ Waste Included
: Sold Separately
⤷ Projection (Depth)
: 345

⤷ Width
: 420
⤷ Height
: 165
⤷ Fixing Holes Centre
: 200
⤷ Distance rear edge to centre of tap hole
: 70
⤷ Number of bowls
: 1
⤷ No. of Tap Holes
: 1
⤷ Tap Hole Position
: Centre
⤷ Overflow Included
: Yes
⤷ Barcode
: 5056176002794
⤷ Product Type
: Semi Recessed Basin

Additional Info & Downloads

Download the Cutout Template TM046 - SERIES 600 SC WB 42 CM Pdf File Download the Cutout Template TM059 - SERIES 600 SC WB 52 CM Pdf File

Total: £99.06 3 Working Days Approx QS Supplies

Add-on Selected: Total Price Now:

Reviews & Ratings

Rate this Item.:

Questions & Answers

Submit Your Questions 3 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

Peter Asked :
Will the Vado Zoo tap VS 107106 fit the tap hole in the Rak series 600 QS V36224? Are all tap holes standard sizes?

Answered By QS Team

All of RAK basins have a 35mm taphole, so taps with a 35mm tap hole size will fit.

Was this answer helpful?

Graham Asked :
Can you please let me know what the cutout size is required in the worktop for the series 600 semi-recessed basin 42cm & the 52cm?

Answered By QS Team

Click here to view the cut-out template of 420mm basin and click here for 520mm basin.

Was this answer helpful?

Paul Asked :
Can this be fitted in a 380mm deep work surface? Secondly, how much of the basin side cutaway (mm) fits into the work surface, and how much of the 400mm total depth protrudes beyond the front of the work surface? I can't find this info anywhere.

Answered By QS Team

We have attached a technical diagram, which you can download from the Additional Info tab of the product. Hopefully, it will help.

Was this answer helpful?
