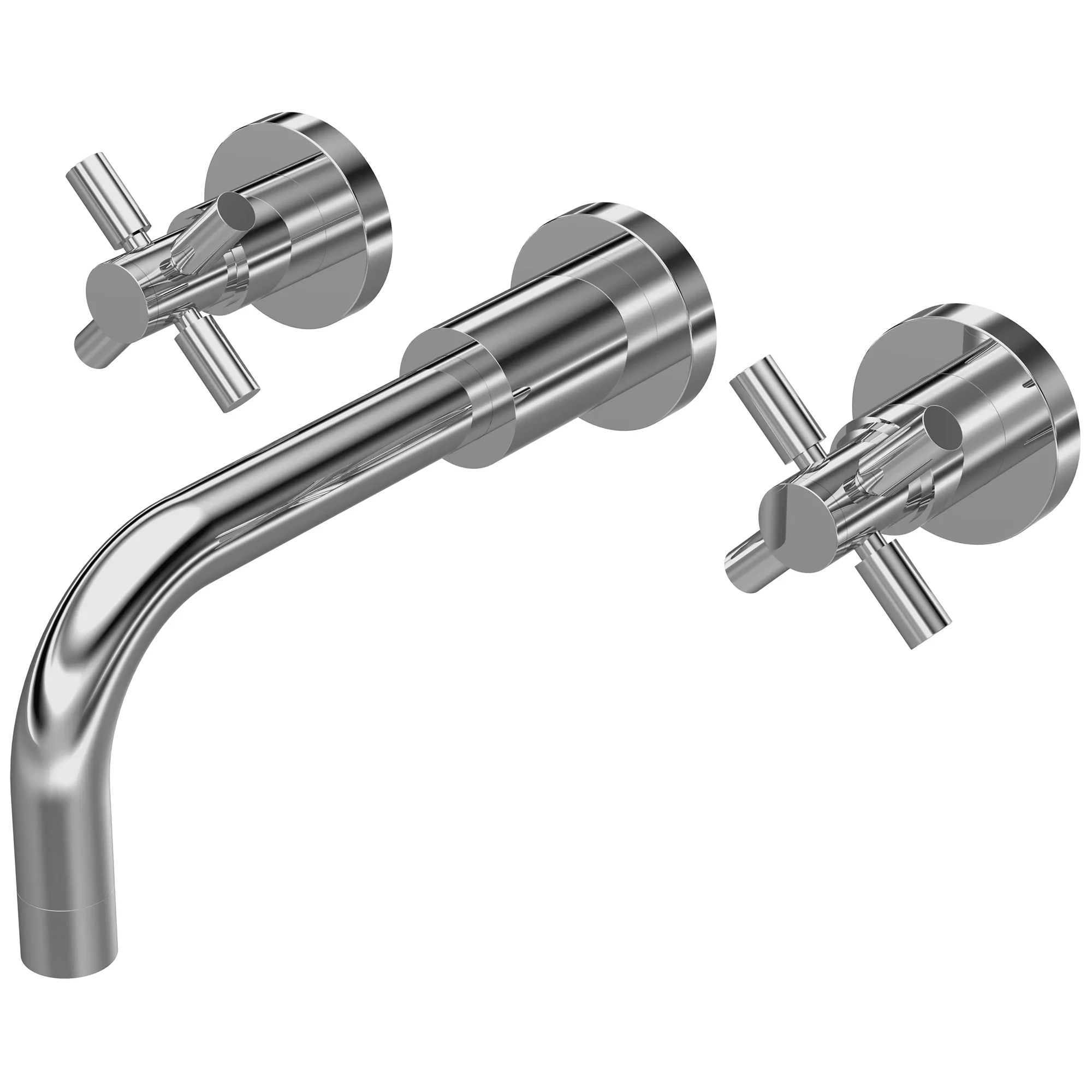

Hudson Reed Tec Wall Mounted Basin Mixer Tap

Cyber Monday Deal
QS-V58541 small Image 1
QS-V58541 small Image 2
QS-V58541 small Image 3
Hudson Reed Tec Wall Mounted Basin Mixer Tap small Image 4
TEL317 small Image 5
QS-V58541 small Image 6

£80.74

STOCK AVAILABILITY

2 Working Days Approx

Not Yet Rated No Rating

Shipping: £7.95

Product Variants
Finish Step 1
Select Variations Step 2
SKU Code: QS-V58541

MFC Code: TEL317

Hudson Reed Tec TEL317 Details

This Basin Mixer Tap has an irresistible appeal. The wall-mounted model, which is part of the brands Tec range, features ceramic disc technology. The central curved spout is supported by lever or crosshead handles on either side, in a minimalist design. Inspired by the wonder of the simple style, this pair of elements showcase sleek lines of chrome plated metal, accented with brilliant curves. It is compatible with all plumbing systems and is the perfect choice for low-pressure water systems and many washbasins. The model is guaranteed against all manufacturing defects for two decades. To avail, a good discount on this one, contact your favourite online store.

Key Features
  • 1/4 Turn ceramic disc valve operated
  • Manufactured using high-quality brass material
  • Ceramic disc technology for long life and smooth operation
  • Twenty years of guarantee from Hudson Reed against manufacturing defects
  • Choice of different finish: Chrome, Matt Black and Brushed Brass - [Optional]
  • Available in different variants: Lever Handle and Crosshead Handle - [Optional].
  • Suitable for wall-mounted installation.
  • The centre of the inlet to the centre of the outlet: 220mm.
  • Size of tap with lever handles: Width 320mm x Depth 260mm x Height 106mm.
  • Size of tap with crosshead handles: Width 255mm x Depth 220mm x Height 113mm.
  • WRAS approved product.
  • Suitable for low water pressure system.
  • Requires a minimum of 0.1 bar water pressure.
  • Please refer to the PDFs of the Customer datasheet and Fitting instructions from the Additional Info Section.
  • Refer to the technical drawing for detailed technical dimensions.

Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ Water Activation
  • : By Rotating
  • ⤷ Tap Body Shape
  • : Round
  • ⤷ Range
  • : Tec
  • ⤷ Handle Position
  • : Left And Right
  • ⤷ Colour
  • : Chrome
  • ⤷ Warranty/Guarantee
  • : 20 Years
  • ⤷ Material
  • : Brass
  • ⤷ Theme
  • : Modern
  • ⤷ Installation Type
  • : Wall Mounted
  • ⤷ No. of Holes Required
  • : 3
  • ⤷ Spout type
  • : Fixed
  • ⤷ Valve Included
  • : Yes
  • ⤷ Valve/Cartridge Type
  • : Ceramic Disc Cartridge
  • ⤷ Spout Reach
  • : 220
  • ⤷ Overall Height
  • : 106
  • ⤷ Width
  • : 320
  • ⤷ Handle Height
  • : 80
  • ⤷ Min-Max Wall Mount
  • : 40
  • ⤷ Minimum Operating Pressure (Bar)
  • : 0.1
  • ⤷ Flow Rates (l/min)
  • : 0.1 bar - 5 | 0.5 bar - 12 | 1 bar - 16 | 2 bar - 22 | 3 bar - 27
  • ⤷ Handle Style
  • : Lever
  • ⤷ Barcode
  • : 5055146167914
  • ⤷ Product Type
  • : Basin Mixer Tap

Additional Info & Downloads

Download PDF Download the Customer Data Sheet Pdf File Download PDF Download the Fitting Instructions Pdf File


Technical Images


Total: £80.74 2 Working Days Approx QS Supplies

3 Features Included In This Product Explained

Low Water Pressure

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

WRAS Approved Product

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws. Such compliance is based on certain tests that prove that the product or fitting does not cause waste, misuse, contamination or undue consumption of the public water supply system in the UK.
Read more...

Ceramic Disc Cartridge

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

You've Selected which adds to a total of

Reviews & Ratings

Rate this Item.:

Questions & Answers

Submit Your Questions 1 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

Kerry Asked :

Our fitter is struggling to align these items against the wall as the thread on the taps is considerably shorter than the spout, please, could you advise if the thread is designed to be cut to fit flush to the wall? Also, please advise how this attaches securely to the wall as there is no fixing bracket included? Many Thanks.

Answered By QS Team Answered by the QS Technical Team

Hi Kerry, According to our knowledge, the threads are not supposed to be cut and cutting them may void the warranty. I would suggest that you contact the Hudson Reed Technical team and give them a technical diagram of what you are proposing to do, or what problems you face. Your question is quite detailed, but to avoid any misunderstanding; a technical diagram would help.
