Vado Axbridge Traditional 3 Hole Basin Mixer Tap with Pop-Up Waste

Vado Axbridge Details

MFC: BC-AXB-101-CP

Vado Axbridge Traditional 3 Hole Deck Mounted Basin Mixer Tap with Pop-Up Waste

Key Features

✔WRAS Approved
✔Supplied with Pop-up Waste
✔15-Year Guarantee from the Manufacturer
✔Plumbing System Compatibility: Gravity, Pumped, Combination Boiler, Pressurised System

Choice of Finishes: Chrome and Bright Nickel
Choice of Handles: Crosshead and Lever
Traditional Design
Deck Mounted Installation
Deck Hole Drill Diameter: Ø32mm
Cold Ceramic Cartridge - FL-501-RTC
Hot Ceramic Cartridge - FL-501-LTC
4x 1/2" 400mm Flexipipe Connections
Minimum Operating Pressure: 0.2 Bar - Low Pressure
Maximum Operating Pressure: 5.0 Bar - High Pressure

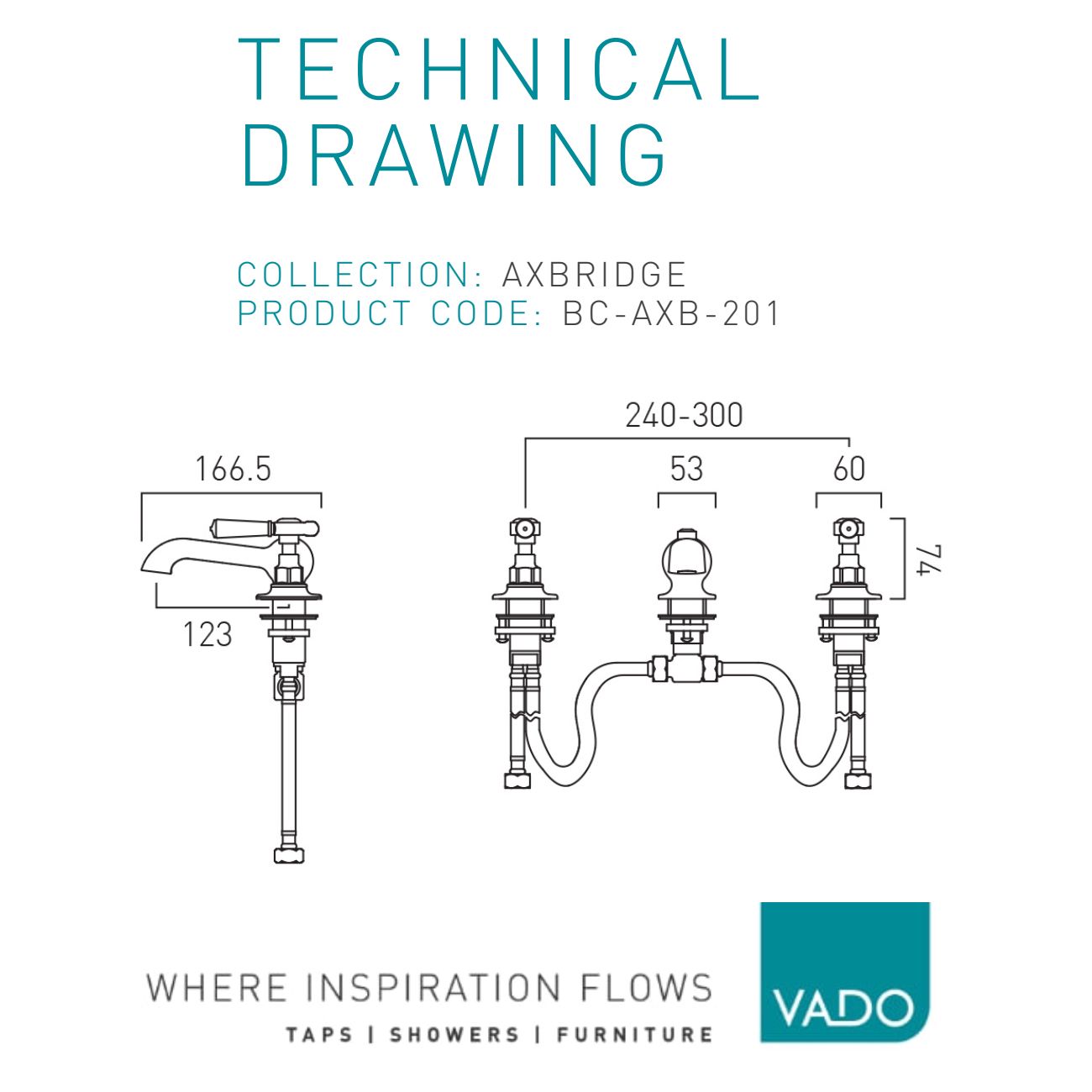

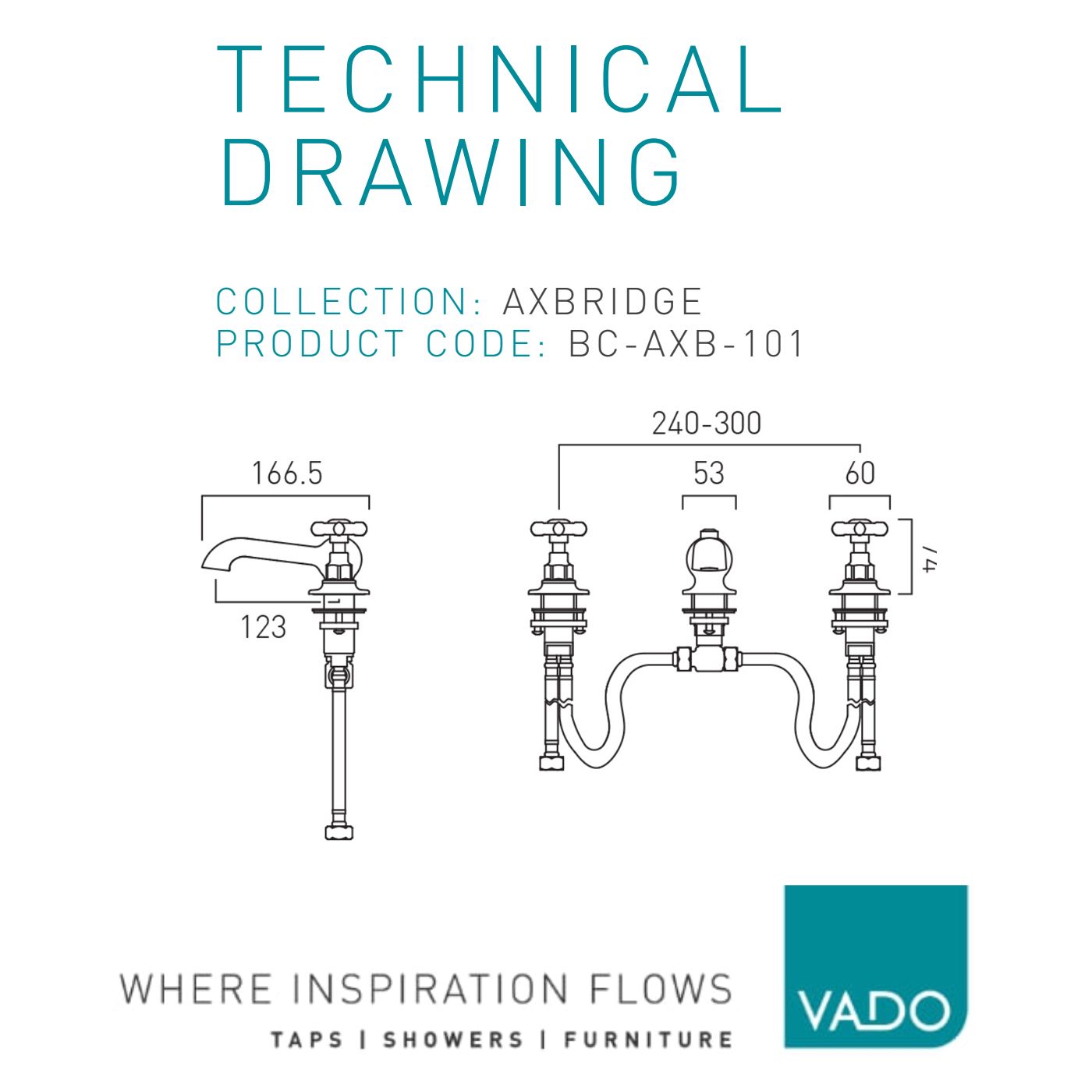

Refer to the Technical Drawing for Complete Size Details
Download the User Guide and Installation Instructions PDF File from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Axbridge
⤷ Water Activation
: By Rotating
⤷ Handle Position
: Left & Right
⤷ Tap Body Shape
: Round
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 15 Years
⤷ Theme
: Traditional
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 3
⤷ Spout type
: Fixed

⤷ Valve/Cartridge Type
: Ceramic
⤷ Spout Reach
: 123
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Waste Type
: Pop-Up
⤷ Handle Style
: Crosshead
⤷ WRAS Approved
: Yes
⤷ Deck Mount Drill Hole Diameter
: 32
⤷ Waste Included
: Yes
⤷ Barcode
: 5052120223970
⤷ Product Type
: Basin Mixer Tap

Additional Info & Downloads

Download the User Guide Pdf File Download the Installation Instruction Pdf File

Technical Images

Vado Axbridge Traditional 3 Hole Deck Mounted Basin Mixer Tap with Pop-Up Waste

£233.75

RRP: ~~£425.00~~

Stock Availablity: 5 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Pop-Up Waste

The Pop-Up waste or pop-up assembly refers to the type of pipe fitting for a sink, basin or bidet connected to a waste pipe at the plughole. It comes with a lever or knob-controlled plug or stopper and operates using a lever that can be lowered or lifted to close and open the plug.
Read more...

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...
