Carron Quantum Space Saver 5mm Acrylic Bath 1700 x 750mm Left Hand


RRP: £600.00


In-Stock In Stock

4.0 out of 5 4.0 out of 5

Based on 3 Ratings.

Shipping: FREE* Check Postcodes

Delivery in 2 Working Days Approx.
Select Variations
You've Selected: OP-228714 - 5mm Acrylic - Left Hand Bath
Key Features
  • Made using 5mm acrylic
  • Capacity: 211 litres
  • Easy to clean
  • Easy to install
  • Supplied with hand grips
SKU Code: QS-V19622

MFC Code: 2179

Carron Quantum 2179 Details

Built for medium-size bathrooms, the Quantum Space Saver bath from Carron is a real winner. The left-handed bath uses space economically without compromising on comfort. It comes with a comfortable depth and dimensions. Available with a standard finish or the special anti-slip Carronite finish with superior heat-retention qualities, the single-ended acrylic bath is easy to install and maintain. Built for safety and durability, the bath comes with hand grips and is covered with a 30-year guarantee from the manufacturer.

  • Left-handed bath.
  • White finish.
  • Single-ended bath.
  • Size [mm]: 1692mm x 742mm x 420mm [Length x Width x Depth].
  • Size [cm]: 169.2cm x 74.2cm x 42cm [Length x Width x Depth].
  • Overall height: 590mm - (59cm).
  • Images are shown for illustration purposes only.
  • Waste and overflow are not included.
  • Also available in Carronite Finish (with 30-Year Guarantee) [See option below].
  • Front and end panels are available separately [See option below].

Info / Size (mm)

  • Bath
  • Length: 1692 mm
  • Width: 742 mm
  • Depth: 420 mm

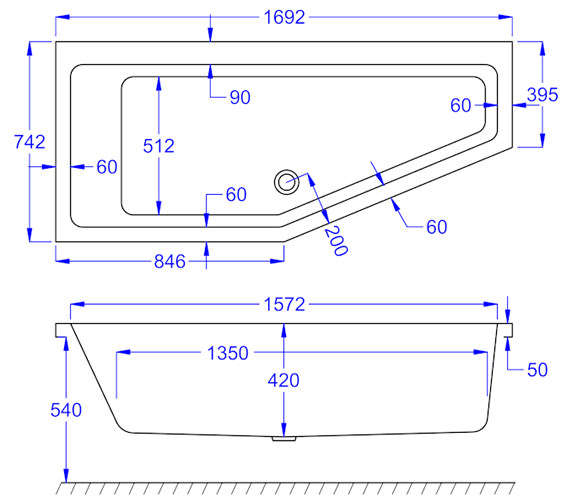

Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ External Length
  • : 1692
  • ⤷ External Width
  • : 742
  • ⤷ Tub Depth
  • : Internal - 420
  • ⤷ Height Including Feet or Panel
  • : 590
  • ⤷ Front Panel Included
  • : Sold Separately
  • ⤷ Colour
  • : White
  • ⤷ Internal Bottom Length
  • : 1350
  • ⤷ Internal Bottom Width
  • : 512
  • ⤷ Internal Top Length
  • : 1572
  • ⤷ Height of Rim
  • : 50
  • ⤷ Rim Width
  • : 60 90
  • ⤷ Slip Resistant
  • : No
  • ⤷ Capacity in litres
  • : 211

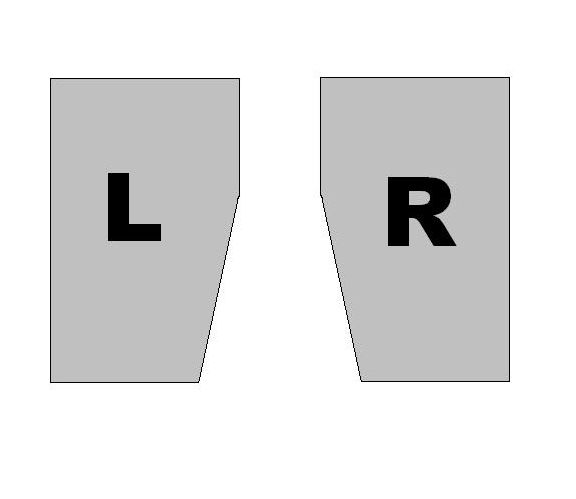

  • ⤷ Handed Type
  • : Left hand
  • ⤷ Country of Origin
  • : UK
  • ⤷ Warranty/Guarantee
  • : 30 Years
  • ⤷ Material
  • : Acrylic
  • ⤷ No. of Bathers
  • : 1
  • ⤷ Theme
  • : Modern
  • ⤷ Waste Included
  • : Sold Separately

Additional Info & Downloads

Customise Your Product

Front Panel
Front Panel

Strong and Durable Front Panel for Mistral Bath. The image is for illustration purposes only.

Carron End Panel
Carron End Panel

5mm End Panel for Carron bath and Corronite End panel are available. Please Note: Image is not available for preview.

Total: £420.00 4 Working Days Approx QS Supplies

3 Features Included In This Product Explained

Optional Carronite Bath

Optional Carronite Bath

Carronite baths from Carron are stronger and heavier than standard baths. It contains a triple-layer reinforcement system, which adds to its durability and retains heat for a longer time.

Optional: Front Panel

Optional: Front Panel

A front bath panel is a decorative accessory that is used to cover the front-facing side of a bathtub for a neat and polished look. It also conceals plumbing and framework and comes in different sizes, textures and materials.

Optional End Panel

Optional End Panel

End Panels serve an aesthetic purpose to cap-off the exposed end of a bathtub and come in different sizes, shapes, designs, and finishes.

Add-on Selected: Total Price Now:

Reviews & Ratings

Rate this Item.:

Hide All Reviews
From : Dunoon Overall Rating: Date: August 21, 2015 A great space saver
We bought this bath to fit into an awkward space when we reduced the size of our bathroom. We needed a bath that would allow the door to open fully and this one fitted the bill! Good quality material has been used and as a result the bath is easy to clean and keeps the heat in the water so you can have a good long soak. QS Supplies kept us informed from receipt of order to date/time of delivery and didn't charge us extra for delivery to our remote location.
Helpful? Thumbs Up Thumbs Down
Value for Money
From : Newton Abbot Overall Rating: Date: August 21, 2015 Corner bath
Nice. Surprisingly comfortable. Good for small bathroom if you don't want a shower.
Helpful? Thumbs Up Thumbs Down
Value for Money

Questions & Answers

Submit Your Questions 6 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

John Asked :

Can i drill tap holes on either end of this bath?

Answered By QS Team Answered by the QS Technical Team

The tapholes on this model must be drilled on the centre of the back ledge (which goes against the wall). I'm afraid there is not sufficient space to drill them on either end.

Was this answer helpful?
Naomi Asked :

Hello, Can this bath (https://www.qssupplies.co.uk/bathroom-furniture-shower-taps/57608.htm) be used for a shower bath? Also, does it come with a standard or recommended glass screen? If the panel is purchased, can the panel be tiled? Thank you Naomi

Answered By QS Team Answered by the QS Technical Team

Unfortunately, it is not possible to tile the panel. A framework built by your fitter may be able to support a bespoke panel that can accommodate a tile.

Was this answer helpful?
DOUG Asked :

Does the Carron space saver bath need a support kit mounting? if so, where is it on your website and how much is it? I would like to see a picture of it if one is needed. Many thanks, Doug J

Answered By QS Team Answered by the QS Technical Team

Thank you for your enquiry. Carron supplies this bath with a full Installation Kit and instructions.

Was this answer helpful?
DOUG Asked :

Is there an end panel for the Carron quantum space saver acrylic bath the small end (395mm end) and what does it cost. I can only find an end panel for the 700mm end on the web site. Regards, Doug J

Answered By QS Team Answered by the QS Technical Team

The only end panel that Carron has for the Spacesaver is at the short end (400mm end). You can call us and we can supply the correct end panel you require. Hope it helps.

Was this answer helpful?
Sheila Asked :

Do I need to buy a separate waste system to go with a carronite quantum space saver bath?

Answered By QS Team Answered by the QS Technical Team

Hi Sheila, This bath requires any standard bath waste. There is a wide selection of bath waste in terms of price and quality and shape that you can choose from. Thanks QS Team

Was this answer helpful?
Sarah Asked :

1) are the hand grips optional, or, are there holes already to put them in? 2) does the bath come with the side panel or do I need to purchase this separately?

Answered By QS Team Answered by the QS Technical Team

The Carron Space saver does not come with Hand Grips. The panels are optional which you need to purchase.

Was this answer helpful?
