Franke Galassia GAX 621 1.5 Bowl Stainless Steel Kitchen Inset Sink

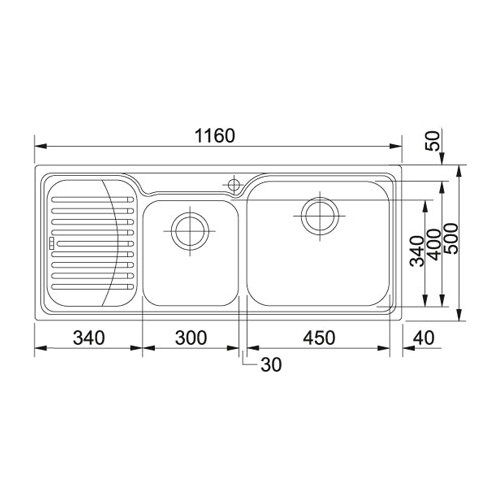

Technical drawing QS-V22332 / 101.0381.849

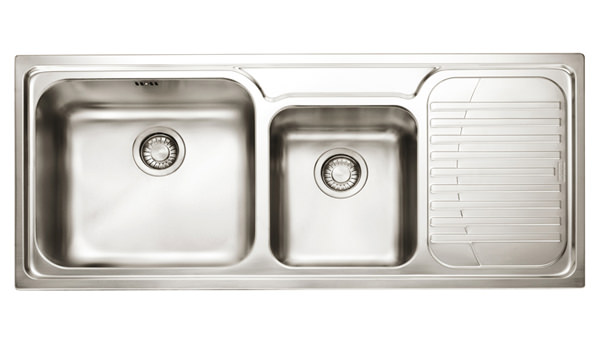

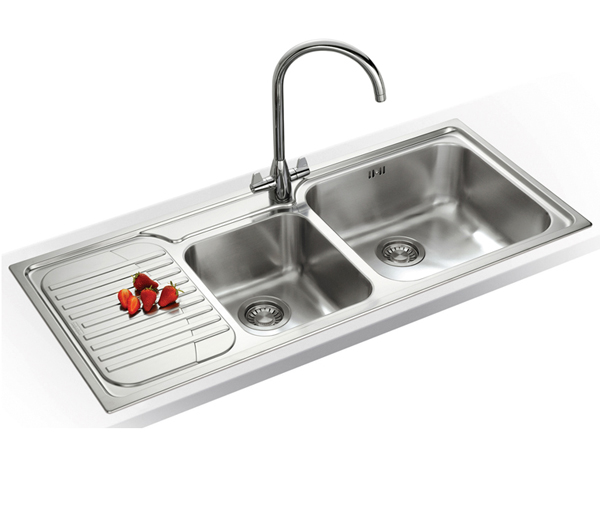

Additional image of Franke Galassia GAX 621 1.5 Bowl Stainless Steel Kitchen Inset Sink

Additional image for QS-V22332 Franke - 101.0381.849

£366.40

STOCK AVAILABILITY

2 to 3 Weeks

4.3 out of 5

Based on 4 Ratings.

Shipping: £7.95

Select Variations

Left Hand Side £366.40
Right Hand Side £366.40

You've Selected: OP-196023 - Left Hand Side

QTY

Key Features

✔Inset installation [frame sits on top of the work-surface, compatible with any work-surface, including laminate worktops]
✔Created from nickel steel [stain, rust and corrosion resistant]
✔Standard profile [edge is rolled over to meet the worktop]
✔50 years of guarantee from Franke against any manufacturing defects.

SKU Code: QS-V22332

MFC Code: 101.0381.849

+ Review this Product

Franke Galassia 101.0381.849 Details

If you are looking for a kitchen accessory that will bring style and attractiveness to your workplace, while, at the same time, make your cooking and other kitchen duties easy, then look no further than the Galassia Stainless Steel Kitchen Sink, brought to you by Franke. This 1.5 Bowl Inset Sink is fabricated from nickel steel, which is stain, rust and corrosion resistant. Its silk finish adds a glow to the kitchen. This wondrous kitchen creation, which includes a basket strainer waste, has a standard profile, with the edge rolled over to meet the worktop.

Left Hand Drainer.
Silk finish.
Sizes Denotes: Length [Left to Right] x Width [Front to Back] x Depth [Top to Bottom].
Overall Size is - Length 1160mm [116cm] x Width 500mm [50cm].
Manufacturing code of this product is 101.0068.483.
Includes basket strainer waste.
Cabinet Size: 900mm [90cm], denotes the measurement which the bowl need to fit into.
Cut-Out Size is - Length 1140mm [114cm] x Width 480mm [48cm].
Size of big bowl is - Length 450mm [45cm] x Width 400mm [40cm] x Depth 190mm [19cm].

Size of small bowl is - Length 300mm [30cm] x Width 340mm [34cm] x Depth 170mm[17cm].
Position of Small Bowl: Left hand side.
Sink will not accommodate tap with a base diameter over 55mm [5.5cm].
Optional Products:.
Right Hand Drainer - 101.0082.345.
Plumbing Kit.
Tap Brace.
Turbo Plus TP-75 Waste Disposal Unit Compatible.

Info / Size (mm)

Sink
Length: 1160 mm
Width: 500 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Silk
⤷ Installation/Style
: Inset
⤷ Number of Bowls
: 1.5
⤷ Drainer Position
: Left Hand
⤷ Small Bowl Position
: Left Hand
⤷ Overall Length
: 1160
⤷ Overall Width
: 500
⤷ Minimum Base Unit Size Required
: 900
⤷ Length of Main Bowl
: 450
⤷ Width of Main Bowl
: 400
⤷ Depth of Main Bowl
: 190
⤷ Length of Small Bowl
: 300

⤷ Width of Small Bowl
: 340
⤷ Depth of Small Bowl
: 170
⤷ Cut-Out Length
: 1140
⤷ Cut-Out Width
: 480
⤷ Material
: Stainless Steel
⤷ Profile
: Standard
⤷ Plumbing Kit
: Sold Separately
⤷ Compatible With Optional Waste Disposal Unit
: Yes
⤷ Waste Included
: Yes
⤷ Waste Type
: Basket Strainer
⤷ No. of Tap Holes
: 1
⤷ Warranty/Guarantee
: 50 Years

Customise Your Product

Siphon Plumbing Kit

It is the perfect plumbing solution and has a manifold with an incline and an air vent for faster water disposal. This kit is made of rigid grey polypropylene and is a hygienic solution.

None
OP-1571 - Siphon II Plumbing Kit + £42.32 RECOMMENDED

Tap Brace

Franke has developed an innovative patented new tap brace for large or heavy taps, which may require additional support when fitted to a stainless steel sink. A perfect solution to the occasional problem of flexing.

None
OP-1572 - Tap Brace + £22.67 RECOMMENDED
