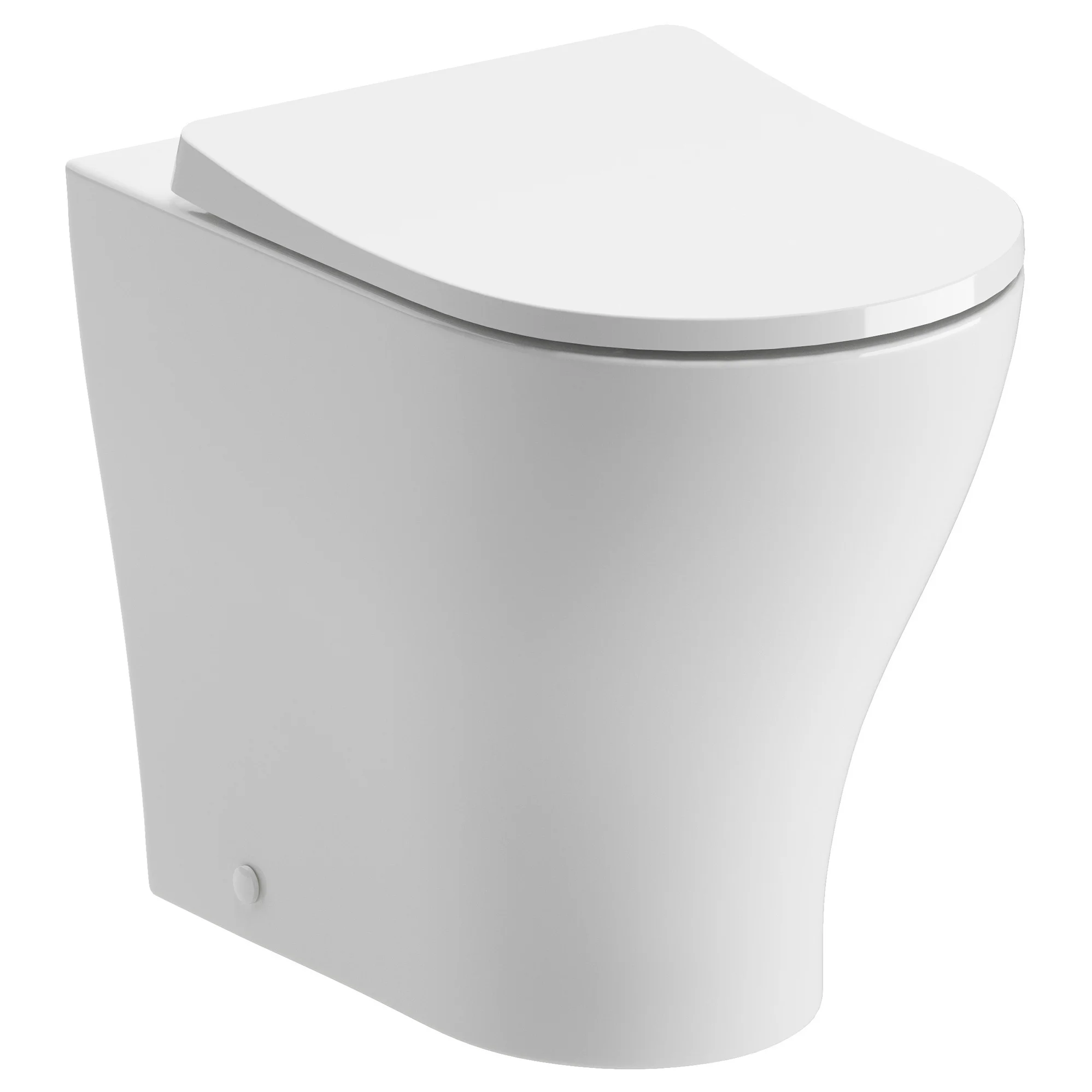

Joseph Miles Heaven Rimless Back To Wall WC Pan with Seat, JMQS106141

Joseph Miles Heaven Details

MFC: JMQS106141

Joseph Miles Heaven Rimless Back To Wall WC Pan with Soft Close Seat - 345 x 535mm

Manufacturing Code of this Product: JMQS106141
It Comes in a White Finish
Includes: Back to Wall WC Pan and Seat
Size [mm]: 345 x 535 x 420mm [Width x Depth x Height]
Size [cm]: 34.5 x 53.5 x 42cm [Width x Depth x Height]
Distance from Soil Pipe Spigot to Wall: 105mm [10.5cm]
Coupling to Soil stack: Straight Out, Straight Down

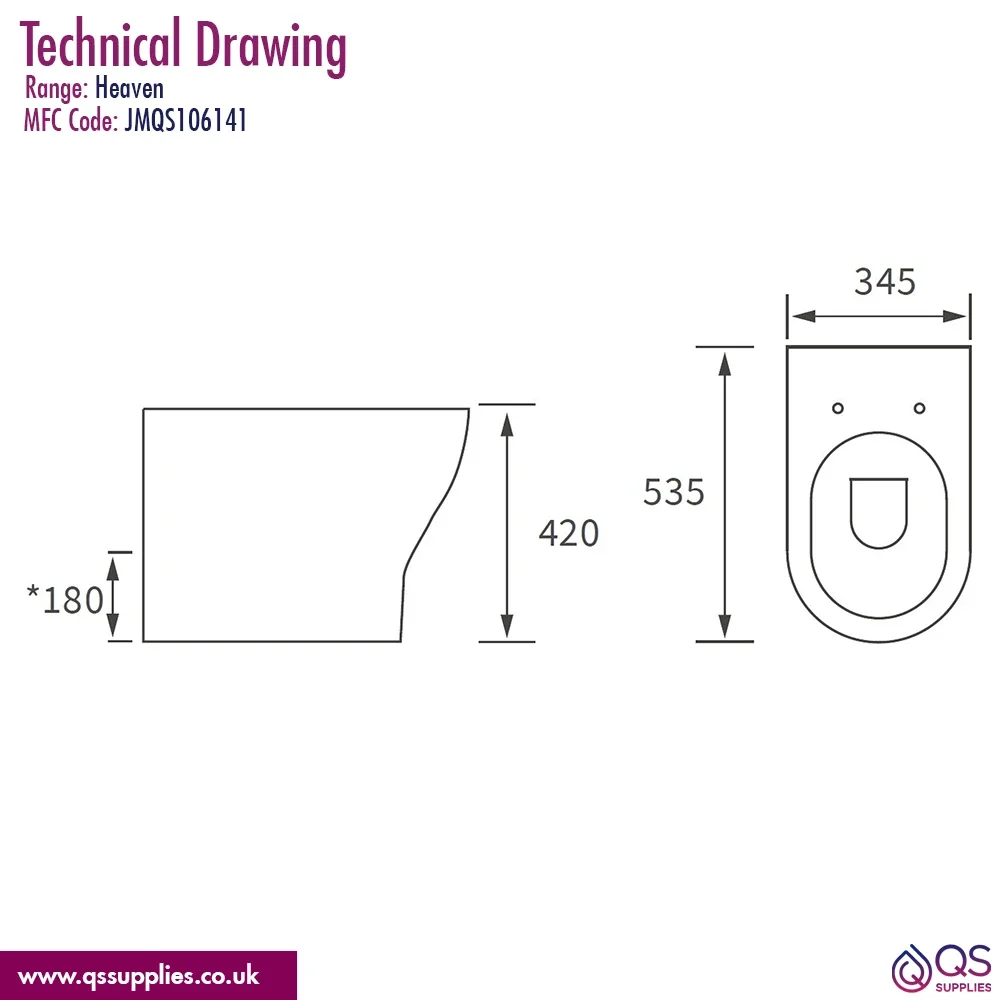

Refer to the Technical Diagram for Complete Technical Dimensions
Note: Please Allow a Tolerance of +/-2% On Dimensions Over 75mm and a Tolerance of +/-4% On Dimensions Under 75mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Toilet Design
: Back To Wall
⤷ Range
: Heaven
⤷ Colour
: White
⤷ Warranty/Guarantee
: Lifetime [WC Pan], 2 Year [Seat and Hinges]
⤷ Material
: Vitreous China
⤷ Theme
: Modern
⤷ Installation Type
: Floor Standing
⤷ Pan Width
: 345
⤷ Pan Height
: 420
⤷ Projection (Depth)
: 535
⤷ Rimless Bowl
: Yes

⤷ Outlet
: Horizontal
⤷ Configuration
: WC Pan with Seat
⤷ Seat Included
: Yes
⤷ Seat Type
: Soft Close
⤷ Seat Finish
: White
⤷ Barcode
: 5054913484070
⤷ Bowl Shape
: Oval
⤷ Seat Post Hole Centers
: 155
⤷ Front Of Bowl To Centre Of Seat Holes
: 420
⤷ Outlet Diameter
: Ø100
⤷ Base to centre of outlet
: 180

Additional Info & Downloads

This item can also be found in:

Rimless Toilets

Joseph Miles Heaven Rimless Back To Wall WC Pan with Soft Close Seat - 345 x 535mm

£243.60

RRP: ~~£305.00~~

Stock Availablity: 5-7 Working Days Approx

QS Supplies

4 Features Included In This Product Explained

Soft-Close Seat

Soft-closing seats are a new alternative to classic seats. Their modern design hinges allow them to close slowly and gently.

Horizontal Outlet

When the pan has piping at the back, inside the wall, it is called a horizontal outlet toilet or pan. As the cisterns are concealed or placed against the wall, most plumbing is hidden out of sight.

Vitreous-China Material

Vitreous china is an innovative glass-based enamel coating applied to porcelain. This glazed coating makes the base material durable, denser, and very glossy. When ceramics are coated with vitreous enamel, the resulting product is called vitreous china. This enamel is created by applying heat to powdered glass.

Rimless

A rimless toilet does not have a brim at its edge, from which the water usually flows when you flush. Instead of flowing from the top, such toilets shoot water towards their edge and around it, allowing no missing spots with filth remaining after a flush. These toilets also remove any spaces for germs to hide and breed, providing a hygienic alternative for your bathroom.
