Ideal Standard Connect Air Wall-hung WC Pan

Ideal Standard Connect Air Details

MFC: E240401

Ideal Standard Connect Air Wall-hung Washdown WC Pan with Aquablade Technology - 365 x 545mm

Manufacturing Code of this Product: E240401
It Comes in a Gloss White Finish
Designer: Studio Levien
Shape: Rounded / Curved
Size [mm]: 365 x 350mm [Width x Height]
Size [cm]: 36.5 x 35cm [Width x Height]
Projection: 545mm [54.5cm]
Weight: 22.36kg
Outlet: Horizontal
Sector: Hotel, Office, Residential
Accreditations: DoP, Standards
Certificate Number: DoP = CL2, Standards = EN 997

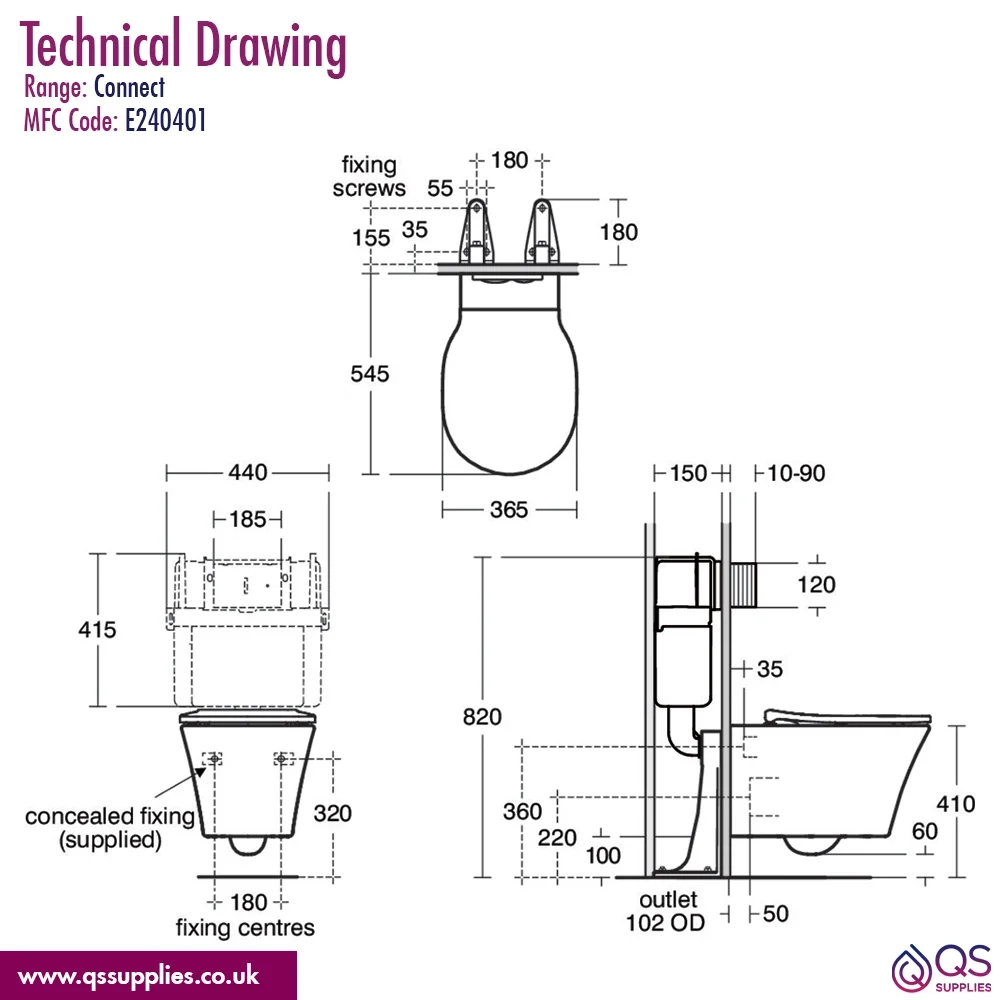

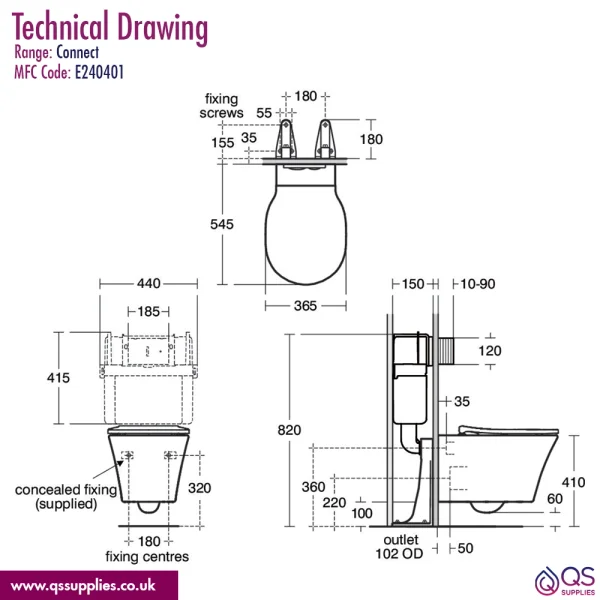

Refer to the Technical Diagram for Complete Technical Dimensions

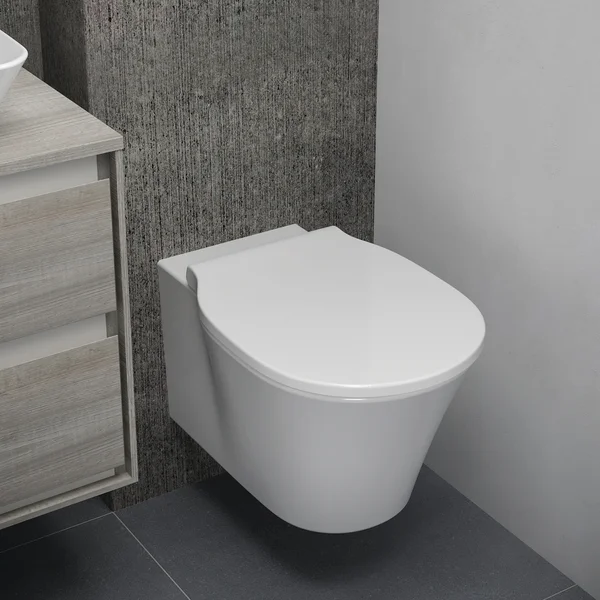

The Seat Shown in the Image is Not Included

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Toilet Design
: Back To Wall
⤷ Range
: Connect Air
⤷ Colour
: Gloss White
⤷ Weight in kg
: 22.36
⤷ Warranty/Guarantee
: Lifetime
⤷ Material
: Vitreous China
⤷ Theme
: Modern
⤷ Installation Type
: Wall Hung
⤷ Water Saving
: Yes
⤷ Pan Width
: 365
⤷ Pan Height
: 350

⤷ Projection (Depth)
: 545
⤷ Outlet
: Horizontal
⤷ Configuration
: Bowl Only
⤷ Fixing Holes Centre
: 180
⤷ Compliance/Approvals/Standard
: DoP = CL2, Standards = EN 997
⤷ Barcode
: 5017830554943
⤷ Distance from floor to centre of fixing hole
: 320
⤷ Bowl Shape
: Oval
⤷ Product Type
: Wall Hung WC Pan
⤷ Outlet Diameter
: 102
⤷ Base to centre of outlet
: 220

Add-Ons

WC Frame

Frame for WC and bidet. Please Note: The image shown is for illustration purpose only.

No Option Selected
OP-241716 - Prosys 820mm Wall Hung WC frame - Mechanical 150 Depth - Front or Top Actuation CL2 + £230.21

Optional Toilet Seats

To match perfectly with Ideal Standard WC. Bring in this Toilet seat with Standard and Soft close hinges. Please note the image shown is for illustration purposes only.

No Option Selected
OP-60313 - Slow Close Slim Sandwich Style - E081101 + £218.82
OP-60314 - Normal Close Slim Sandwich Style - E080901 + £152.42
OP-60316 - Slow Close Slim Wrap Style - E081401 + £218.82

Flush Plate

Flush Plate Please note: the image shown is for illustration purpose only.

No Option Selected
OP-231577 - Oleas M1 Mechanical Dual Flushplate Chrome - R0115AA + £44.38

Ideal Standard Connect Air Wall-hung Washdown WC Pan with Aquablade Technology - 365 x 545mm

£481.22

RRP: ~~£501.28~~

Stock Availablity: 3-4 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

Horizontal Outlet

When the pan has piping at the back, inside the wall, it is called a horizontal outlet toilet or pan. As the cisterns are concealed or placed against the wall, most plumbing is hidden out of sight.

Vitreous-China Material

Vitreous china is an innovative glass-based enamel coating applied to porcelain. This glazed coating makes the base material durable, denser, and very glossy. When ceramics are coated with vitreous enamel, the resulting product is called vitreous china. This enamel is created by applying heat to powdered glass.

BS EN 997 Standard

This standard specifies the constructional, performance requirements and test methods for close-coupled suites, one-piece and independent WC pans with integral traps used for personal hygiene made using vitreous china or stainless steel. Compliance with this standard aims to ensure reliability, performance and safety.
