Ideal Standard Connect Air Washdown Back To Wall WC Pan, 365 x 550mm, E143201

Ideal Standard Connect Air Details

MFC: E143201

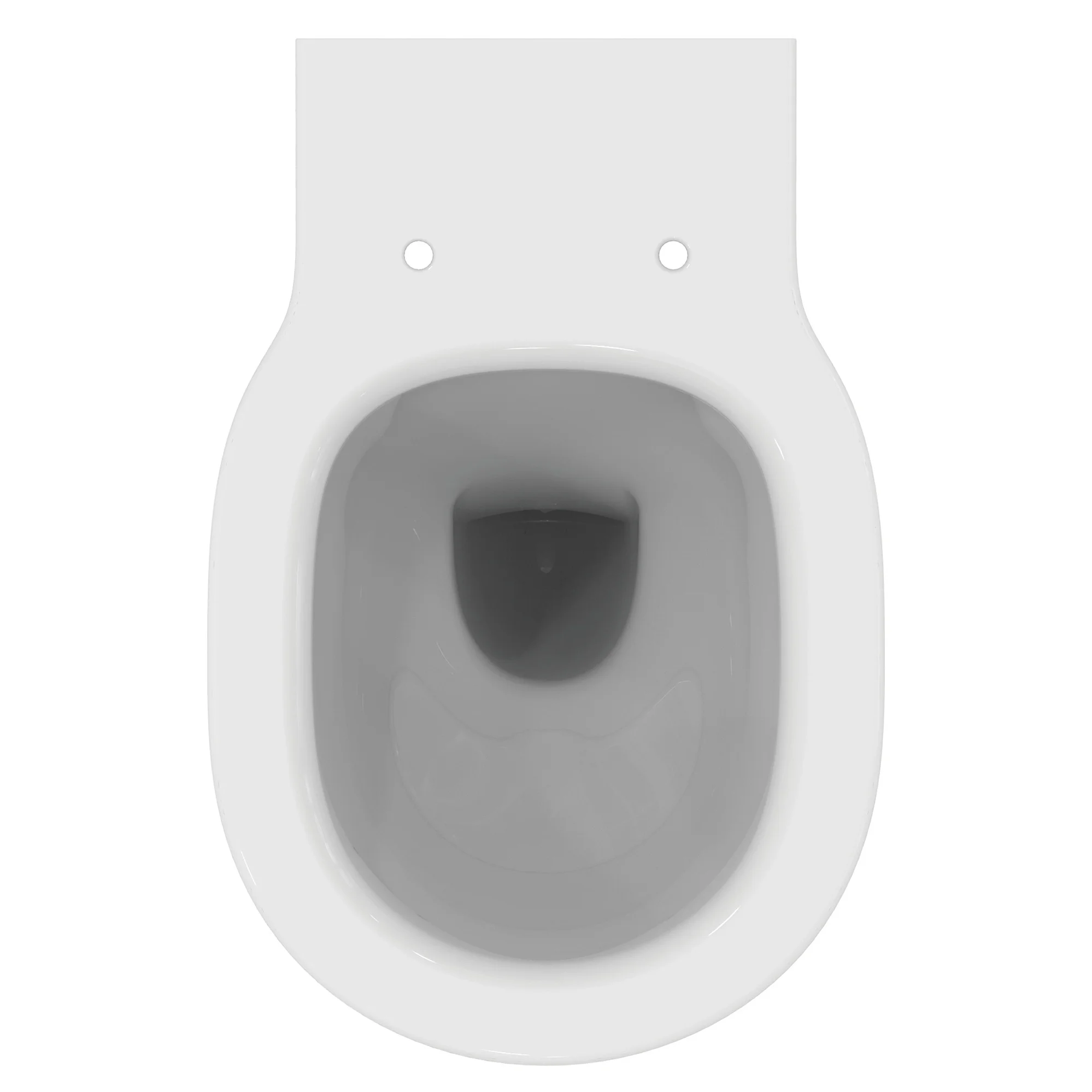

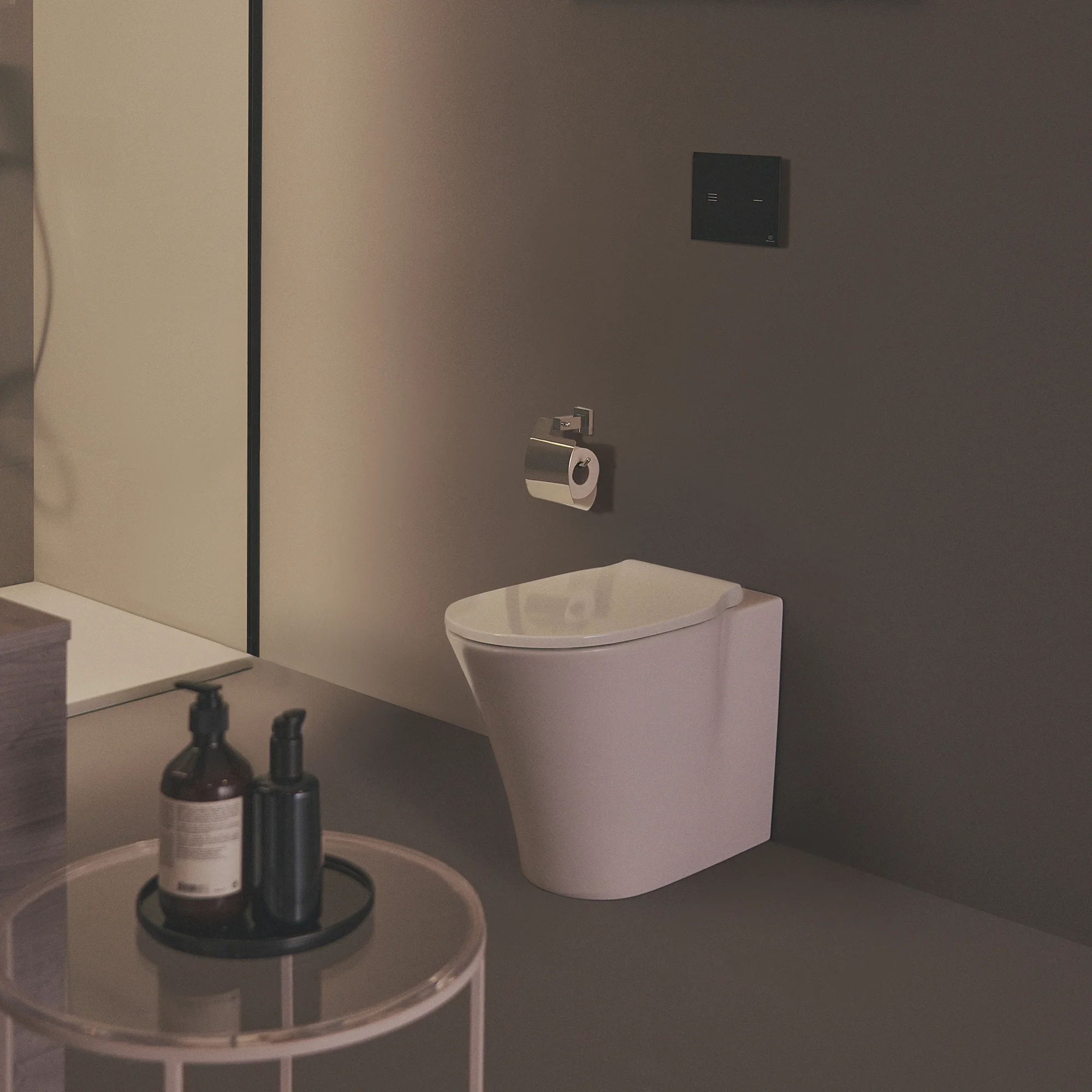

Ideal Standard Connect Air Washdown Back To Wall WC Pan with AquaBlade Technology - 365 x 550mm

Manufacturing Code of this Product: E143201
Water Efficient
It Comes in a White Finish
Size [mm]: 365 x 400mm [Width x Height]
Size [cm]: 36.5 x 40cm [Width x Height]
Projection: 550mm [55cm]
Weight: 25.1kg
Designer: Studio Levien
Shape: Rounded/Curved
Standards: WC Bowl to BS EN 997 & BS EN 33
WC Pan with Horizontal Outlet
Certificate Number: DoP = CL2, Standards = EN 997
WC Bowl Screwed to the Floor Using Concealed Brackets [Supplied]
The WC Bowl Should Not Be Installed with a Lever-Activated Cistern Fitted with a Syphon

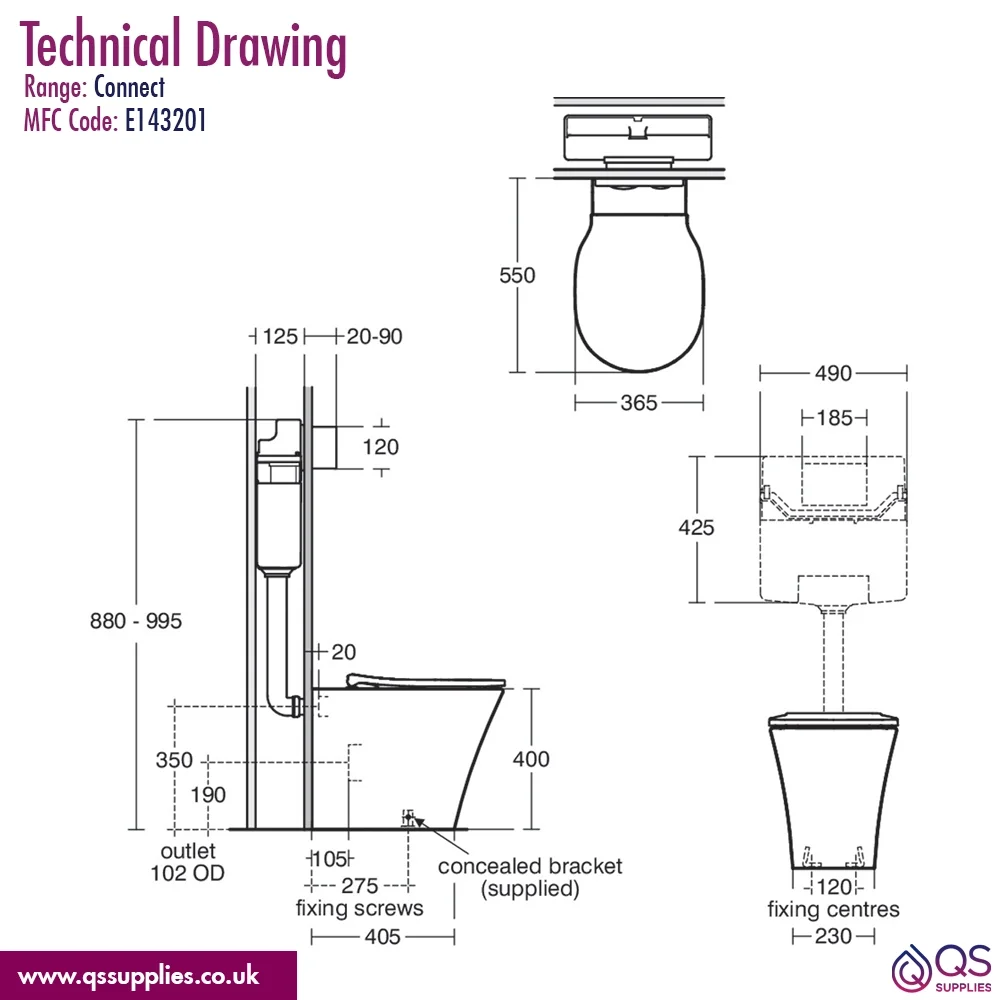

Refer to the Technical Diagram for Complete Technical Dimensions

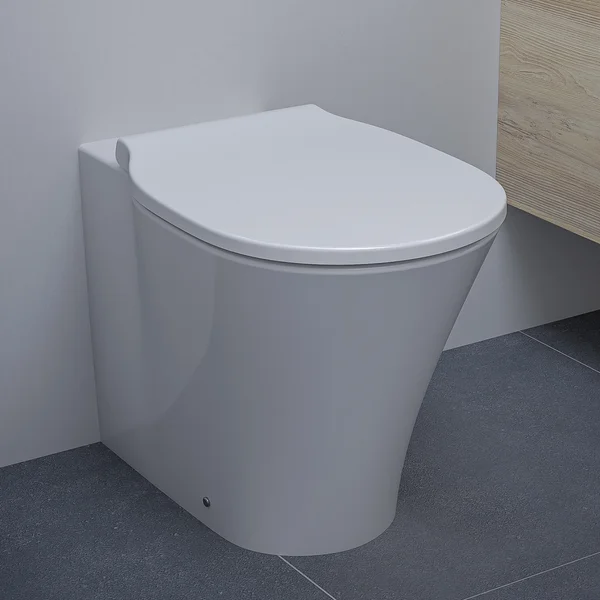

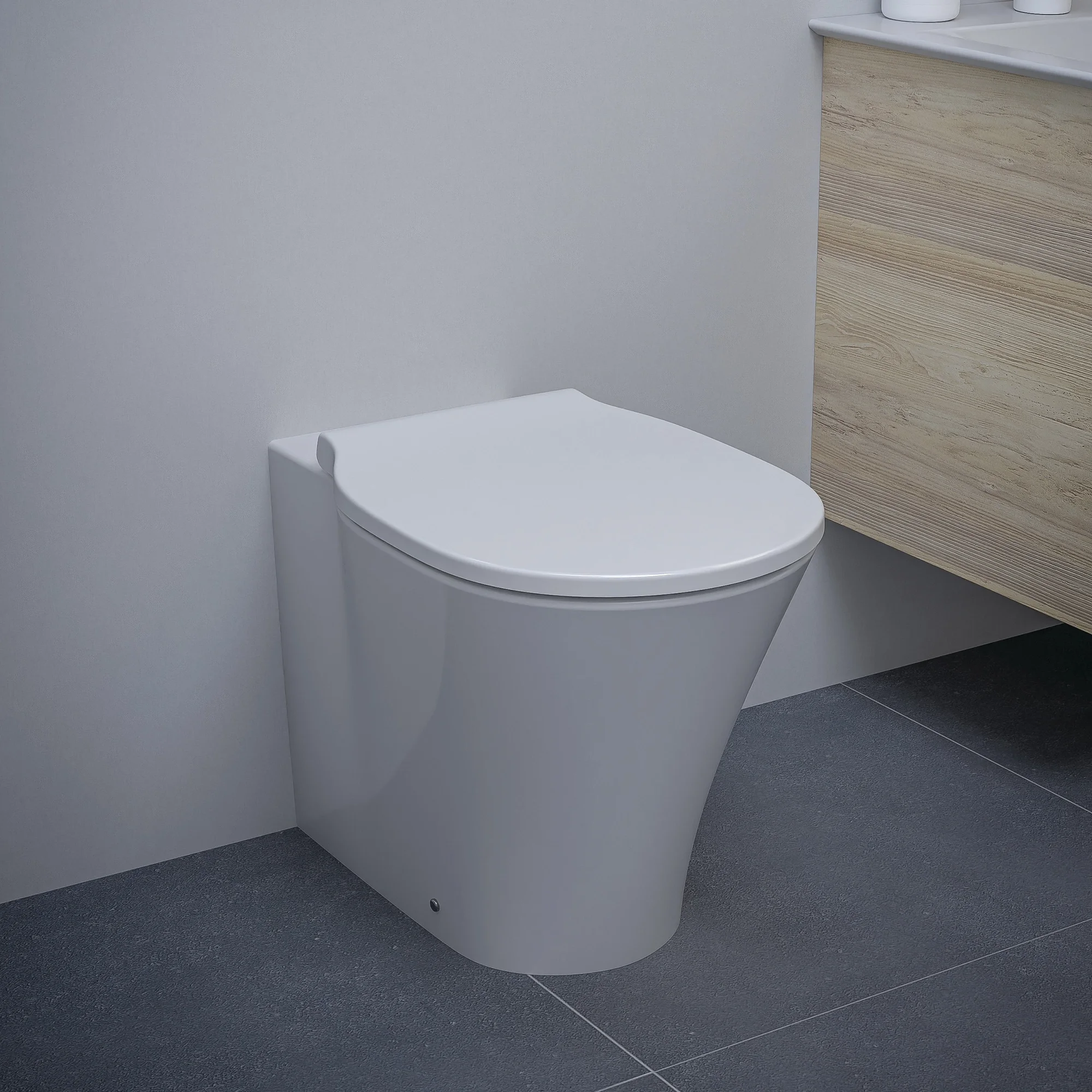

The Seat Shown in the Images is not Included
AQUABLADE® Flush Technology Features:
Simple, Clean Lines and Contemporary Styling, the Unpleasant, Overhanging Rim is Not Visible -- Only Smooth Curves are Visible
80% of the Consumers Prefer this Technology Over the Standard Box Rim and Rimless Toilet
Offers Superior Flush Performance, Every Time
Its Unique Design Helps Water Flow from the Top of the Bowl, Enabling 90% of the Area to be Rinsed Clean
Internal Channel Generates a Pressurised Cascade of Water That Flows Around the Bowl
2 Strong Jets Merge, as a Result, a Powerful Plume is Formed That drives Solid Matter Easily
Overtakes All Existing WCs When it Comes to Hygiene
Significant Areas of the Traditional Bowls are Left Unwashed, Particularly the Back Bowl
Ensures 100% of the Surface Area Below the Channel is Rinsed Clean
Bacteria Can Harbour Around the Shelf Area in Rimless Toilets, and Also, Water Can Splash Over the Edge of the Bowl, Resulting in Bacteria Particles Being Released Into the Air, Ensuring That the Bacteria are Completely Washed Away with No Splashing

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Connect Air
⤷ Colour
: White
⤷ Weight in kg
: 25.1
⤷ Warranty/Guarantee
: Lifetime
⤷ Material
: Vitreous China
⤷ Theme
: Modern
⤷ Installation Type
: Floor Standing
⤷ Water Saving
: Yes
⤷ Pan Width
: 365
⤷ Pan Height
: 400
⤷ Projection (Depth)
: 550

⤷ Outlet
: Horizontal
⤷ Configuration
: Bowl Only
⤷ Fixings included
: Yes
⤷ Compliance/Approvals/Standard
: BS EN 997 & BS EN 33
⤷ Barcode
: 5017830529491
⤷ Bowl Shape
: Oval
⤷ Product Type
: Back to Wall WC
⤷ Base width
: 230
⤷ Base Depth (projection)
: 405
⤷ Base to centre of outlet
: 190

Add-Ons

Optional Cistern

The cistern is now available for your WC. Please note image shown is for illustration purpose only.

No Option Selected
OP-204240 - Prosys WC Cistern 120 Mech - R031767 + £137.41

Optional Toilet Seats

To match perfectly with Ideal Standard WC. Bring in this Toilet seat with Standard and Soft close hinges. Please note the image shown is for illustration purposes only.

No Option Selected
OP-60313 - Slow Close Slim Sandwich Style - E081101 + £236.63

Flush Plate

Flush Plate Please note: the image shown is for illustration purpose only.

No Option Selected
OP-244805 - Oleas M5 Mechanical Dual Flushplate + £51.72

Ideal Standard Connect Air Washdown Back To Wall WC Pan with AquaBlade Technology - 365 x 550mm

£356.40

RRP: ~~£446.00~~

Stock Availablity: 10 Working Days Approx

QS Supplies

6 Features Included In This Product Explained

Horizontal Outlet

When the pan has piping at the back, inside the wall, it is called a horizontal outlet toilet or pan. As the cisterns are concealed or placed against the wall, most plumbing is hidden out of sight.

Vitreous-China Material

Vitreous china is an innovative glass-based enamel coating applied to porcelain. This glazed coating makes the base material durable, denser, and very glossy. When ceramics are coated with vitreous enamel, the resulting product is called vitreous china. This enamel is created by applying heat to powdered glass.

BS EN 997 Standard

This standard specifies the constructional, performance requirements and test methods for close-coupled suites, one-piece and independent WC pans with integral traps used for personal hygiene made using vitreous china or stainless steel. Compliance with this standard aims to ensure reliability, performance and safety.

BS EN 33 Standard

BS EN 33 specifies requirements for the connecting dimensions of WC pans and related cisterns, irrespective of the materials they are made of. The focus of this standard is to ensure that the products are compatible and their assembly is correct, so they can be interchanged when needed and parts can also be replaced when needed.

Washdown Model

A washdown toilet uses the weight of the water and gravity to push out the toilet waste from the toilet bowl. The washdown toilet is designed with a short and wide trapway, so that waste can quickly enter the trapway using just the force of water from the tank. A washdown model includes a push-button flush and has a skirted design with a smaller water surface area and a short trapway and can easily handle heavy loads without getting clogged.

AQUABLADE FLUSH TECHNOLOGY

AquaBlade is an award-winning, patented flush technology. It offers a superior flushing action, even with low water volume. The AquaBlade system is an intelligent innovation in flushing that gives a cleaner, quieter flush, thanks to a more innovative design, to offer unmatched hygiene. Upon flushing, the system creates a wall of water that cascades from the top of the toilet bowl, along with two powerful plumes of water, for energising flushing action. The toilet is designed so that it flush bacteria away with a powerful flushing system without splashing.
