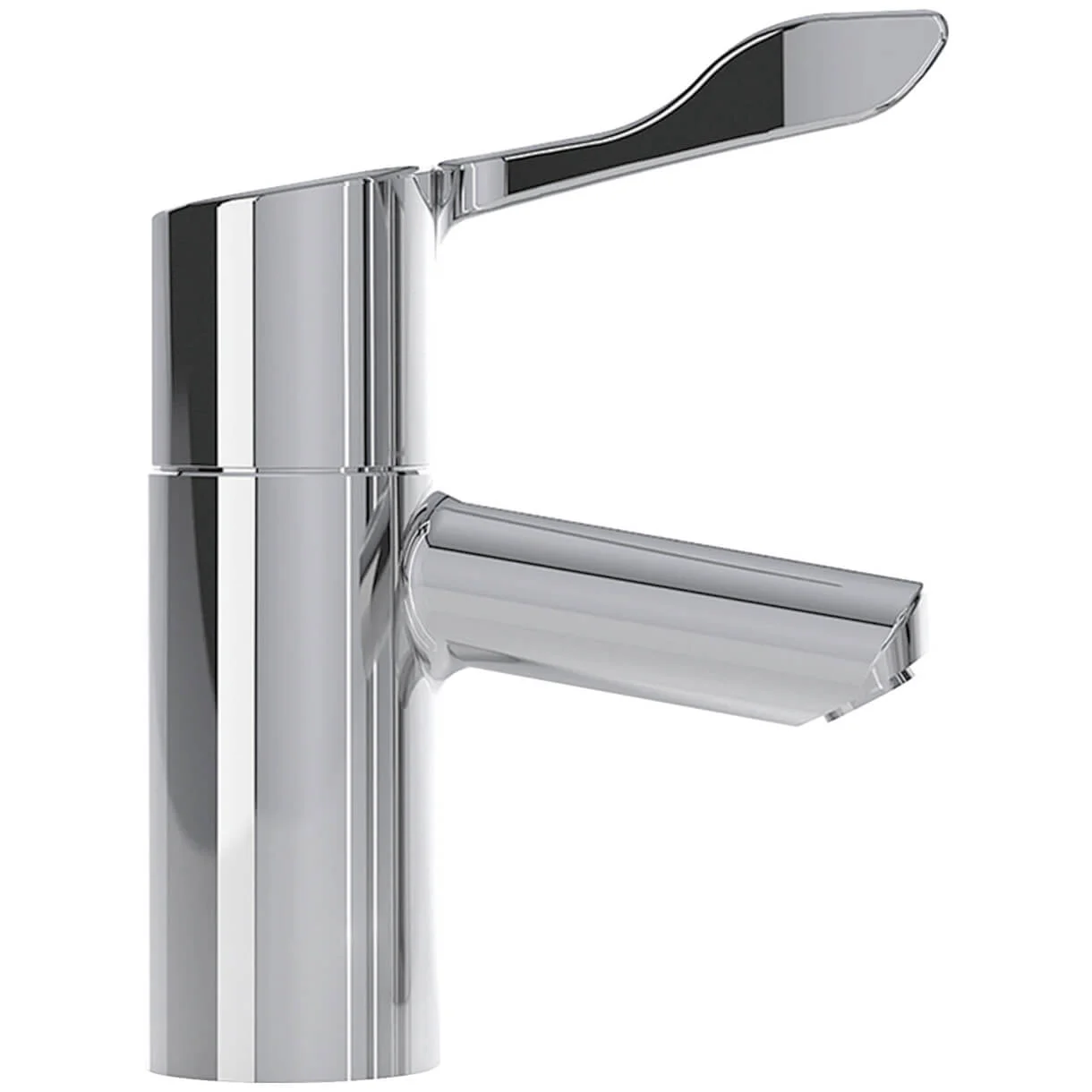

Twyford Sola Therostatic Chrome Basin Mixer Tap - Deck Mounted - Lever Handle

Twyford Sola Therostatic Chrome Basin Mixer Tap - Deck Mounted - Lever Handle.

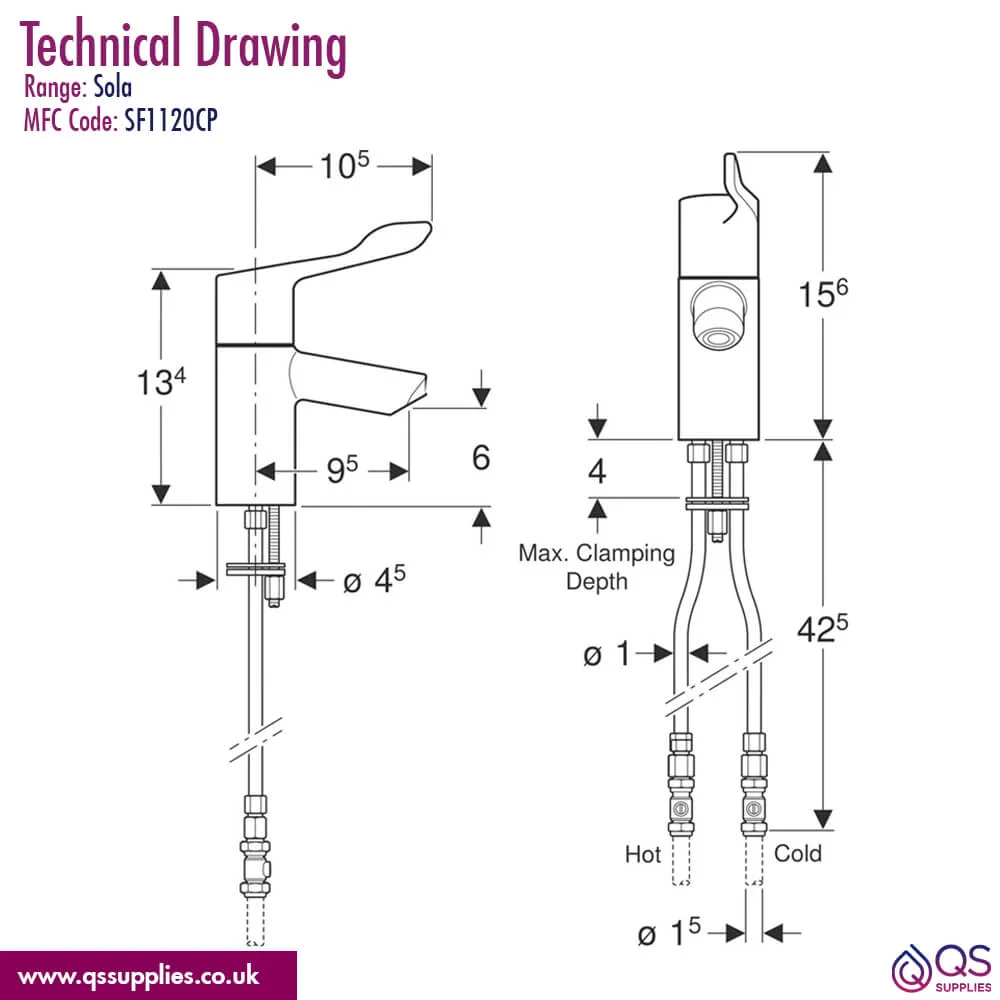

• Refer to the Technical Diagram for Complete Technical Dimensions
• Maintains a Stable Mixed Water Temperature Automatically Shutting Off If the Hot or Cold Supply Fails
• Ideal for Public, Semi-Public and Healthcare Washrooms where Safety, Hygiene and Reliability are Essential
• Key Features:
• Maintains a Stable Mixed Water Temperature, Automatically Shuts Off If Hot or Cold Supply Fails
• Factory-Calibrated to 41°C for User Protection; Adjustable to Suit Your Installation Requirements
• Integrated tap Aerator - Controls Flow for Smooth, Splash-Free Water Delivery and Helps Reduce Water Consumption
• Smooth, Hygienic Operation - Easy to Control Even for Users with Limited Dexterity
• Robust, Long-Lasting Construction and a Polished, Modern Look that’s Easy to Clean
• Delivers 3.8 L/min at 3 bar While Maintaining Comfort and Efficiency
• Supplied with 350mm Copper Tails, Integral Check Valves and Filters, and an Isolation Valve Kit for Quick Fitting and Future Servicing
• Safe, Durable & Easy to Install
• Certification – WRAS Approved, TMV3 Approved, BS 7942:2011
• Perfect For:
• Healthcare Facilities [NHS, Care Homes, Clinics]
• Schools and Nurseries
• Hotels & Commercial Washrooms
• Public and Semi-Public Restrooms Where User Safety is Critical
• Technical Specifications:
• Mounting: Deck-Mounted
• Dimensions: Ø46mm Body
• Base to Spout Height: 60mm [6cm]
• Size in [mm]: 127 x 156mm [Depth x Height]
• Size in [cm]: 12.7 x 15.6cm [Depth x Height]
• Centre of Inlet to Centre of Outlet: 95mm [9.5cm]
• Control: Single Lever with Thermostatic Mixer
• Body Material: Brass
• Max Hot Water Temp: 30°-50°C
• Suitable for Medium and High Water Pressure Systems
• Works on Minimum 0.5 bar to Maximum 5.0 bar Water Pressure
• Flow Rate: 3.8 L/min - 3 bar
• Connection: 350mm Copper Tails with Check Valves & Filters
• Installation Notes:
• Factory Pre-Set to 41°C - Can be Recalibrated On-Site to Suit System Conditions
• Simple Deck Mounting with Minimal Tools Required
• Pre-Fitted 350mm Copper Tails with Integral Check Valves and Filters for Quick Connection
• Hot Water Inlet On the Left / Cold On the Right [When Viewed from the Front]
• Integrated Safety Shut-Off Prevents Continuous Flow if Sensor is Obstructed
• Flush Pipework Before Fitting to Remove Debris and Protect the Thermostatic Cartridge
