Clearwater Elegance Traditional Mono Kitchen Mixer Tap, Pull Out Spray, ELR20CP

Clearwater Elegance Details

MFC: ELR20CP

Clearwater Elegance Traditional Mono Kitchen Mixer Tap with Detached Pull Out Spray - Ceramic Handles

Key Features

✔WRAS Approved
✔Quarter-Turn Operation
✔Features 360° Swivel Spout
✔Incorporates with a Twist & Spray Aerator
✔Paired with a Twin-Flow Side Rinse Spray for Added Flexibility
✔5-Year Guarantee from Manufacturer Against Manufacturing Defects

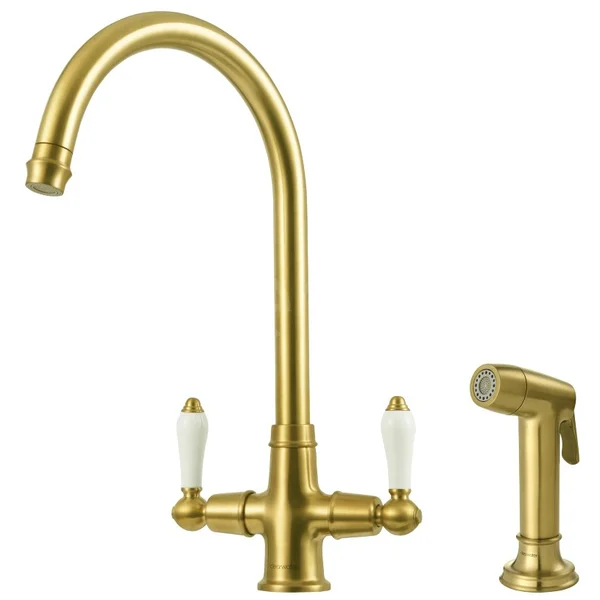

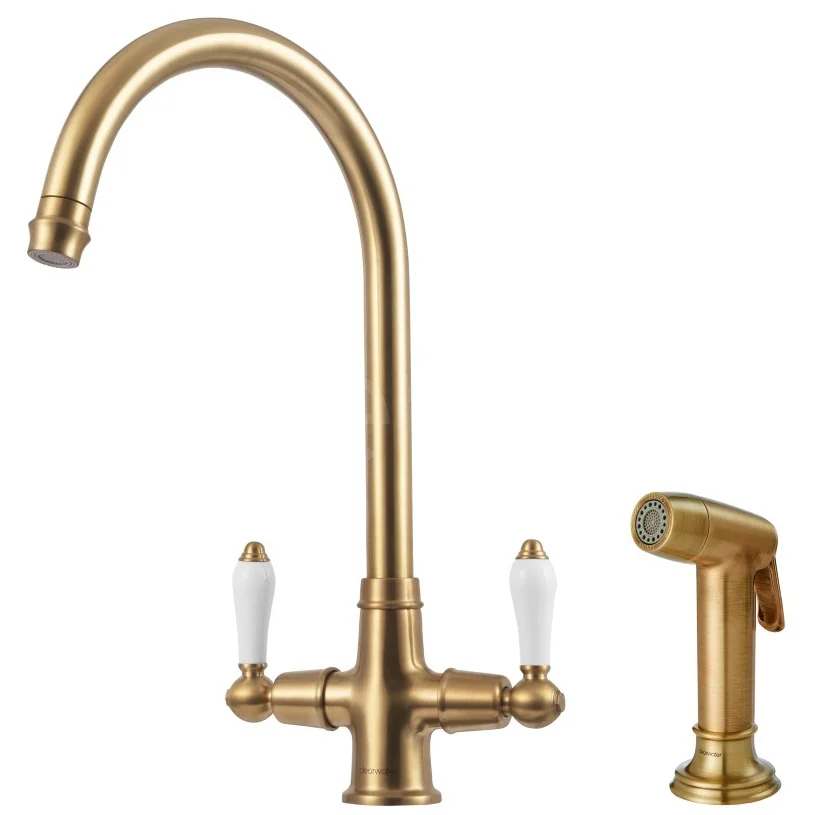

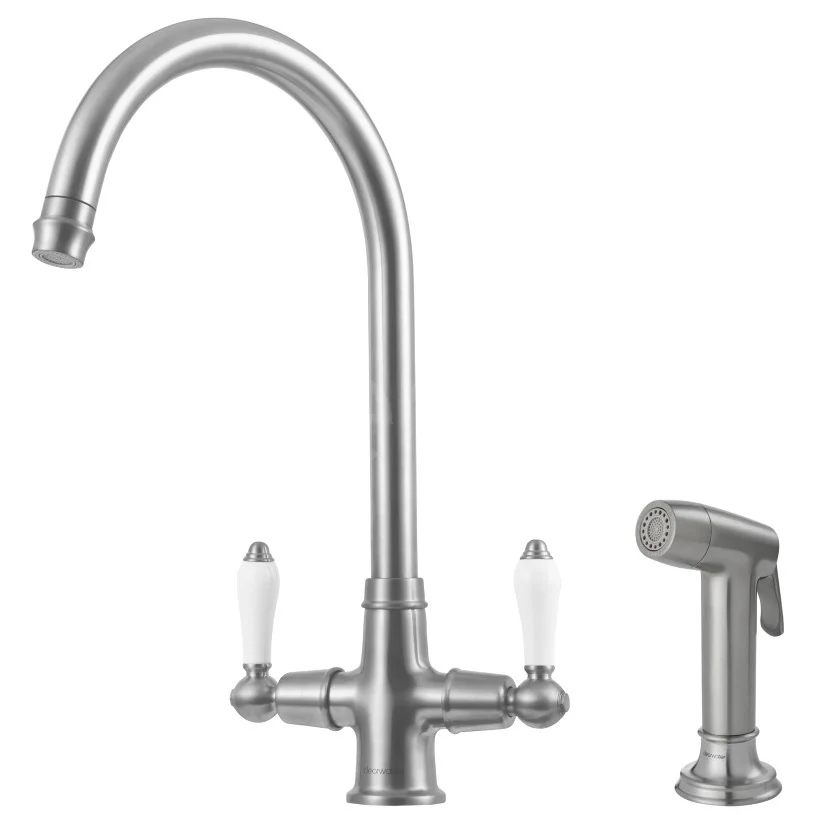

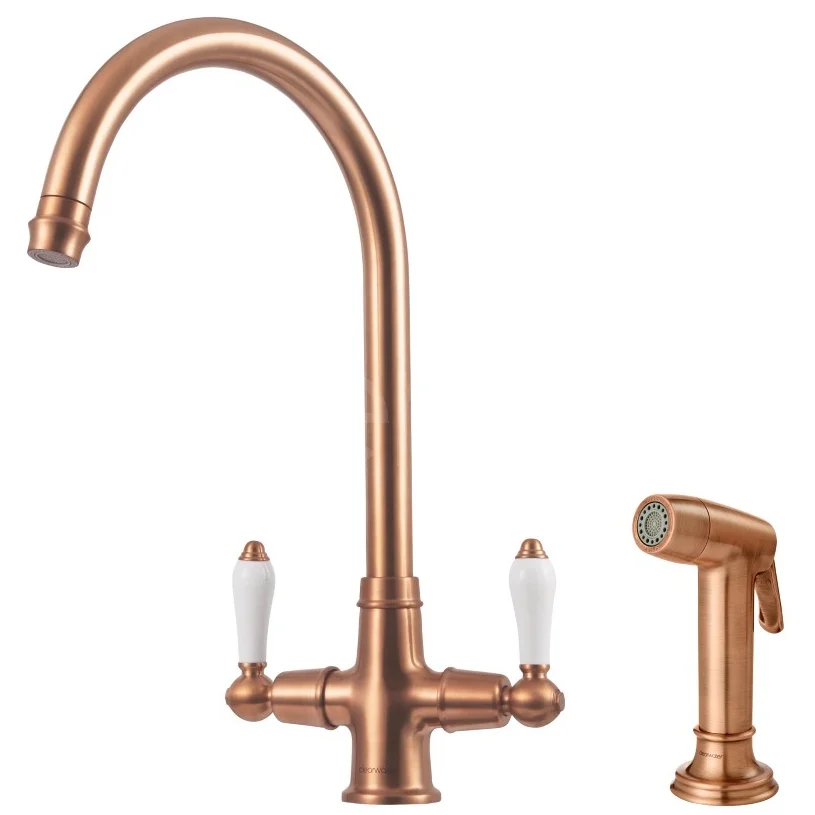

Choice of Finishes: Chrome, Brushed Nickel PVD, Brushed Copper PVD, Brushed Brass PVD, Brushed Bronze
Twin Ceramic Lever Handles for Separate Hot and Cold Control
Size [mm]: 247 x 379mm [Width x Depth x Height]
Size [cm]: 24.7 x 37.9cm [Width x Depth x Height]
Base to Spout: 256mm [25.6cm]
Centre of the Inlet to Centre of the Outlet: 212mm [21.2cm]
2 Spray Modes: Smooth Aerated Flow, Powerful Spray
Suitable for Low Water Pressure Systems
Requires a Minimum of 0.2 Bar to a Maximum of 2.0 Bar Water Pressure
Comes with Ceramic Disc Valves
Size of Detached Spray: [mm]: 76 x 152mm [Depth x Height]
Size of Detached Spray: [cm]: 7.6 x 15.2cm [Depth x Height]
Suitable for High Water Pressure Systems
Requires a Minimum of 0.7 Bar to a Maximum of 5.0 Bar Water Pressure
Featuring Elegant Ceramic Control Levers
Maximum Hot Water Supply Temperature: 70˚C
Recommended Hot Water Supply Temperature: 65˚C

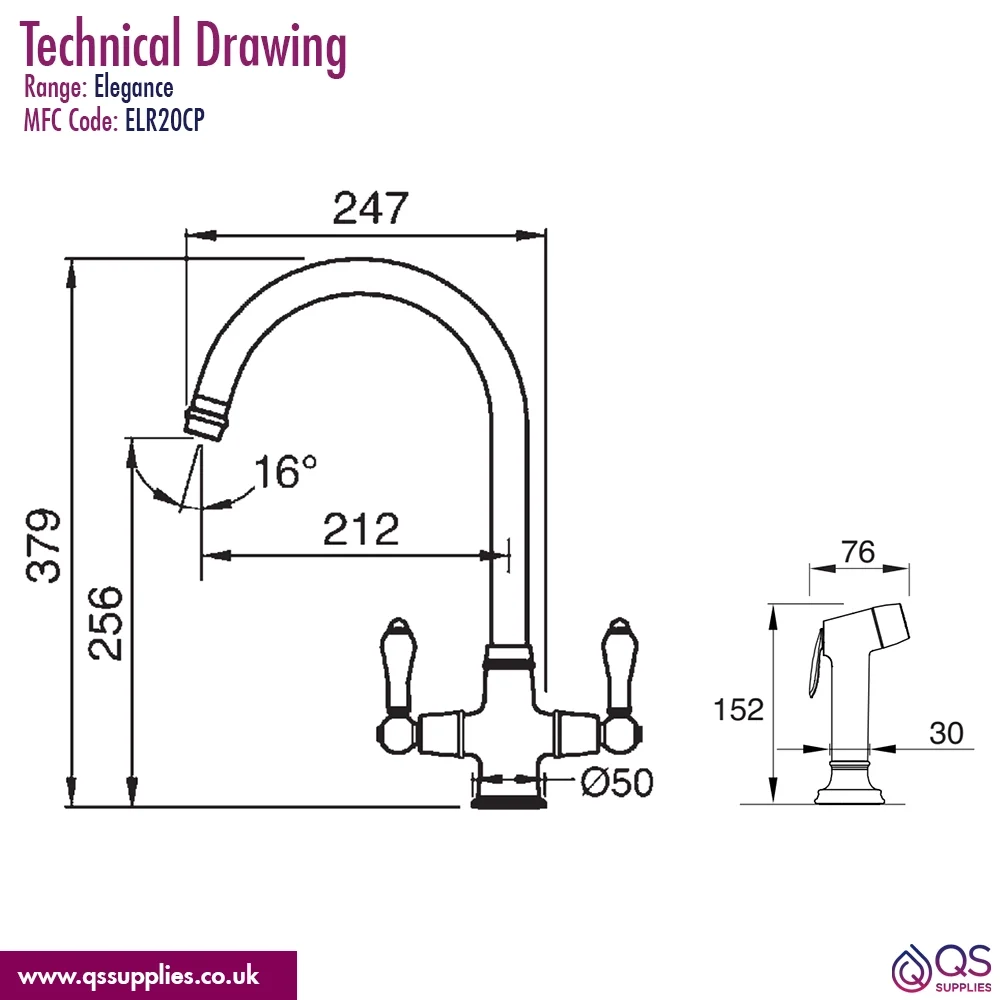

Refer to the Technical Diagram for Complete Technical Dimensions

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Elegance
⤷ Handle Position
: Left & Right
⤷ Tap Body Shape
: Round
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5 Year
⤷ Theme
: Traditional
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Spout type
: sw
⤷ Valve/Cartridge Type
: Ceramic Disc Valves
⤷ Spout Swivel
: 360°

⤷ Base To Spout
: 256
⤷ Spout Reach
: 212
⤷ Overall Height
: 379
⤷ Depth
: 247
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Handle Style
: Lever
⤷ WRAS Approved
: Yes
⤷ Pull Out Spray
: Included
⤷ Barcode
: 5057199882103
⤷ Product Type
: Kitchen Tap

Additional Info & Downloads

This item can also be found in:

Clearwater Elegance Traditional Mono Kitchen Mixer Tap with Detached Pull Out Spray - Ceramic Handles

£279.60

RRP: ~~£350.00~~

STOCK AVAILABLITY: 5-7 Working Days Approx

QS Supplies

6 Features Included In This Product Explained

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Monobloc Tap

A Monobloc/Mono tap has a single control lever that adjusts the mix of hot and cold water supplies and the flow rate. A mixer tap has two separate controls for hot and cold water. Both work equally well, and your choice will come down to aesthetics and how many tap holes your sink has. Monobloc taps are a neater solution and more modern in appearance.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Quarter Turn

Operating these taps is almost effortless; it can be turned on and off by rotating the lever at 90 degrees. These taps have such low friction that they are perfect for people with arthritis, weak grip, the elderly and the young.

Swivel-Spout

The respective apparatus is engineered to move sideways or at certain angles, which helps the spout cover a greater area than would be possible in a fixed position.
