Clearwater Elegance Bridge Kitchen Mixer Tap, Detached Pull-Out Spray, ELBR10CP

Clearwater Elegance Details

MFC: ELBR10CP

Clearwater Elegance Traditional Bridge Kitchen Mixer Tap with Detached Pull-Out Spray - Ceramic Handles

Key Features

✔WRAS Approved
✔Quarter-Turn Operation
✔Features 360° Swivel Spout
✔Incorporates with a Twist & Spray Aerator
✔Paired with a Twin-Flow Side Rinse Spray for Added Flexibility
✔5-Year Guarantee from Manufacturer Against Manufacturing Defects

Choice of Finishes: Chrome, Brushed Nickel PVD, Brushed Copper PVD, Brushed Brass PVD, Brushed Bronze
Elegant Ceramic Lever Handles and a Tall Swan-Neck Spout
Size [mm]: 230-280 x 247 x 395mm [Width x Depth x Height]
Size [cm]: 23-28 x 24.7 x 39.5cm [Width x Depth x Height]
Base to Spout: 272mm [27.2cm]
Centre of the Inlet to Centre of the Outlet: 212mm [21.2cm]
Inlet Centre: 130mm - 230mm [13cm - 23cm]
Size of Detached Spray: [mm]: 76 x 152mm [Depth x Height]
Size of Detached Spray: [cm]: 7.6 x 15.2cm [Depth x Height]
Comes with Ceramic Disc Valves
Featuring Elegant Ceramic Control Levers
2 Spray Modes: Smooth Aerated Flow, Powerful Spray
Maximum Hot Water Supply Temperature: 70˚C
Recommended Hot Water Supply Temperature: 65˚C
Suitable for High Water Pressure Systems
Requires a Minimum of 0.7 Bar to a Maximum of 5.0 Bar Water Pressure

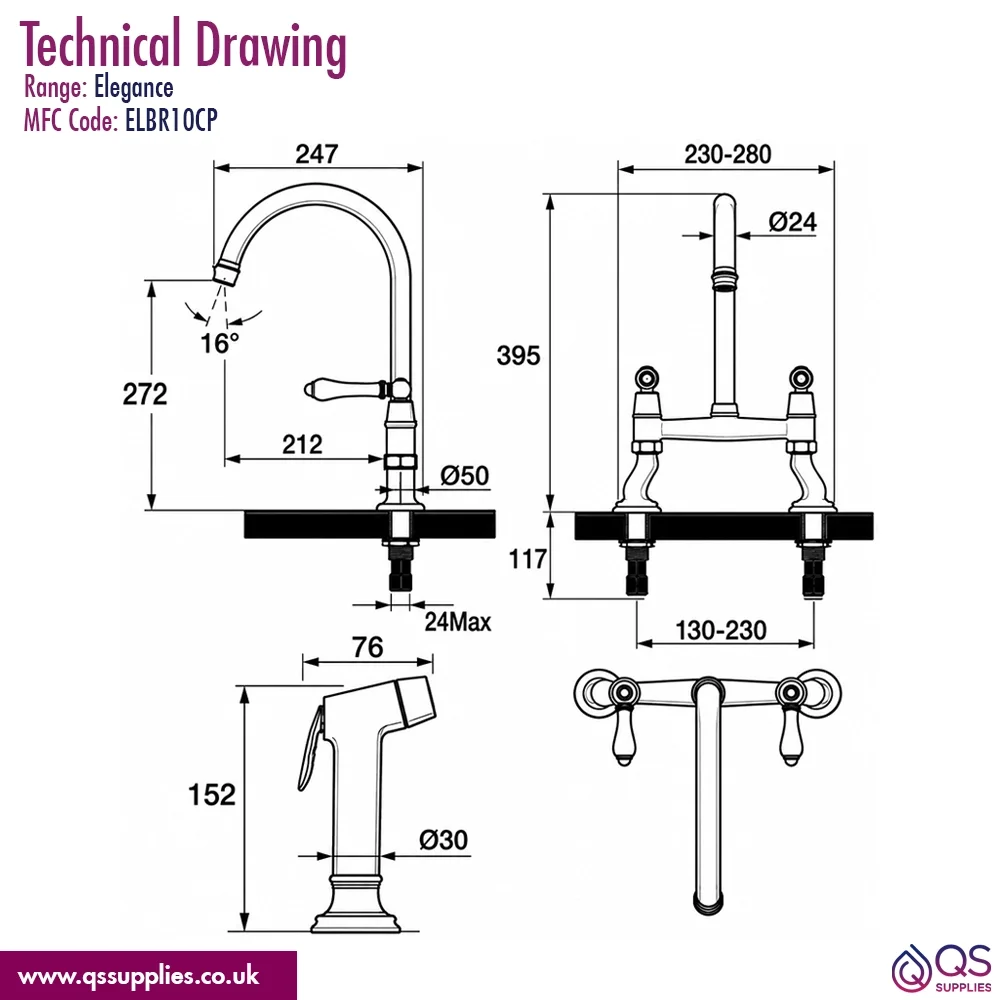

Refer to the Technical Diagram for Complete Technical Dimensions

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Elegance
⤷ Handle Position
: Left & Right
⤷ Tap Body Shape
: Round
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5 Year
⤷ Theme
: Traditional
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 2
⤷ Spout type
: Swivel
⤷ Valve/Cartridge Type
: Ceramic Disc
⤷ Spout Swivel
: 360°
⤷ Base To Spout
: 272

⤷ Spout Reach
: 212
⤷ Inlet Centres
: 130-230
⤷ Overall Height
: 395
⤷ Width
: 230-280
⤷ Depth
: 247
⤷ Minimum Operating Pressure (Bar)
: 0.7
⤷ Handle Style
: Ceramic Lever
⤷ WRAS Approved
: Yes
⤷ Pull Out Spray
: Yes
⤷ Barcode
: 5057199882059
⤷ Product Type
: Kitchen Mixer Tap

Additional Info & Downloads

This item can also be found in:

Clearwater Elegance Traditional Bridge Kitchen Mixer Tap with Detached Pull-Out Spray - Ceramic Handles

£296.40

RRP: ~~£371.00~~

STOCK AVAILABLITY: 5-7 Working Days Approx

QS Supplies

5 Features Included In This Product Explained

Swivel-Spout

The respective apparatus is engineered to move sideways or at certain angles, which helps the spout cover a greater area than would be possible in a fixed position.

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Quarter Turn

Operating these taps is almost effortless; it can be turned on and off by rotating the lever at 90 degrees. These taps have such low friction that they are perfect for people with arthritis, weak grip, the elderly and the young.

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...
