Deva Grasmere Matt Black Thermostatic Bar Valve with Diverter & Riser Kit, GTSDEFBK

Deva Grasmere Details

MFC: GTSDEFBK

Deva Grasmere Matt Black Thermostatic Bar Shower Valve with Diverter and Rigid Riser Kit.

Manufacturing Code of this Product: GTSDEFBK
It Comes in a Matt Black Finish
Includes Fast Fit Valve Connectors for Quick & Easy Installation
Operation: Separate Flow and Temperature Controls
Riser Height Can be Adjusted to Suit Your Bathroom
Double Interlocked 1500mm Hose
Suitable for Both Low and High Water Pressure Systems
Requires a Minimum of 0.3 Bar and a Maximum of 5.0 Bar of Water Pressure
Valve Type: Thermostatic
Inlet Connections: 15mm Compression
Rail Height: 835-1205mm [83.5-120.5cm]
Width of Valve: 272mm [27.2cm]
Arm Projection: 330mm [33cm]
Showerhead Size: Ø200mm [20cm]
You Can Swiftly Divert the Flow Between the Fixed Overhead Drencher and the Practical 3 Mode Handset
This Clever Thermostatic Mixer Shower Allows You to Control Water Temperature and Maintain it Consistently, Avoiding any Frustrating Fluctuations

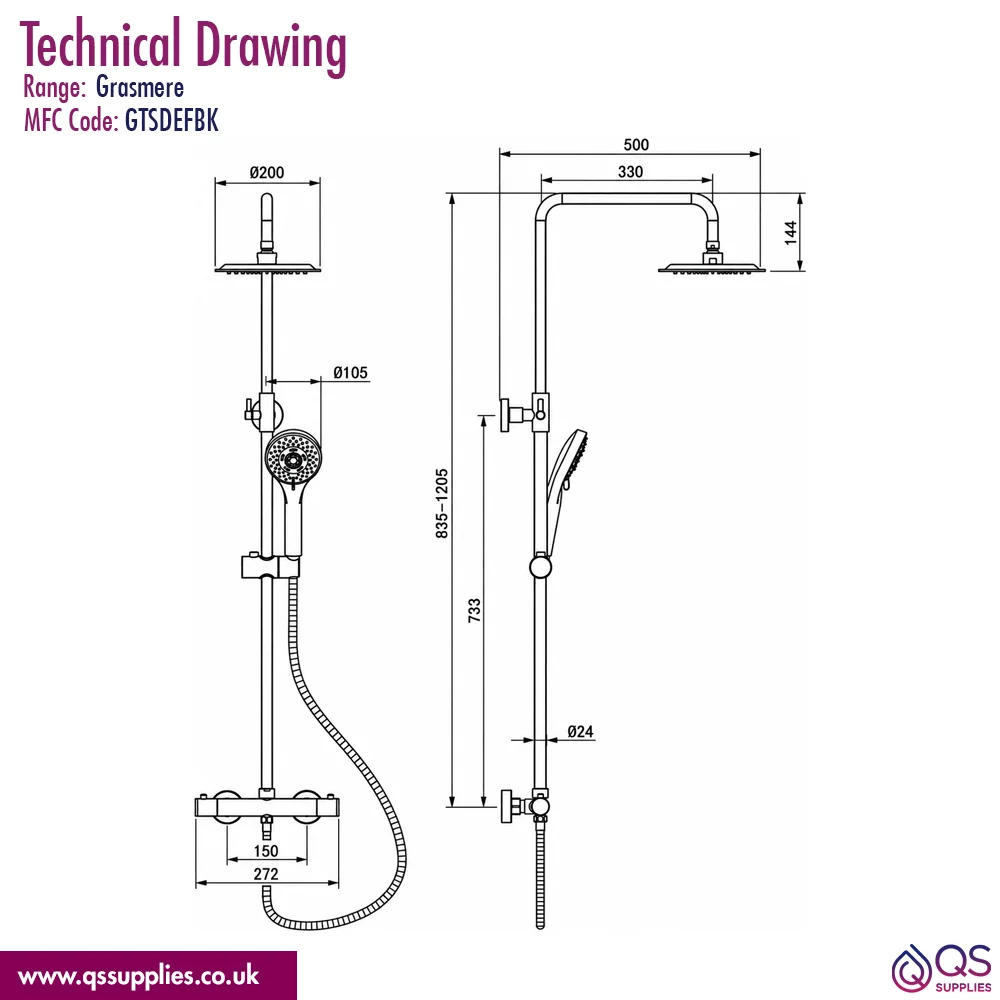

Refer to the Technical Drawing for Size Details
Download the Installation Instructions PDF Files from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Matt Black
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Brass, ABS
⤷ Theme
: Modern
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Thermostatic
⤷ Inlet Centres
: 150
⤷ Inlet Connections
: 15mm Compression
⤷ Minimum Operating Pressure (Bar)
: 0.3
⤷ Hose Included
: Yes
⤷ Hose Length
: 1500
⤷ Temperature Control
: Yes
⤷ Diverter Included
: Yes
⤷ Compliance/Approvals/Standard
: WRAS

⤷ Product Type
: Shower Set
⤷ Plumbing System Compatibility
: Yes
⤷ Showerhead Finish
: Matt Black
⤷ Hose Type
: Double Interlocked
⤷ Riser Rail & Kit Finish
: Matt Black
⤷ Numbered temperature control
: 38°C
⤷ Handset Included
: Yes
⤷ Spray Patterns (Shower Handset)
: 3
⤷ Spray Patterns (Shower Head)
: 1
⤷ Shower Head Included
: Yes
⤷ Shower Head Size
: Ø200
⤷ Rail Length
: 835-1205
⤷ Diverter Type
: Integral

Additional Info & Downloads

Download the Installation Instruction Pdf File

This item can also be found in:

Thermostatic Mixer Showers

Deva Grasmere Matt Black Thermostatic Bar Shower Valve with Diverter and Rigid Riser Kit

£206.66

RRP: ~~£592.28~~

Stock Availablity: 3 Working Days Approx

QS Supplies

7 Features Included In This Product Explained

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Diverter

A diverter, specifically in bath-shower combos, redirects the water flow from the bathtub spout to the showerhead. You can activate it using the nozzle in the bath shower mixer tap.
Read more...

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

Easy Fit Installation

The product is designed for fast and easy installation.

ABS Plastic

ABS, or Acrylonitrile butadiene styrene, is a thermoplastic polymer used to manufacture many non-food products. It is inexpensive and can be easily shaped and machined. It also features high strength, stiffness, increased chemical and temperature resistance, electrical insulation and a glossy look.

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.
